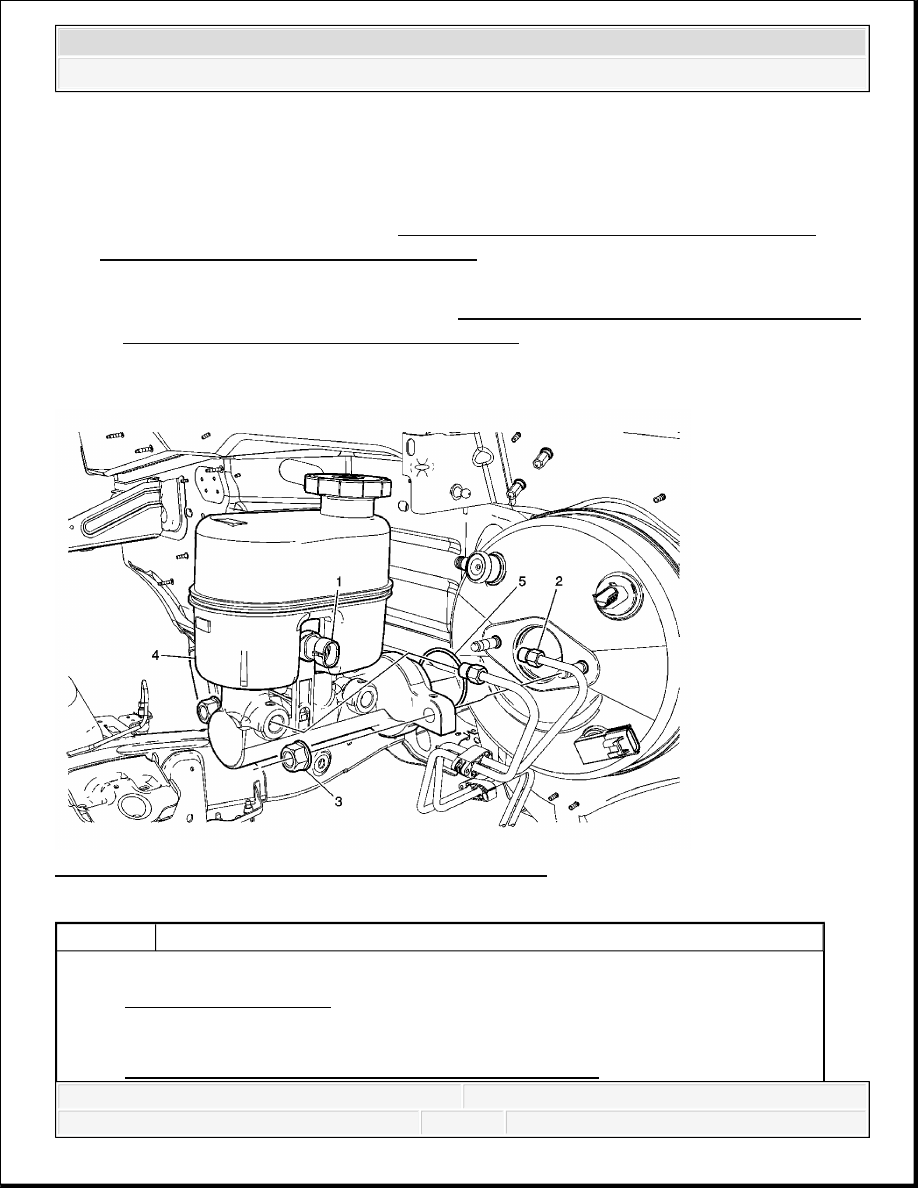

8. Place the brake fluid level sensor into the reservoir, press into place to secure the sensor retaining tabs. 9. Remove the master cylinder from the vice. 10. Install the master cylinder. Refer to Master Cylinder Replacement (JD9, JF3, JF7) or Master Cylinder Replacement (JH6, JH7). 11. Release the park brake. 12. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual). MASTER CYLINDER REPLACEMENT (JD9, JF3, JF7) Fig. 12: Master Cylinder Replacement (JD9, JF3, JF7) Callout Component Name CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice .
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
MASTER CYLINDER REPLACEMENT (JH6, JH7) Preliminary Procedures 1. With the engine OFF, apply the brake pedal several times until the brake pedal becomes firm to deplete the vacuum brake booster vacuum reserve. 2. Using a suitable tool, remove the brake fluid from the brake master cylinder reservoir. 3. Discard the brake fluid into an approved container. 1 Master Cylinder Fluid Level Sensor Electrical Connector 2 Brake Pipe Fitting (Qty: 2) Procedure 1. Remove any dirt or debris from the brake pipe fitting. 2. Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten: 25 N.m (18 lb ft) NOTE: Refer to Fastener Notice . 3 Brake Master Cylinder Nut (Qty: 2) Tighten: 33 N.m (24 lb ft) 4 Brake Master Cylinder Assembly 5 Brake Master Cylinder to Vacuum Booster Seal Procedure 1. Inspect the brake master cylinder to vacuum booster seal for damage and replace if necessary. 2. Ensure the brake master cylinder to vacuum booster seal is properly seated against the base of the brake master cylinder. Do not place the brake master cylinder to vacuum booster seal in the 3. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual).
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

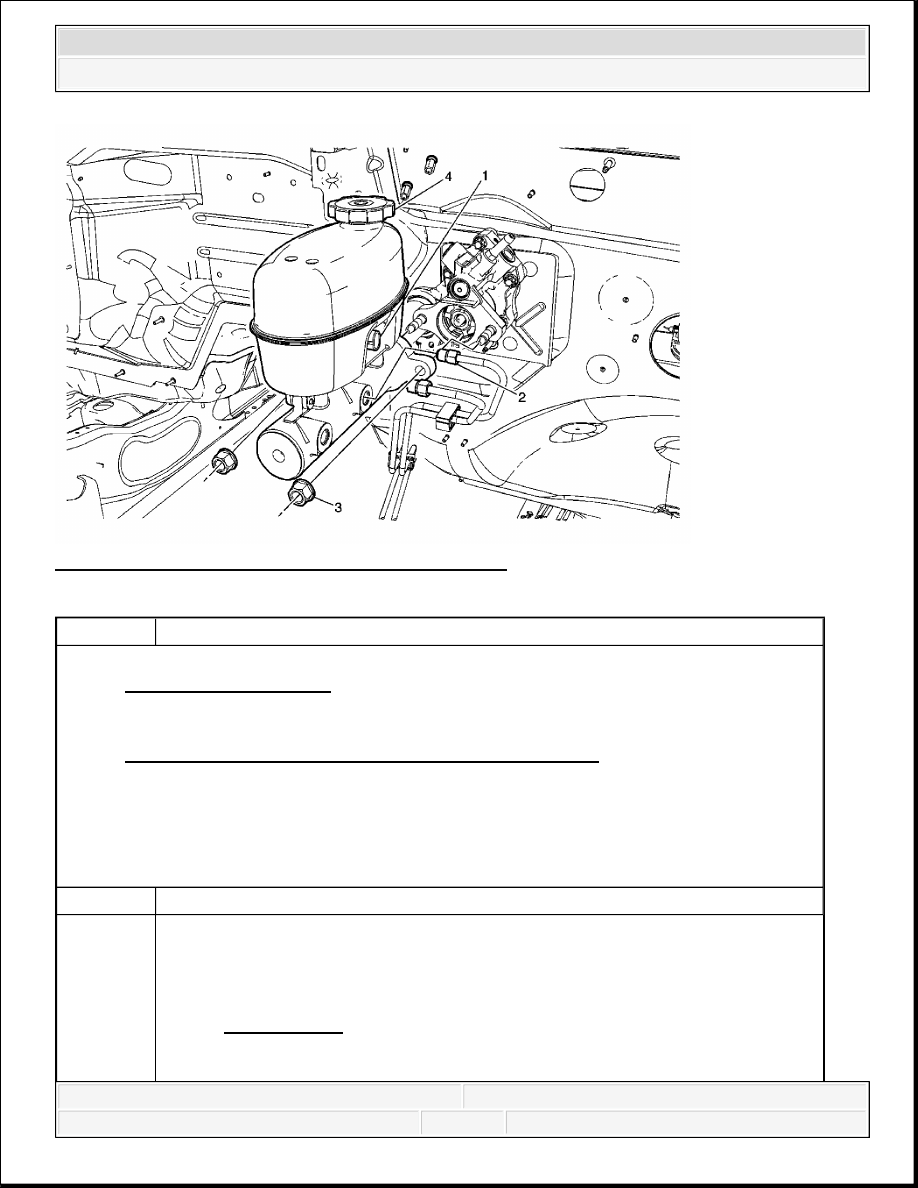

Fig. 13: Master Cylinder Replacement (JH6, JH7) Callout Component Name Preliminary Procedures 1. Using a suitable tool, remove the brake fluid from the brake master cylinder reservoir. 2. Discard the brake fluid into an approved container. CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice . 1 Master Cylinder Fluid Level Sensor Electrical Connector 2 Brake Pipe Fitting (Qty: 2) Procedure NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
MASTER CYLINDER BENCH BLEEDING 1. Remove any dirt or debris from the brake pipe fitting. 2. Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten: 25 N.m (18 lb ft) 3 Brake Master Cylinder Nut (Qty: 2) Tighten: 33 N.m (24 lb ft) 4 Brake Master Cylinder Assembly Procedure 1. Remove and discard the push-on nuts on the master cylinder mounting studs, if equipped. 2. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual). CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components NOTE: When adding fluid to the brake master cylinder reservoir, use only
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
