Chevrolet Silverado / GMC Sierra. Manual - part 2314
Fig. 11: A/C Discharge & Suction Hoses (LB7)
Courtesy of GENERAL MOTORS CORP.
6. Remove the discharge hose bolt (2) from the A/C compressor (3).
7. Remove the discharge hose (1) from the A/C compressor (3).
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 12: View Of A/C Suction Hose (LB7)
Courtesy of GENERAL MOTORS CORP.
8. Remove the suction hose bolt (2) from the A/C compressor (3).
9. Remove the suction hose (1) from the A/C compressor (3).
10. Discard the sealing washers. Cap all of the openings.
11. Disconnect the electrical connections.
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

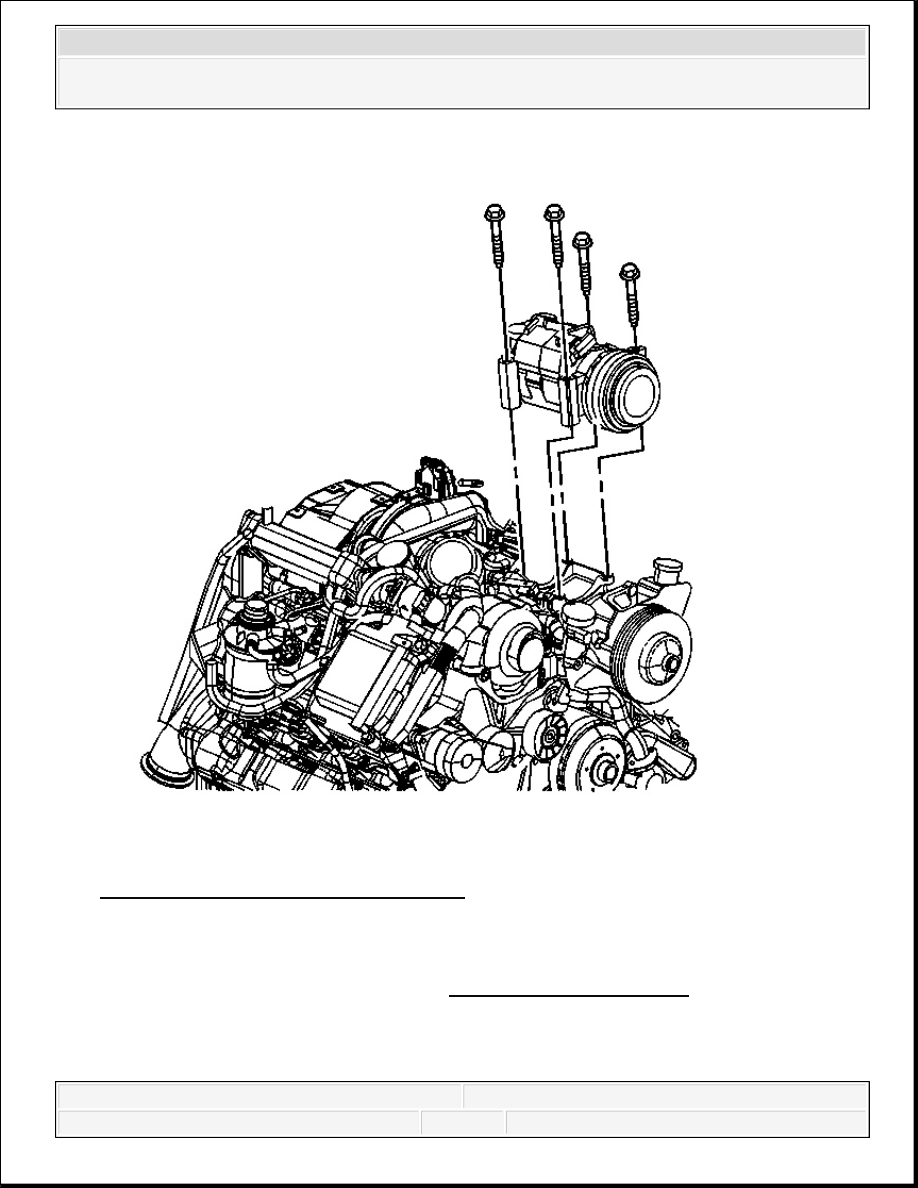

Fig. 13: View Of A/C Compressor (LB7)
Courtesy of GENERAL MOTORS CORP.
12. Remove the A/C compressor mounting bolts.
13. If replacing the A/C compressor. Refer to Compressor Oil Balancing.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 14: View Of A/C Compressor (LB7)
Courtesy of GENERAL MOTORS CORP.
1. Remove the caps or tape from the hose and line ends.
2. Install the A/C compressor.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
