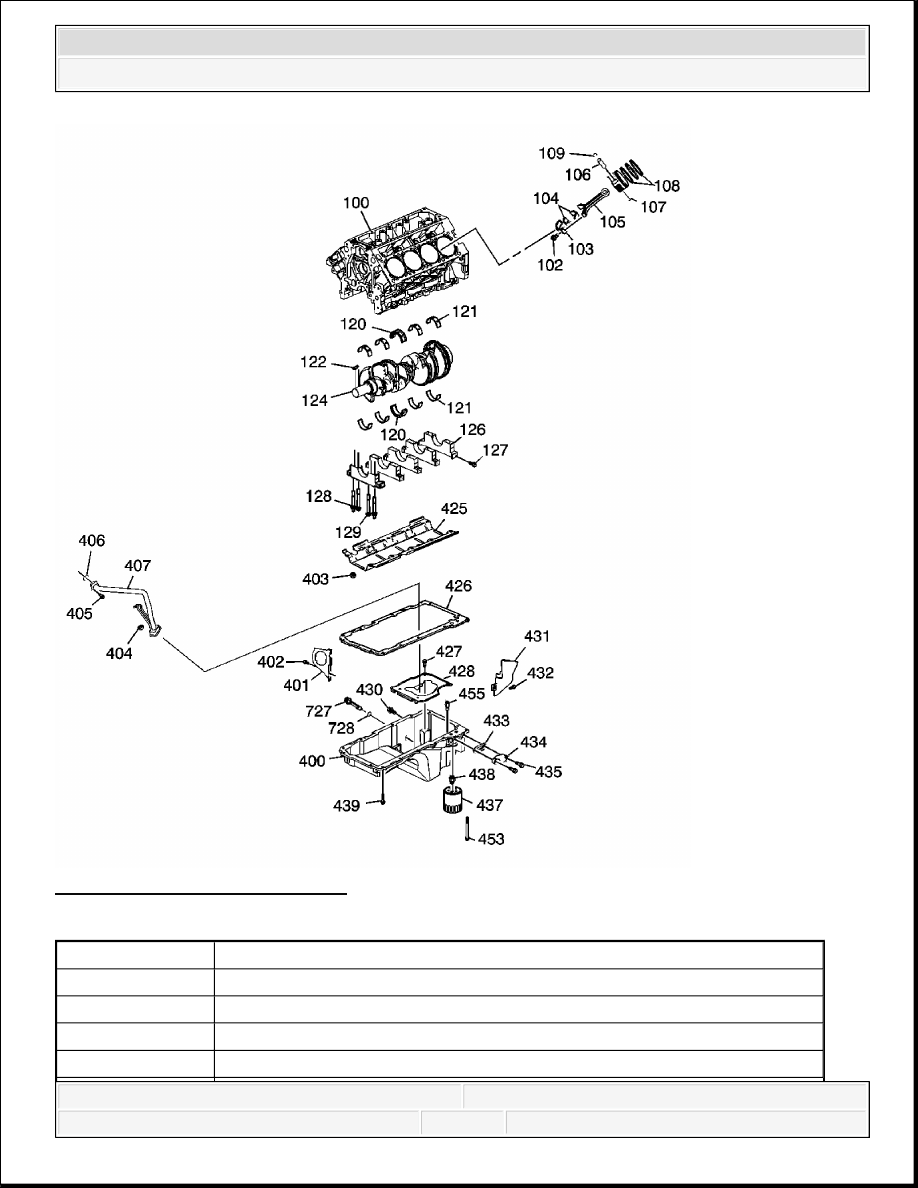

Fig. 11: Lower Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
100
Engine Block
102
Connecting Rod Bolt
103
Connecting Rod Cap
104
Connecting Rod Bearing
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
105
Connecting Rod
106
Piston Pin
107
Piston
108
Piston Ring Set
109
Piston Pin Retainer
120
Crankshaft Thrust Bearing
120
Crankshaft Thrust Bearing
121
Crankshaft Bearing
121
Crankshaft Bearing
122
Crankshaft Balancer Key
124
Crankshaft
126
Crankshaft Bearing Cap
127
Crankshaft Bearing Cap Bolt - M8
128
Crankshaft Bearing Cap Stud - M10
129
Crankshaft Bearing Cap Bolt - M10
400
Oil Pan
401
Oil Pan Closeout Cover
402
Oil Pan Closeout Cover Bolt
403
Crankshaft Oil Deflector Nut
404
Oil Pump Suction Pipe Nut
405
Oil Pump Suction Pipe Bolt
406
Oil Pump O-Ring Seal
407
Oil Pump Suction Pipe
425
Crankshaft Oil Deflector
426
Oil Pan Gasket
427
Oil Pan Baffle Bolt
428
Oil Pan Baffle
430
Oil Pan Drain Plug
431
Oil Pan Closeout Cover
432
Oil Pan Closeout Cover Bolt
433
Oil Pan Cover Gasket
434
Oil Pan Cover
435
Oil Pan Cover Bolt
437
Oil Filter
438
Oil Filter Fitting
439
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

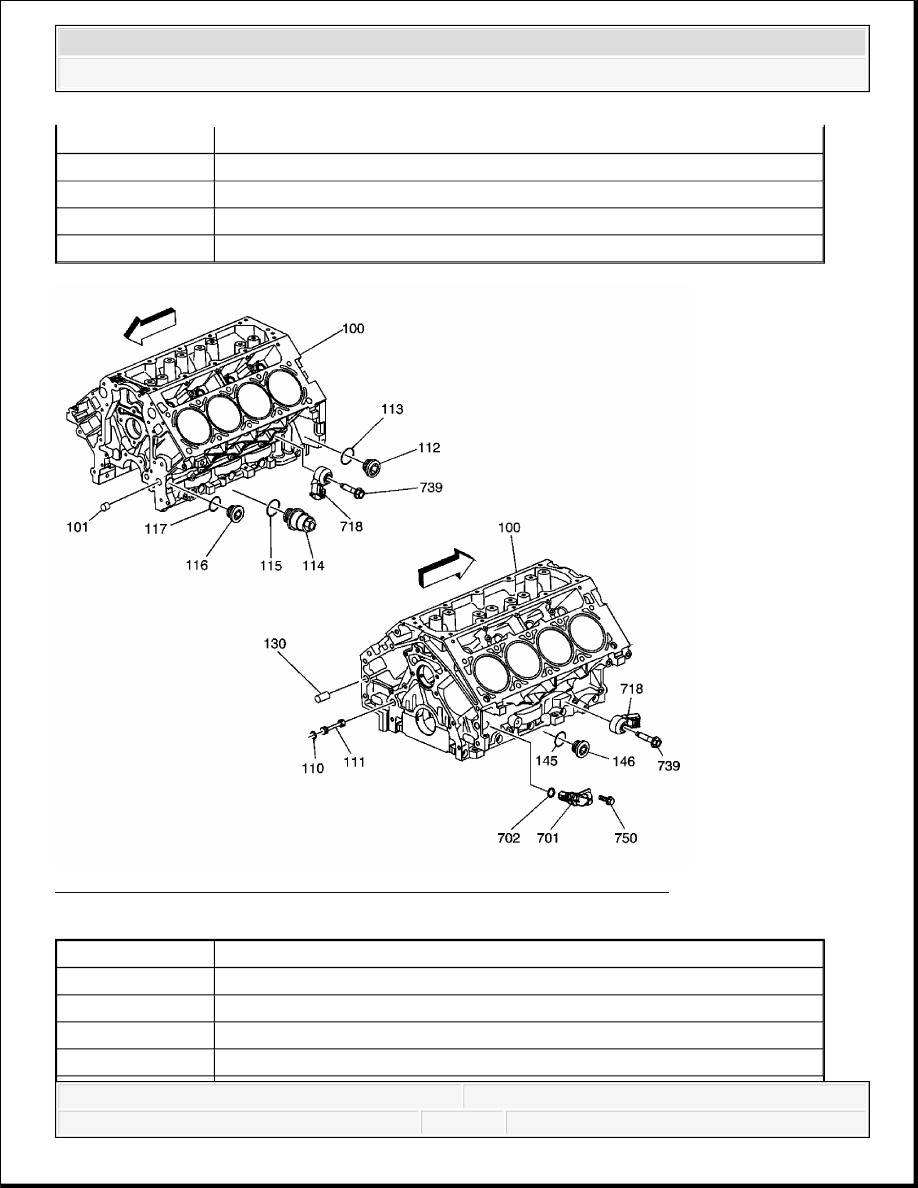

Fig. 12: Exploded View Of Engine Block Plugs/Sensors Components
Courtesy of GENERAL MOTORS CORP.
Oil Pan Bolt
453
Oil Pan Bolt
455
Active Fuel Management Oil Pressure Relief Valve
727
Engine Oil Level Indicator Switch
728
O-Ring
Callout
Component Name
100
Engine Block
100
Engine Block
101
Oil Gallery Plug - Front
110
O-Ring
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

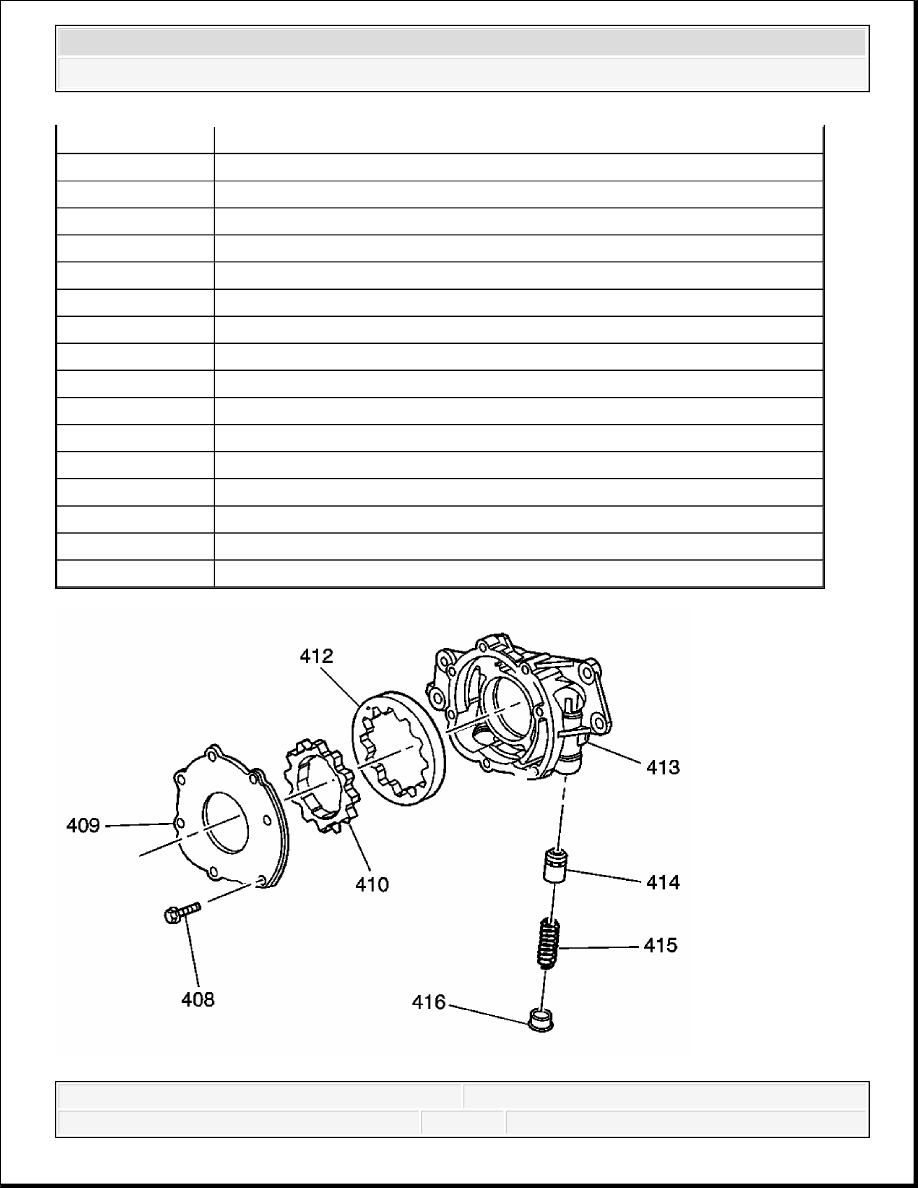

Fig. 13: Exploded View Of Oil Pump Assembly
111
Oil Gallery Plug - Rear
112
Oil Gallery Plug - Side
113
Washer
114
Engine Coolant Heater
115
Washer
116
Oil Gallery Plug - Side
117
Washer
130
Transmission Housing Locating Pin
145
Washer
146
Engine Block Coolant Drain Hole Plug
701
Crankshaft Position (CKP) Sensor
702
O-Ring
718
Knock Sensor
718
Knock Sensor
739
Bolt
739
Bolt
750
CKP Sensor Bolt
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
