10. Remove the torsion bar from the vehicle. Installation Procedure 1. Position the torsion bar in the lower control arm. 2. Install the torsion bar in the support assembly. Fig. 45: Upper Link, Mounting Nuts & Bolts interchangeable

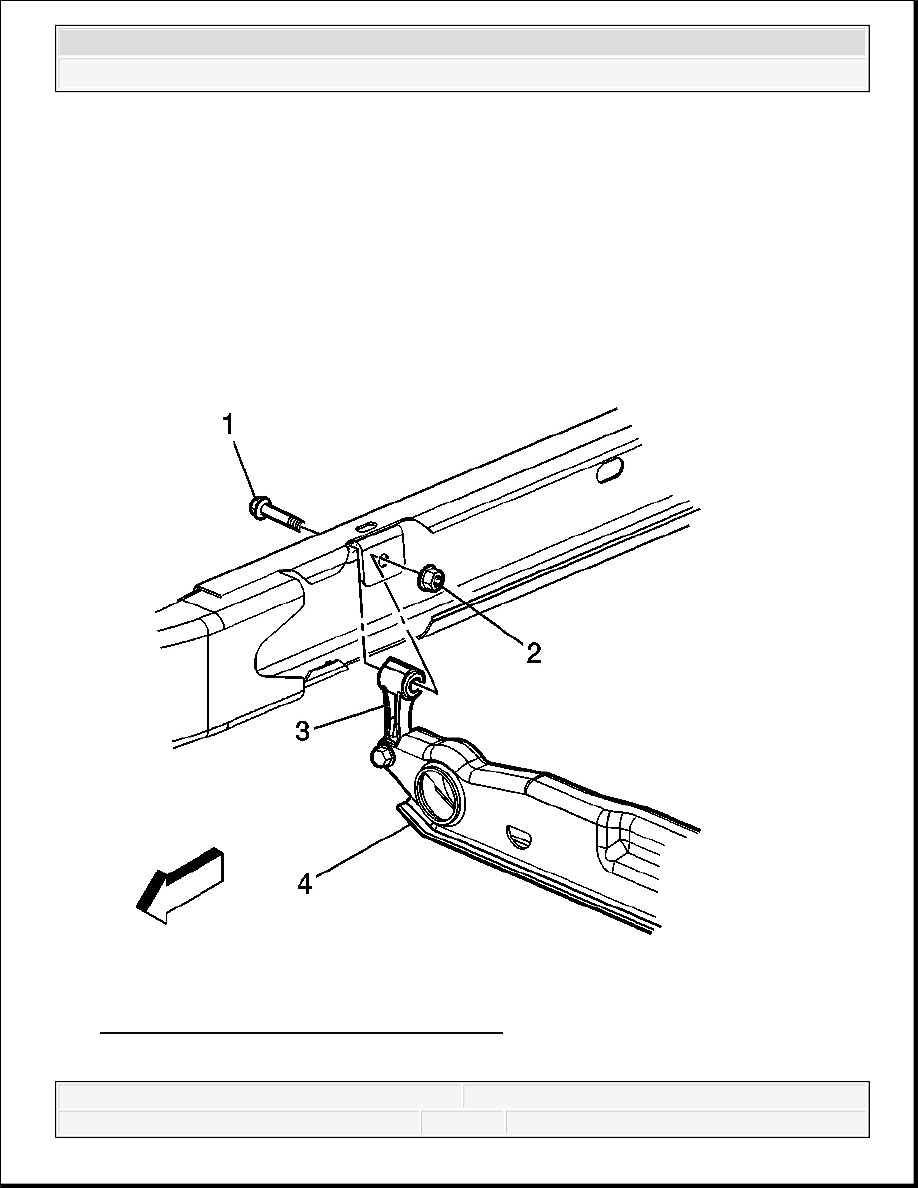

2008 Chevrolet Silverado 1500 2008 SUSPENSION Front Suspension - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

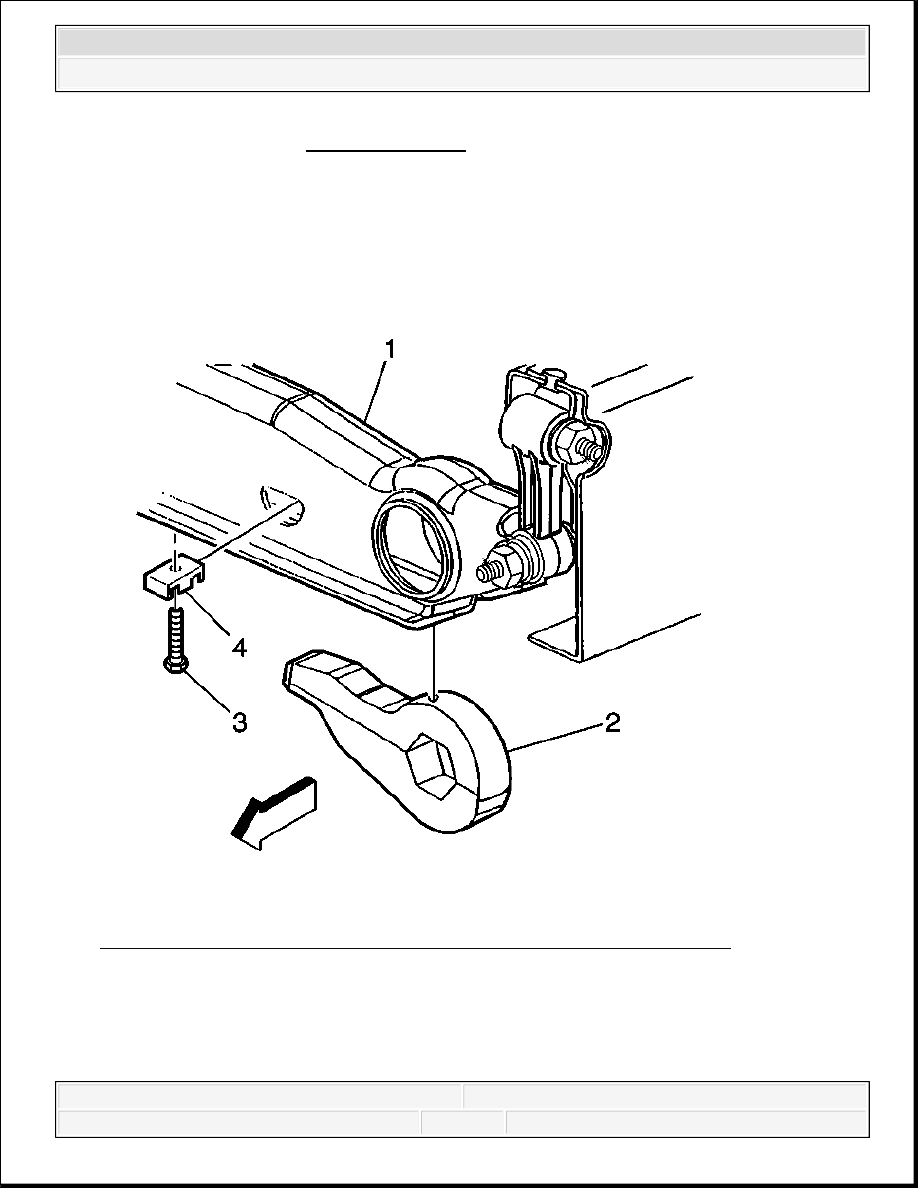

3. Install the upper link mounting nut (2) and the bolt (1) in the link (3). Tighten: Tighten the nut to 95 N.m (70 lb ft). Fig. 46: Torsion Bar, Adjustment Bolt & Nut (MN8, MT1 And MW3) 4. Install the adjustment arm (2) in the support assembly (1). 5. Install the adjuster bolt (3) and the adjustment nut (4). 6. Slide the torsion bar rearward until the torsion bar is fully seated in the adjustment arm. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 SUSPENSION Front Suspension - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

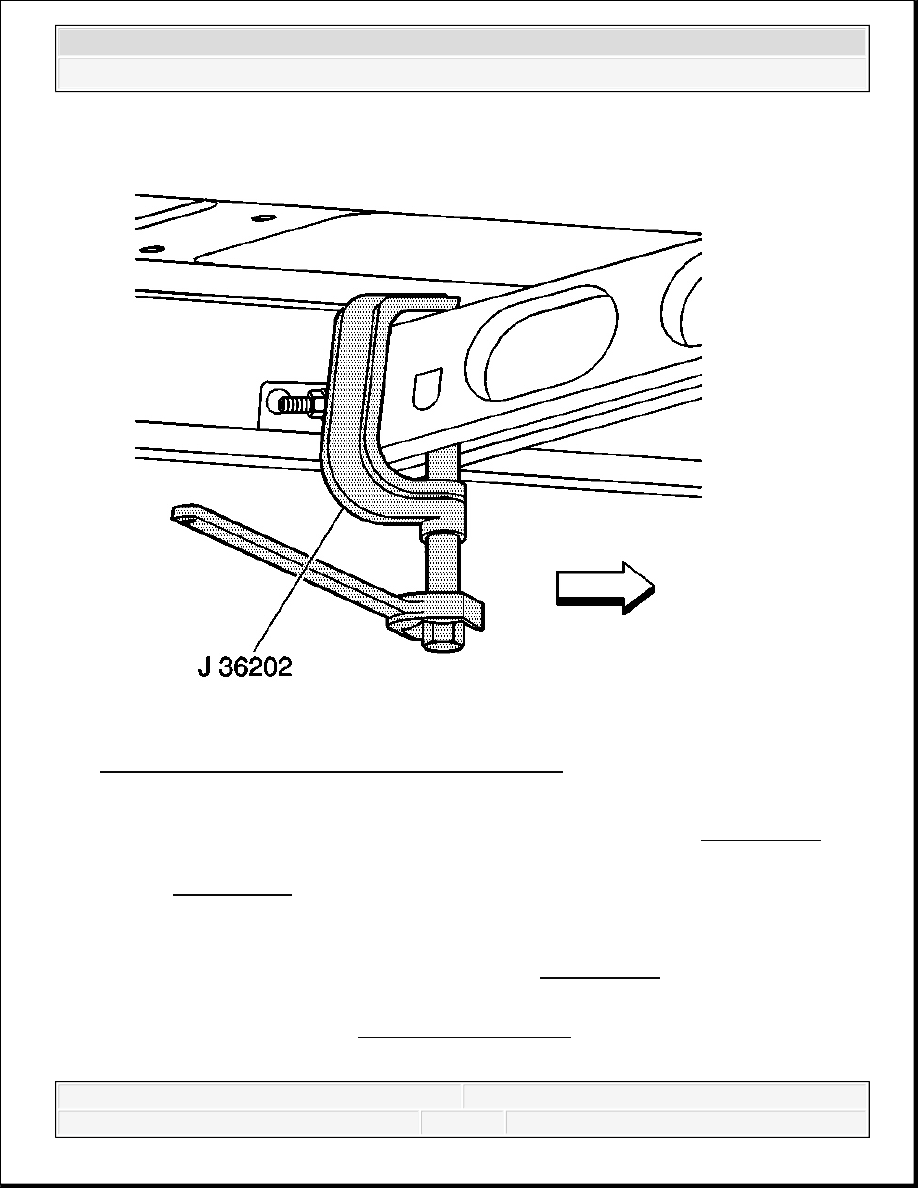

Fig. 47: J 36202, Adjustment Arm & Crossmember 7. Install the J 36202 on the adjustment arm and the support assembly. See Special Tools. 8. Using the J 36202 , increase the tension on the adjustment arm in order to load the torsion bar. See Special Tools. 9. Align the reference marks, turn the adjuster bolt the same amount of turns as it took to remove it. 10. Remove the J 36202 from the support assembly. See Special Tools. 11. Remove the safety stand and lower the vehicle. 12. Measure the Z height. Refer to Trim Height Inspection . TORSION BARS BUSHING REPLACEMENT
2008 Chevrolet Silverado 1500 2008 SUSPENSION Front Suspension - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

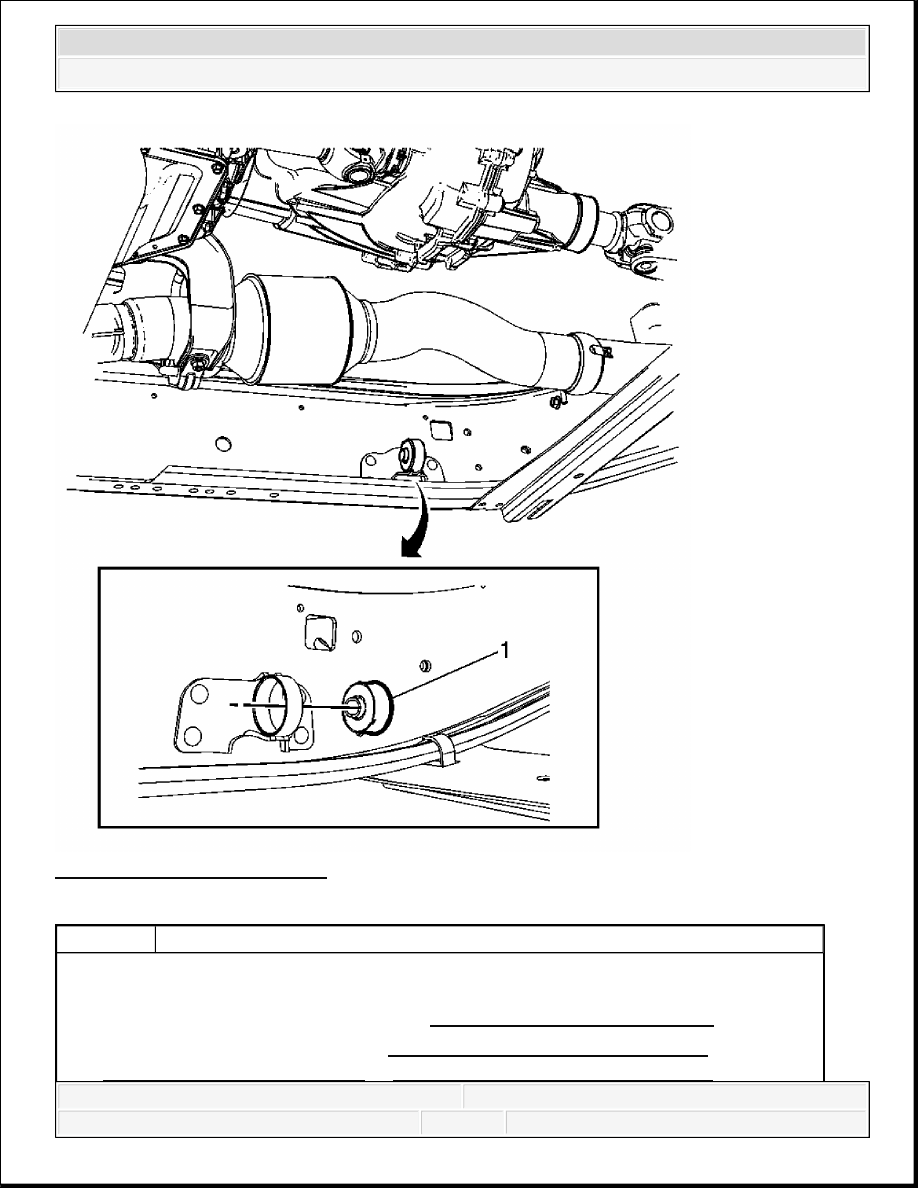

Fig. 48: Torsion Bars Bushing Callout Component Name Preliminary Procedure 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the torsion bars. Refer to Torsion Bar and Support Assembly Replacement (Bushing Style) or Torsion Bar and Support Assembly
