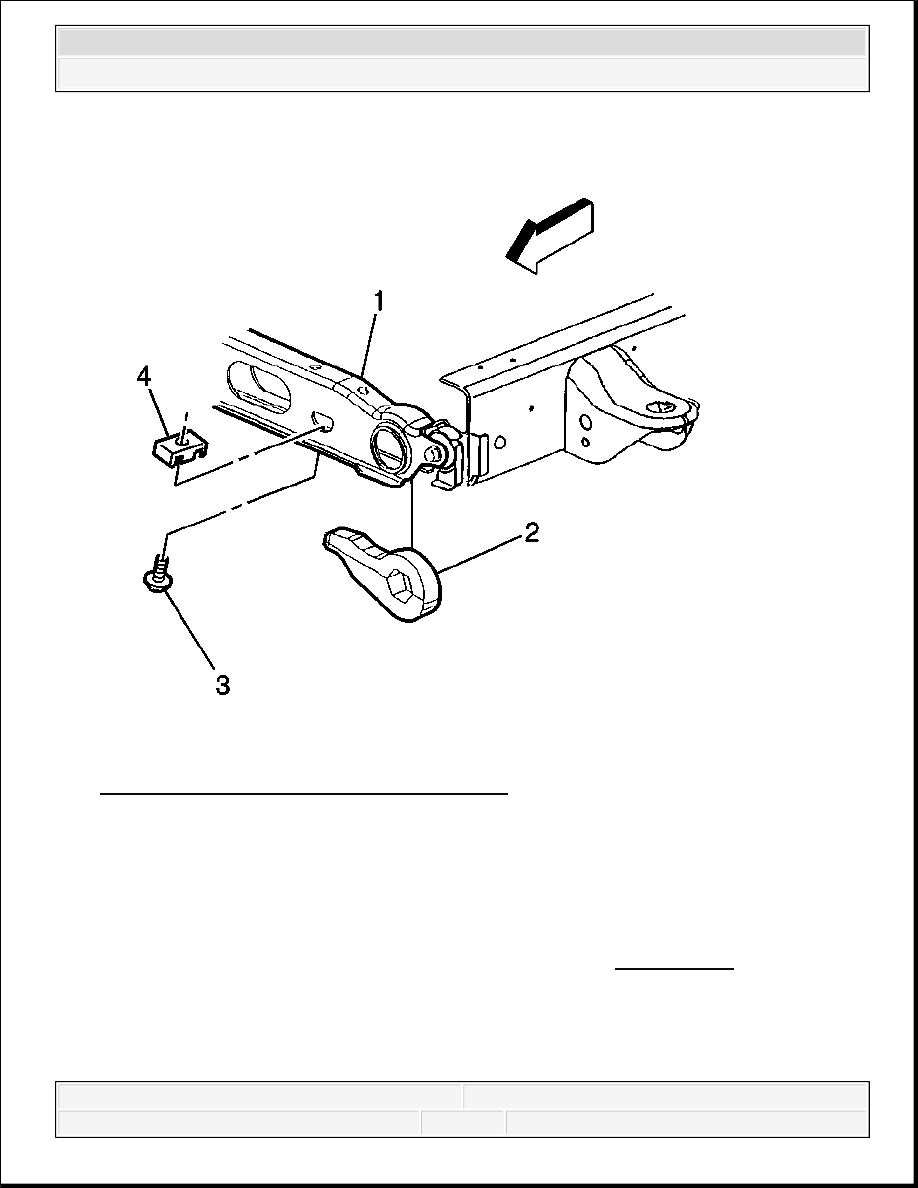

Fig. 37: Torsion Bar, Adjustment Bolt & Nut 4. Remove the adjustment bolt (3) and the adjust nut (4) from the crossmember (1). 5. Remove the J 36202 , allowing the torsion bar to unload. See Special Tools. 6. Remove the adjustment arm (2) by sliding the torsion bar forward. IMPORTANT: Mark the adjustment bolt and count the number of times that is required to remove the adjustment bolt.
2008 Chevrolet Silverado 1500 2008 SUSPENSION Front Suspension - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

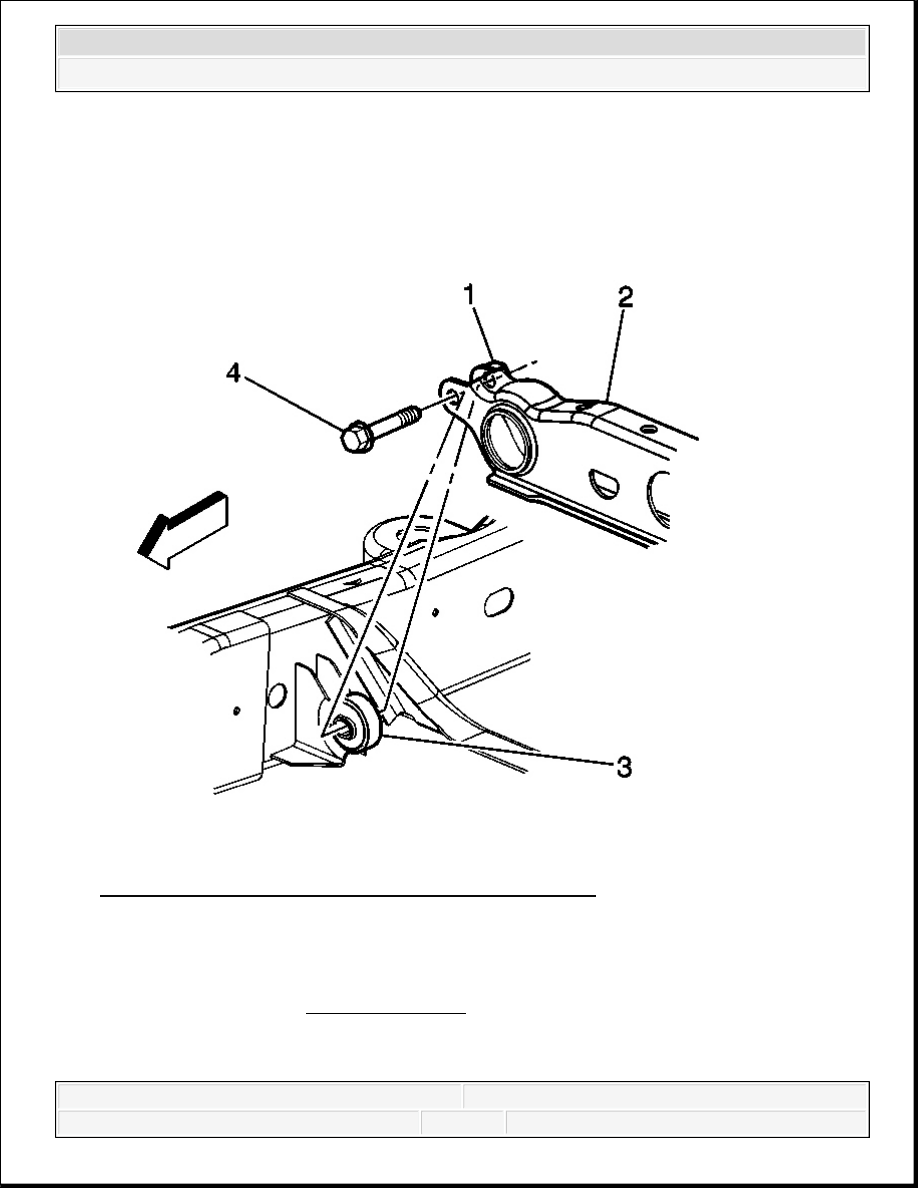

Fig. 38: Torsion Bar Crossmember, Bolts & Weld Nuts 7. Remove the torsion bar crossmember bolt (4) from the weld nut (1). 8. Remove the crossmember (2) from the crossmember mount (3). 9. Remove the torsion bar from the crossmember. 10. Remove the torsion bars from the vehicle. IMPORTANT: The left and right torsion bars are different and are not interchangeable.
2008 Chevrolet Silverado 1500 2008 SUSPENSION Front Suspension - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

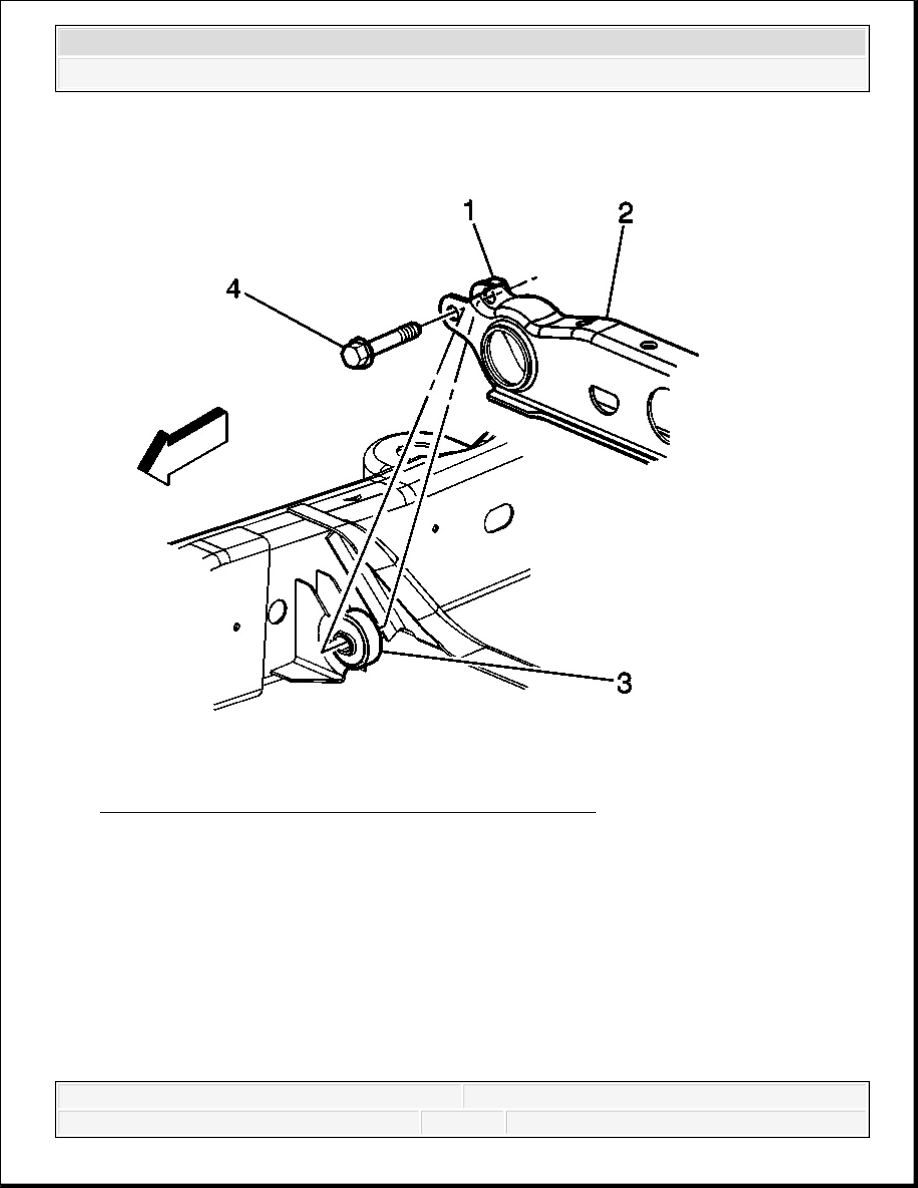

Installation Procedure 1. Position the torsion bar in the lower control arm. Fig. 39: Torsion Bar Crossmember, Bolts & Weld Nuts 2. Install the torsion bar in the crossmember (2) on the crossmember mount (3). 3. Install the torsion bar crossmember bolt (4) in the weld nut (1). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 SUSPENSION Front Suspension - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

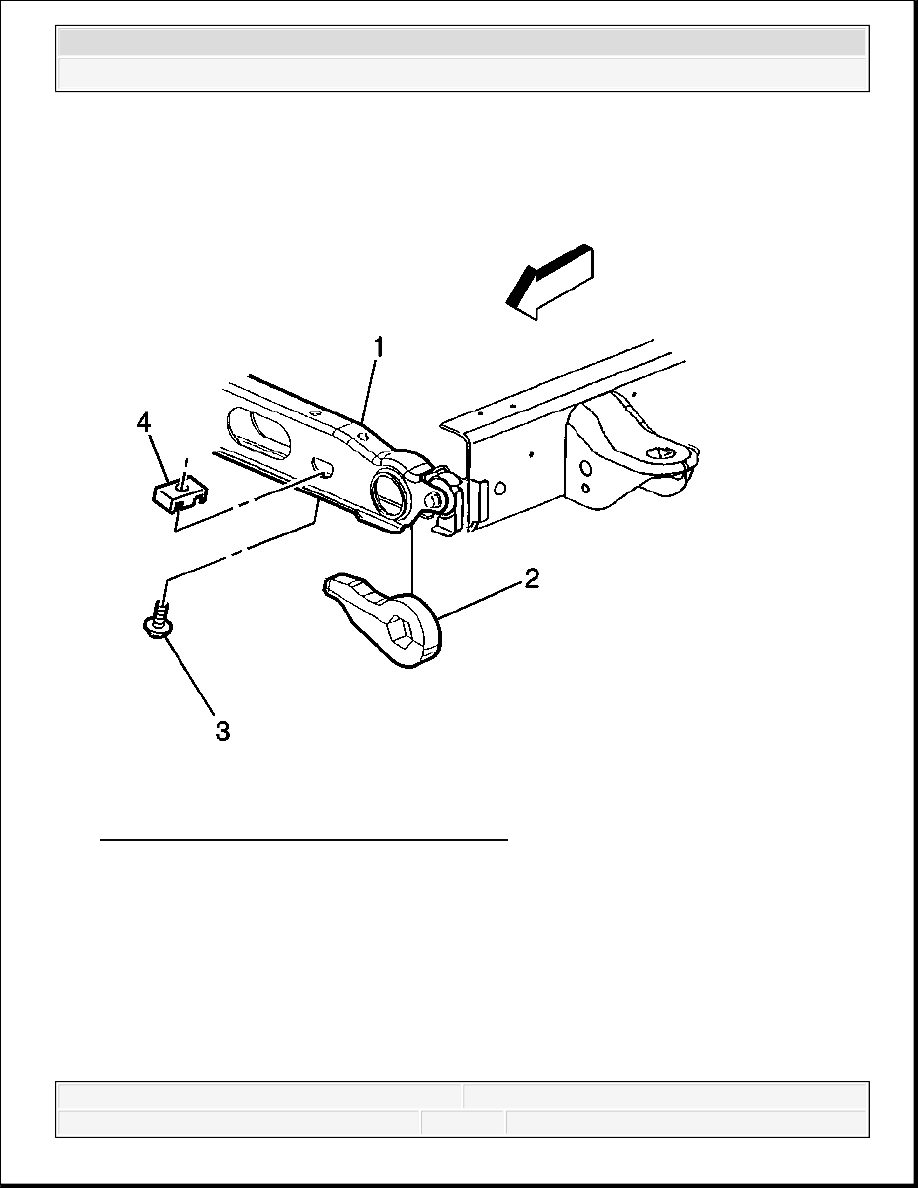

Tighten: Tighten the crossmember bolt to 95 N.m (70 lb ft). Fig. 40: Torsion Bar, Adjustment Bolt & Nut 4. Install the adjustment arm (2) in the crossmember (1). 5. Install the adjuster bolt (3) and the adjuster nut (4). 6. Install the torsion bar into the adjustment arm until the torsion bar is fully seated.
