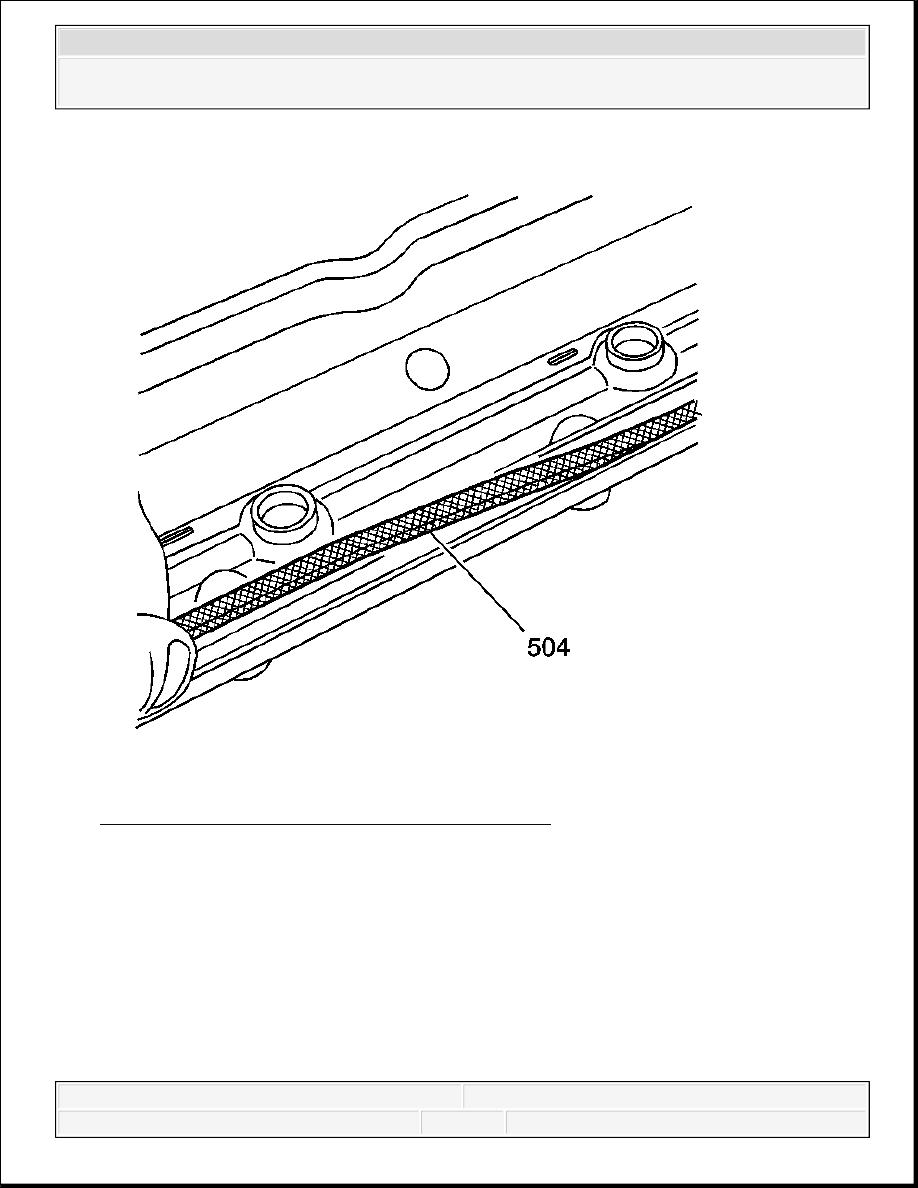

Fig. 53: View Of Valve Rocker Arm Cover Gasket
Courtesy of GENERAL MOTORS CORP.

1. Install a NEW gasket (504) into the valve rocker arm cover.

IMPORTANT:

All gasket surfaces should be free of oil or other foreign
material during assembly.

DO NOT use the valve rocker arm cover gasket again.

The valve rocker arm cover bolt grommets may be used
again if not damaged.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

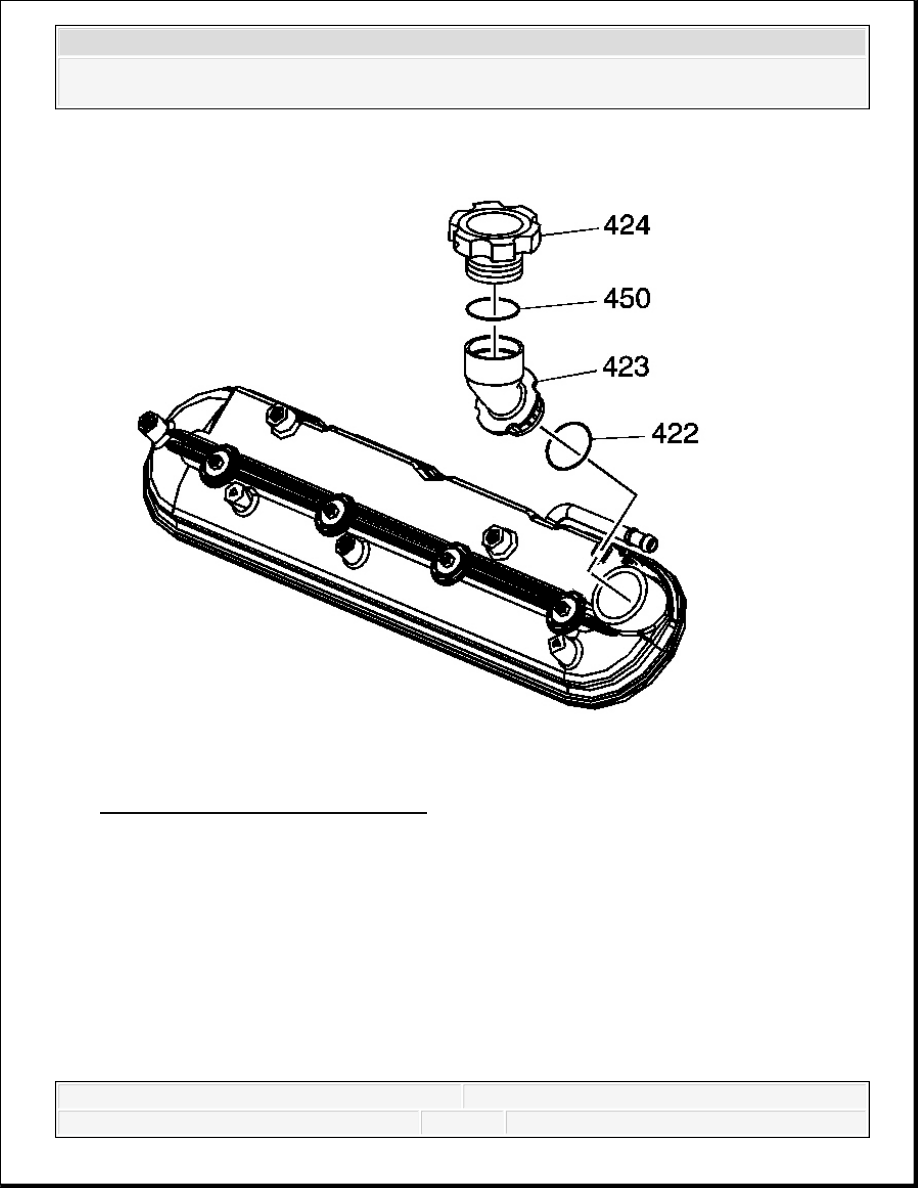

Fig. 54: Oil Fill Cap & Oil Fill Tube
Courtesy of GENERAL MOTORS CORP.

2. Install a NEW oil fill tube (423) to the valve rocker arm cover.

3. Install the oil fill cap (424).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

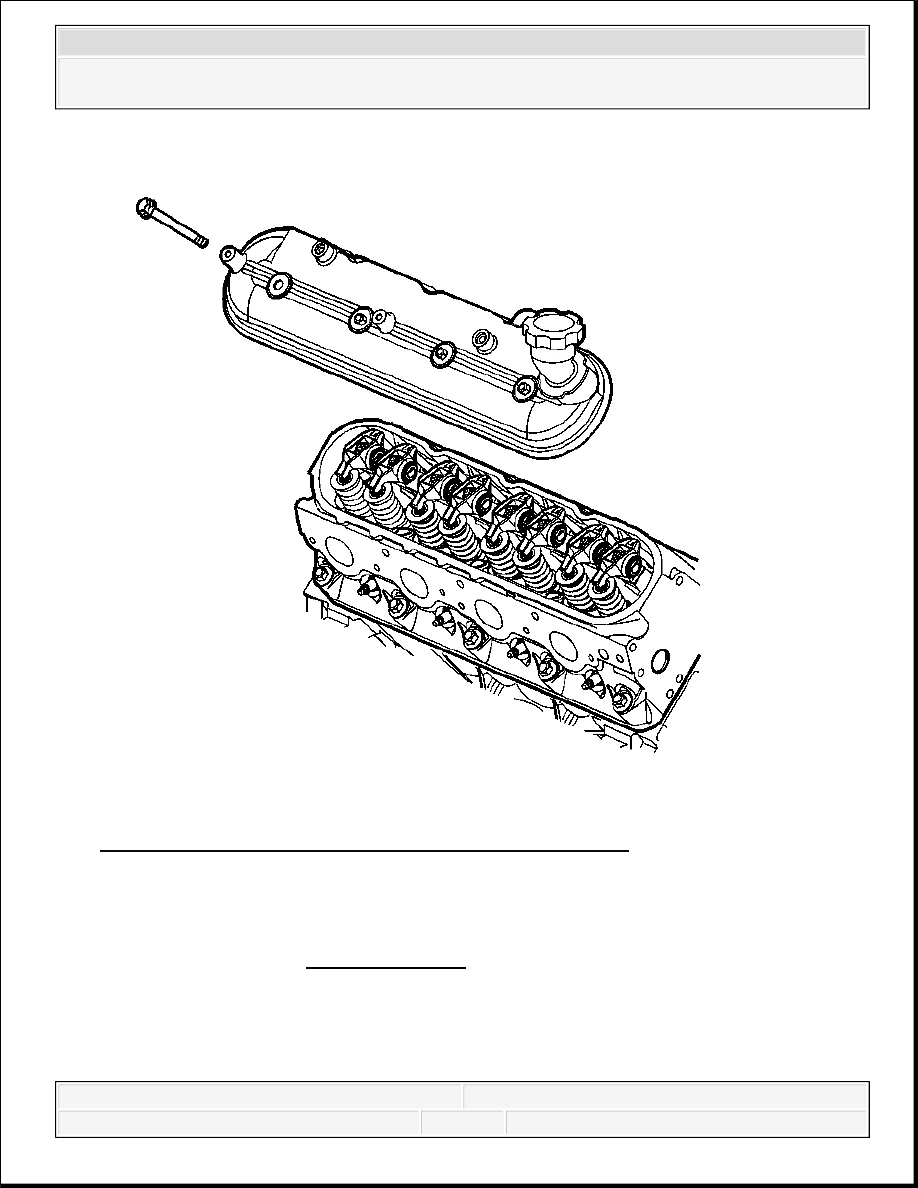

Fig. 55: View Of Valve Rocker Arm Cover & Bolts (Right)
Courtesy of GENERAL MOTORS CORP.

4. Install the valve rocker arm cover onto the cylinder head.

5. Install the cover bolts with grommets.

Tighten: Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

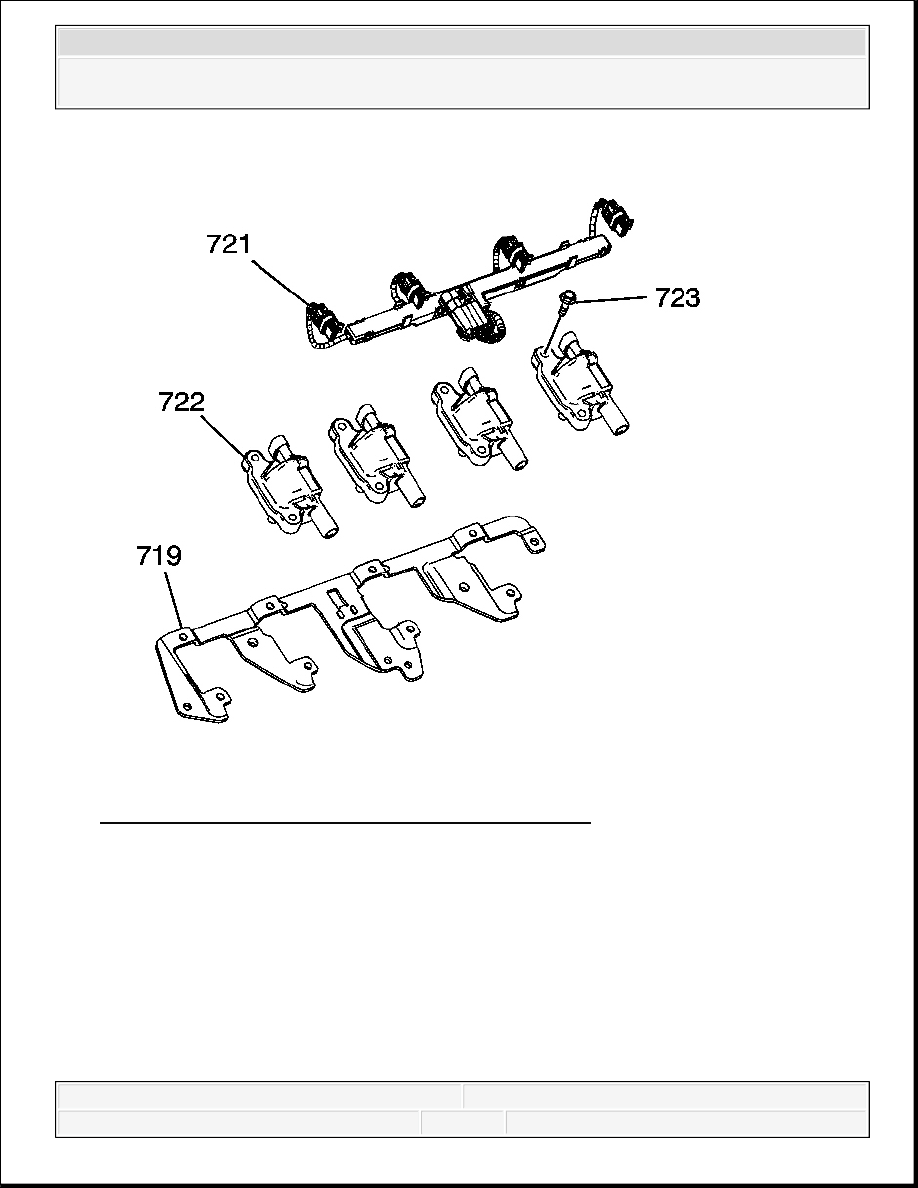

Fig. 56: View Of Bracket, Bolts, Coils & Wire Harness
Courtesy of GENERAL MOTORS CORP.

6. Apply threadlock GM P/N 12345382 (Canadian P/N 10953489), or equivalent, to the

threads of the ignition coil bolts (723).

7. Install the ignition coils (722), wire harness (721), and bolts (723) to the bracket (719).

Tighten: Tighten the ignition coil bolts to 10 N.m (89 lb in).
