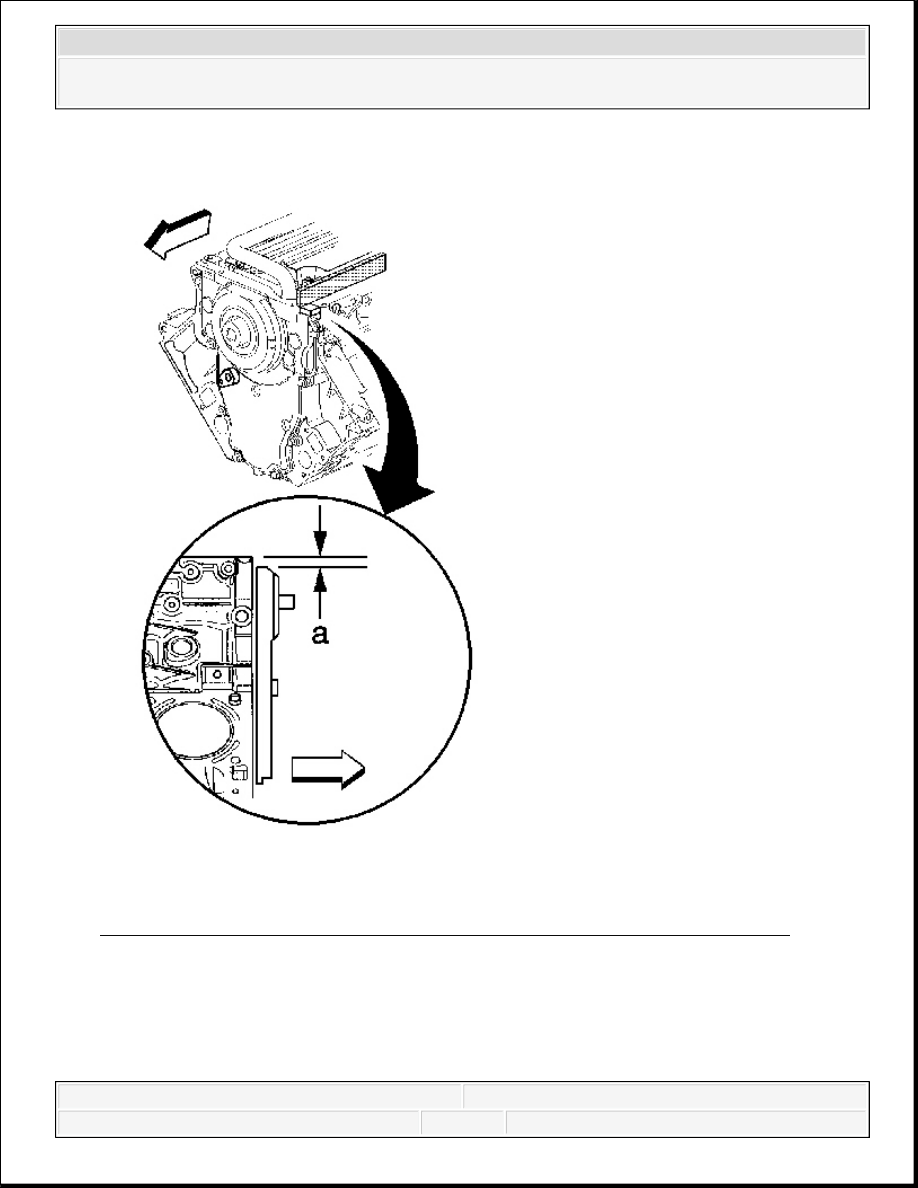

Fig. 9: Measuring Oil Pan Surface Flatness & Front Cover-To-Engine Block 7. Measure the oil pan surface flatness, front cover-to-engine block. 1. Place a straight edge across the engine block and front cover oil pan sealing surfaces. Avoid contact with the portion of the gasket that protrudes into the oil pan surface.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

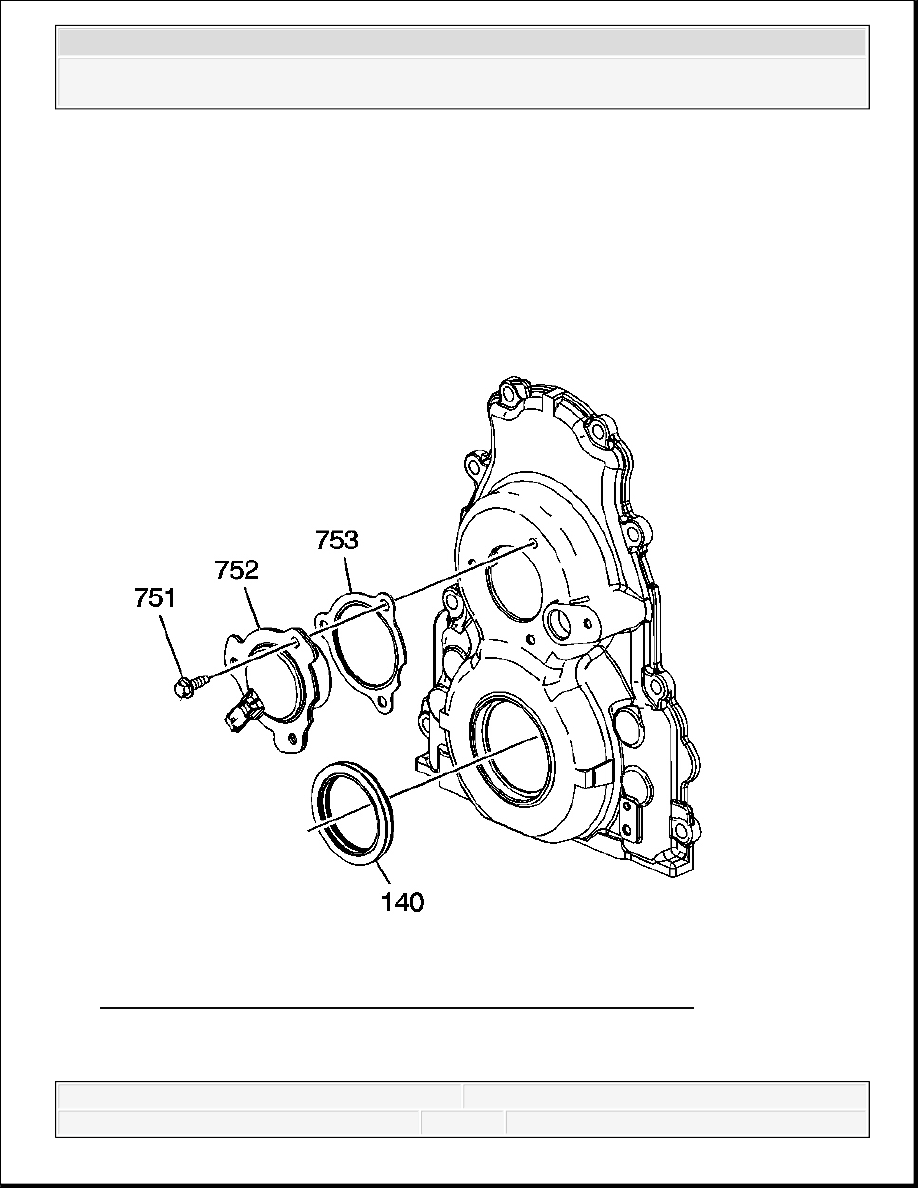

2. Insert a feeler gage between the front cover and the straight edge tool. The cover must be flush with the oil pan surface or no greater than 0.5 mm (0.02 in) (a) below flush. 8. If the front cover-to-engine block oil pan surface alignment is not within specifications, repeat the cover alignment procedure. 9. If the correct front cover-to-engine block alignment cannot be obtained, replace the front cover. Fig. 10: View Of CMP Actuator Magnet, Bolts, Gasket & Oil Seal 10. Install the camshaft position (CMP) actuator magnet (752), gasket (753), and bolts (751).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

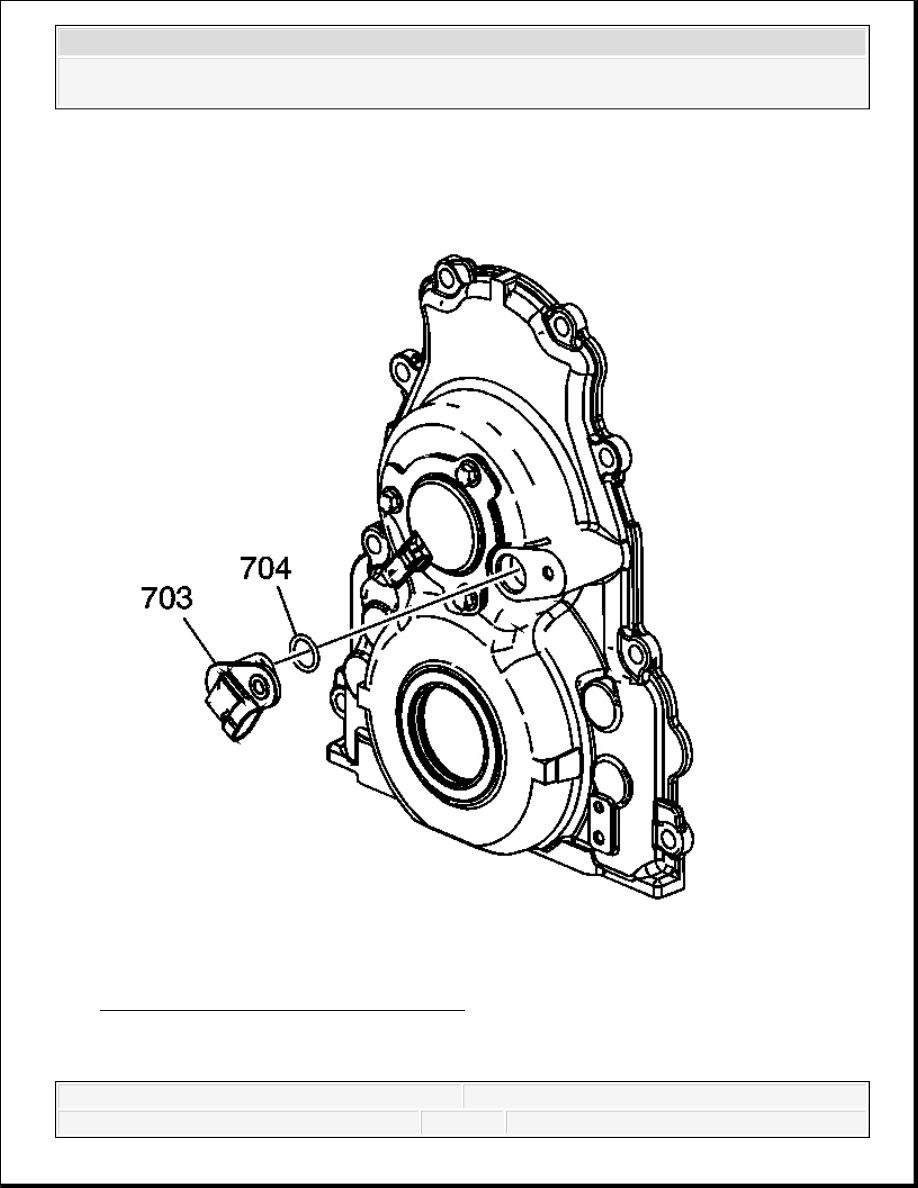

Tighten: Tighten the bolts to 12 N.m (106 lb in). Fig. 11: View Of CMP Sensor & O-Ring 11. Install the CMP sensor (703) and O-ring (704).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

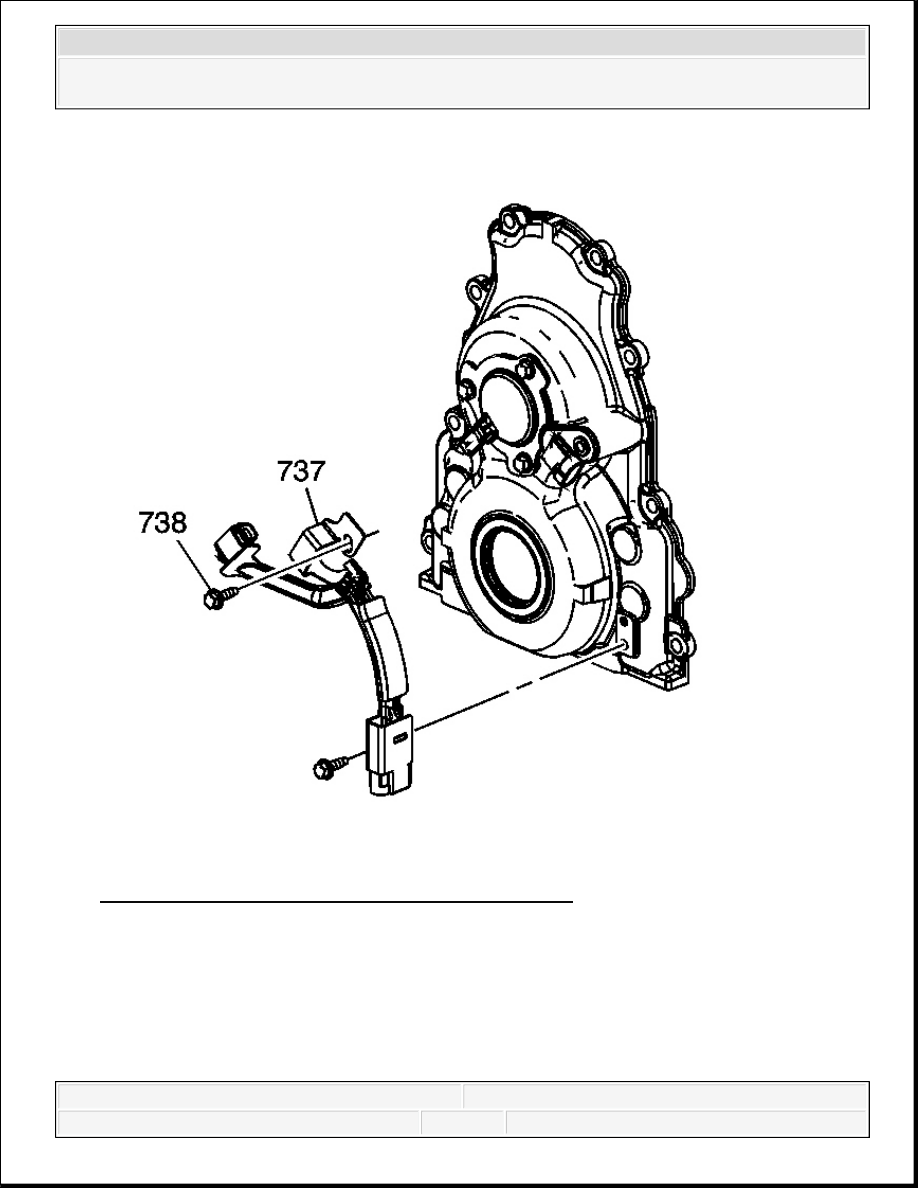

Fig. 12: View Of CMP Sensor Wire Harness & Bolts 12. Install the CMP sensor wire harness (737) and bolts (738). Tighten: Tighten the bolts to 12 N.m (106 lb in). CRANKSHAFT FRONT OIL SEAL INSTALLATION (RPO LY2/LH6/LMG/LY5/LC9)
