Fig. 6: Engine Front Cover Components 1. Install the front cover gasket (503), front cover (502), and bolts (501). 2. Tighten the cover bolts finger tight. Do not overtighten. NOTE: Refer to Fastener Notice . IMPORTANT: Do not use the crankshaft oil seal or the engine front Do not apply any type of sealant to the front cover The special tools in this procedure are used to properly All gasket surfaces should be free of oil or other The crankshaft front oil seal MUST be centered in The oil pan sealing surface at the front cover and An improperly aligned front cover may cause
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

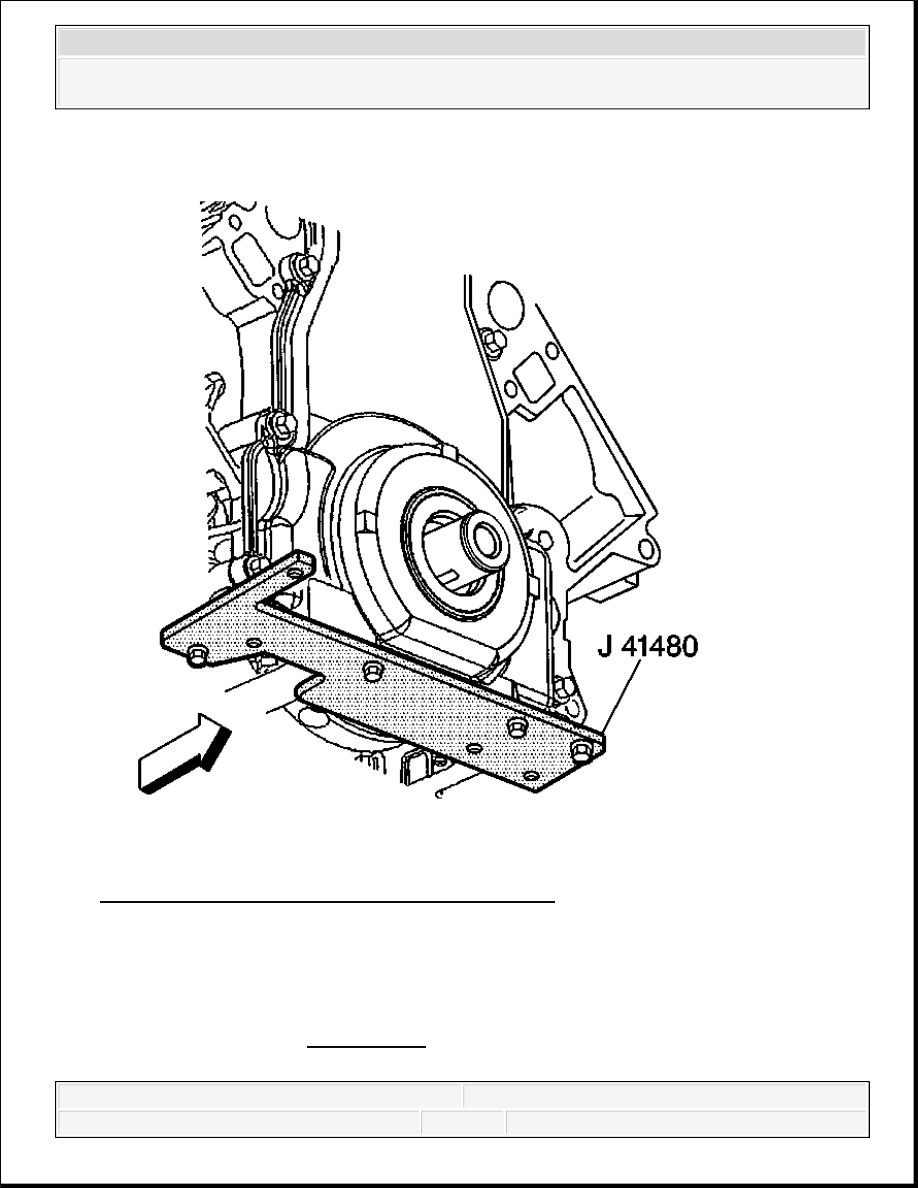

Fig. 7: View Of J 41480 Installed On Engine Block 3. Install the J 41480 . See Special Tools . IMPORTANT: Start the tool-to-front cover bolts. Do not tighten the bolts at this time.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

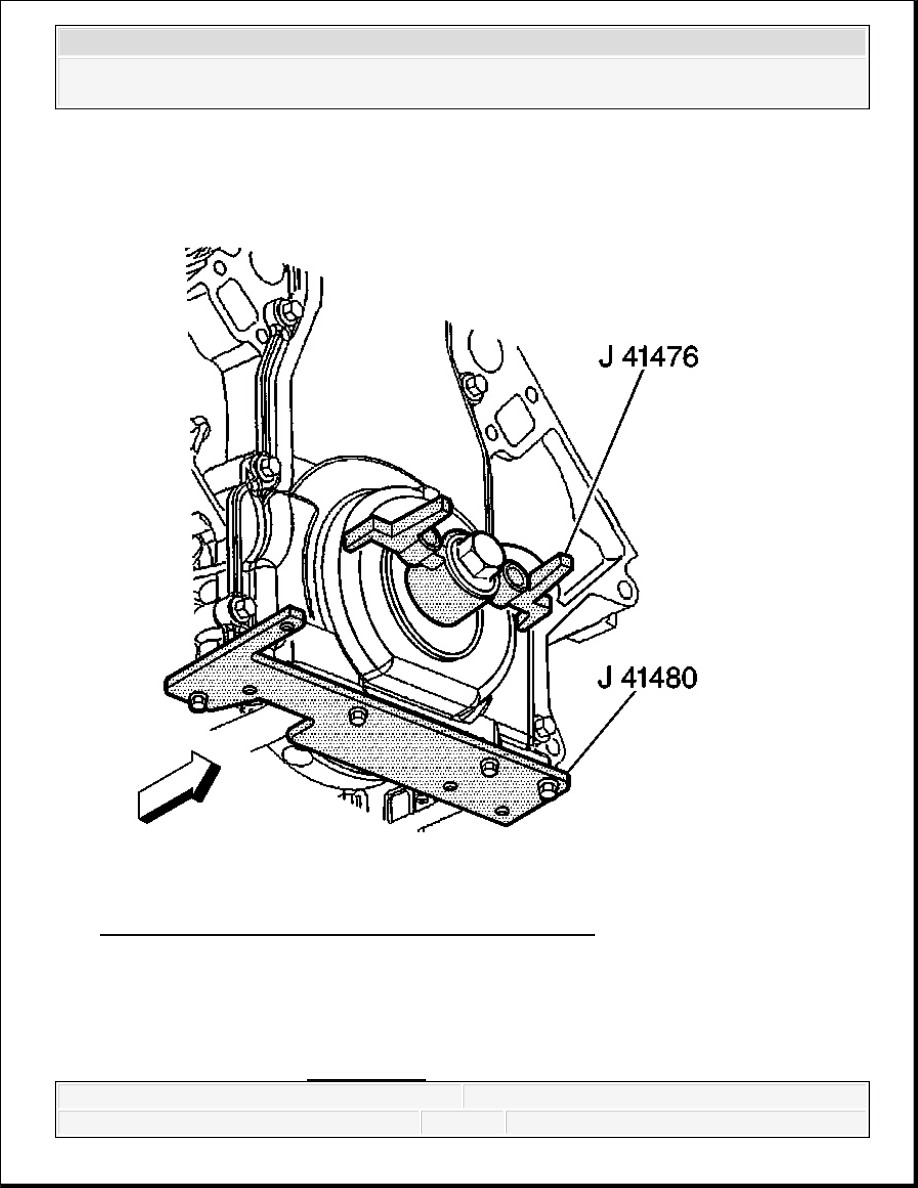

Tighten: Tighten the tool-to-engine block bolts to 25 N.m (18 lb ft). Fig. 8: View Of J 41476 & J 41480 Installed On Engine 4. Install the J 41476 . See Special Tools . IMPORTANT: Align the tapered legs of the tool with the machined alignment surfaces on the front cover.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
5. Install the crankshaft balancer bolt. Tighten: 1. Tighten the crankshaft balancer bolt by hand until snug. Do not overtighten. 2. Tighten the J 41480 . See Special Tools . 3. Tighten the engine front cover bolts to 25 N.m (18 lb ft). 6. Remove the tools.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
