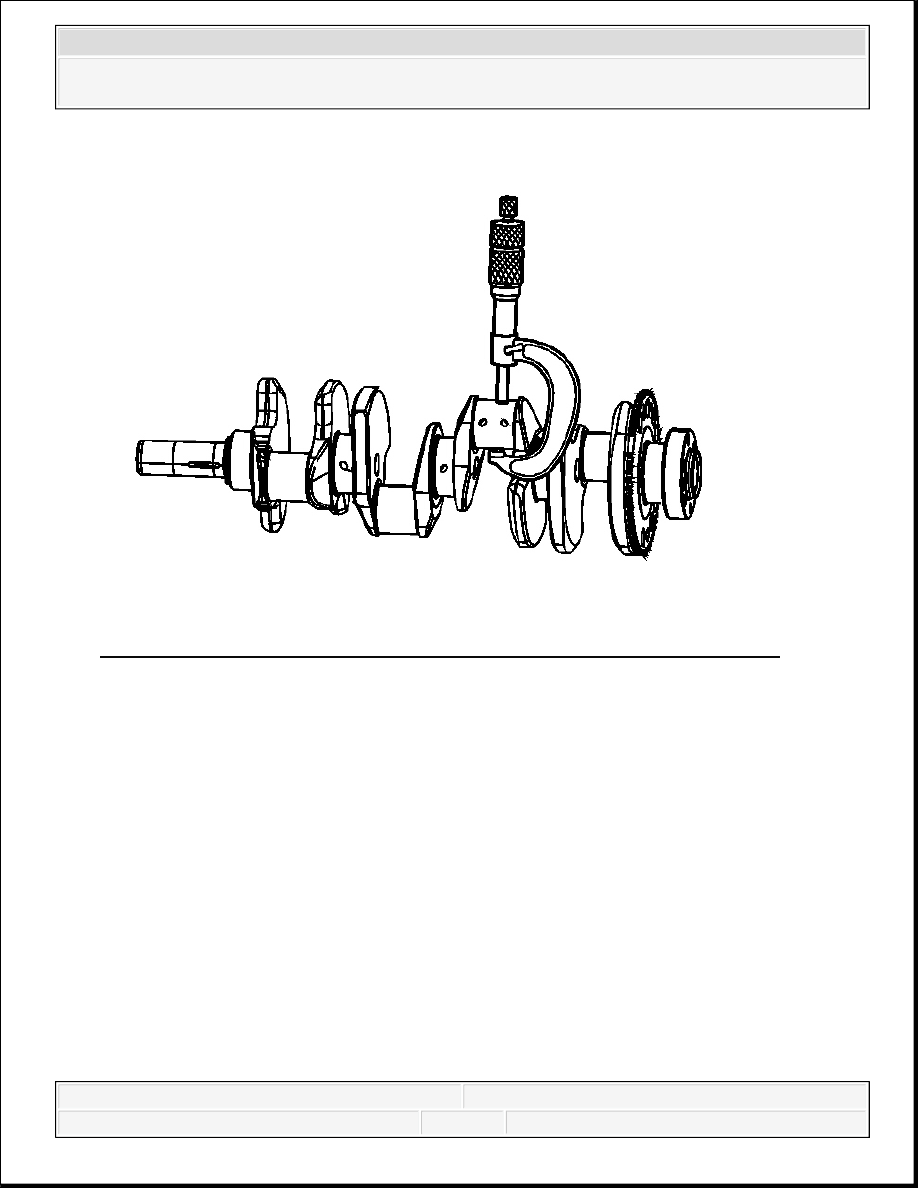

Fig. 7: Measuring Connecting Rod Journals For Out-Of-Round And Taper
Courtesy of GENERAL MOTORS CORP.
8. Measure the connecting rod journals for out-of-round and taper.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

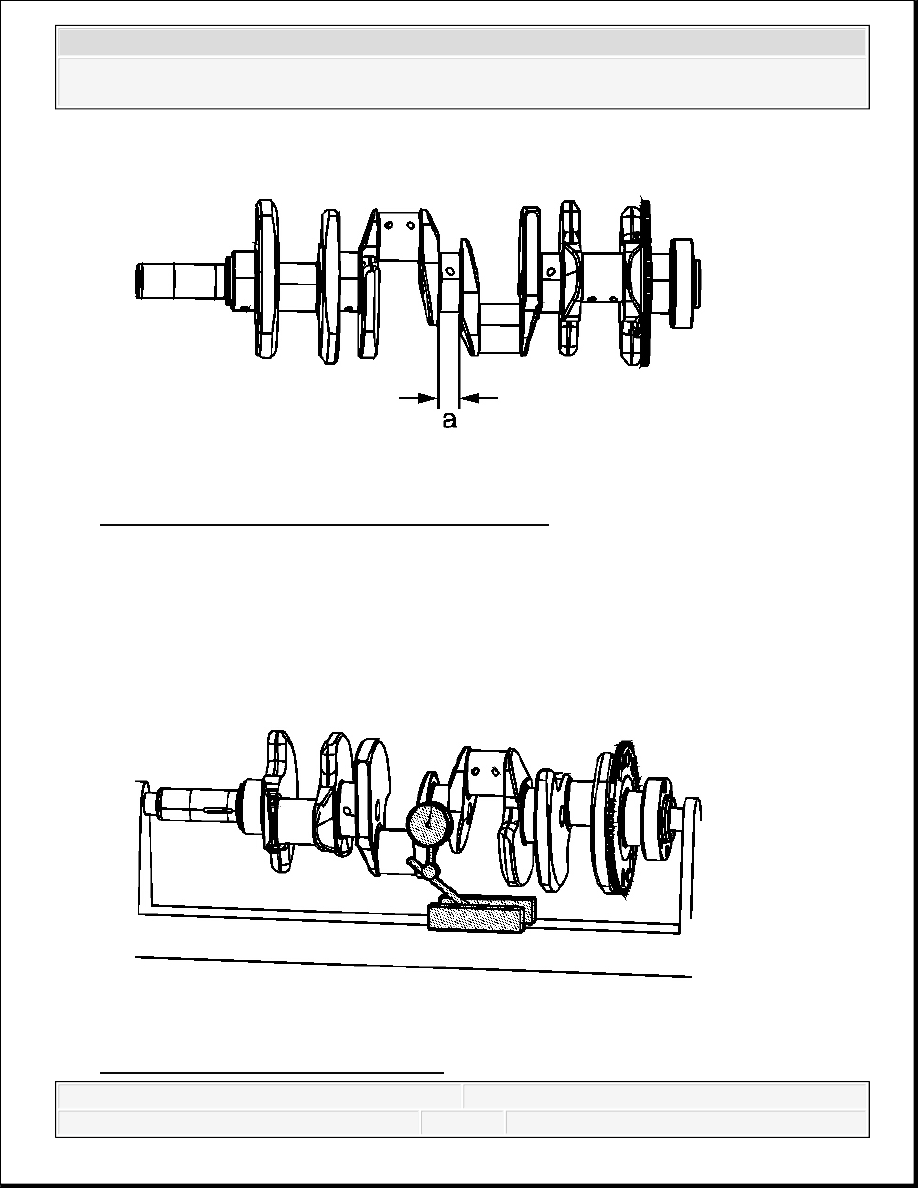

Fig. 8: Measuring Crankshaft Thrust Wall Width
Courtesy of GENERAL MOTORS CORP.
9. Measure the crankshaft thrust wall width.
A crankshaft with a thrust wall width in excess of 26.2 mm (1.0315 in) (a) must be replaced.
Fig. 9: Measuring Crankshaft Runout
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
10. Measure the crankshaft runout.
Use wooden V-blocks or a fixture to support the crankshaft on the front and rear journals.
11. Use the J 7872 in order to measure the crankshaft runout at the front and rear intermediate
journals.
12. Use the J 7872 in order to measure the runout of the crankshaft rear flange.
13. Use the J 7872 in order to measure the runout of the crankshaft position reluctor ring.
Reluctor ring runout should be measured 1.0 mm (0.04 in) below the ring teeth.
If the reluctor ring has runout in excess of 0.7 mm (0.028 in), replace the crankshaft.

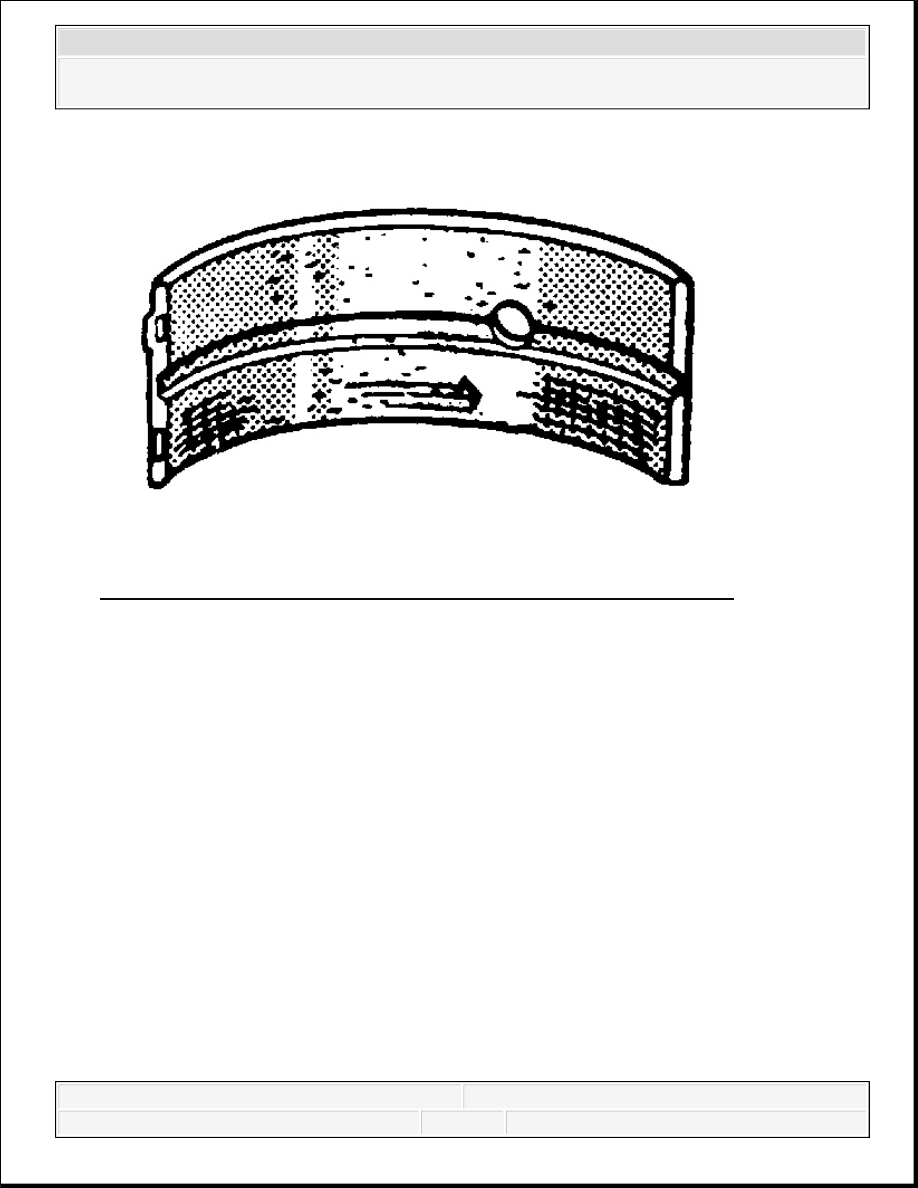

Fig. 10: Identifying Crankshaft Bearing Craters Or Pockets
Courtesy of GENERAL MOTORS CORP.
14. Inspect crankshaft bearings for craters or pockets. Flattened sections on the bearing halves
also indicate fatigue.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

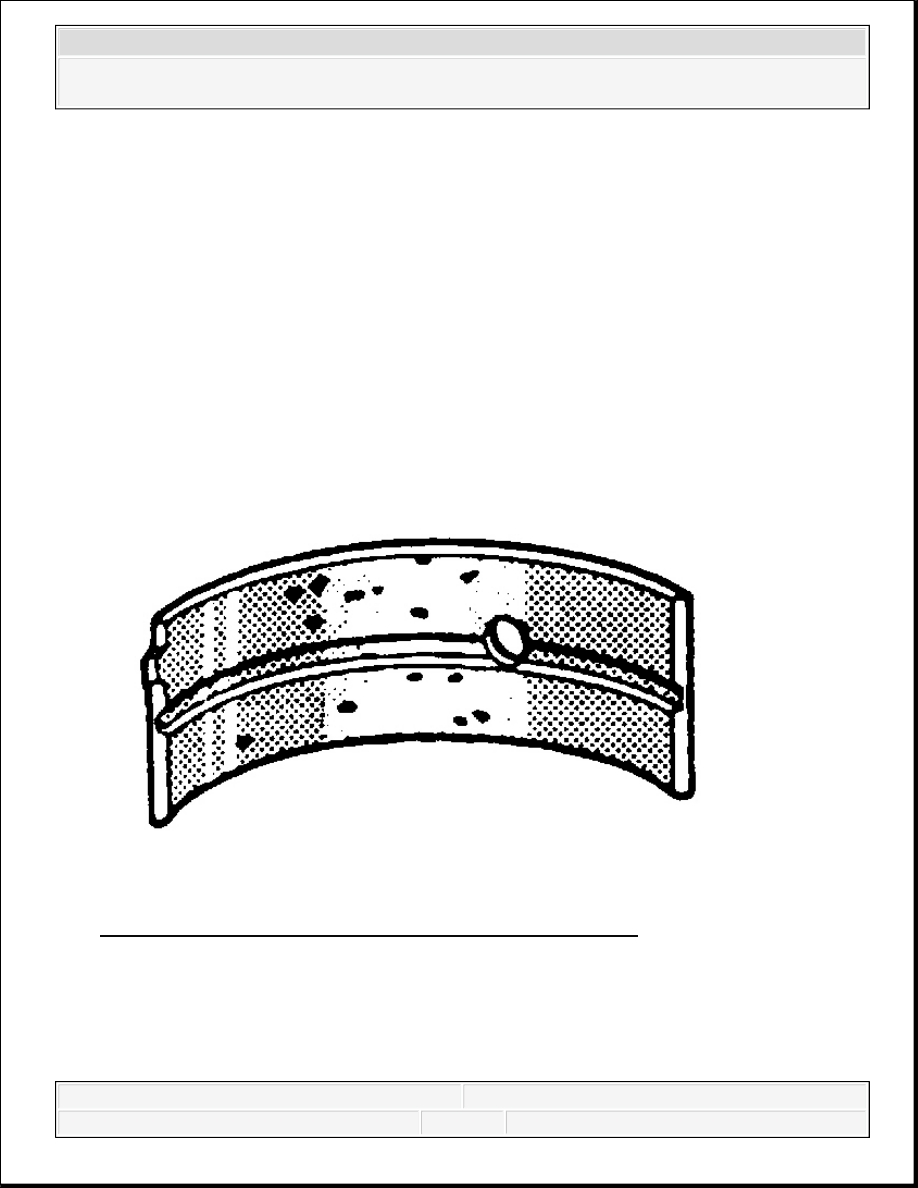

Fig. 11: Identifying Connecting Rod Bearing Scoring Or Discoloration
Courtesy of GENERAL MOTORS CORP.
15. Inspect the crankshaft bearings for excessive scoring or discoloration.
16. Inspect the crankshaft bearings for dirt or debris imbedded into the bearing material.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
