4. Remove the camshaft sprocket (205) and timing chain (208).

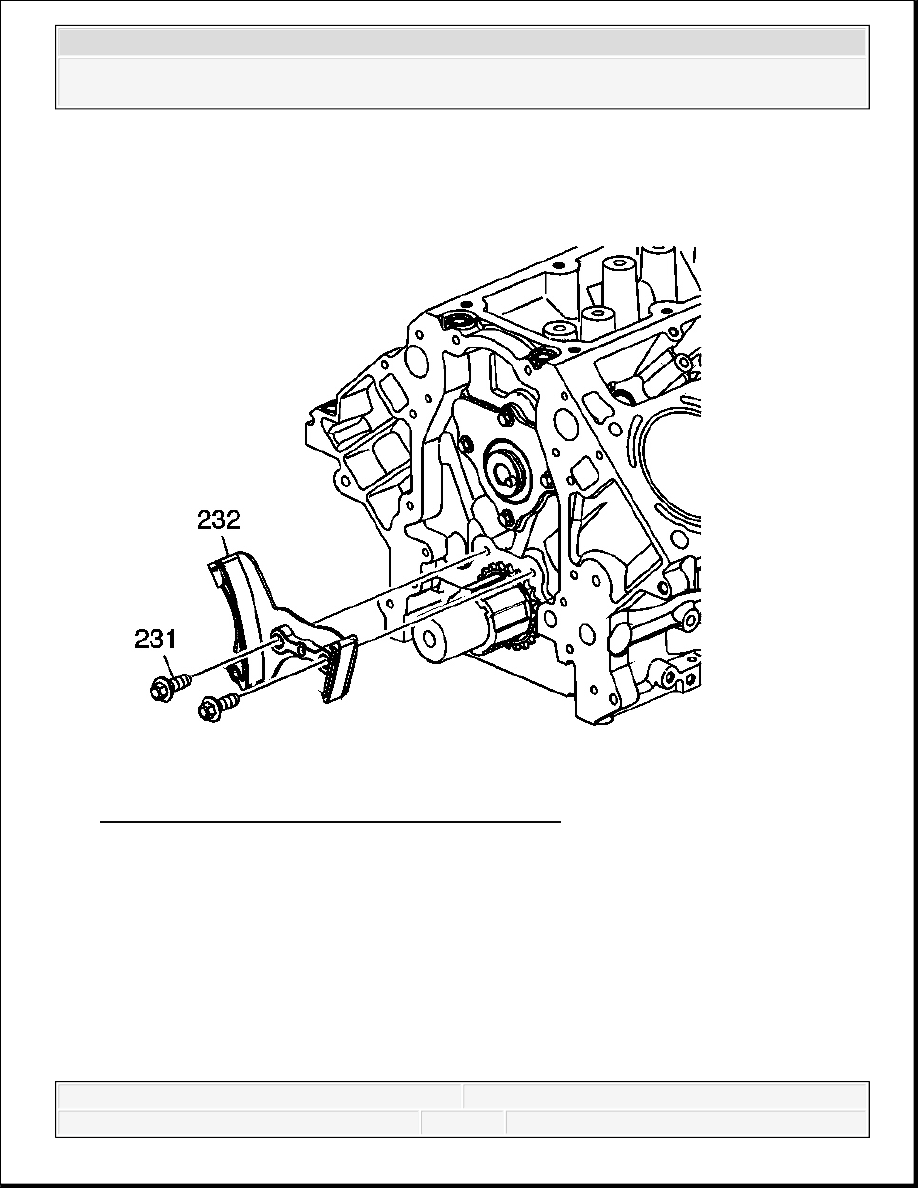

Fig. 267: View Of Timing Chain Tensioner & Bolts
Courtesy of GENERAL MOTORS CORP.
5. Remove the bolts (231) and timing chain tensioner (232).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

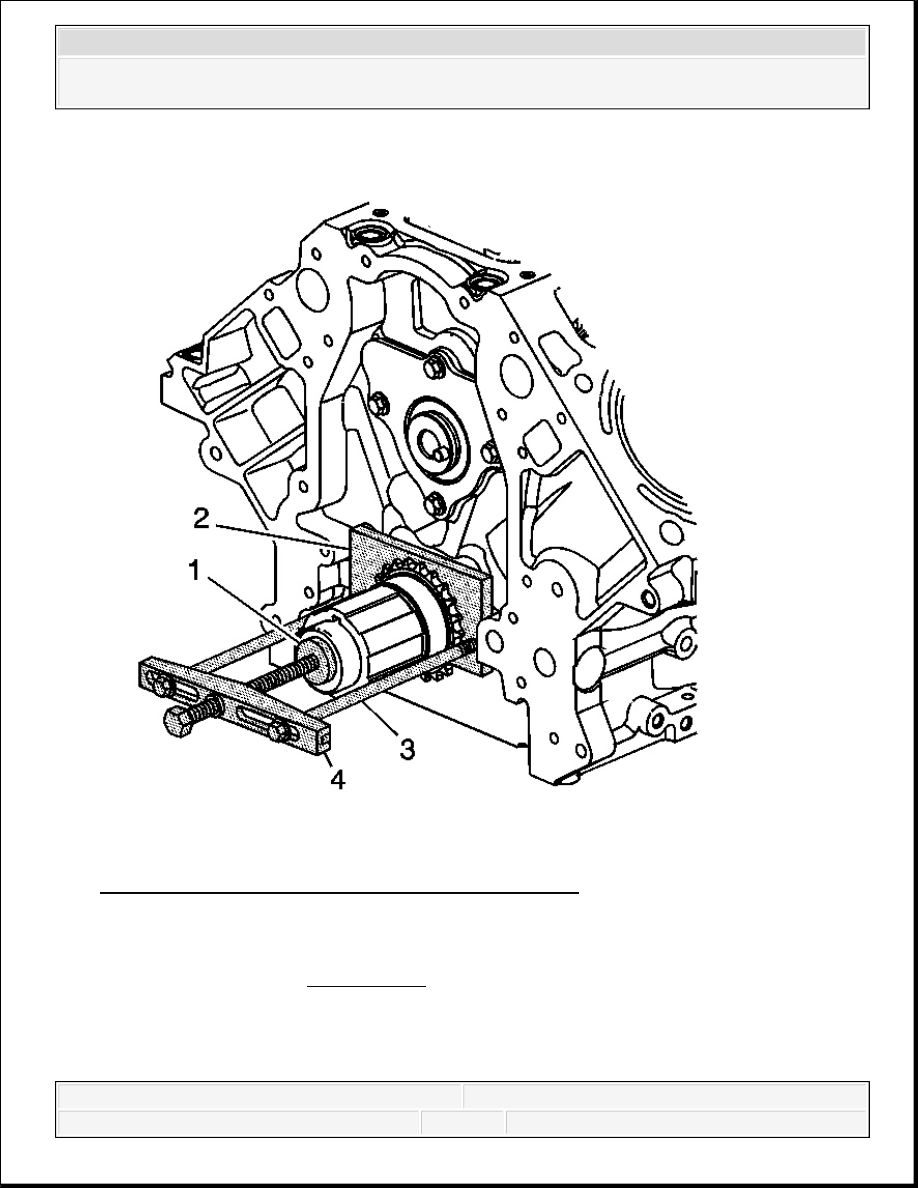

Fig. 268: View Of Crankshaft Sprocket Special Tools
Courtesy of GENERAL MOTORS CORP.
6. Use the J 41816-2 (1), the J 41558 (2), bolts (3), and the J 8433 (4) in order to remove the
crankshaft sprocket. See Special Tools .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

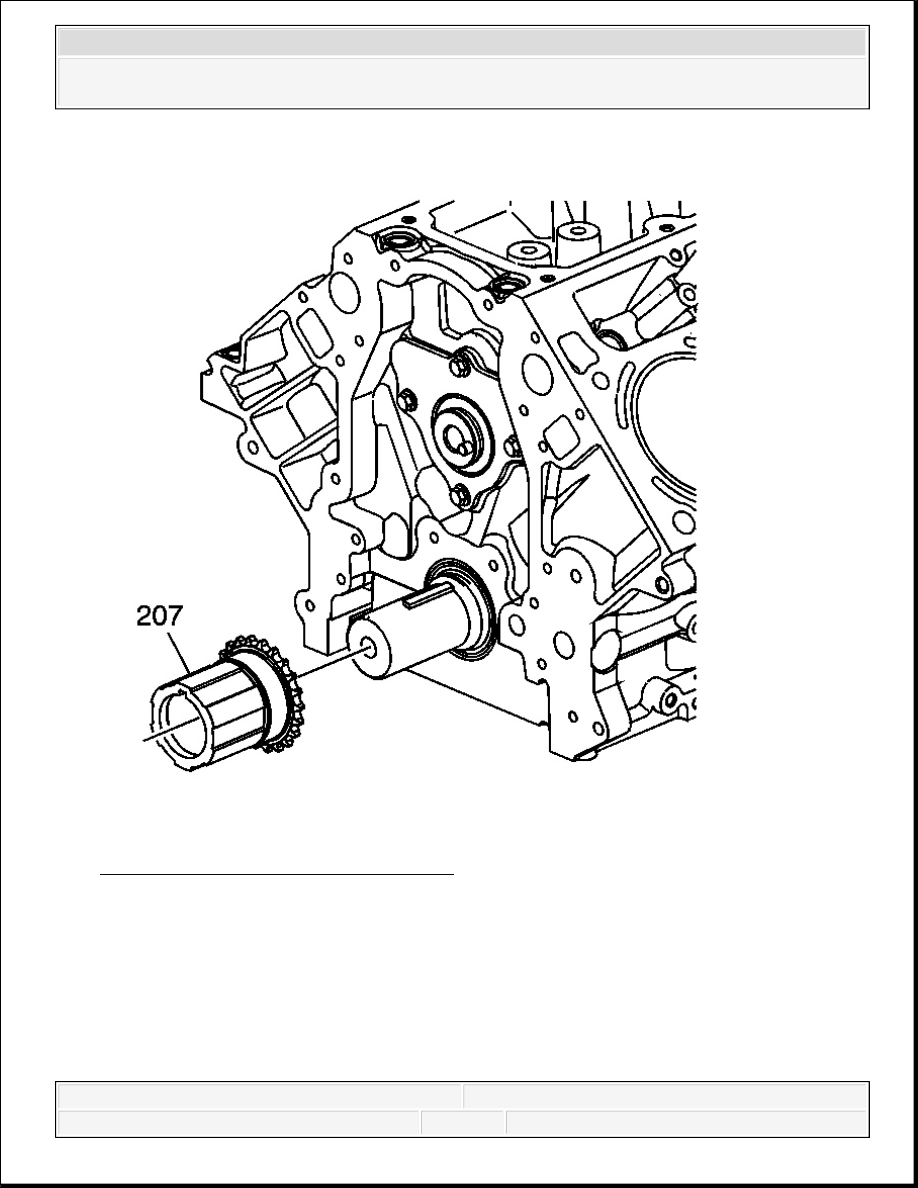

Fig. 269: View Of Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
7. Remove the crankshaft sprocket (207).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

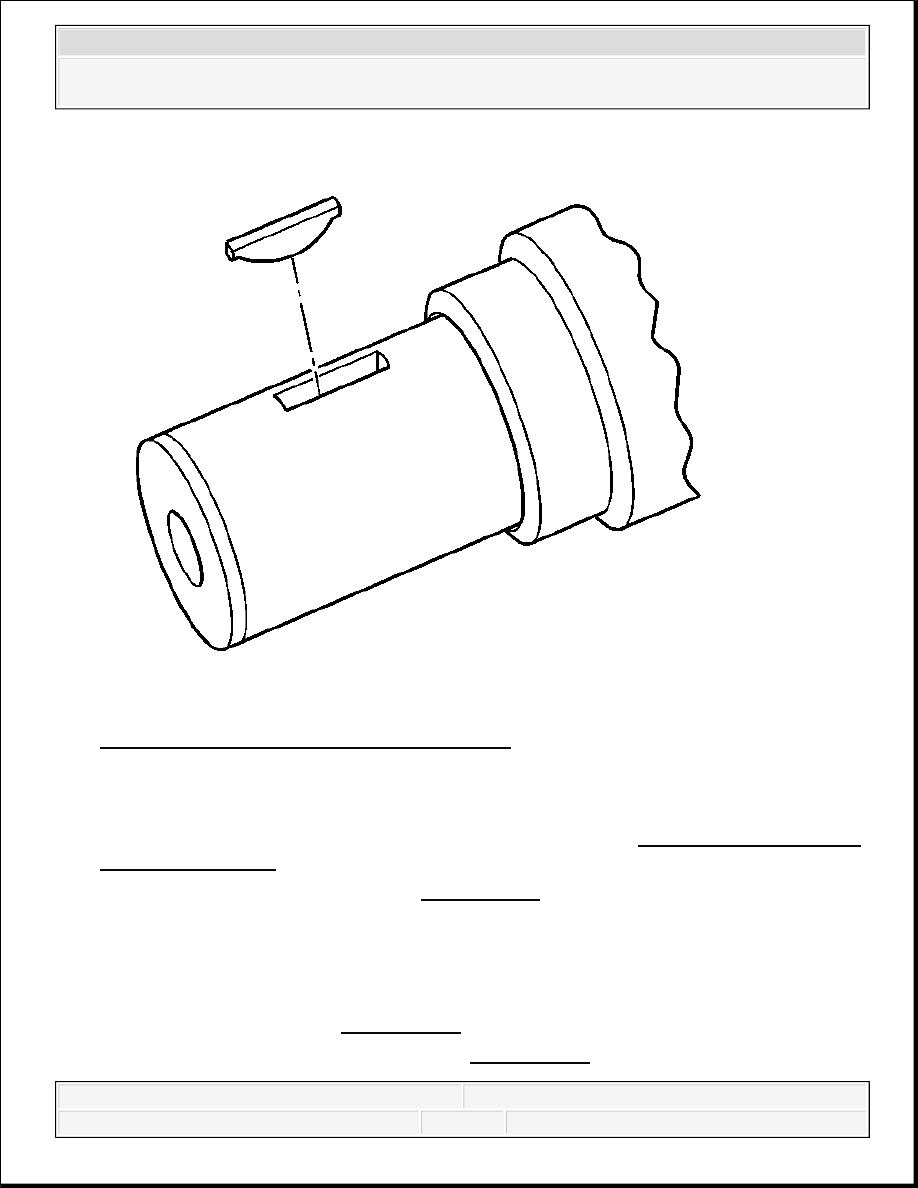

Fig. 270: View Of Crankshaft Key & Keyway
Courtesy of GENERAL MOTORS CORP.
8. Remove the crankshaft sprocket key, as required.
9. Remove the automatic transmission flex plate and bolts. Refer to Automatic Transmission
Flex Plate Removal.
10. Remove the J 42386-A and bolts. See Special Tools .
CAMSHAFT POSITION ACTUATOR AND SOLENOID VALVE REMOVAL
Tools Required
J 8433 Two Jaw Puller. See Special Tools .
J 41558 Crankshaft Sprocket Remover. See Special Tools .
