Chevrolet Silverado / GMC Sierra. Manual - part 2097

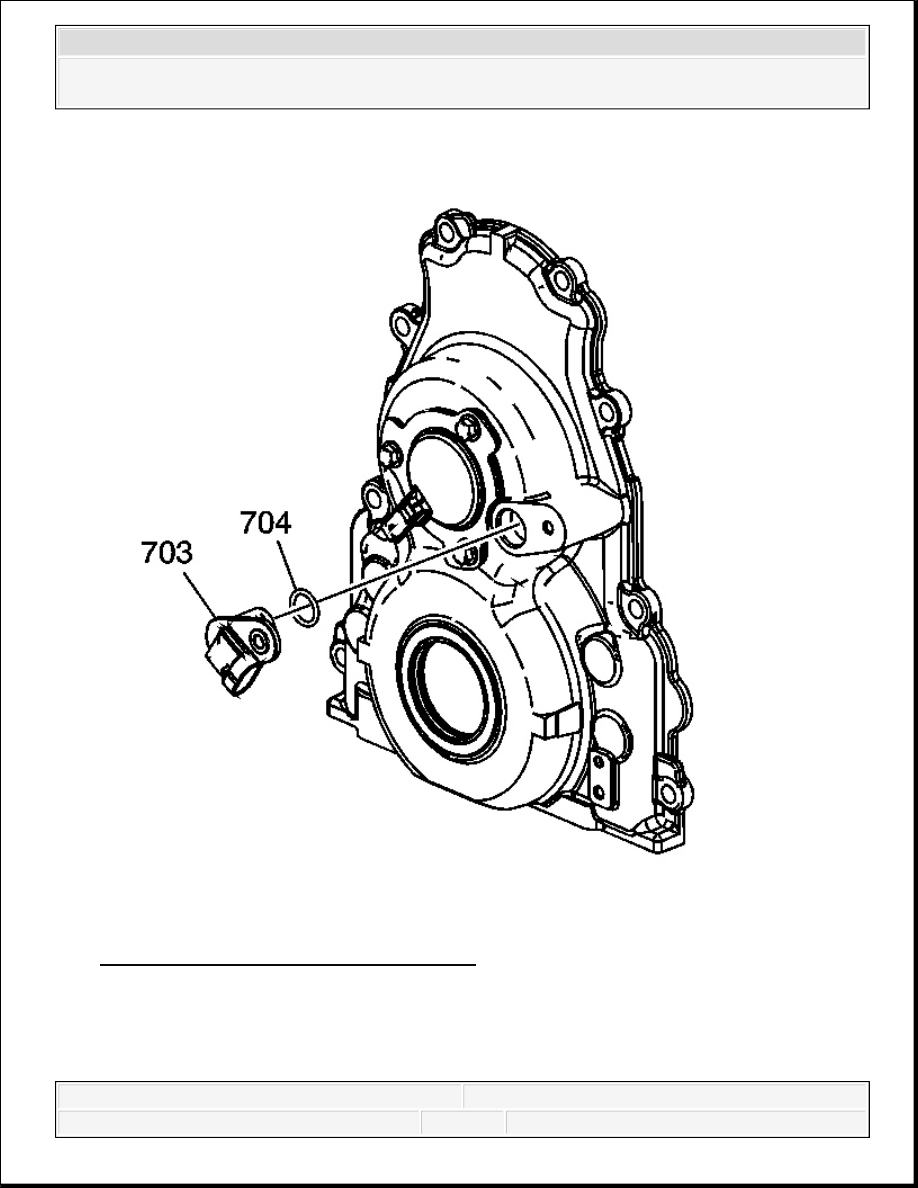

Fig. 255: View Of CMP Sensor & O-Ring
Courtesy of GENERAL MOTORS CORP.
5. Remove the CMP sensor (703).
6. Remove the O-ring (704) from the sensor, as required.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

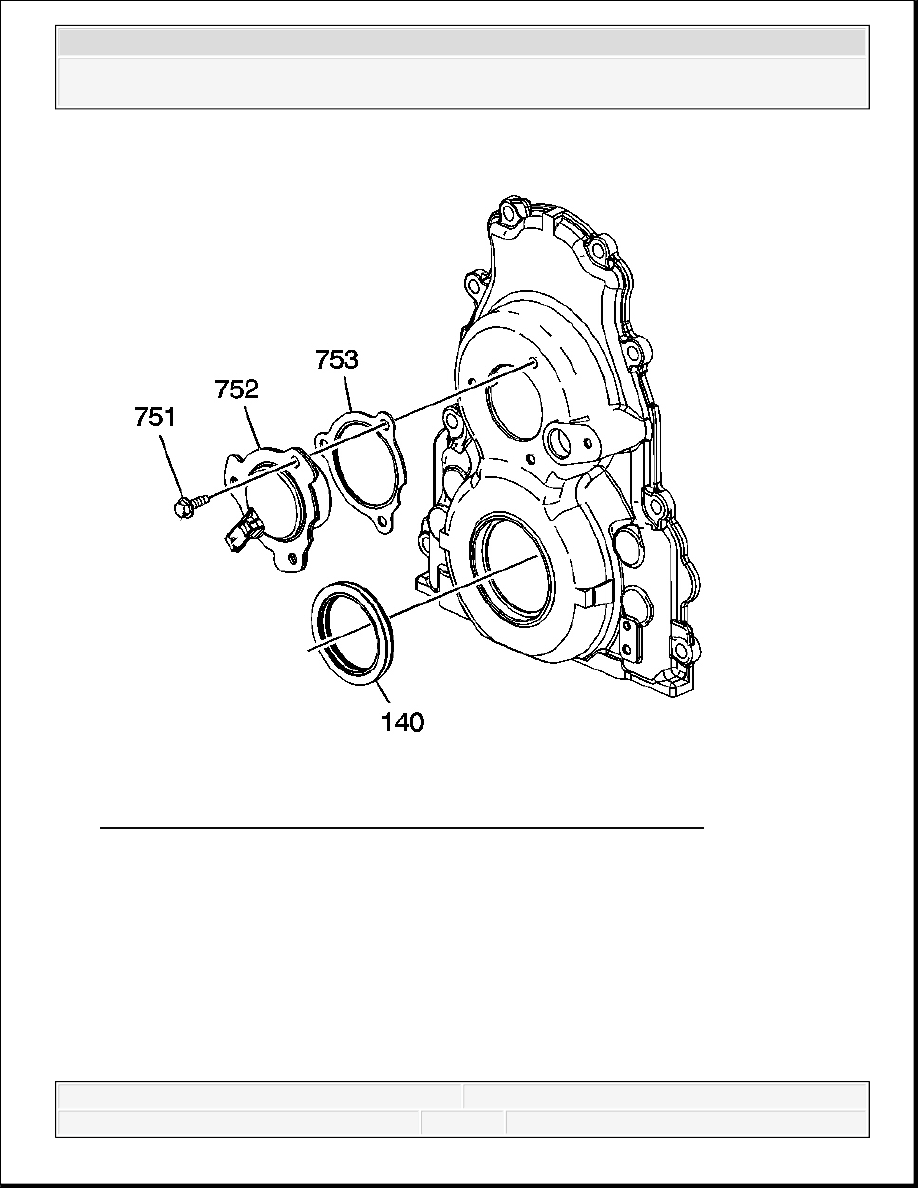

Fig. 256: View Of CMP Actuator Magnet, Bolts, Gasket & Oil Seal
Courtesy of GENERAL MOTORS CORP.
7. Remove the CMP actuator magnet (752), bolts (751), and gasket (753).
8. Remove the oil seal (140).
CRANKSHAFT REAR OIL SEAL HOUSING REMOVAL
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

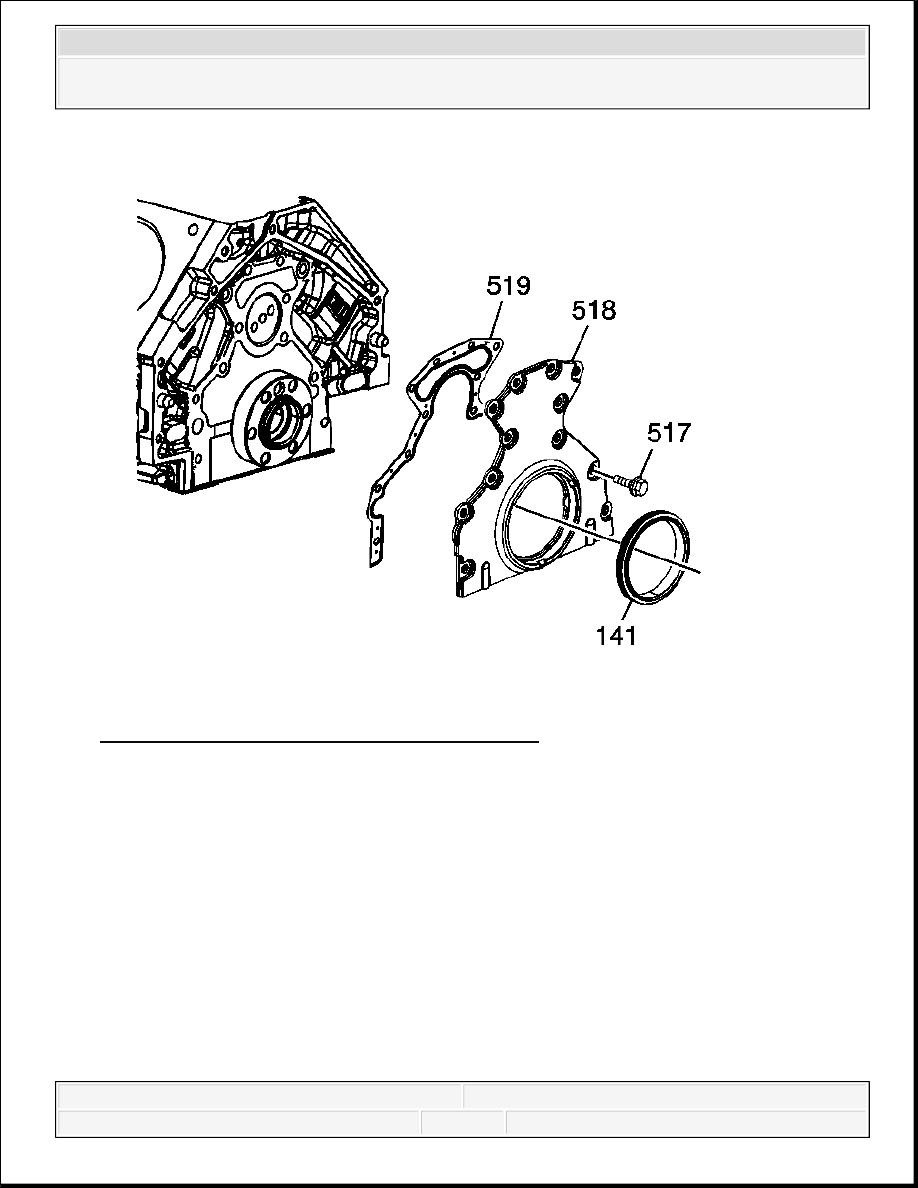

Fig. 257: View of Rear Housing, Gasket and Seal
Courtesy of GENERAL MOTORS CORP.
1. Remove the rear oil seal housing bolts (517).
2. Remove the housing (518) and gasket (519).
3. Remove the rear oil seal (141).
OIL PUMP, SCREEN AND CRANKSHAFT OIL DEFLECTOR REMOVAL (RPO
LY2/LH6/LMG/LY5/LC9)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

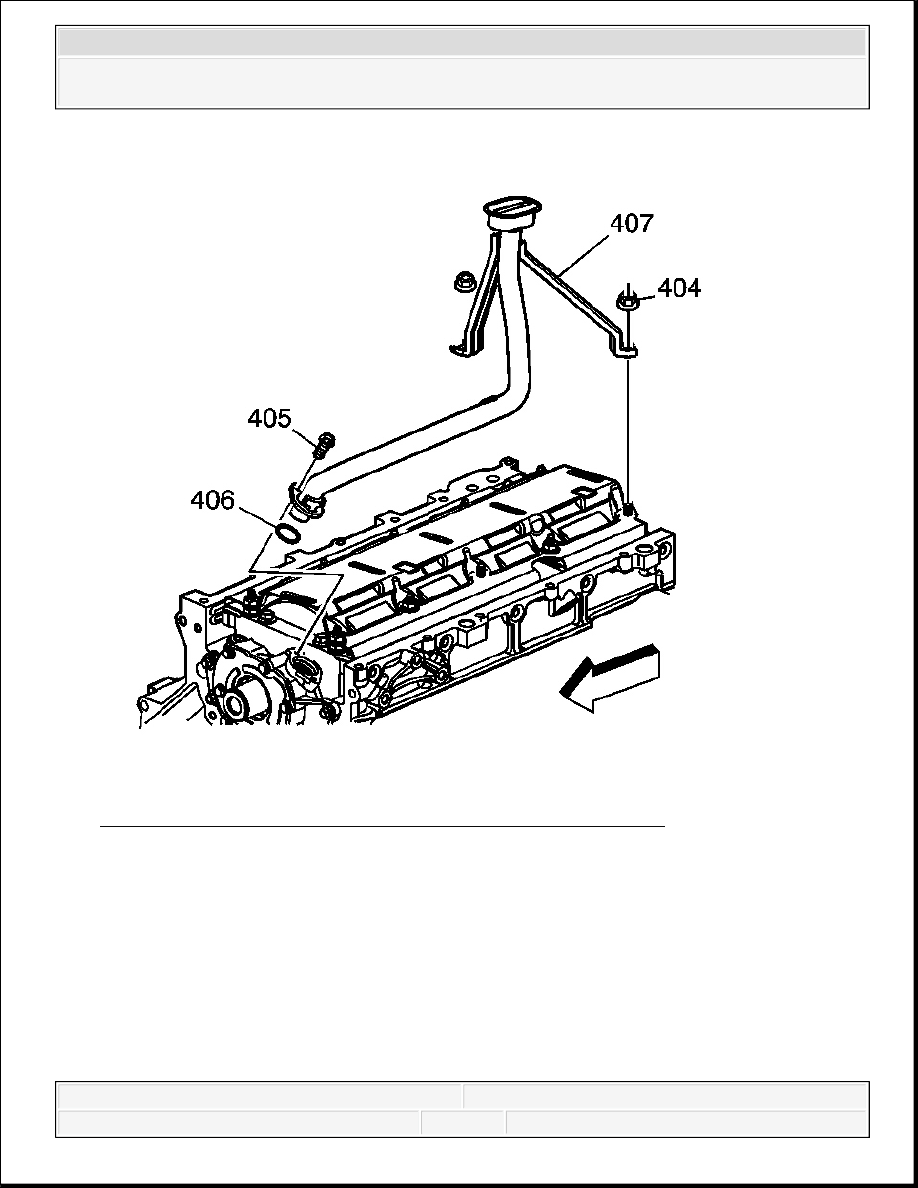

Fig. 258: View Of Oil Pump Screen, Bolt, Nuts, & O-Ring Seal
Courtesy of GENERAL MOTORS CORP.
1. Remove the oil pump screen bolt (405) and nuts (404).
2. Remove the oil pump screen (407) with O-ring seal (406).
3. Remove the O-ring seal from the pump screen.
4. Discard the O-ring seal.
