8. Discard the gasket and rivets.
ENGINE FRONT COVER REMOVAL (RPO LY2/LH6/LMG/LY5/LC9)

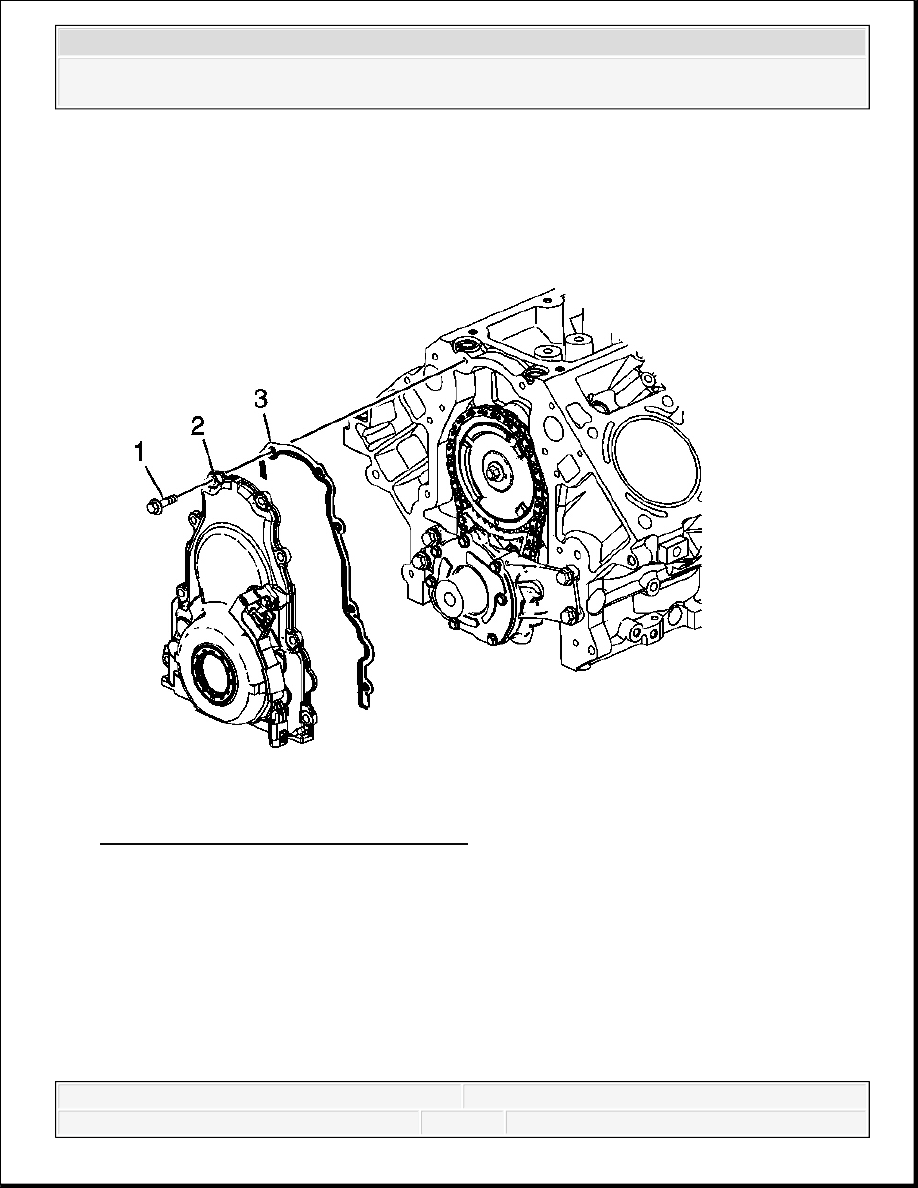

Fig. 251: View Of Front Cover & Gasket
Courtesy of GENERAL MOTORS CORP.
1. Remove the front cover bolts (1).
2. Remove the front cover (2) and gasket (3).
3. Discard the front cover gasket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

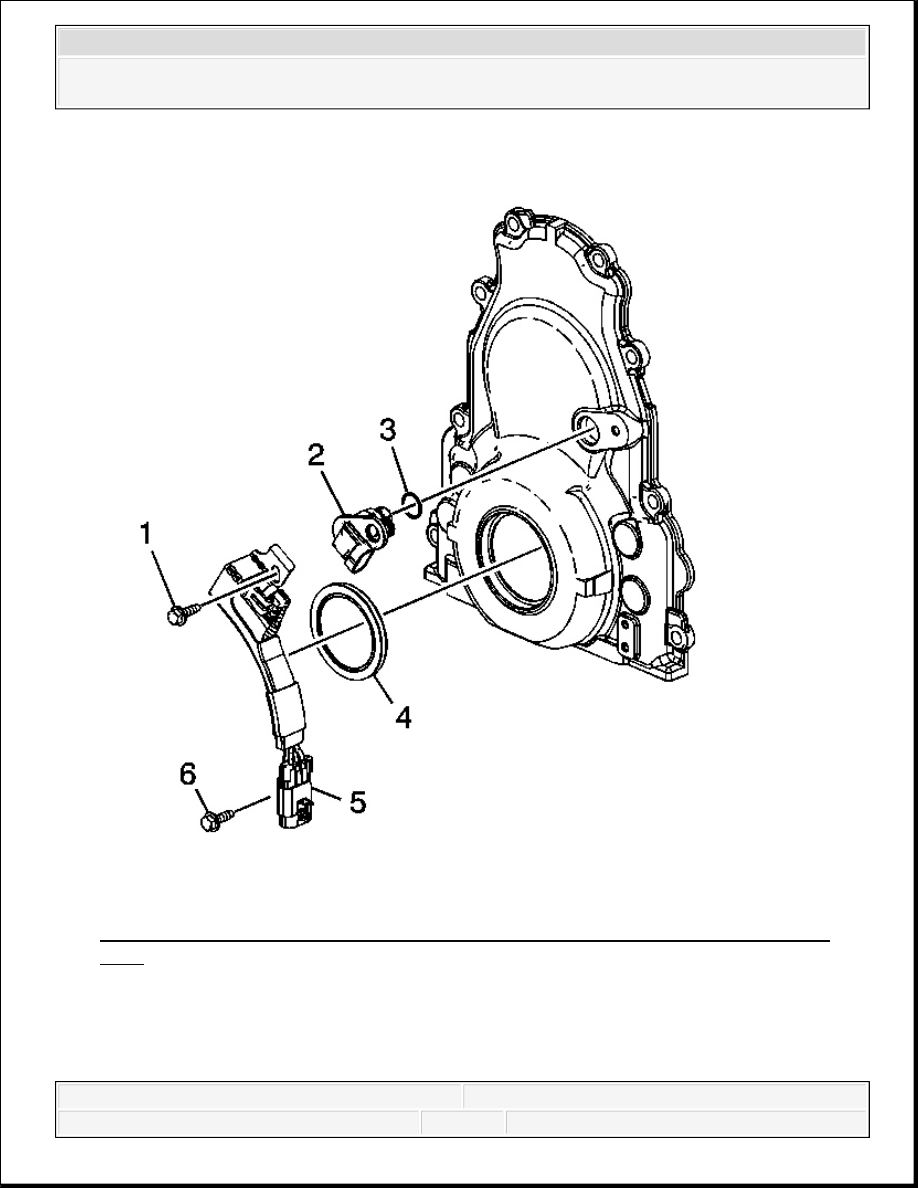

Fig. 252: View Of Front Cover, Oil Seal, Camshaft Position Sensor, Bracket & O
Ring
Courtesy of GENERAL MOTORS CORP.
4. Remove the oil seal (4).
5. Remove the bolts (1, 6), camshaft position (CMP) sensor (2), and wire harness (5).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
6. Remove the O-ring (3) from the sensor, as required.
ENGINE FRONT COVER REMOVAL (RPO LY6/L76/L92)

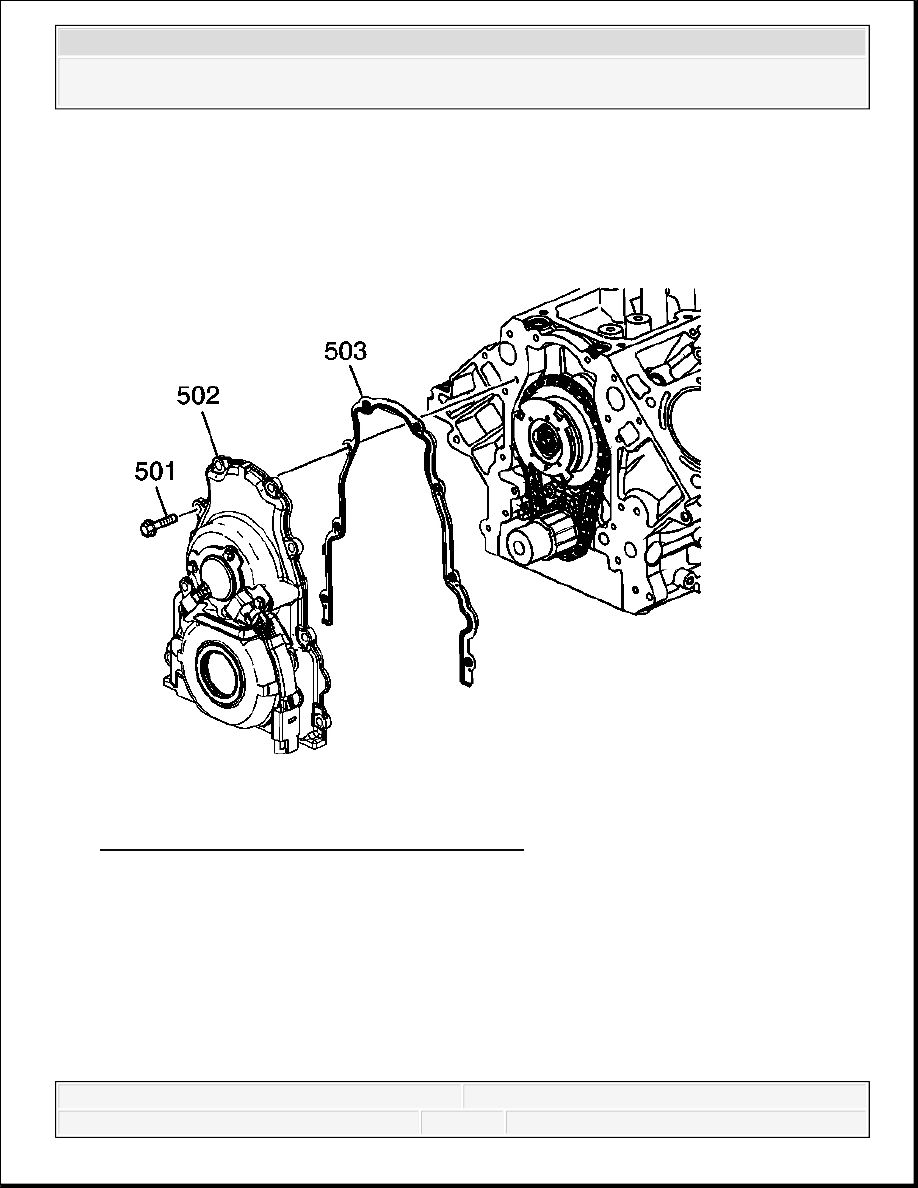

Fig. 253: View Of Front Cover, Bolts & Gasket
Courtesy of GENERAL MOTORS CORP.
1. Remove the front cover bolts (501).
2. Remove the front cover (502) and gasket (503).
3. Discard the front cover gasket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

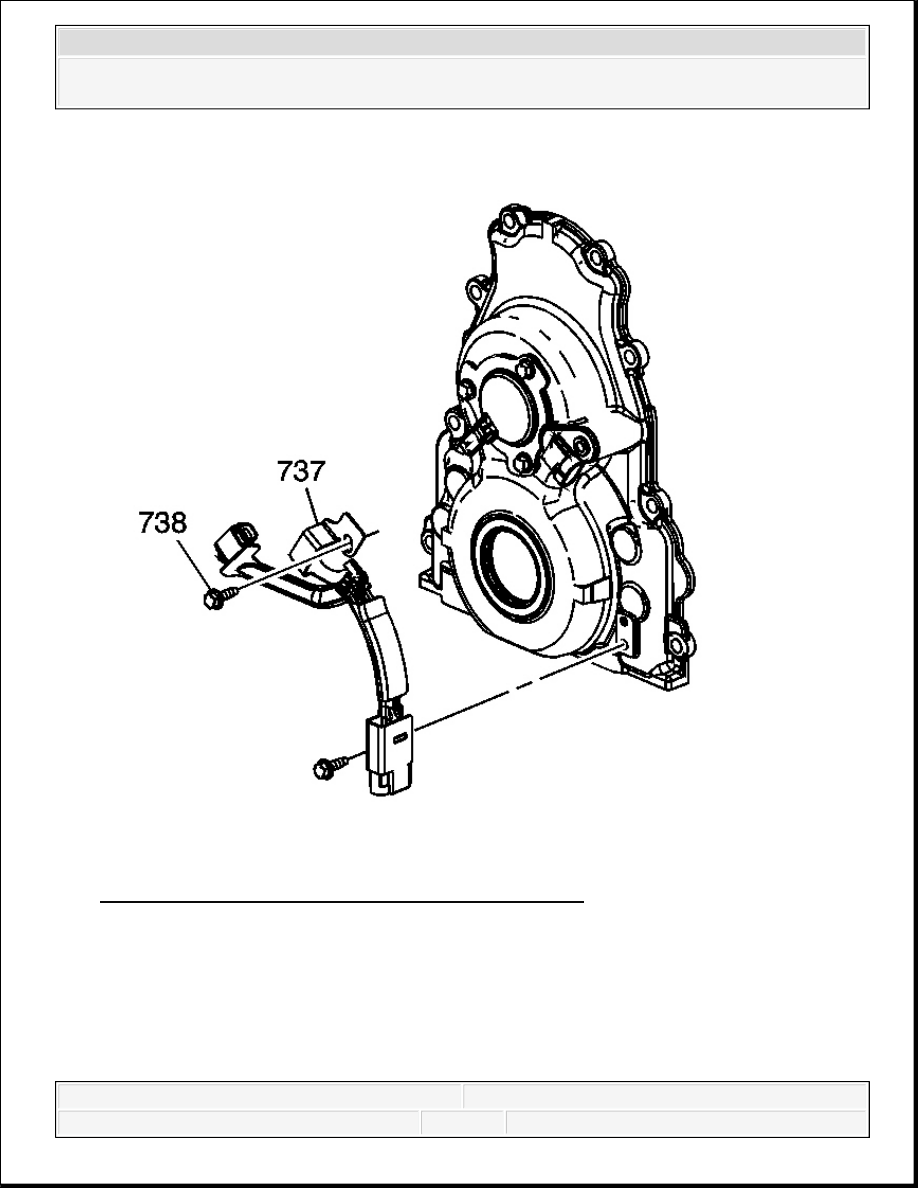

Fig. 254: View Of CMP Sensor Wire Harness & Bolts
Courtesy of GENERAL MOTORS CORP.
4. Remove the camshaft position (CMP) sensor wire harness (737) and bolts (738).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
