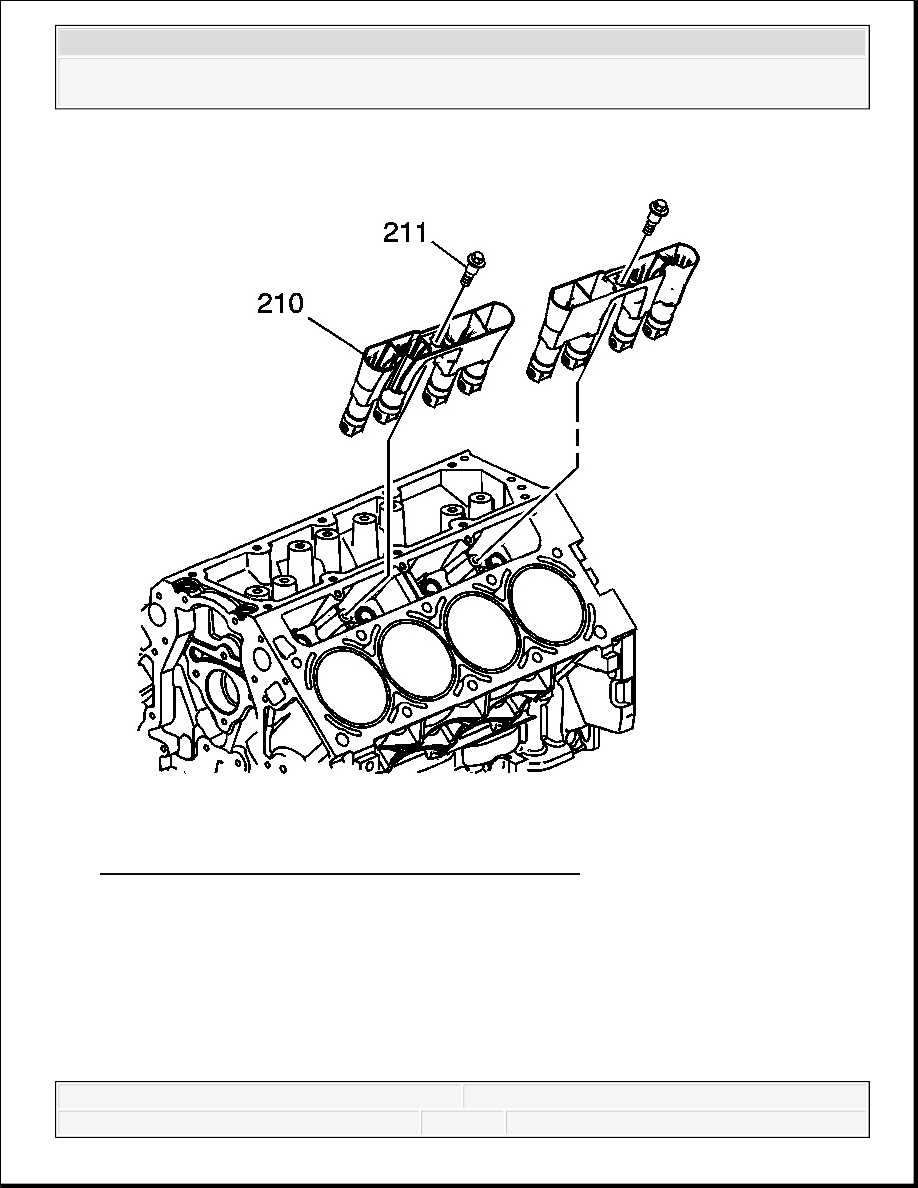

Fig. 239: Valve Lifter Guides, Cylinder Head & Bolts 1. Remove the guide bolts (211). 2. Remove the guides (210) with lifters. Note the installed position of the guides. The notched area of the guide is to align with the
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

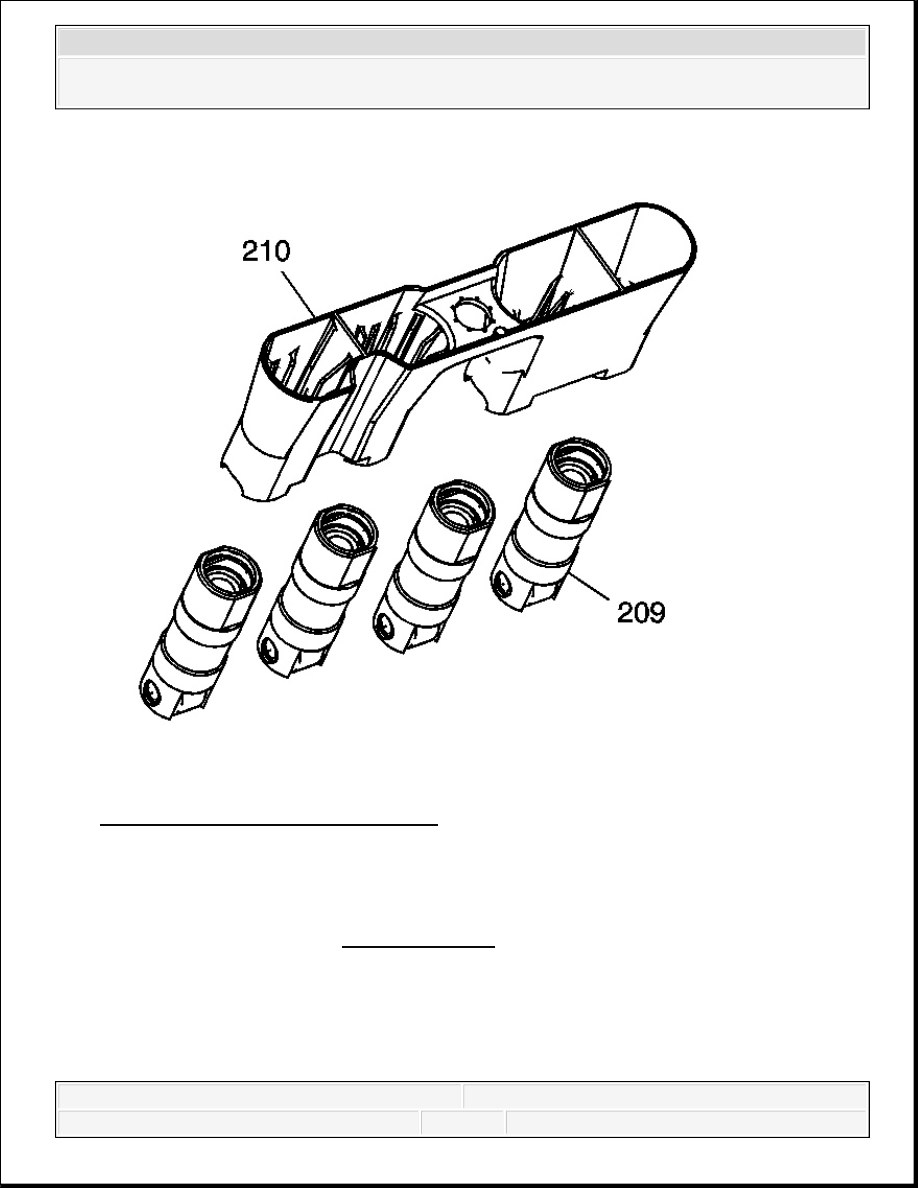

Fig. 240: Valve Lifter Guides & Bolts 3. Remove the valve lifters (209) from the guide (210). 4. Organize or mark the components so they can be installed in the same location from which they were removed. Refer to Separating Parts . VALVE LIFTER REMOVAL (RPO LH6/LMG/LY5/LC9/L76)
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

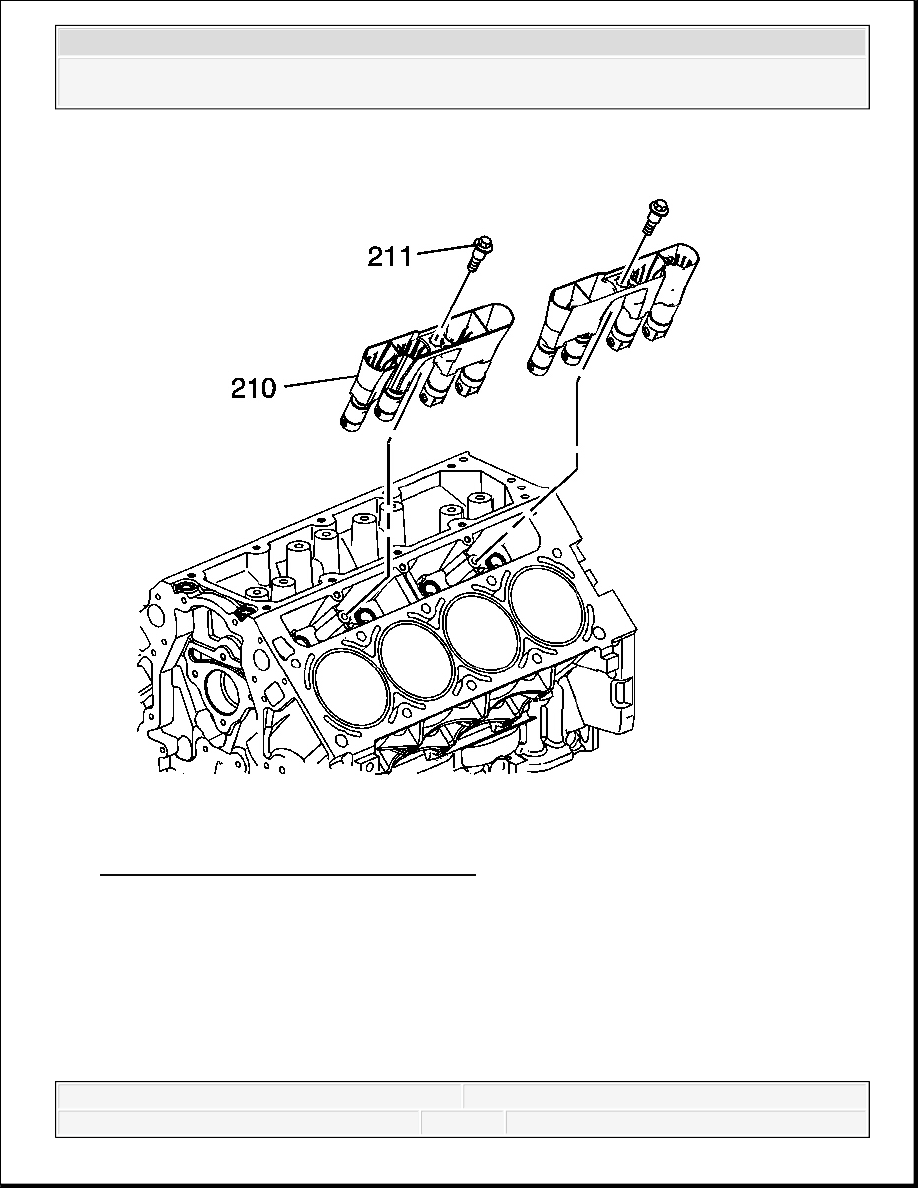

Fig. 241: View Of Lifter Guides & Lifters 1. Remove the bolts (211). 2. Remove the guides (210) with lifters. Note the installed position of the guides. The notched area of the guide is to align with the
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

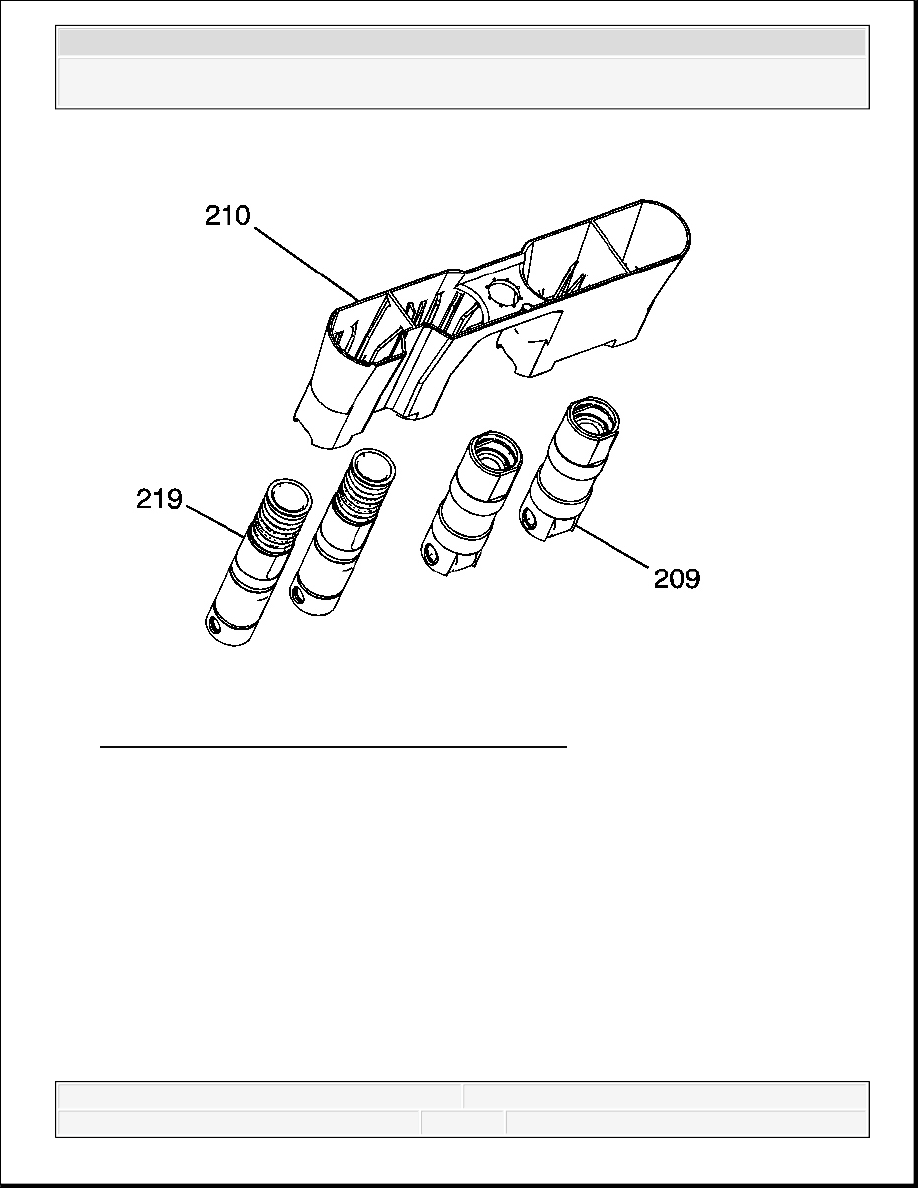

Fig. 242: Exploded View Of Lifter Guides & Lifters 3. Remove the valve lifters (209, 219) from the guide (210).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
