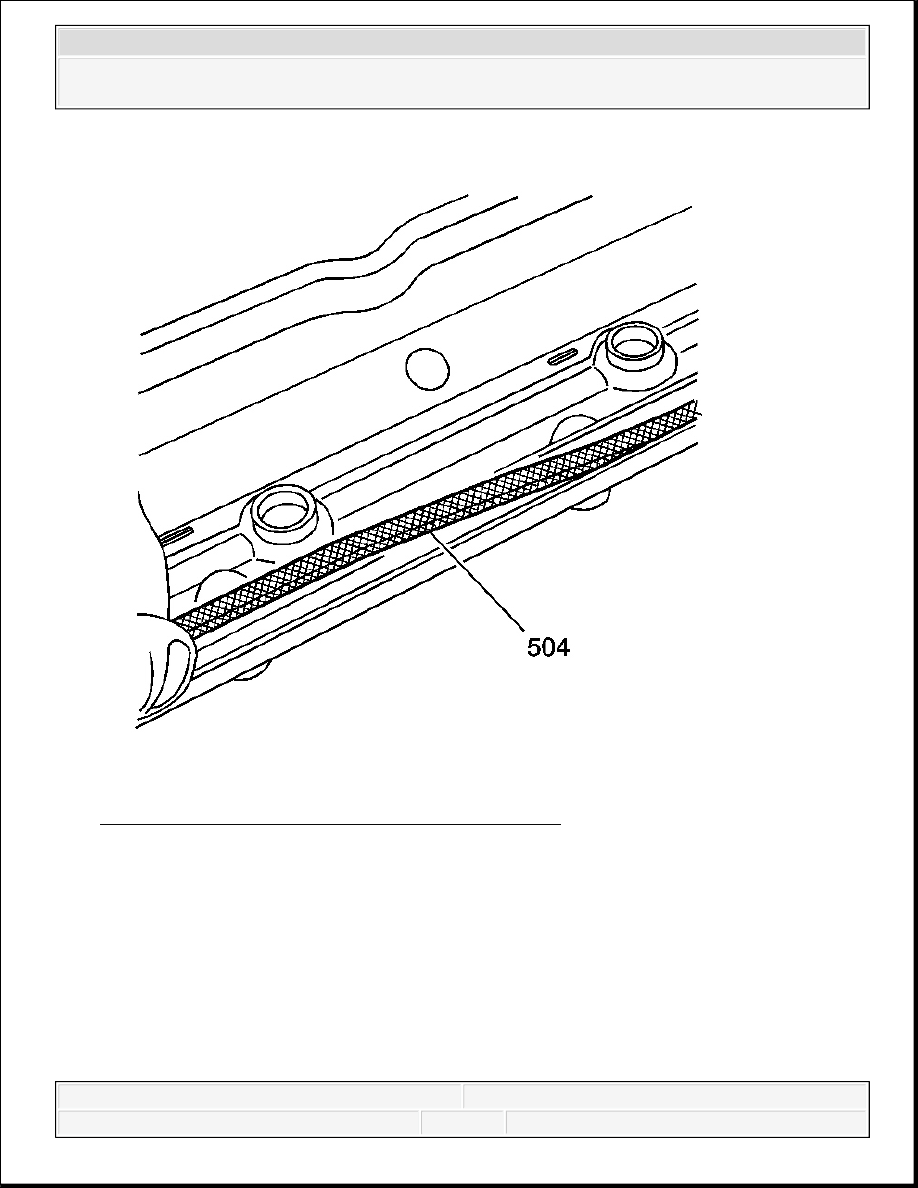

Fig. 223: View Of Valve Rocker Arm Cover Gasket 7. Remove the gasket (504) from the cover. VALVE ROCKER ARM COVER REMOVAL - RIGHT SIDE
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

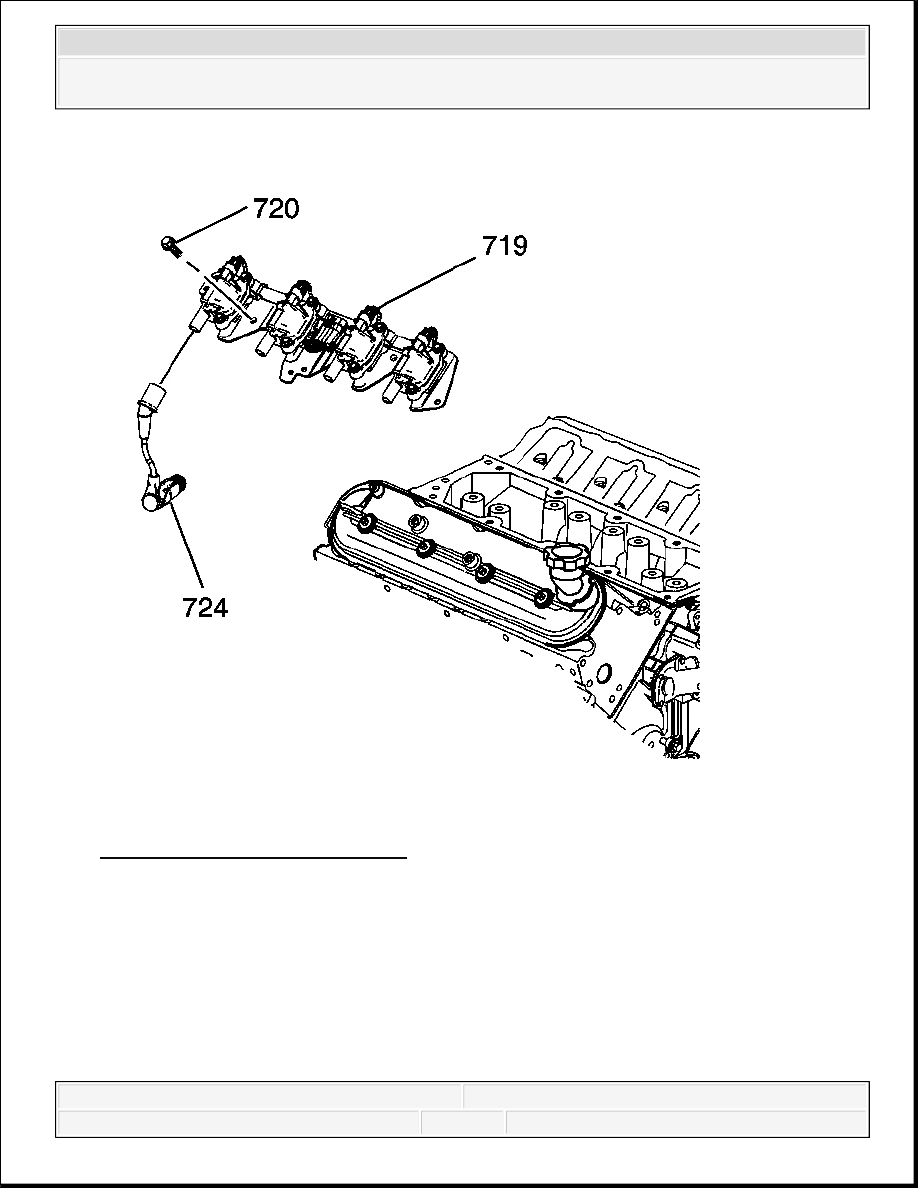

Fig. 224: Ignition Coils & Bracket 1. Remove the spark plug wires (724). 2. Remove the ignition coil bracket studs (720). IMPORTANT: Do not remove the oil fill tube from the cover, unless service is required. If the oil fill tube has been removed from the
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

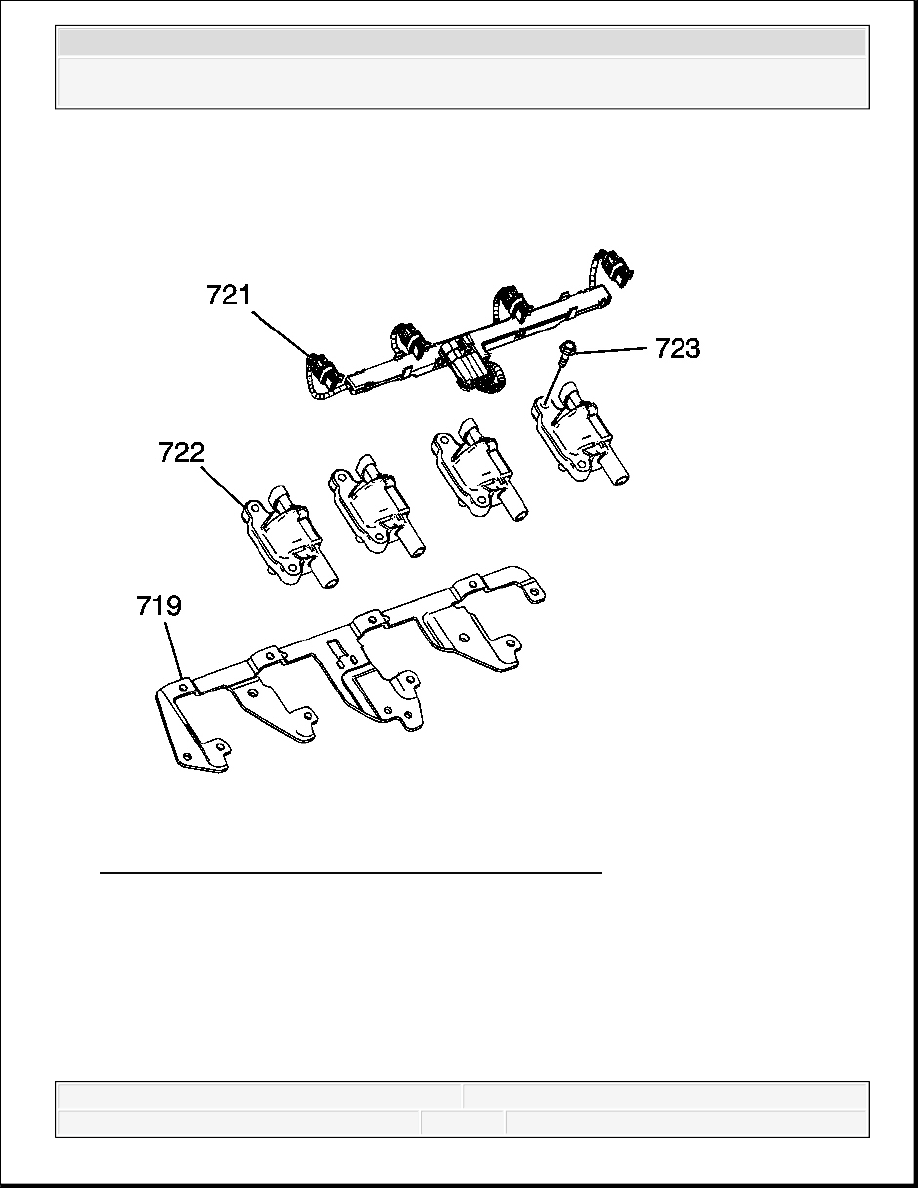

3. Remove the ignition coil and bracket assembly (719). Fig. 225: View Of Bracket, Bolts, Coils & Wire Harness 4. Disconnect the ignition coil electrical connectors. 5. Remove the bolts (723), coils (722), and wire harness (721) from the bracket (719), as required.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

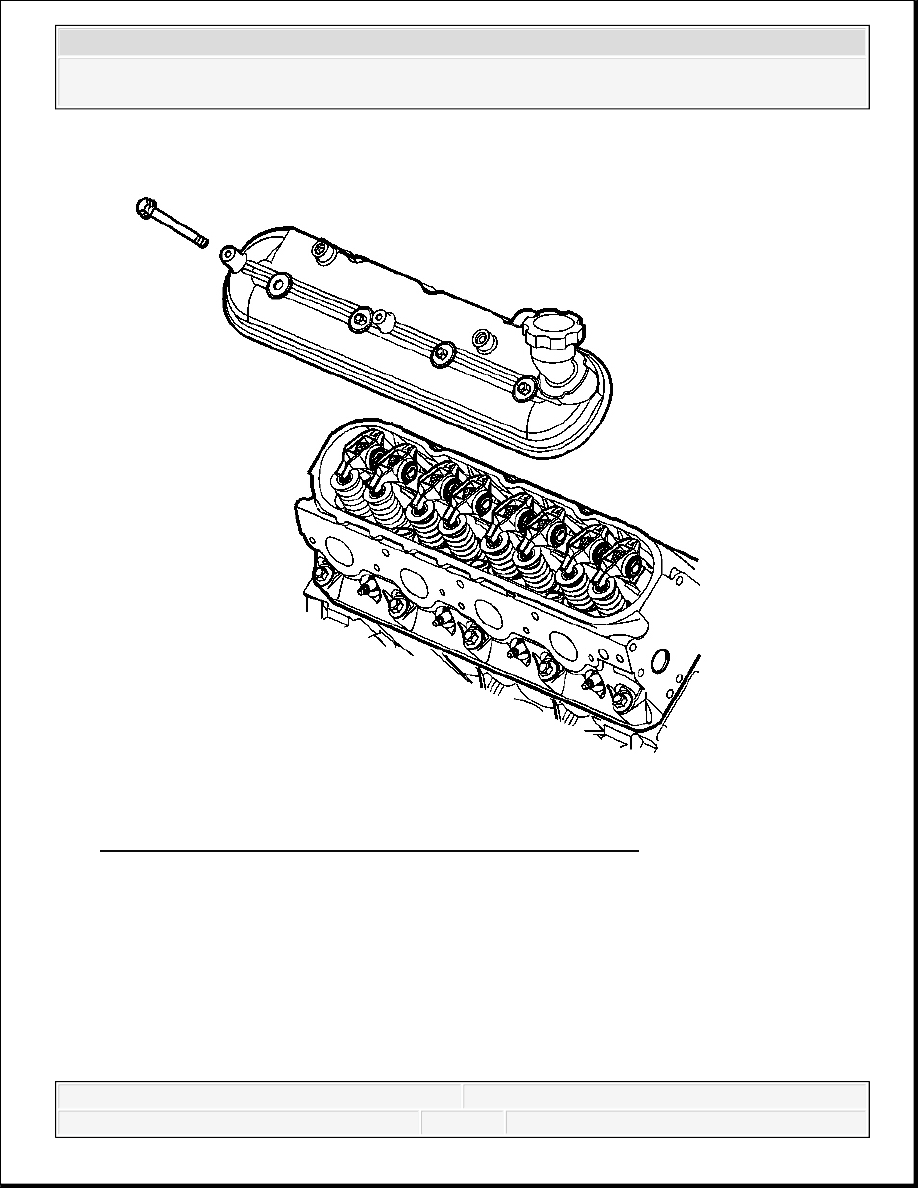

Fig. 226: View Of Valve Rocker Arm Cover & Bolts (Right) 6. Remove the valve rocker arm cover bolts and cover.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
