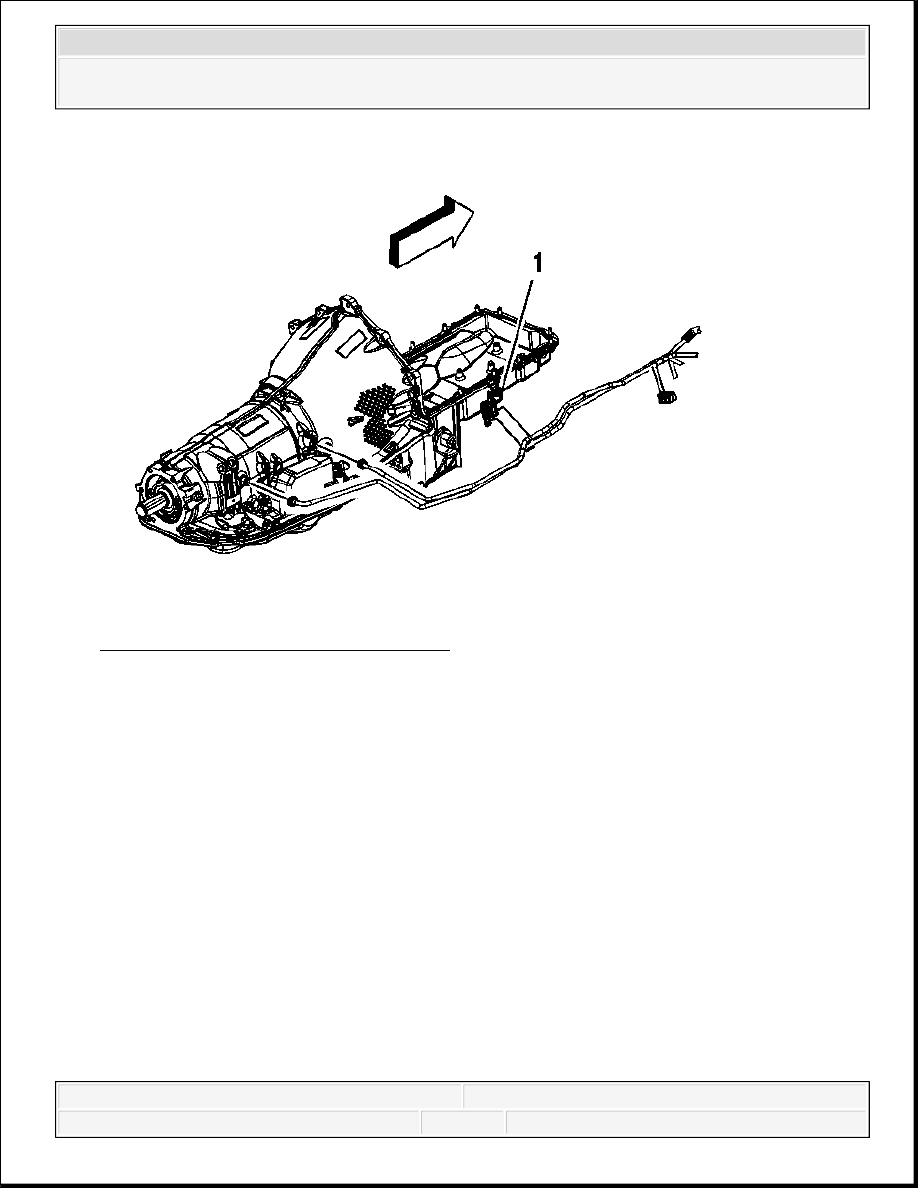

Fig. 417: View Of Oil Cooler Line Clip
Courtesy of GENERAL MOTORS CORP.
14. For vehicles with a 4L80-E automatic transmission, install the oil cooler lines to the clip
(1), if equipped.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

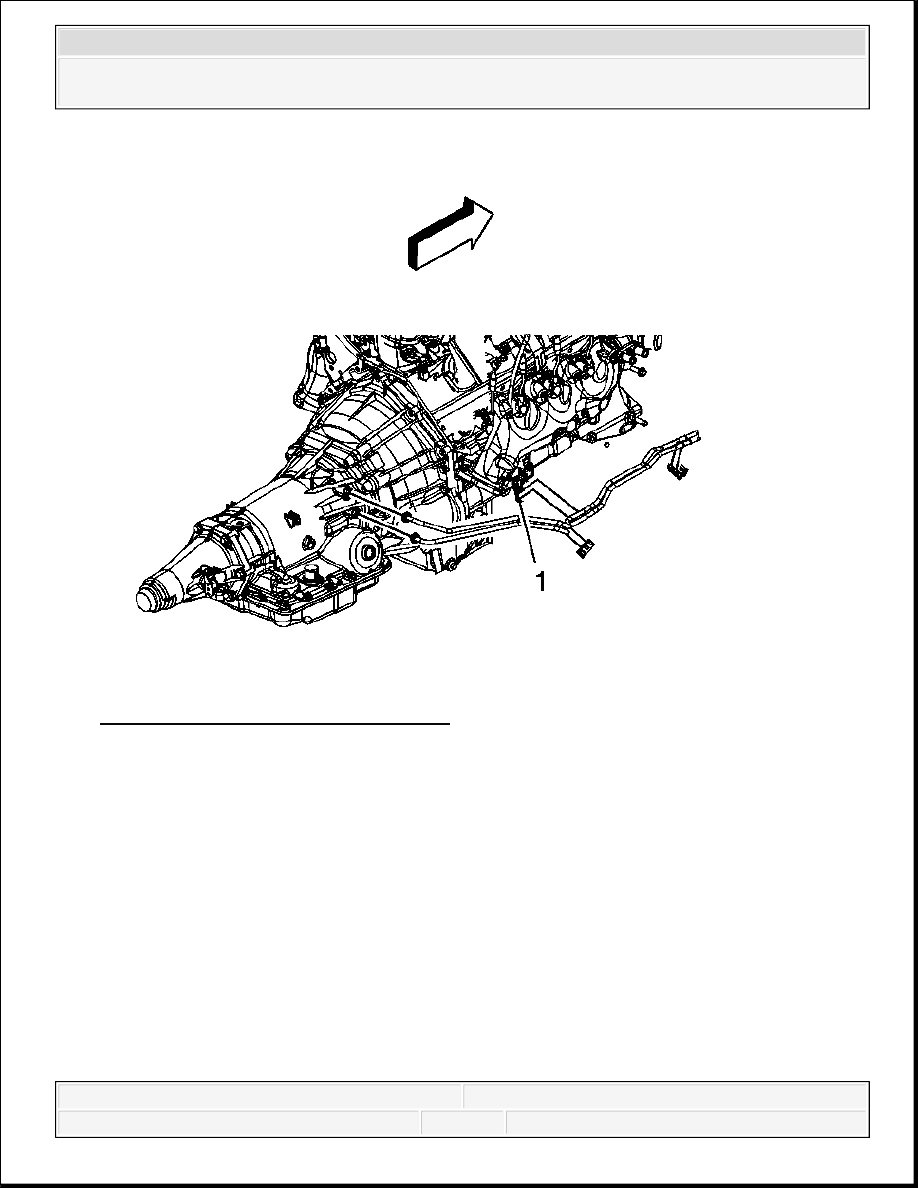

Fig. 418: View Of Oil Cooler Line Clip
Courtesy of GENERAL MOTORS CORP.
15. For vehicles with a 4L60-E/4L70-E automatic transmission, install the oil cooler lines to the
clip (1), if equipped.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

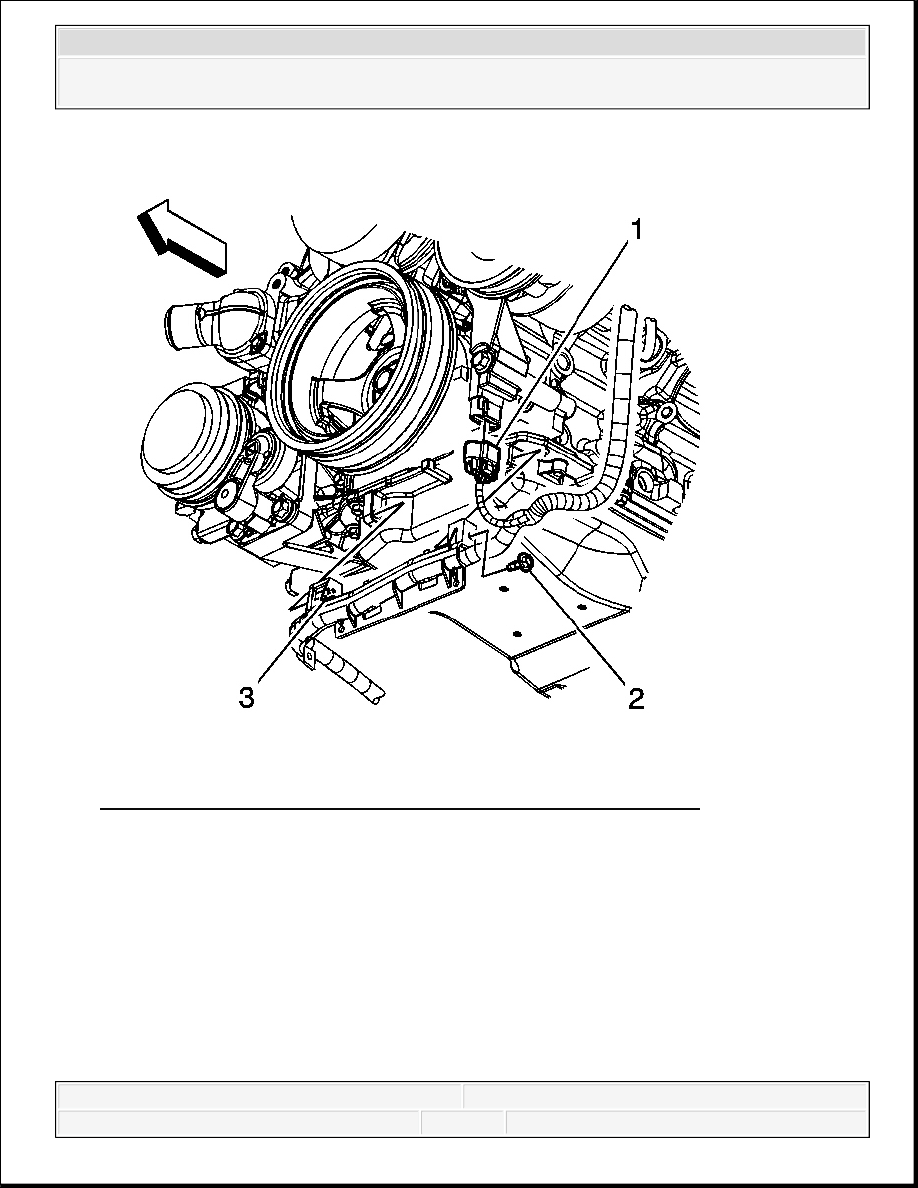

Fig. 419: View Of Electrical Connector, Cable Channel Bolt & Pin
Courtesy of GENERAL MOTORS CORP.
16. Position the channel and slide the channel pin (3) into the oil pan tab.
17. Install the battery cable channel bolt (2).
Tighten: Tighten the bolt to 12 N.m (106 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

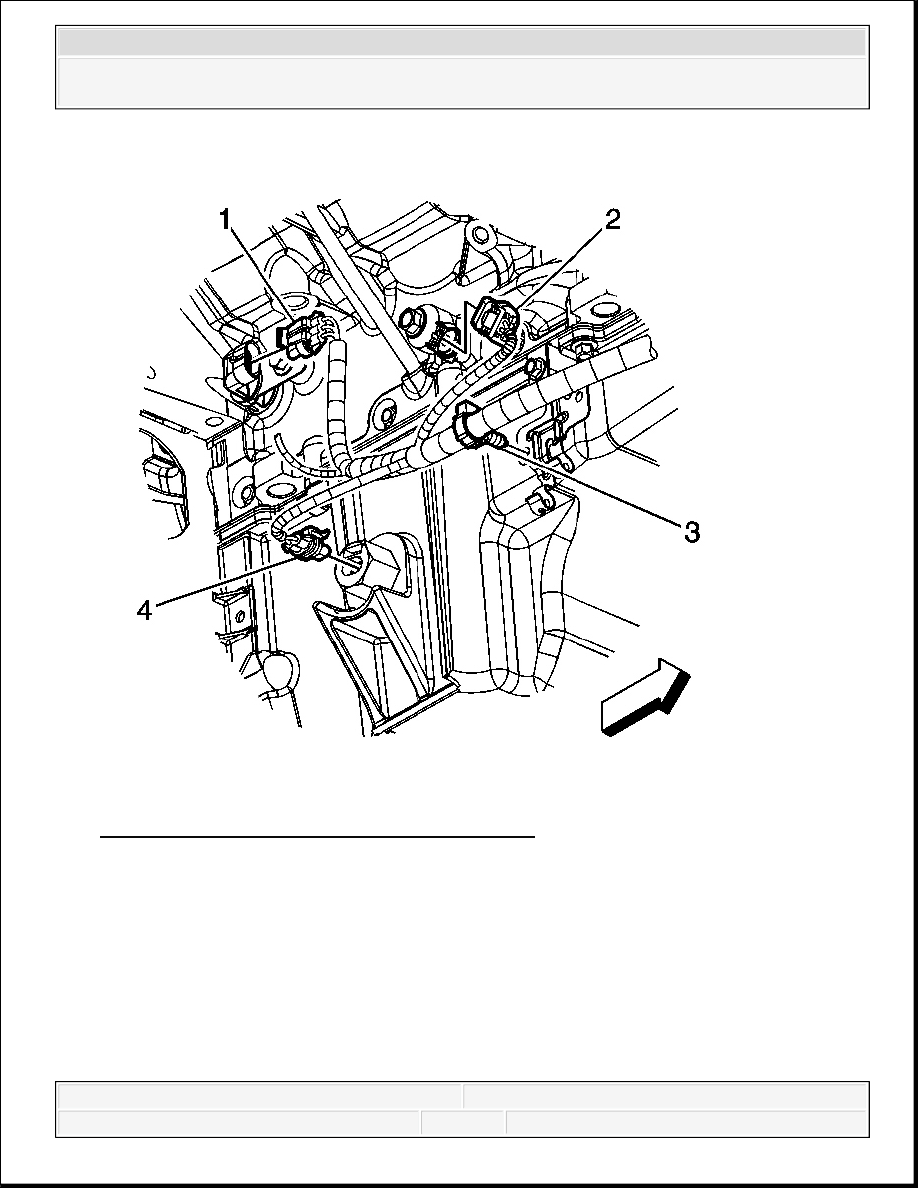

Fig. 420: View Of Electrical Connectors & Clips
Courtesy of GENERAL MOTORS CORP.
18. Connect the engine harness electrical connector (4) to the oil level sensor.
19. Install the engine harness clip (3) to the transmission oil cooler line bracket.
