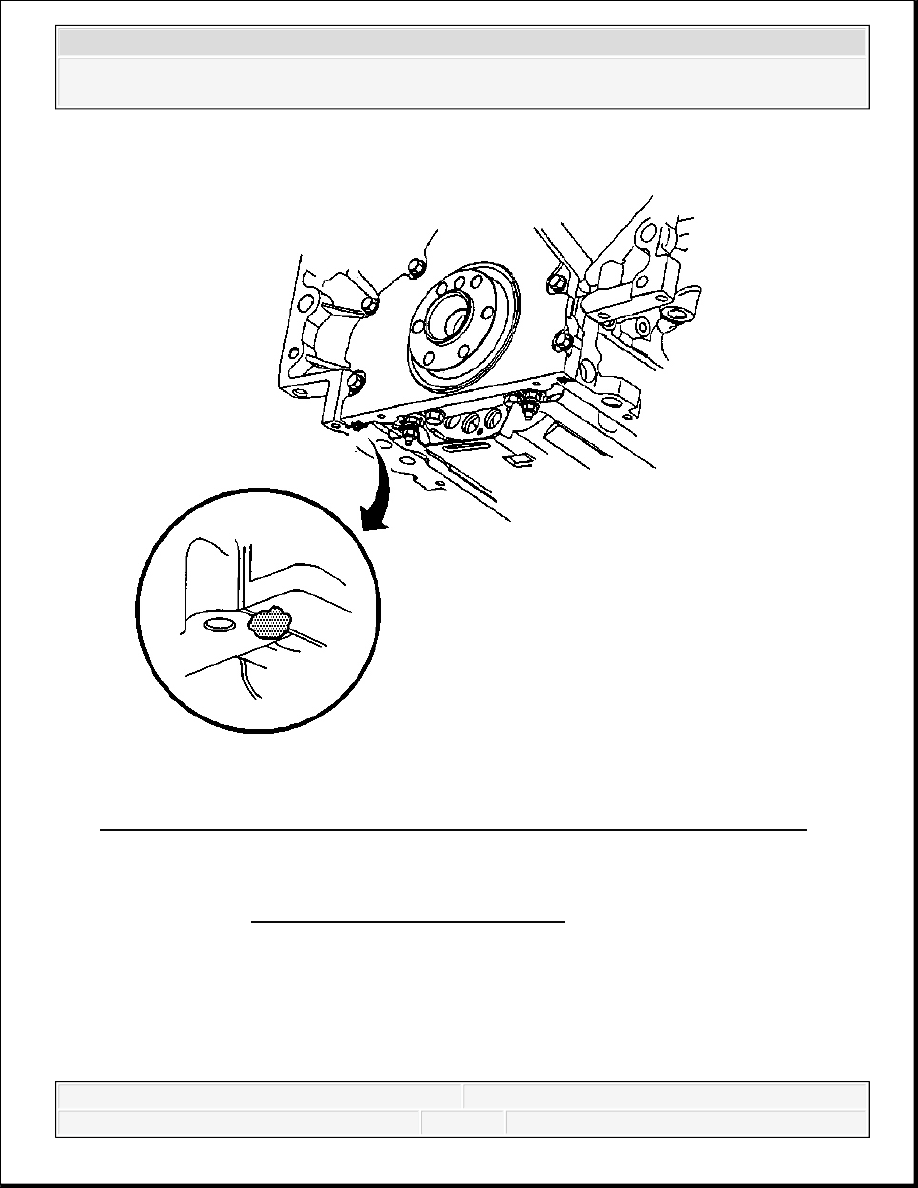

Fig. 374: View Of Sealant Applied To Rear Oil Pan-To-Engine Block Junction
Courtesy of GENERAL MOTORS CORP.
1. Apply a 5 mm (0.2 in) bead of sealant, 20 mm (0.8 in) long to the oil pan to engine block
junction. Refer to Sealers, Adhesives, and Lubricants .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

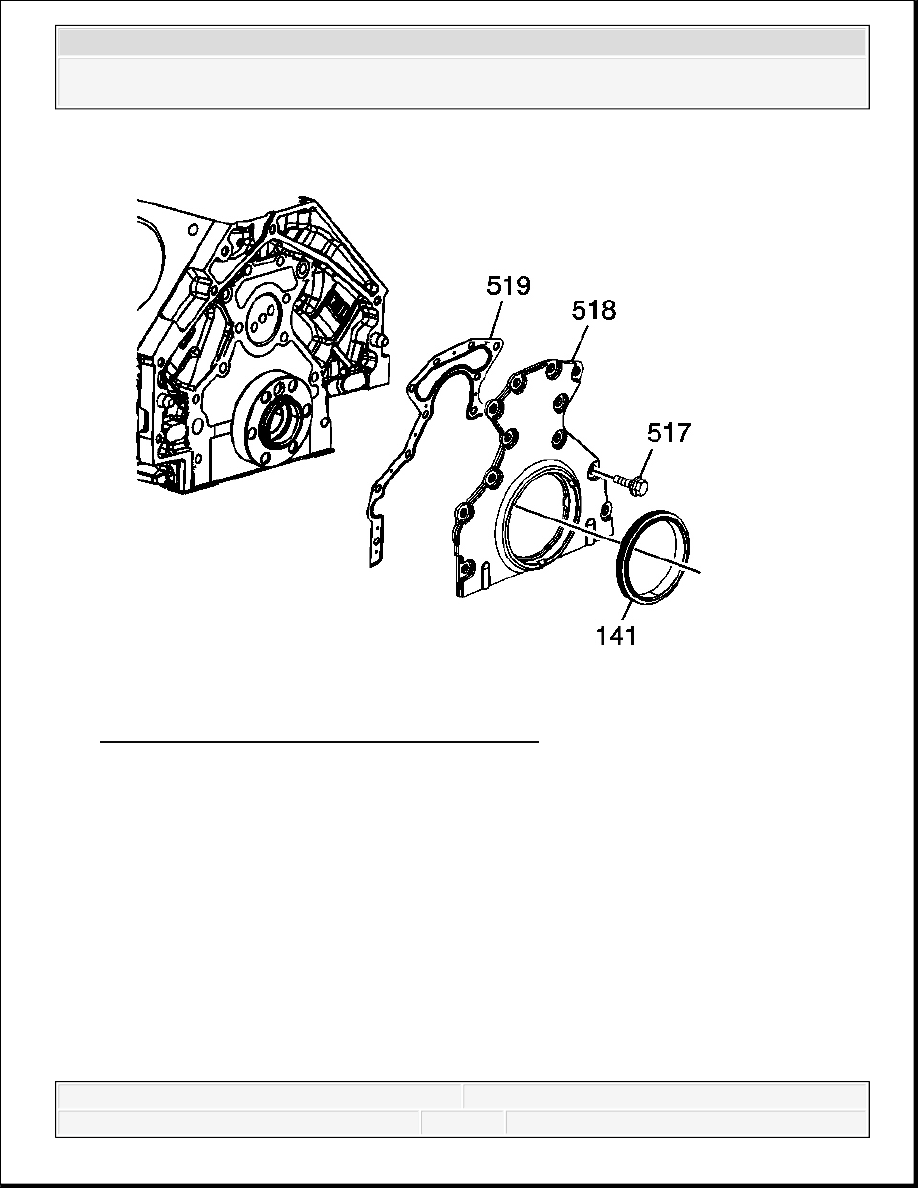

Fig. 375: View of Rear Housing, Gasket and Seal
Courtesy of GENERAL MOTORS CORP.
2. Position a NEW rear oil seal housing gasket (519) and the housing (518) to the engine.
3. Install the rear oil seal housing bolts until snug. Do not overtighten.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

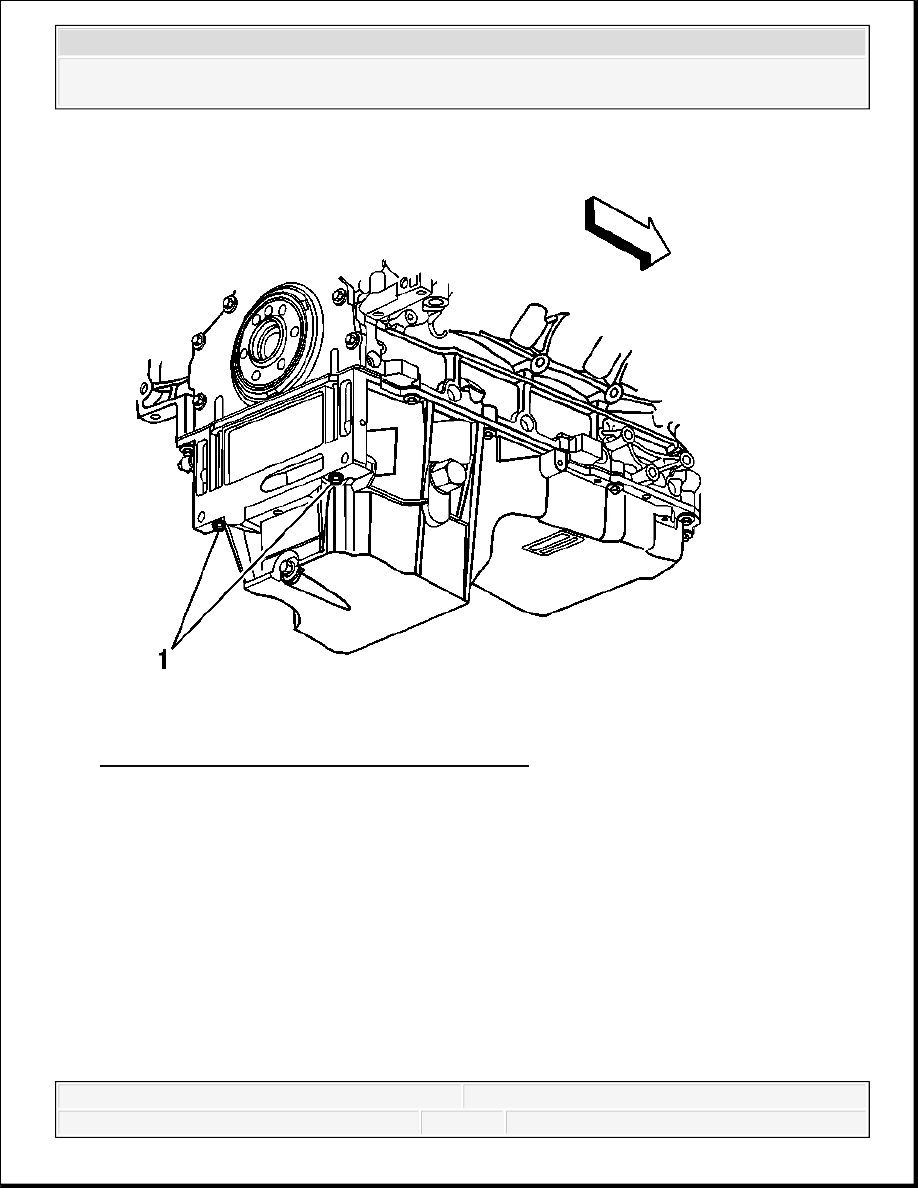

Fig. 376: View Of Oil Pan-To-Rear Cover Bolts
Courtesy of GENERAL MOTORS CORP.
4. Install the oil pan-to-rear oil seal housing bolts (1) until snug. Do not overtighten.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

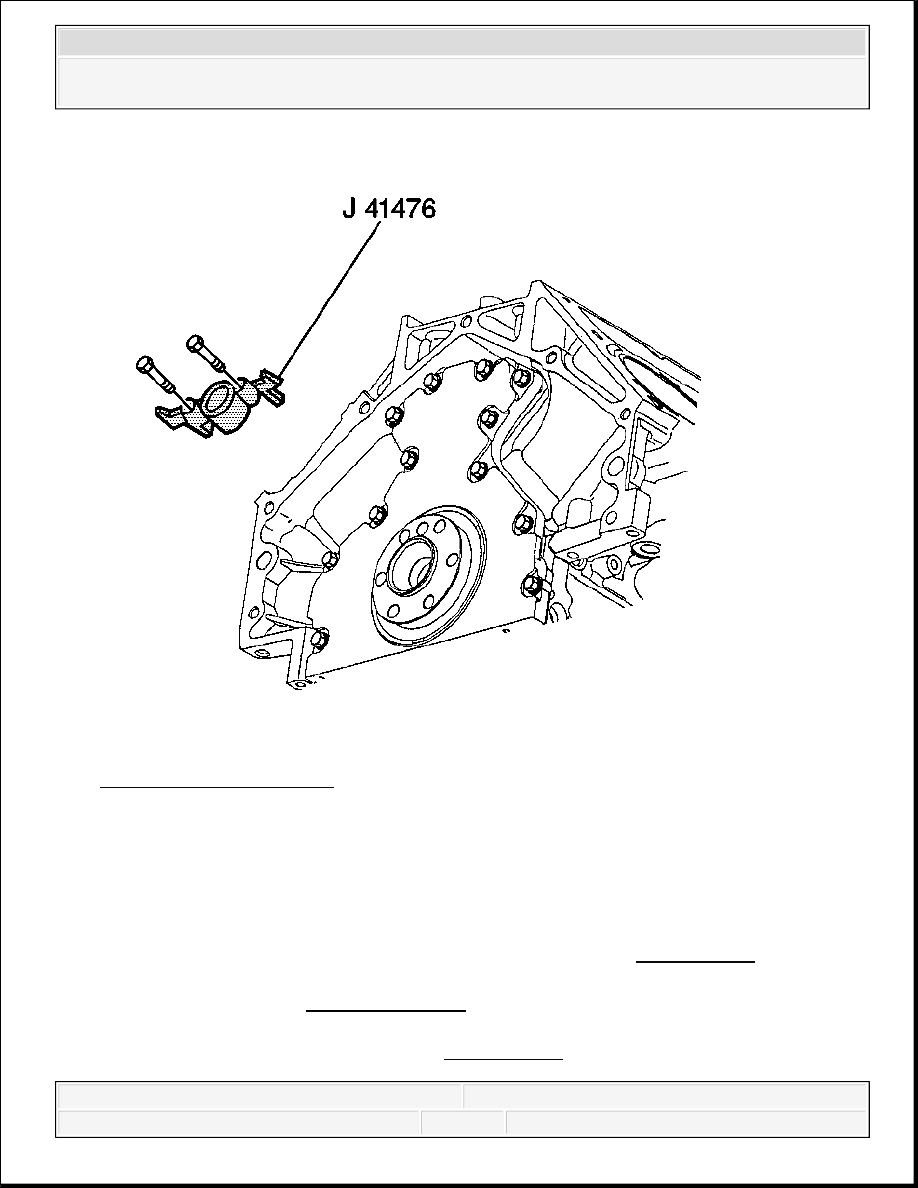

Fig. 377: View Of J 41476
Courtesy of GENERAL MOTORS CORP.
5. Rotate the crankshaft until 2 opposing flywheel bolt holes are parallel to the oil pan surface.
6. Install the J 41476 and bolts onto the rear of the crankshaft. See Special Tools .
7. Tighten the J 41476 bolts until snug. See Special Tools . Do not overtighten.
IMPORTANT: The tapered legs of the alignment tool must enter the rear
cover oil seal bore.
NOTE:
Refer to Fastener Notice .
