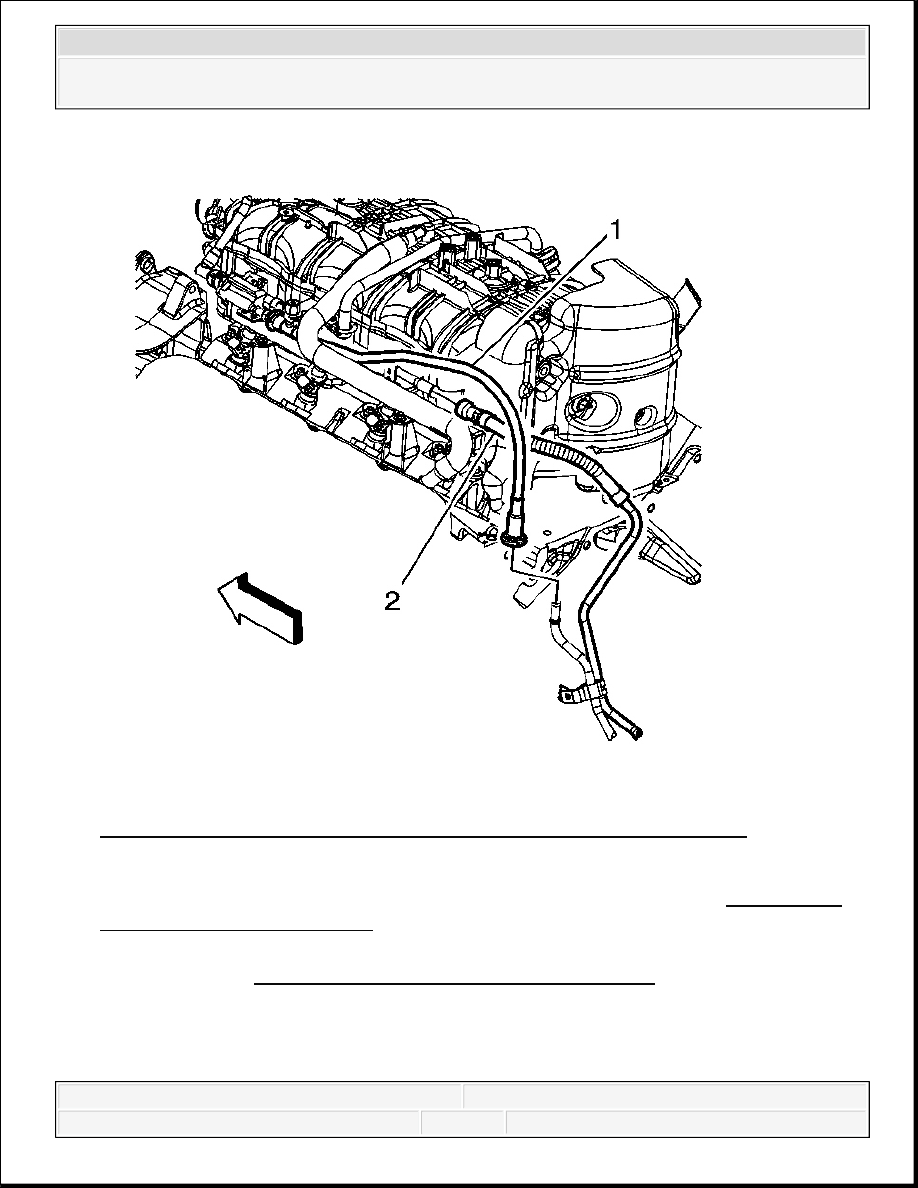

Fig. 169: View Of EVAP Canister Purge Tube & Quick Connect Fitting 27. Connect the fuel feed line quick connect fitting (2) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service . 28. Connect the EVAP canister purge tube (1) quick connect fitting to the EVAP canister purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

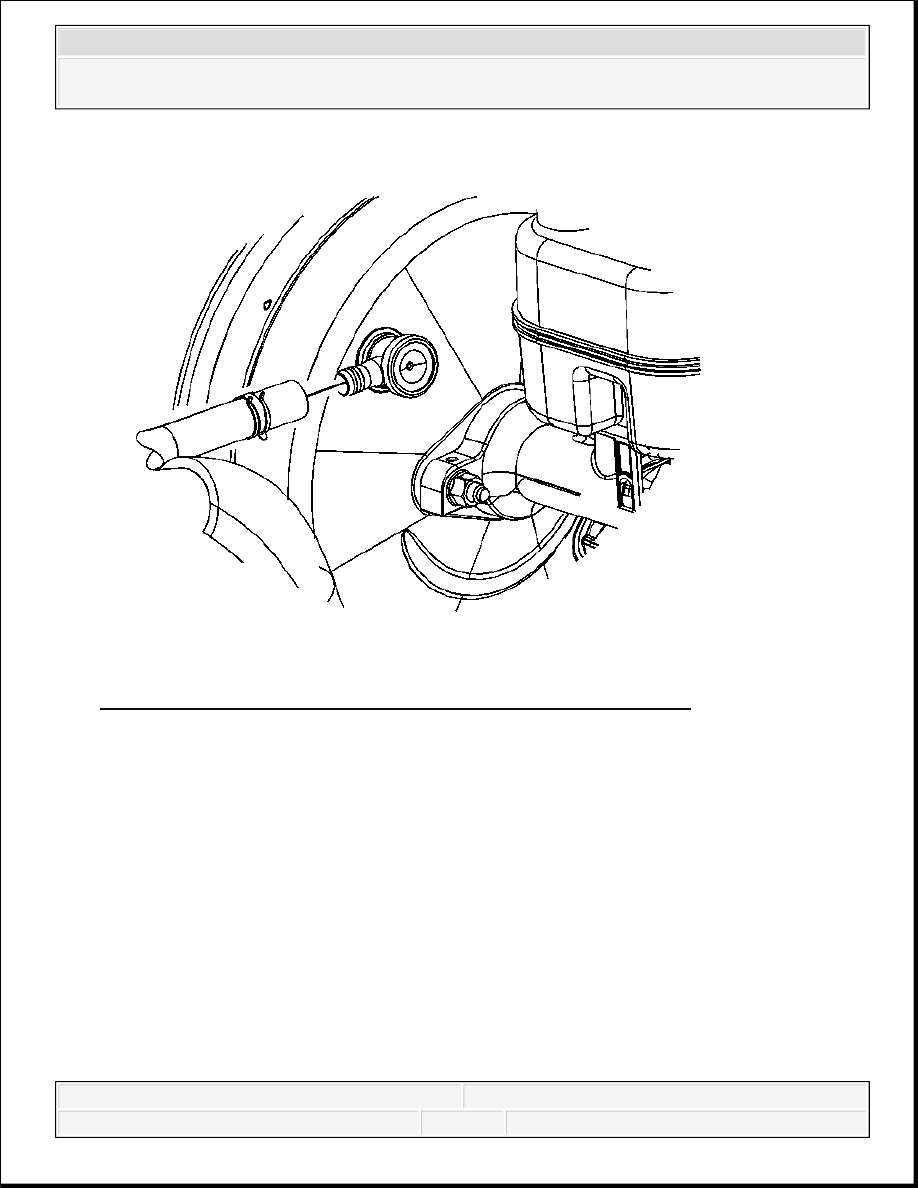

Fig. 170: View Of Brake Booster Vacuum Hose & Booster Fitting 29. Unsecure the brake booster vacuum hose from the intake manifold. 30. Install the brake booster vacuum hose to the booster fitting. 31. Position the brake booster vacuum hose clamp at the booster.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

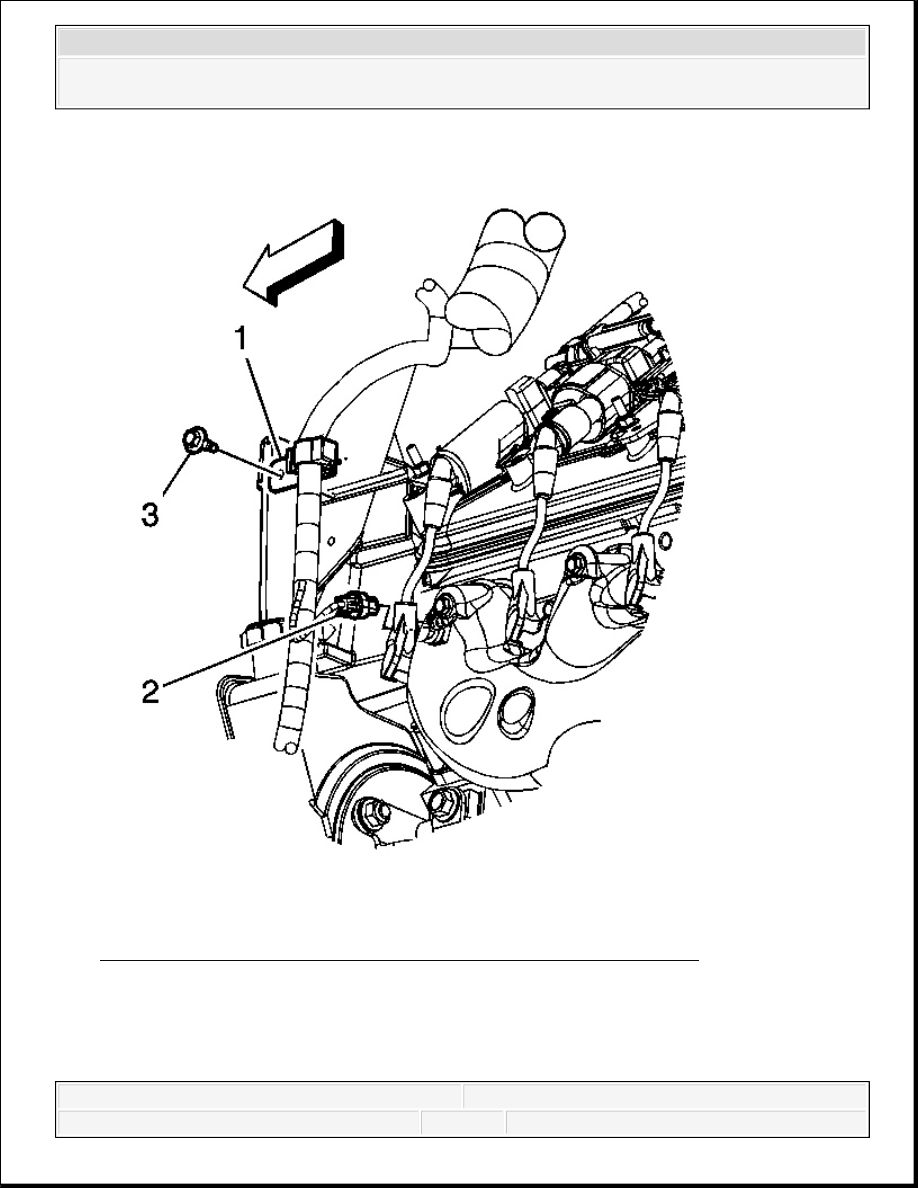

Fig. 171: View Of Engine Wiring Harness, Clip, Bolt & Connector 32. Untie the engine harness branches from the cowl panel and position over the engine. 33. Connect the engine harness electrical connector (2) to the ECT sensor.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

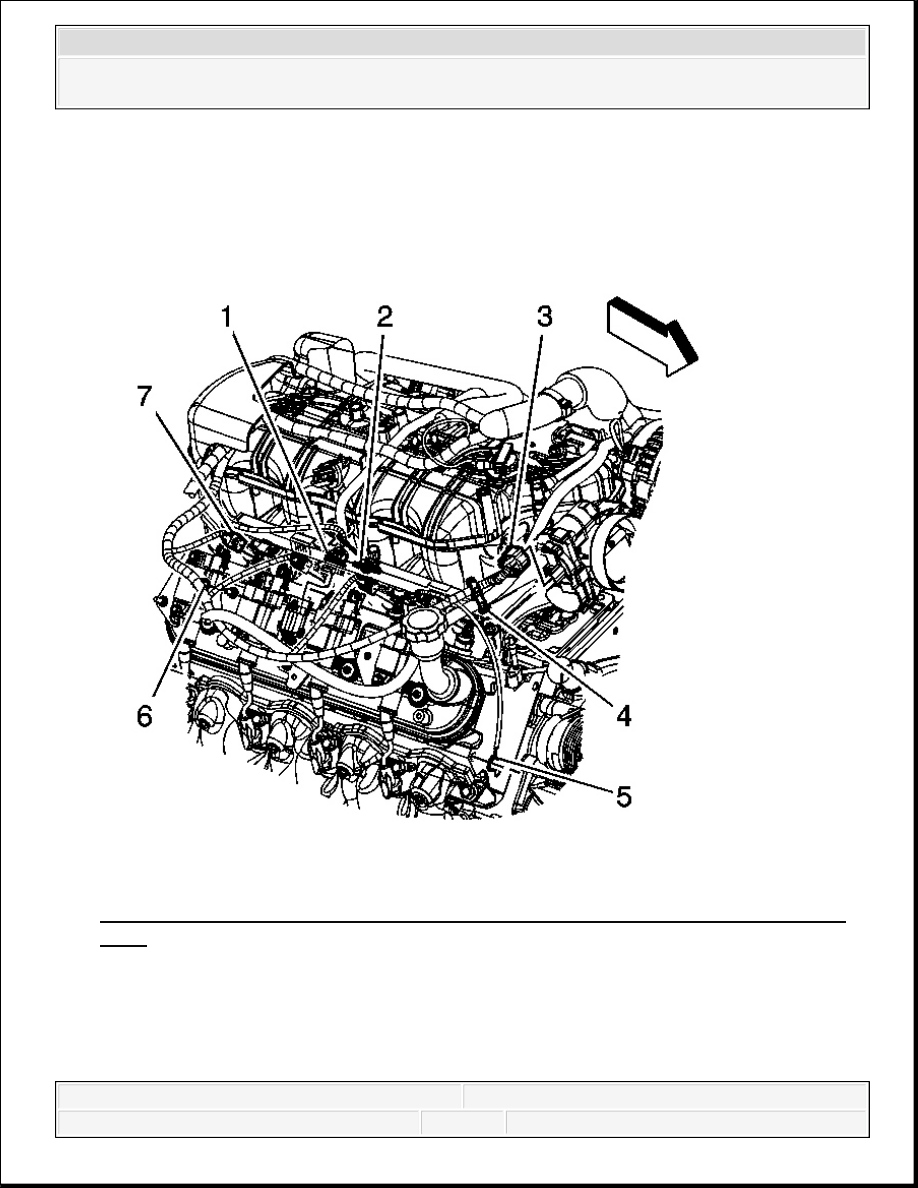

34. Position the engine harness clip (1) to the generator bracket and install the bolt (3). Tighten: Tighten the bolt to 9 N.m (80 lb in). Fig. 172: View Of CPA Retainer, Engine Harness Electrical Connectors & Harness 35. Connect the engine harness electrical connectors (7) to the right side fuel injectors. 36. Install the engine harness clip (6) to the ignition coil bracket stud. 37. Install the engine harness clip (4) to the generator battery jumper cable.
