Chevrolet Silverado / GMC Sierra. Manual - part 1942

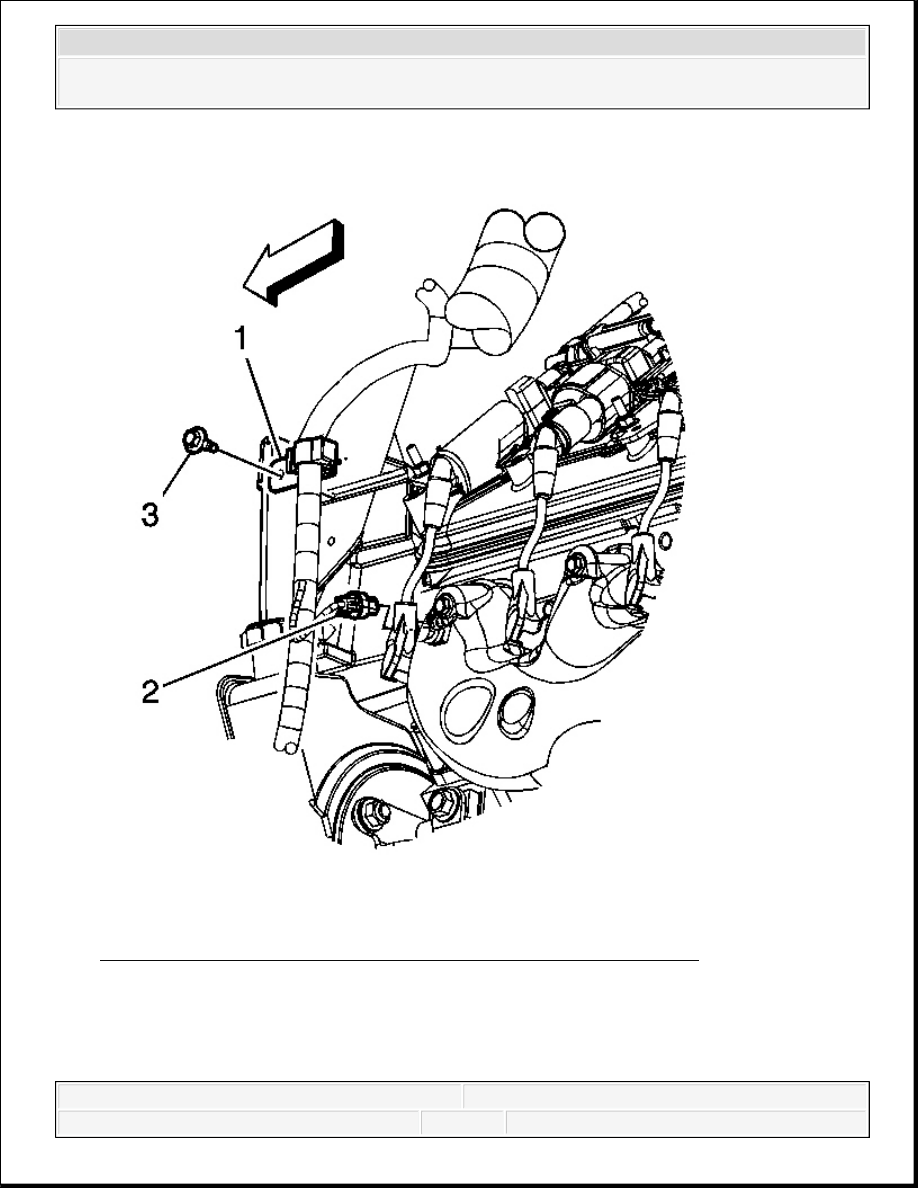

Fig. 145: View Of Engine Wiring Harness, Clip, Bolt & Connector
Courtesy of GENERAL MOTORS CORP.
17. Remove the engine harness clip (1) bolt (3).
18. Disconnect the engine harness electrical connector (2) from the engine coolant temperature
(ECT) sensor.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
19. Gather the engine harness branches and tie the harness up out of the way to the cowl panel.

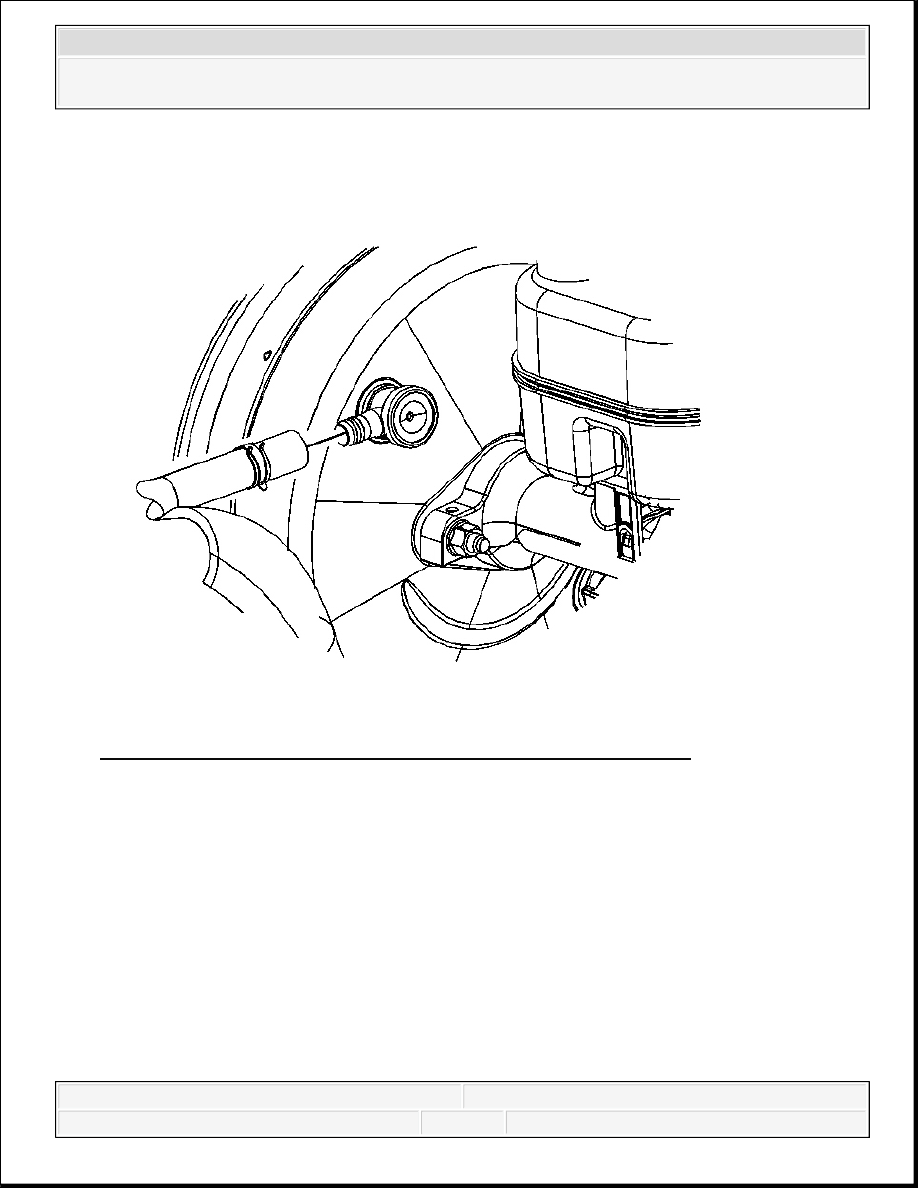

Fig. 146: View Of Brake Booster Vacuum Hose & Booster Fitting
Courtesy of GENERAL MOTORS CORP.
20. Reposition the brake booster vacuum hose clamp at the booster.
21. Remove the brake booster vacuum hose from the booster fitting.
22. Secure the brake booster vacuum hose to the intake manifold.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

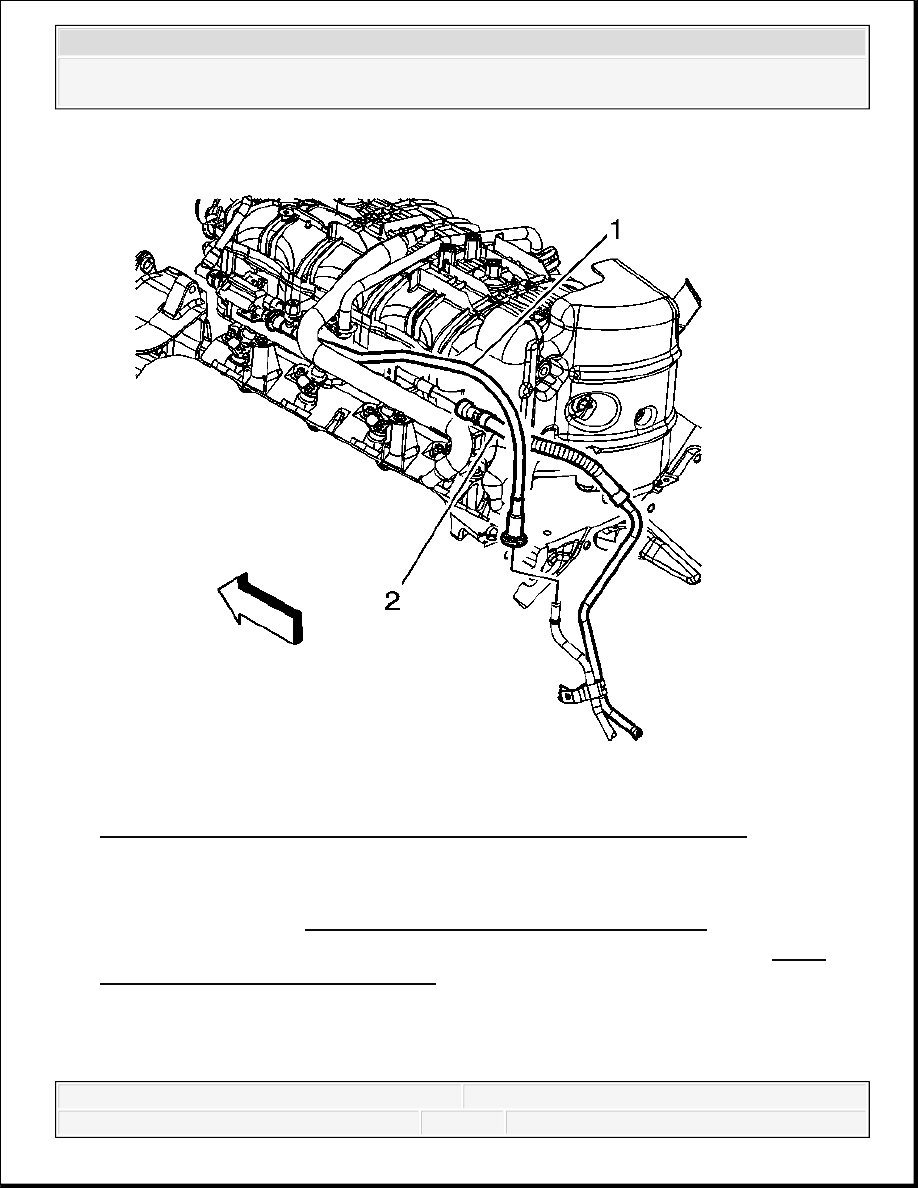

Fig. 147: View Of EVAP Canister Purge Tube & Quick Connect Fitting
Courtesy of GENERAL MOTORS CORP.
23. Disconnect the EVAP canister purge tube (1) quick connect fitting from the EVAP canister
purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
24. Disconnect the fuel feed line quick connect fitting (2) from the fuel rail. Refer to Metal
Collar Quick Connect Fitting Service .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

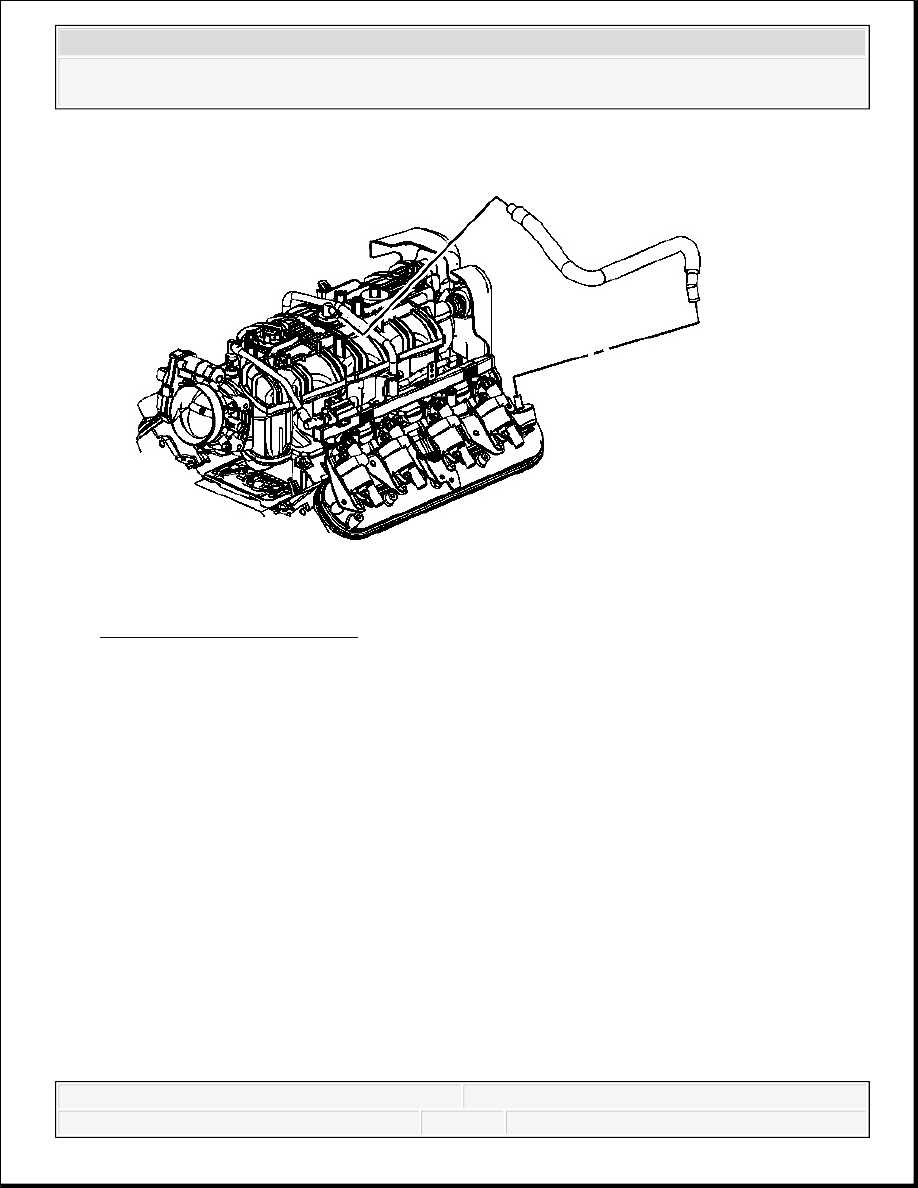

Fig. 148: View Of PCV Hose
Courtesy of GENERAL MOTORS CORP.
25. Remove the positive crankcase ventilation (PCV) hose from the intake manifold fitting.
26. Position the hose out of the way.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
