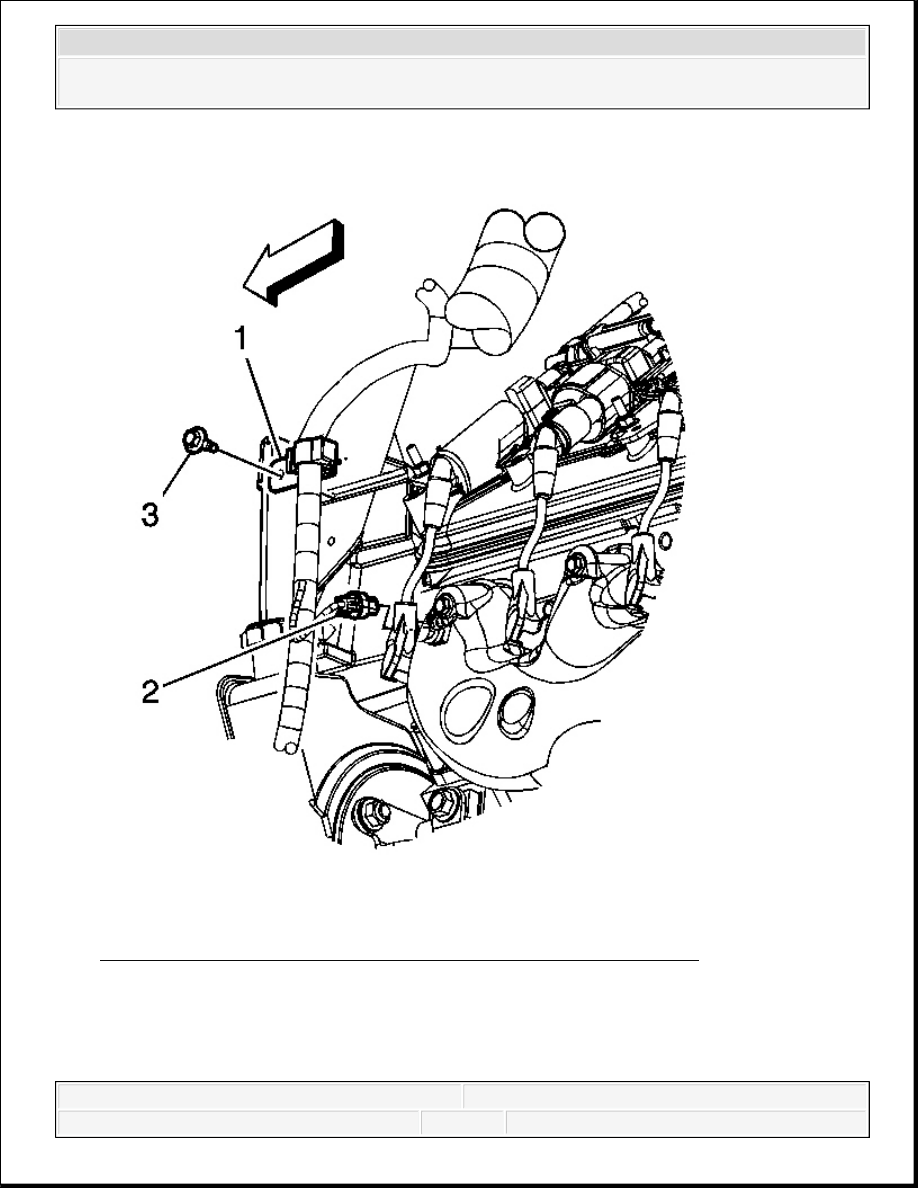

Fig. 138: View Of Engine Wiring Harness, Clip, Bolt & Connector 32. Untie the engine harness branches from the cowl panel and position over the engine. 33. Connect the engine harness electrical connector (2) to the ECT sensor.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

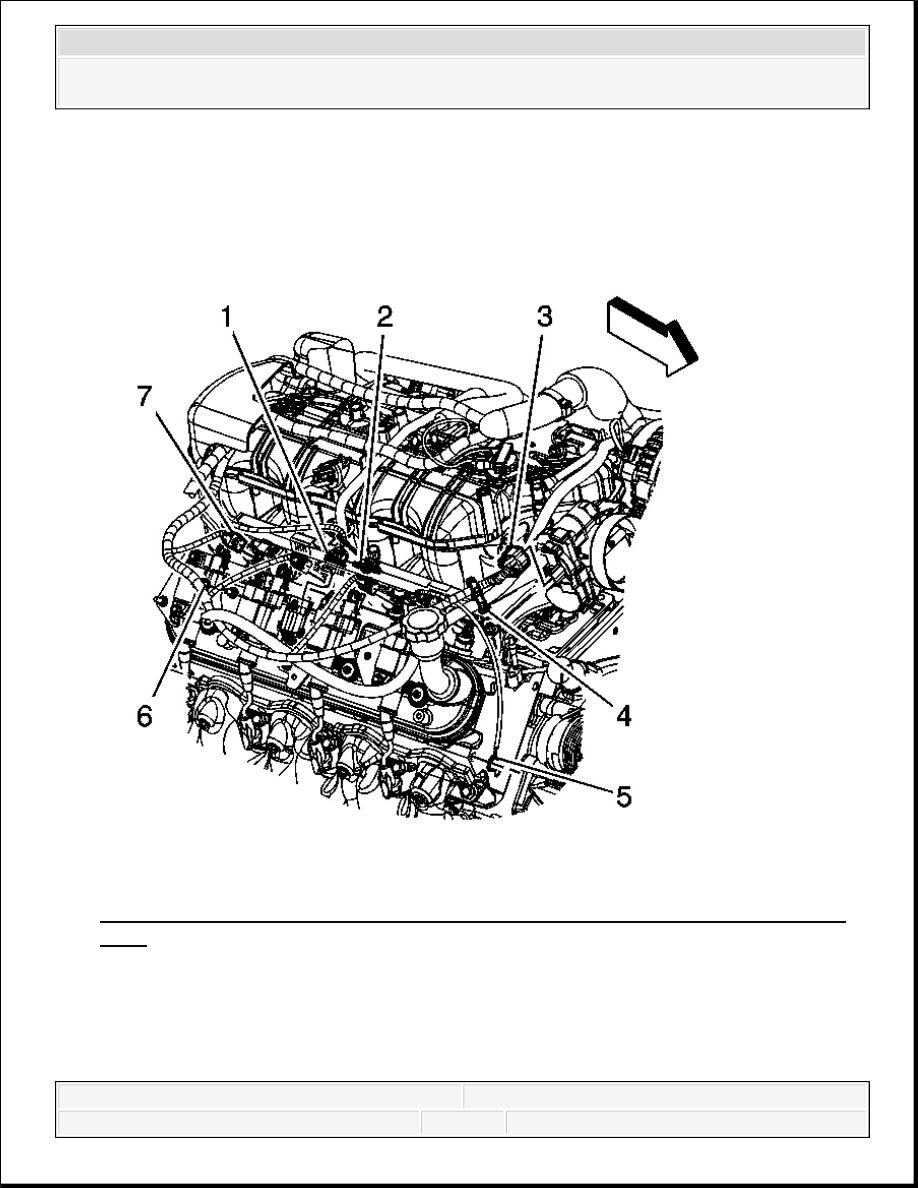

34. Position the engine harness clip (1) to the generator bracket and install the bolt (3). Tighten: Tighten the bolt to 9 N.m (80 lb in). Fig. 139: View Of CPA Retainer, Engine Harness Electrical Connectors & Harness 35. Connect the engine harness electrical connectors (7) to the right side fuel injectors. 36. Install the engine harness clip (6) to the ignition coil bracket stud. 37. Install the engine harness clip (4) to the generator battery jumper cable.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

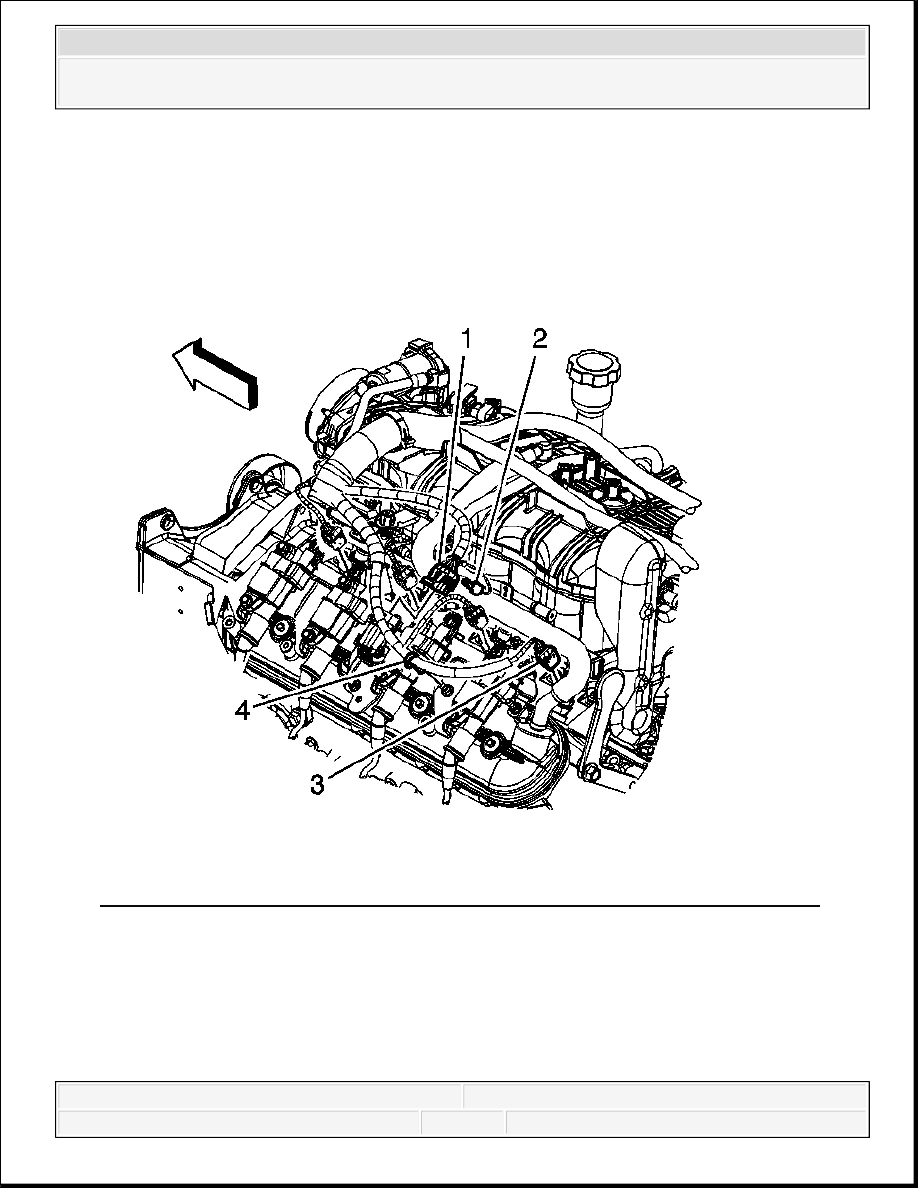

38. Connect the engine harness electrical connector (3) to the throttle actuator. 39. Connect the engine harness electrical connector (1) to the ignition coil harness electrical connector. 40. Install the CPA retainer (2). Fig. 140: View Of CPA Retainer, Electrical Connectors & Engine Harness Clips 41. Install the engine harness clip (4) to the ignition coil bracket stud. 42. Connect the engine harness electrical connectors (3) to the left side fuel injectors. 43. Connect the engine harness electrical connector (1) to the ignition coil harness electrical connector.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

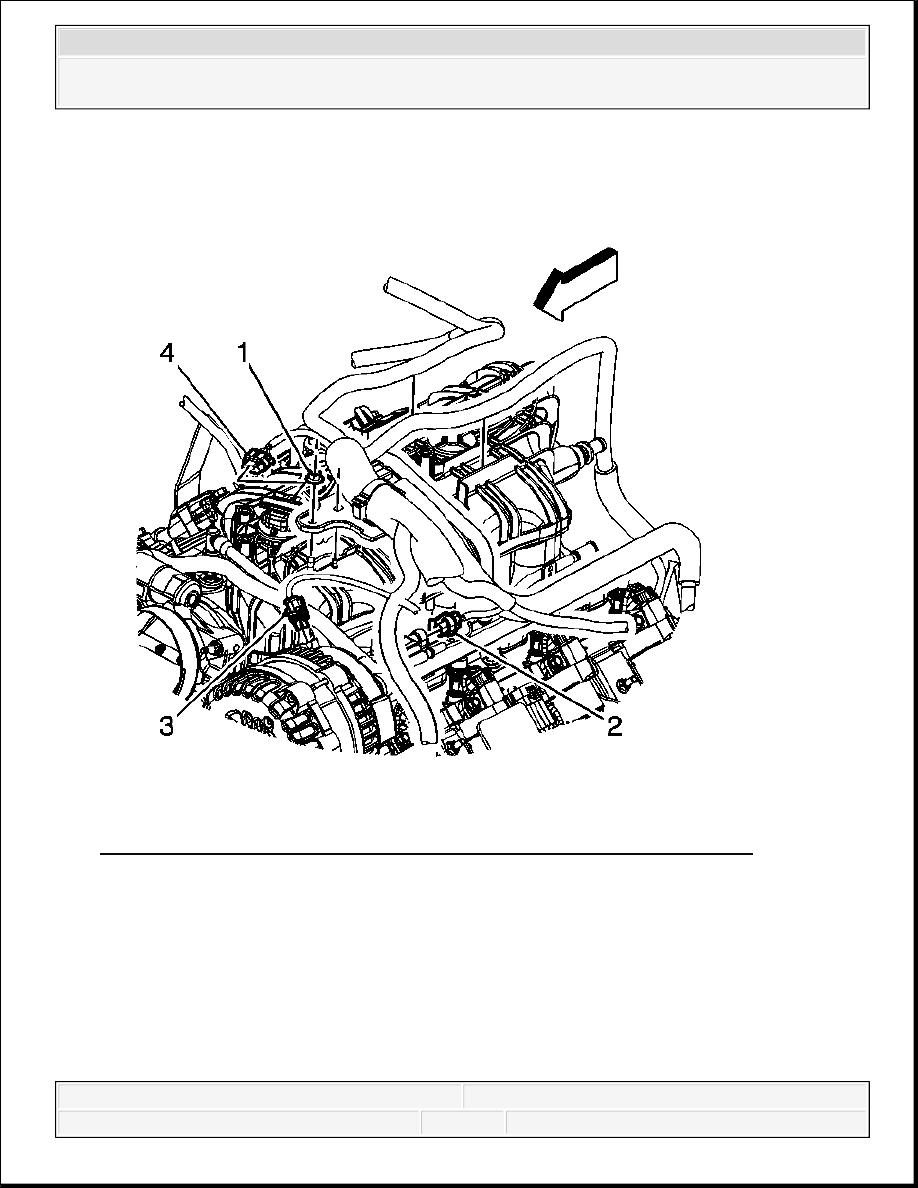

44. Install the CPA retainer (1). Fig. 141: View Of Engine Harness Retainer Nut & Electrical Connectors 45. Connect the engine wiring harness electrical connector (4) to the MAP sensor. 46. Connect the engine harness electrical connector (2) to the EVAP canister purge solenoid. 47. Install the engine harness retainer to the stud and locator pin. 48. Install the engine harness retainer nut (1). Tighten: Tighten the nut to 5 N.m (44 lb in).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
