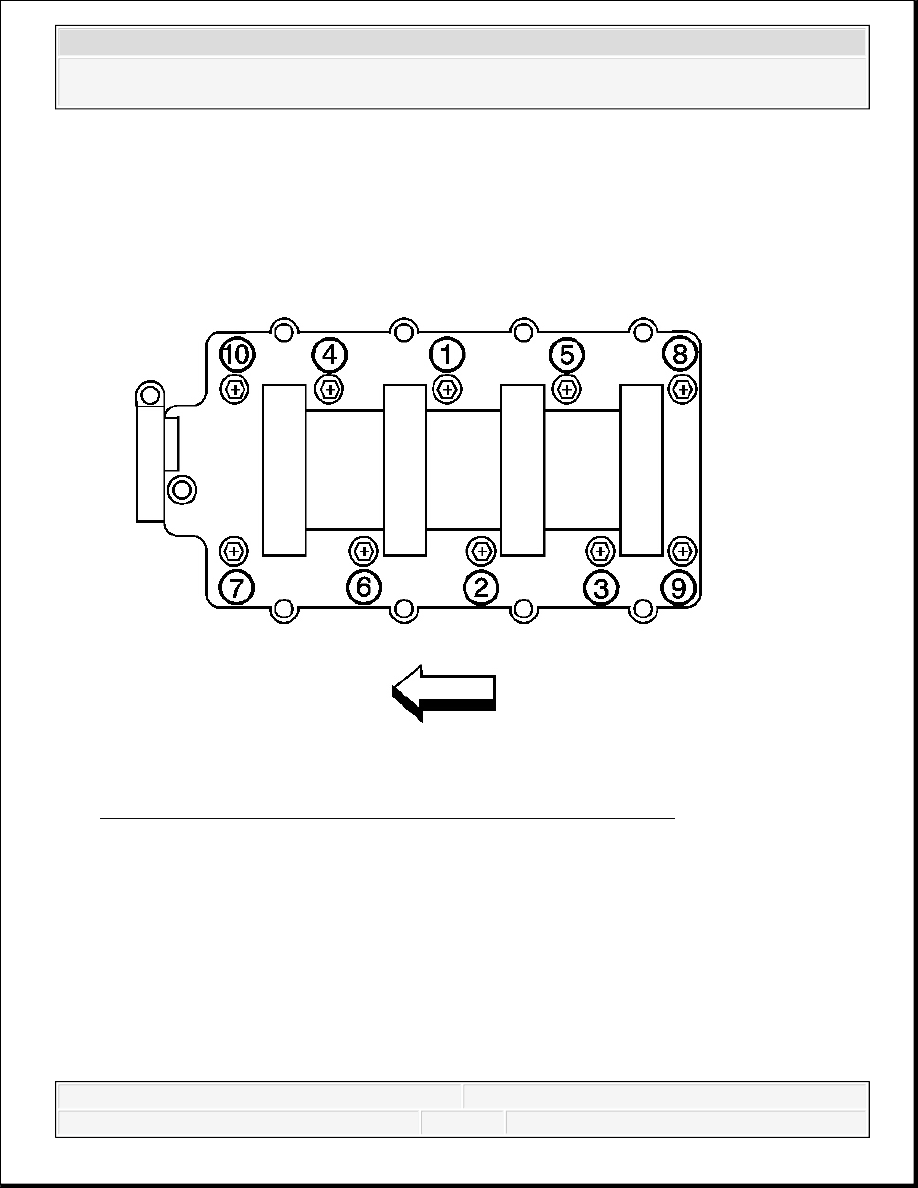

24. Tighten the intake manifold bolts (512) until snug. Fig. 134: Identifying Intake Manifold Bolt Tightening Sequence 25. Tighten the intake manifold bolts to specifications. Tighten: Tighten the bolts a first pass in the sequence shown to 5 N.m (44 lb in). Tighten the bolts a final pass in the sequence shown to 10 N.m (89 lb in). harness up out of the way so the upper intake manifold cover
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

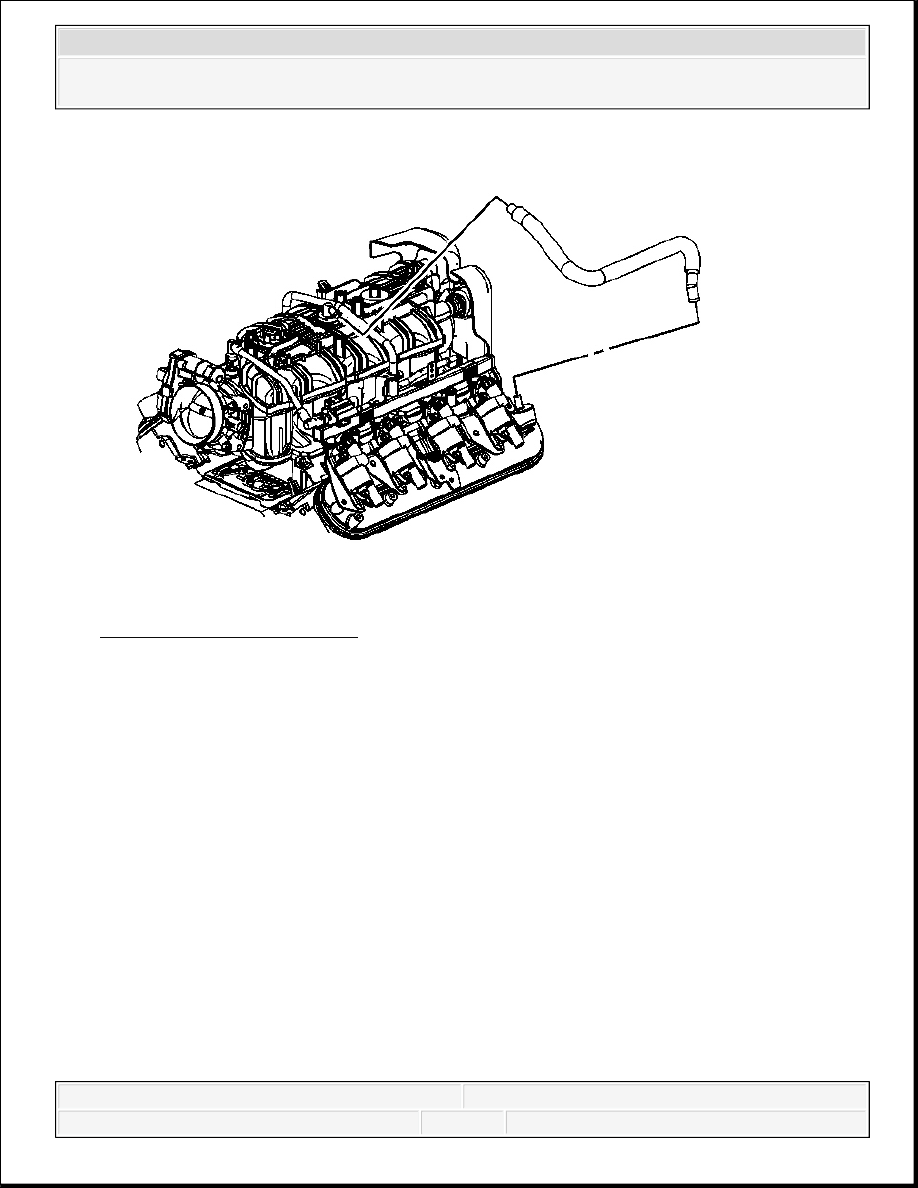

Fig. 135: View Of PCV Hose 26. Position and install the PCV hose to the intake manifold fitting.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

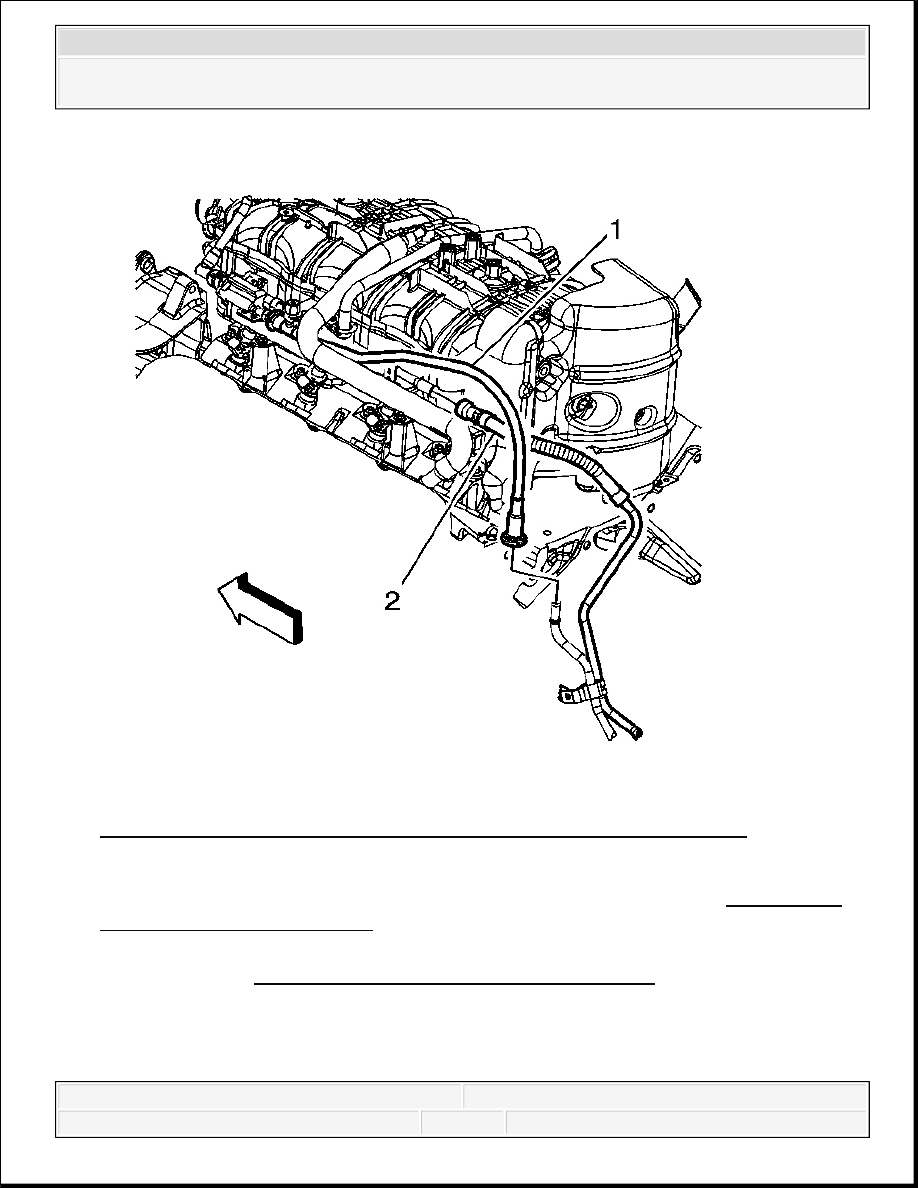

Fig. 136: View Of EVAP Canister Purge Tube & Quick Connect Fitting 27. Connect the fuel feed line quick connect fitting (2) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service . 28. Connect the EVAP canister purge tube (1) quick connect fitting to the EVAP canister purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

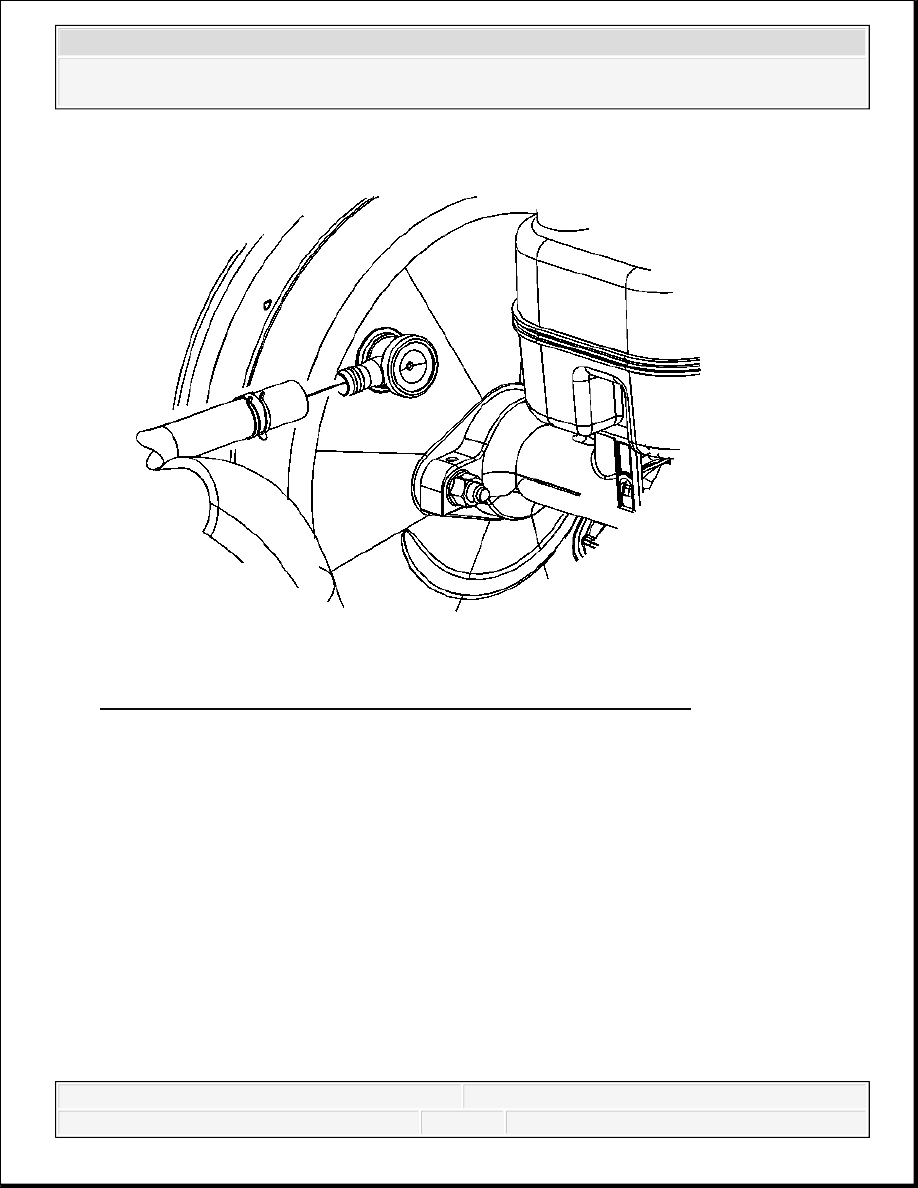

Fig. 137: View Of Brake Booster Vacuum Hose & Booster Fitting 29. Unsecure the brake booster vacuum hose from the intake manifold. 30. Install the brake booster vacuum hose to the booster fitting. 31. Position the brake booster vacuum hose clamp at the booster.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
