38. Connect the engine harness electrical connector (3) to the throttle actuator.
39. Connect the engine harness electrical connector (1) to the ignition coil harness electrical
connector.
40. Install the CPA retainer (2).

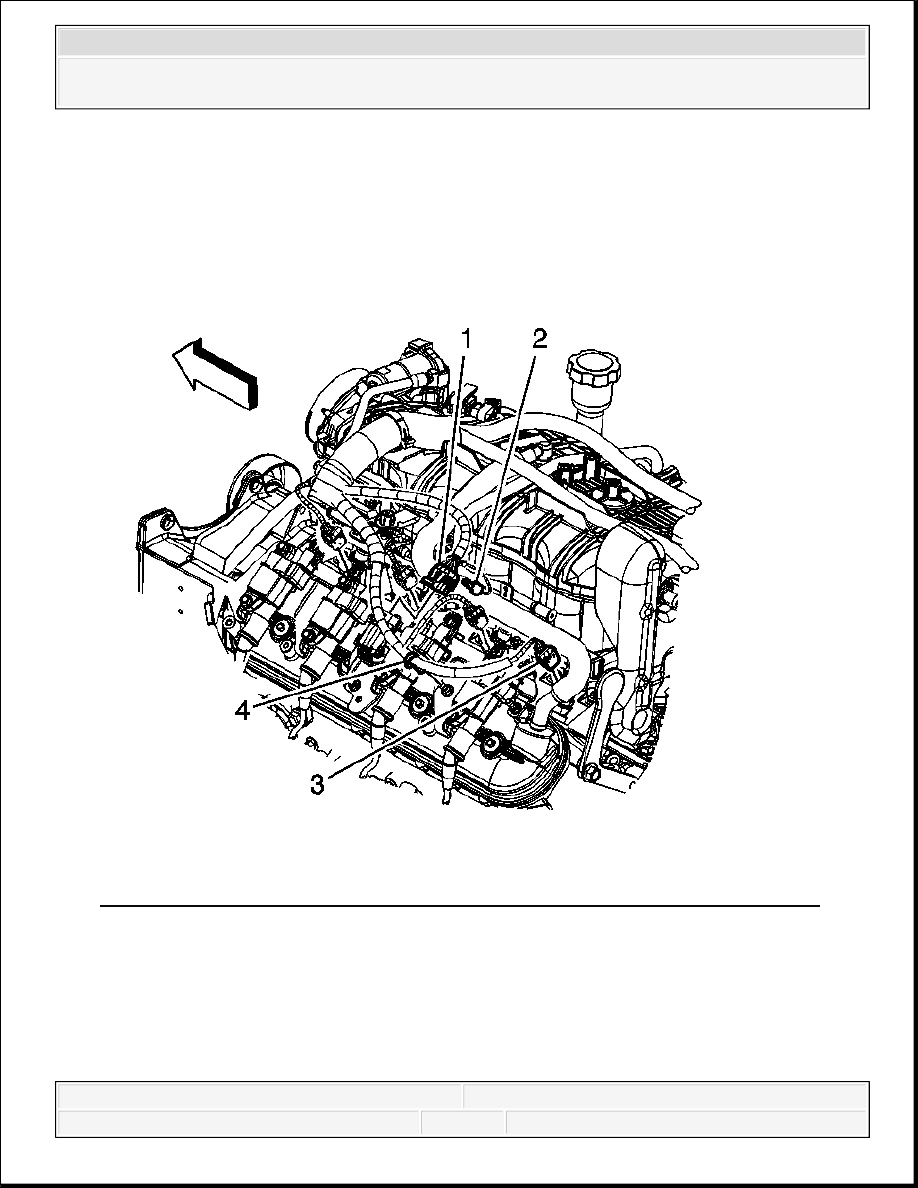

Fig. 107: View Of CPA Retainer, Electrical Connectors & Engine Harness Clips
Courtesy of GENERAL MOTORS CORP.
41. Install the engine harness clip (4) to the ignition coil bracket stud.
42. Connect the engine harness electrical connectors (3) to the left side fuel injectors.
43. Connect the engine harness electrical connector (1) to the ignition coil harness electrical
connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
44. Install the CPA retainer (1).

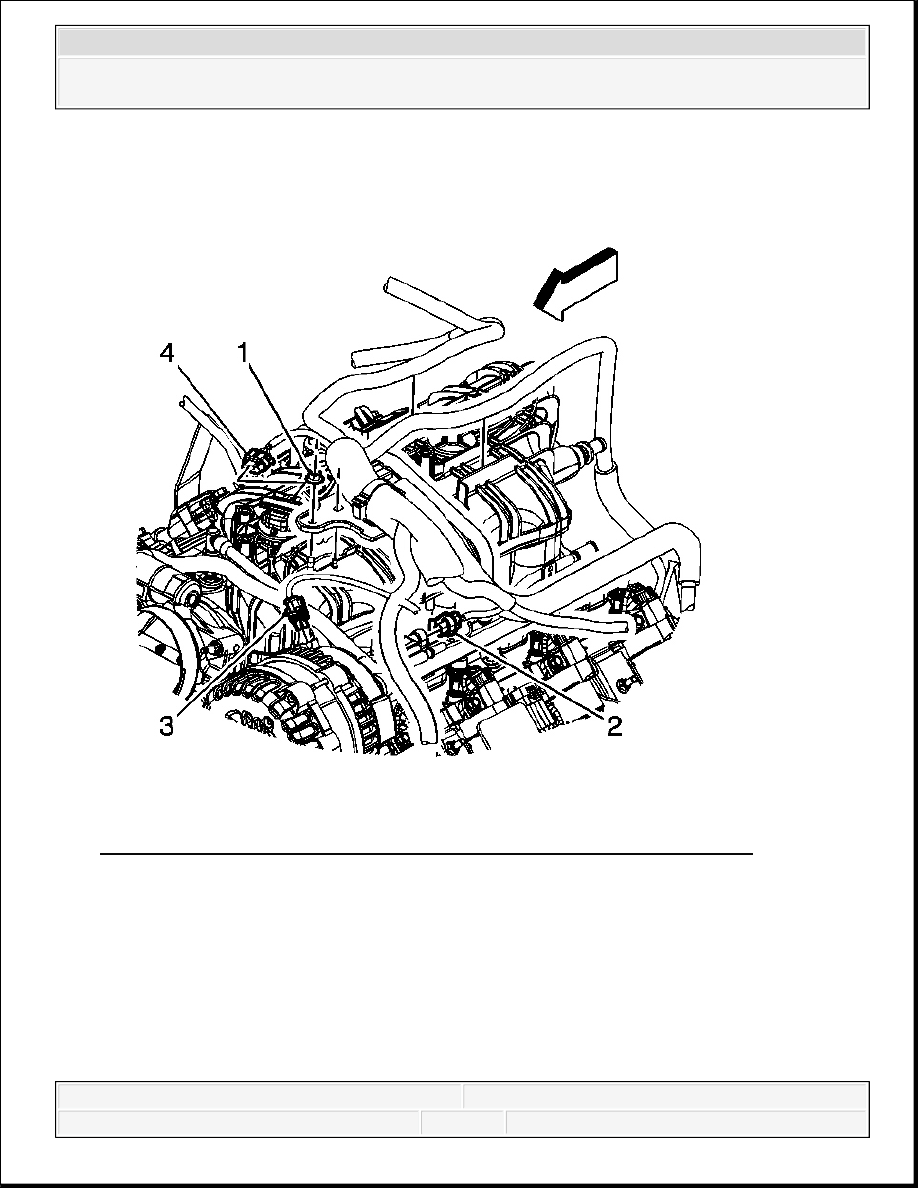

Fig. 108: View Of Engine Harness Retainer Nut & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
45. Connect the engine wiring harness electrical connector (4) to the MAP sensor.
46. Connect the engine harness electrical connector (2) to the EVAP canister purge solenoid.
47. Install the engine harness retainer to the stud and locator pin.
48. Install the engine harness retainer nut (1).
Tighten: Tighten the nut to 5 N.m (44 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
49. Install the generator. Refer to Generator Replacement (4.8L, 5.3L, 6.0L, and 6.2L) .
50. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct
Replacement .
INTAKE MANIFOLD REPLACEMENT (L92 - SECOND DESIGN)
Removal Procedure
Fig. 109: View Of Engine Harness Retainer Nut & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
1. Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct
Replacement .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
2. Remove the generator. Refer to Generator Replacement (4.8L, 5.3L, 6.0L, and 6.2L) .
3. Remove the engine harness retainer nut (1).
4. Remove the engine harness retainer from the stud and locator pin.
5. Disconnect the engine harness electrical connector (2) from the evaporative emission
(EVAP) canister purge solenoid.
6. Disconnect the engine wiring harness electrical connector (4) from the manifold absolute
pressure (MAP) sensor.

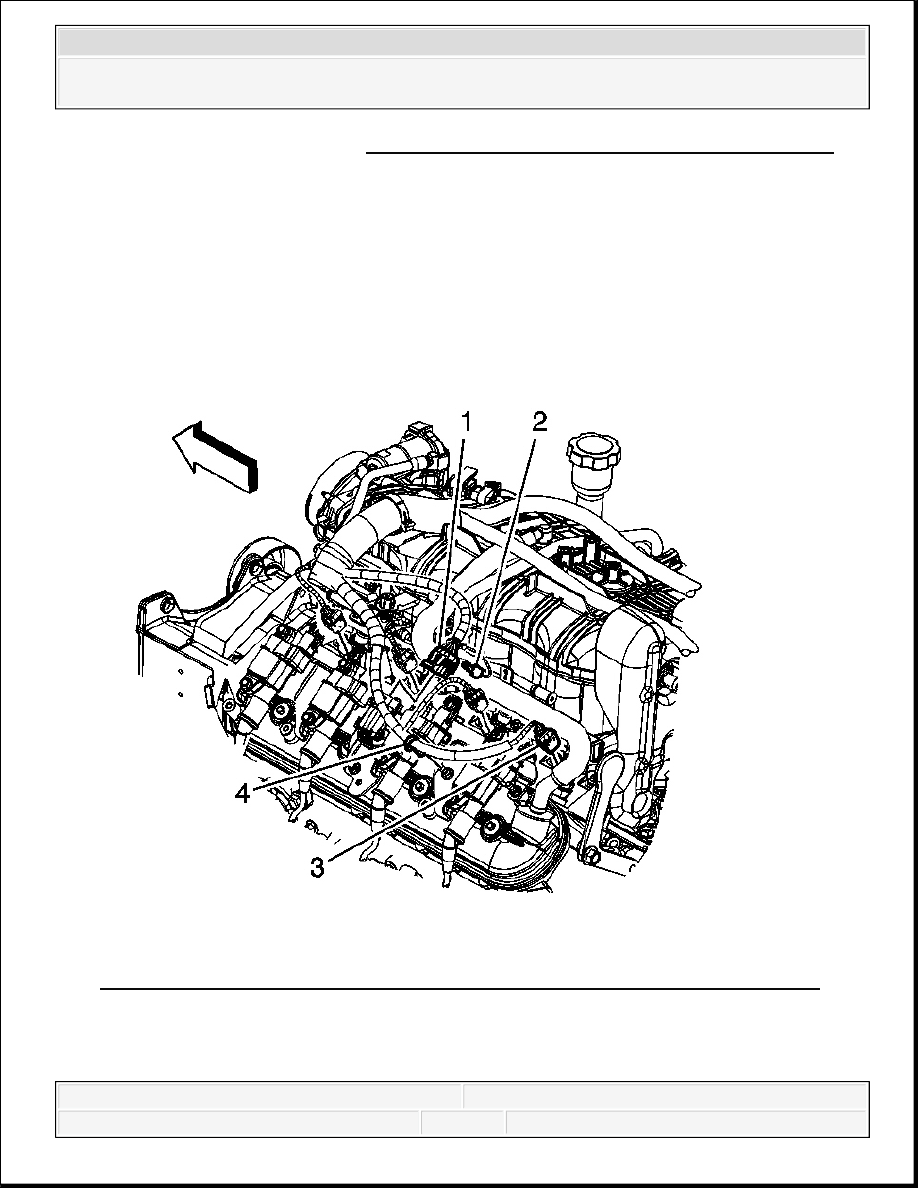

Fig. 110: View Of CPA Retainer, Electrical Connectors & Engine Harness Clips
Courtesy of GENERAL MOTORS CORP.
7. Remove the connector position assurance (CPA) retainer (1).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
