Fig. 41: Locating Tab On Engine Block
Courtesy of GENERAL MOTORS CORP.
3. Using the adjustable jack, lower the engine until the engine mount is sitting flush on the
frame.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
4. Remove the adjustable jack from the engine block lifting tab (1).

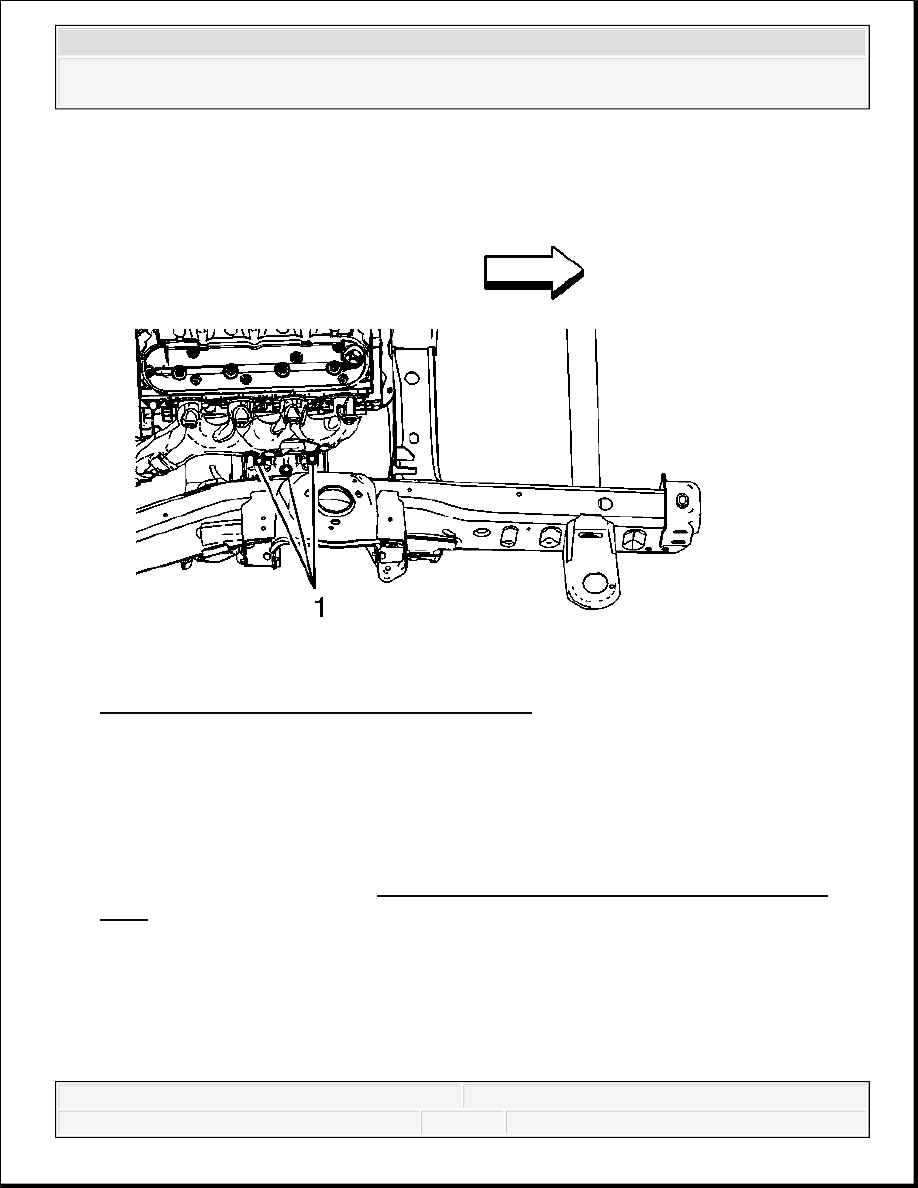

Fig. 42: View Of Engine Mount To Frame Bolts
Courtesy of GENERAL MOTORS CORP.
5. Install the engine mount to frame bolts (1).
Tighten: Tighten the bolts to 65 N.m (48 lb ft) starting with the middle bolt then either side
bolt.
6. Install the starter motor. Refer to Starter Motor Replacement (4.8L, 5.3L, 6.0L, and
6.2L) .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

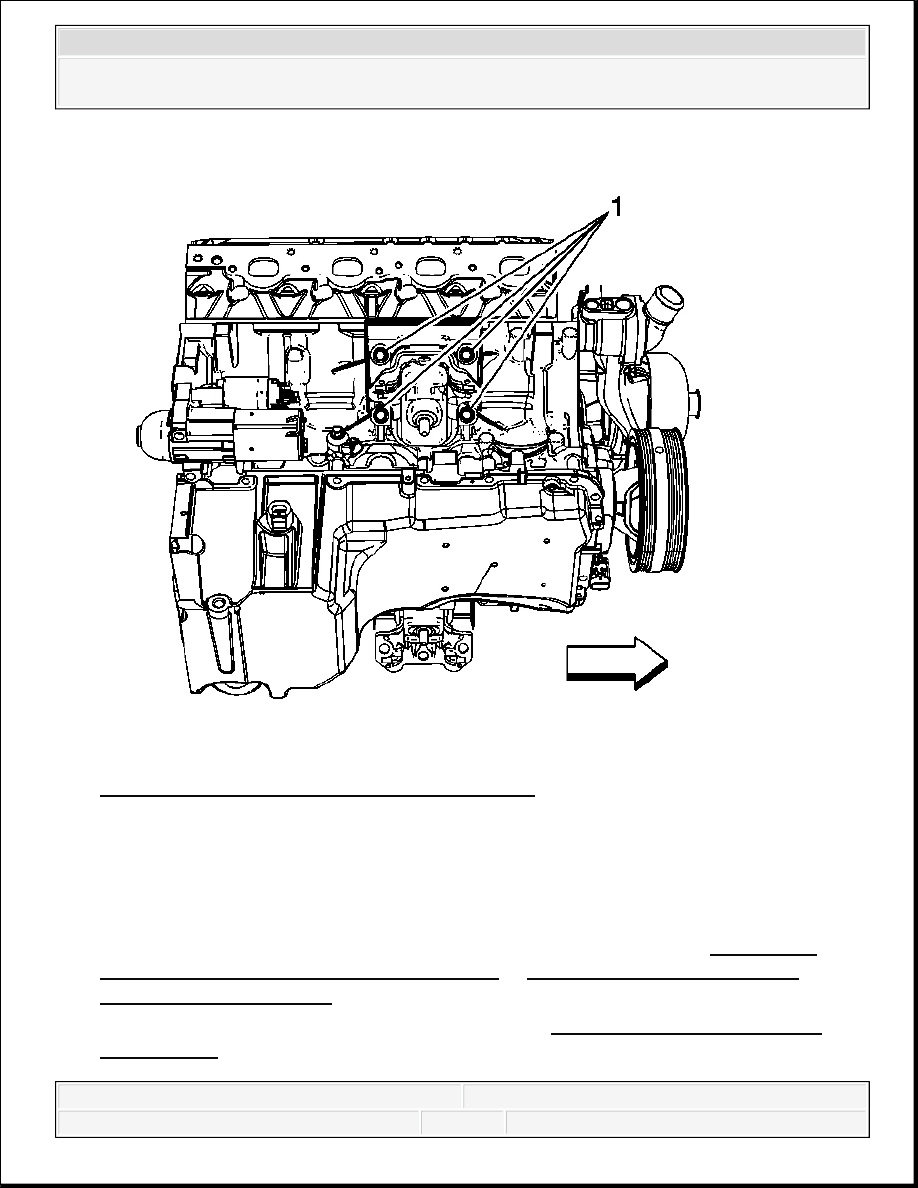

Fig. 43: View Of Engine Mount To Engine Bolts
Courtesy of GENERAL MOTORS CORP.
7. Install the two lower engine mount to engine bolts (1).
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
8. If the vehicle is equipped with 4WD, Install the front drive axle. Refer to Differential
Carrier Assembly Replacement (1500 FWD) or Differential Carrier Assembly
Replacement (2500 4WD) .
9. Install the upper intake manifold sight shield. Refer to Upper Intake Manifold Cover
Replacement.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
ENGINE MOUNT REPLACEMENT - RIGHT SIDE (1500 LY2)
Removal Procedure

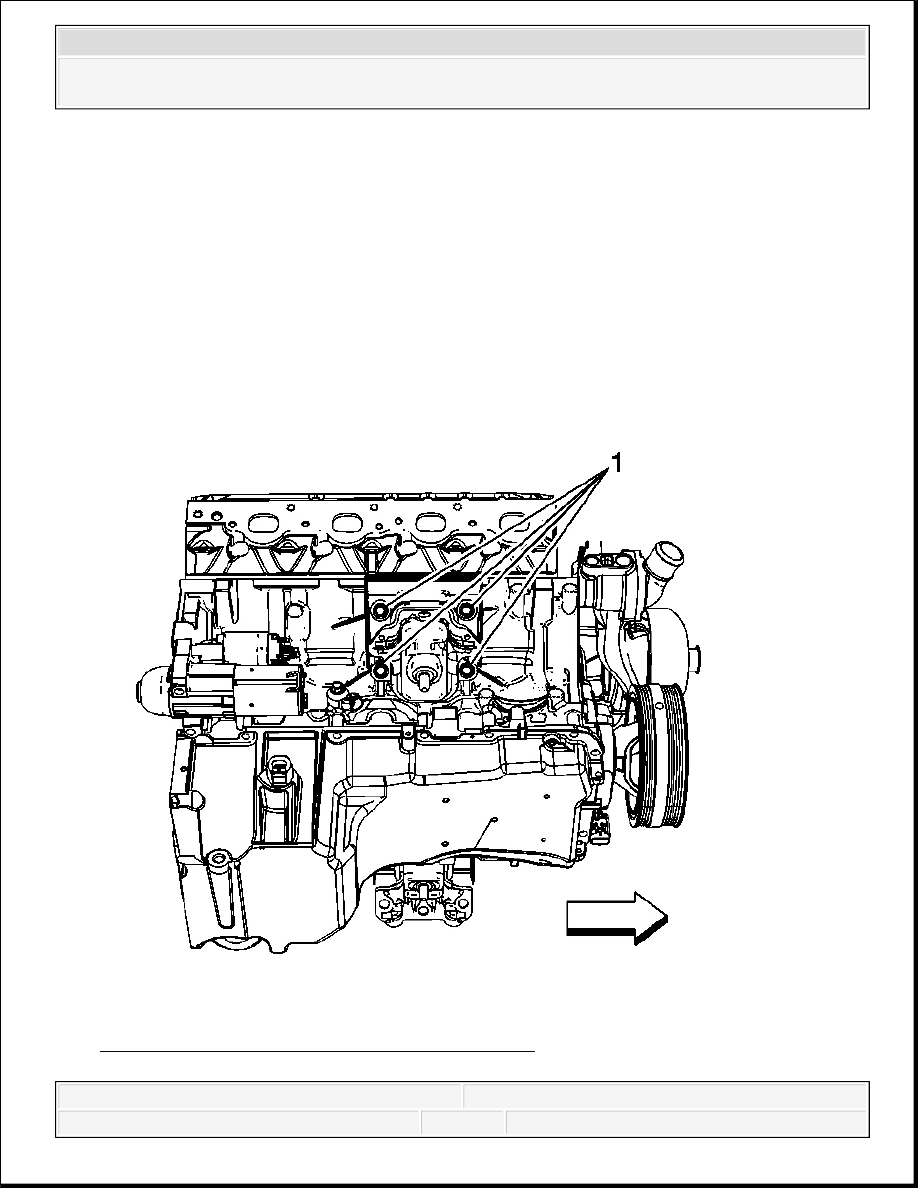

Fig. 44: View Of Engine Mount To Engine Bolts
Courtesy of GENERAL MOTORS CORP.
NOTE:
When raising or supporting the engine for any reason, do not use a
jack under the oil pan, any sheet metal, or the crankshaft pulley.
Due to the small clearance between the oil pan and the oil pump
screen, jacking against the oil pan may cause the pan to be bent
against the pump screen. This will result in a damaged oil pickup
unit.
