Chevrolet Silverado / GMC Sierra. Manual - part 1910

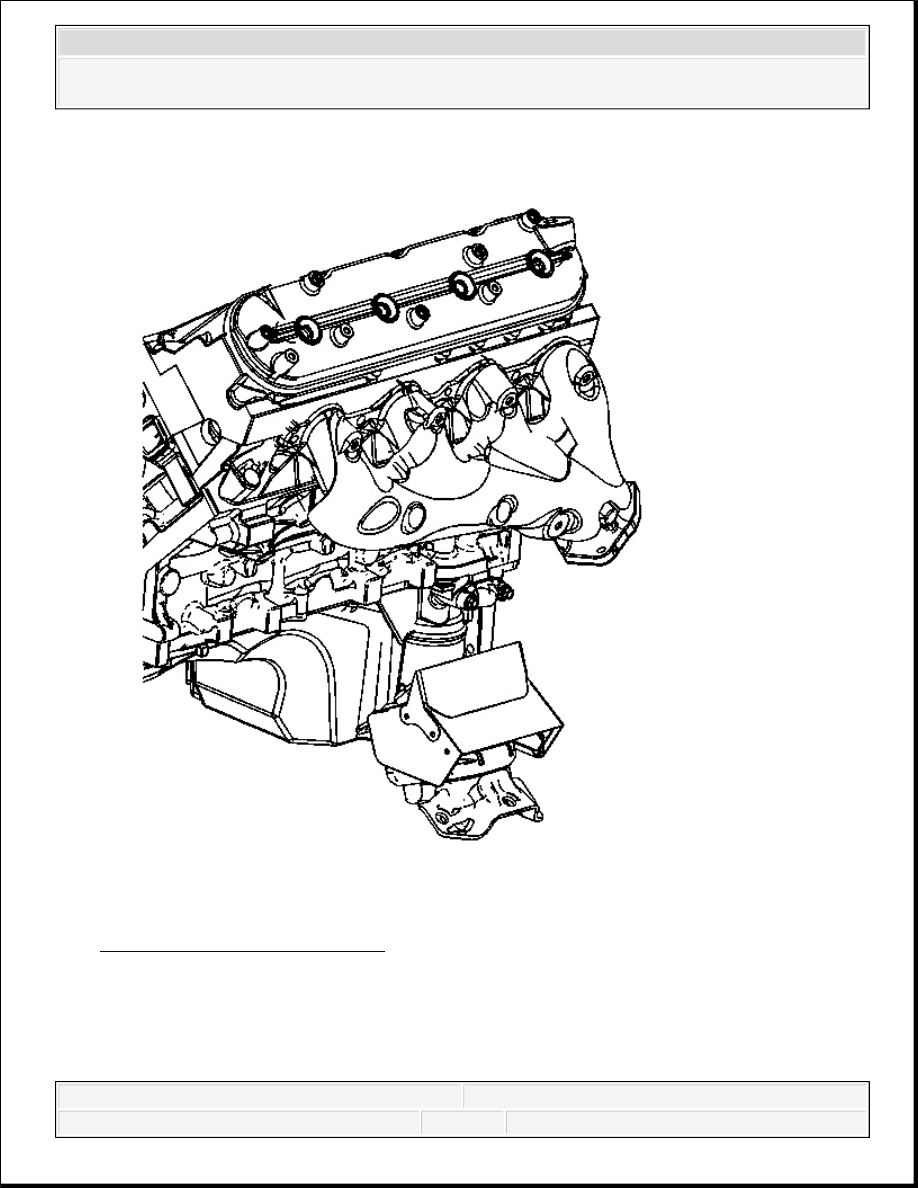

Fig. 22: View Of Engine Mount
Courtesy of GENERAL MOTORS CORP.
1. Position the engine mount to the engine.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

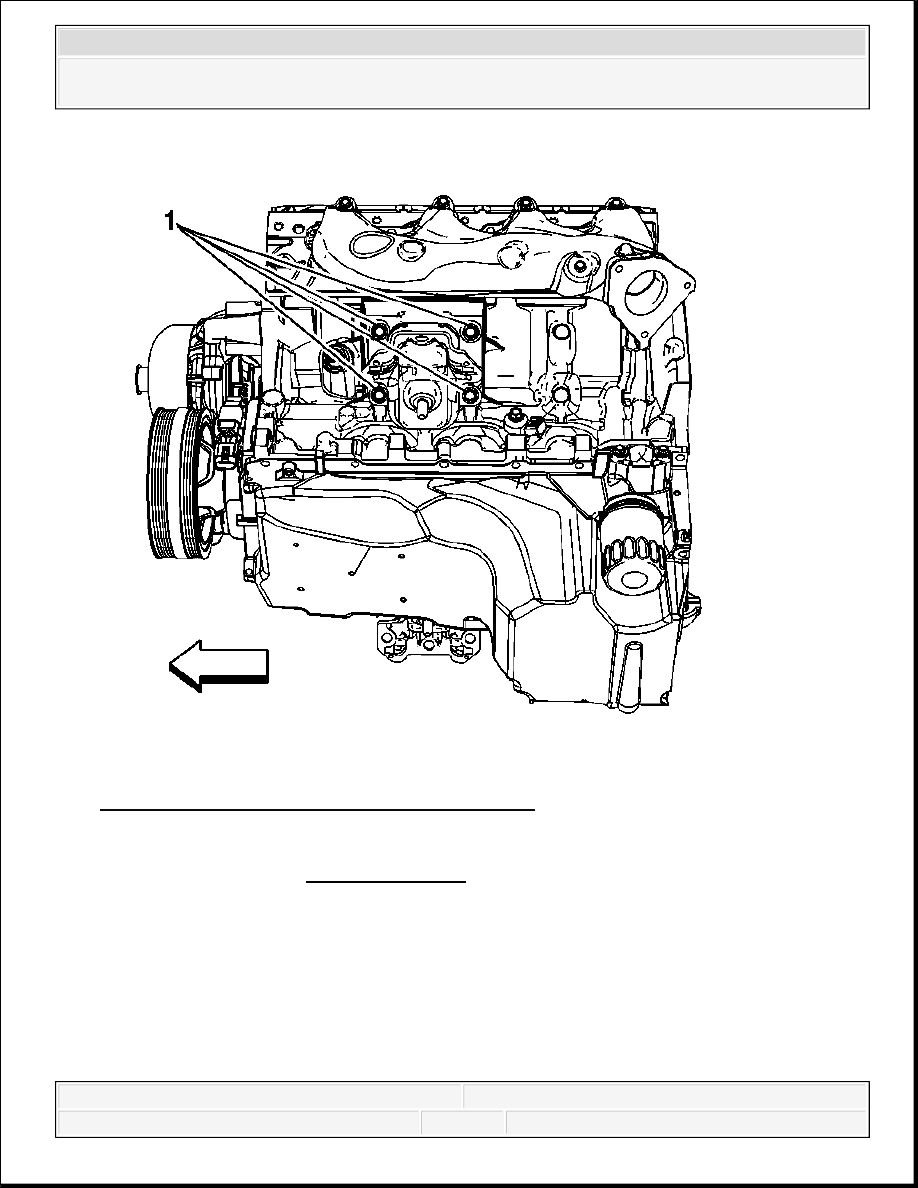

Fig. 23: View Of Engine Mount To Engine Bolts
Courtesy of GENERAL MOTORS CORP.
2. Install the engine mount to engine bolts (1).
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
3. Using the adjustable jack, lower the engine until the engine mount is sitting flush on the
frame.
4. Remove the adjustable jack from the engine block.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
5. Install the left side exhaust manifold heatshield. Refer to Exhaust Manifold Heat Shield
Replacement - Left Side (4.3L) or Exhaust Manifold Heat Shield Replacement - Left
Side (4.8L, 5.3L, 6.0L, and 6.2L) .

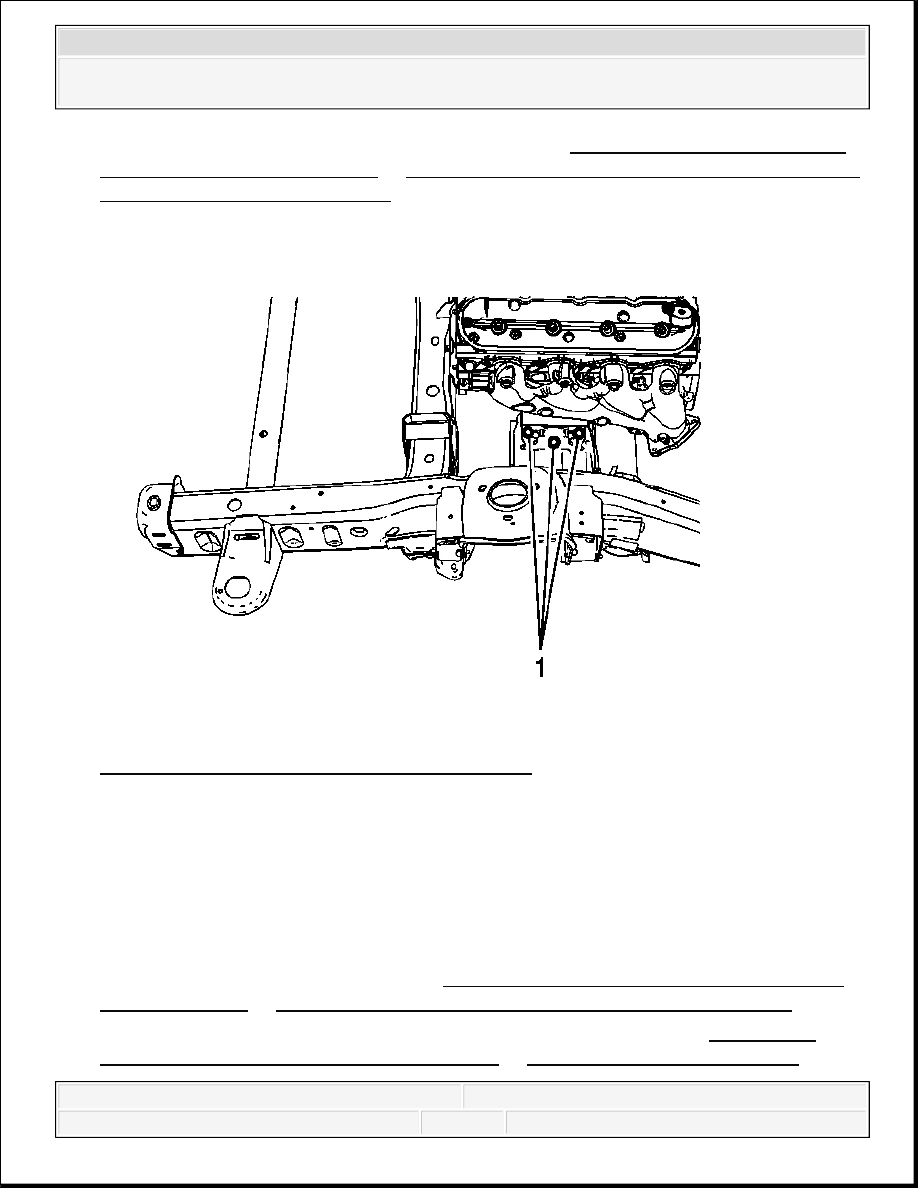

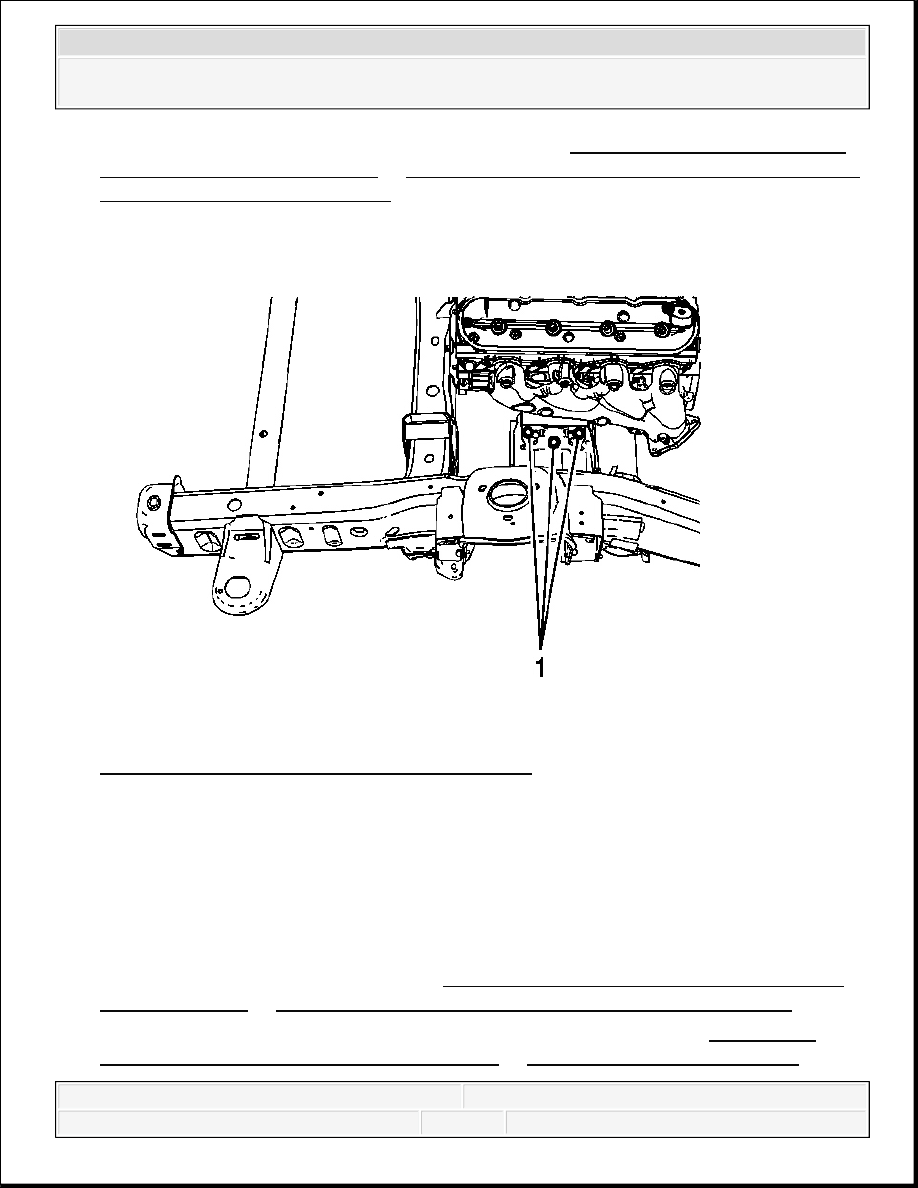

Fig. 24: View Of Engine Mount To Frame Bolts
Courtesy of GENERAL MOTORS CORP.
6. Lower the vehicle.
7. Install the engine mount to frame bolts (1).
Tighten: Tighten the bolts to 65 N.m (48 lb ft) starting with the middle bolt then either side
bolt.
8. Install the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left
Side (Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC) .
9. If the vehicle is equipped with 4WD, install the front drive axle. Refer to Differential
Carrier Assembly Replacement (1500 FWD) or Differential Carrier Assembly
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Replacement (2500 4WD) .
ENGINE MOUNT REPLACEMENT - LEFT SIDE (2500LY6)
Removal Procedure

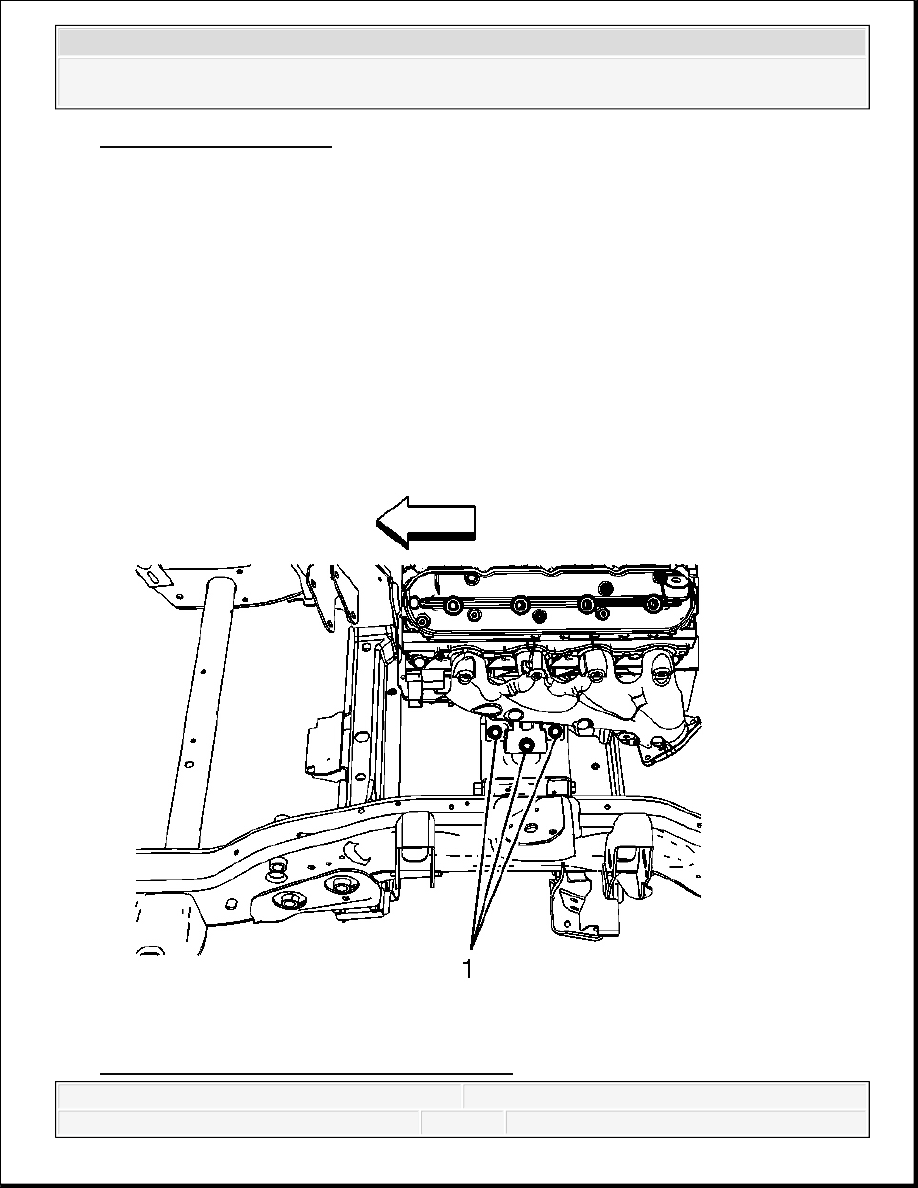

Fig. 25: View Of Engine Mount Bracket Bolts
NOTE:
When raising or supporting the engine for any reason, do not use a
jack under the oil pan, any sheet metal, or the crankshaft pulley.
Due to the small clearance between the oil pan and the oil pump
screen, jacking against the oil pan may cause the pan to be bent
against the pump screen. This will result in a damaged oil pickup
unit.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
