Chevrolet Silverado / GMC Sierra. Manual - part 1873
Callout
Component Name
100
Engine Block
138
Crankshaft Balancer
139
Crankshaft Balancer Bolt
140
Crankshaft Front Oil Seal
200
Camshaft
201
Camshaft Bearing
202
Camshaft Sprocket Locating Pin
203
Camshaft Retainer
204
Camshaft Retainer Bolt
207
Crankshaft Sprocket
208
Timing Chain
231
Timing Chain Tensioner Bolt
232
Timing Chain Tensioner
234
Camshaft Position (CMP) Actuator Solenoid Valve
235
CMP Actuator
300
Water Pump
301
Water Pump Bolt
302
Water Pump Inlet Bolt
303
Water Pump Inlet
305
Engine Coolant Thermostat
306
Water Pump Gasket
404
Oil Pump Suction Pipe Nut
405
Oil Pump Suction Pipe Bolt
406
Oil Pump O-Ring Seal
407
Oil Pump Suction Pipe
408
Oil Pump Cover Bolt
409
Oil Pump Cover
410
Oil Pump Drive Gear
411
Oil Pump Bolt
412
Oil Pump Driven Gear
413
Oil Pump
414
Oil Pressure Relief Valve
415
Oil Pressure Relief Valve Spring
416
Oil Pressure Relief Valve Bore Plug
417
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Fig. 13: Rear of Engine
Courtesy of GENERAL MOTORS CORP.
Oil Level Indicator O-Ring Seal
418
Oil Level Indicator
419
Oil Level Indicator Tube Bolt
420
Oil Level Indicator Tube
421
O-Ring
501
Engine Front Cover Bolt
502
Engine Front Cover
503
Engine Front Cover Gasket
703
CMP Sensor
704
CMP Sensor O-Ring Seal
705
CMP Sensor Bolt
737
CMP Sensor Wire Harness Assembly
738
CMP Sensor Wire Harness Assembly Bolt
738
CMP Sensor Wire Harness Assembly Bolt
751
CMP Actuator Hub Cover Bolt
752
CMP Actuator Magnet
753
CMP Actuator Magnet Gasket
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Callout
Component Name
100
Engine Block
132
Flex Plate - Automatic Transmission
133
Flywheel Bolt
141
Crankshaft Rear Oil Seal
517
Crankshaft Rear Oil Seal Housing Bolt
518
Crankshaft Rear Oil Seal Housing
519
Crankshaft Rear Oil Seal Housing Gasket
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

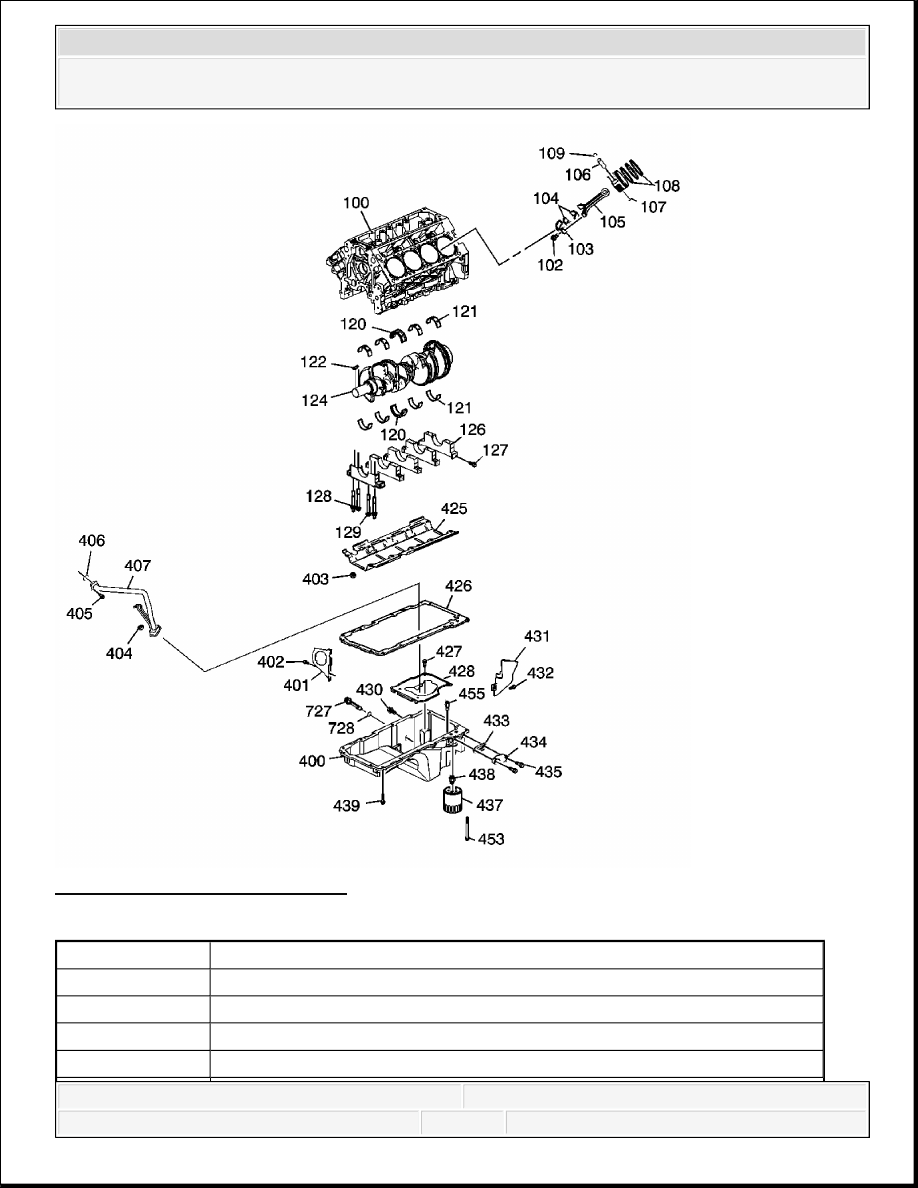

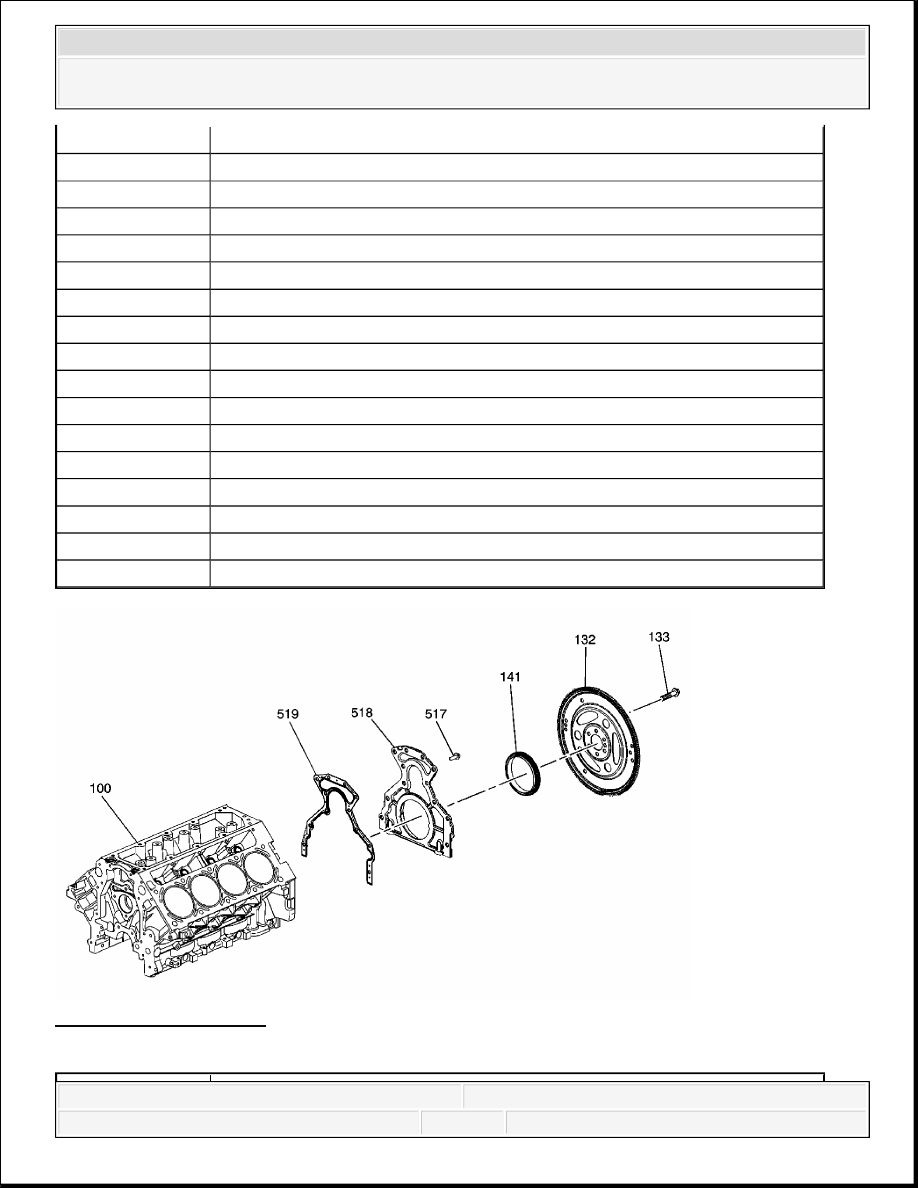

Fig. 14: Lower Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
100
Engine Block
102
Connecting Rod Bolt
103
Connecting Rod Cap
104
Connecting Rod Bearing
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
