SCHEMATIC AND ROUTING DIAGRAMS
ENGINE MECHANICAL SCHEMATICS

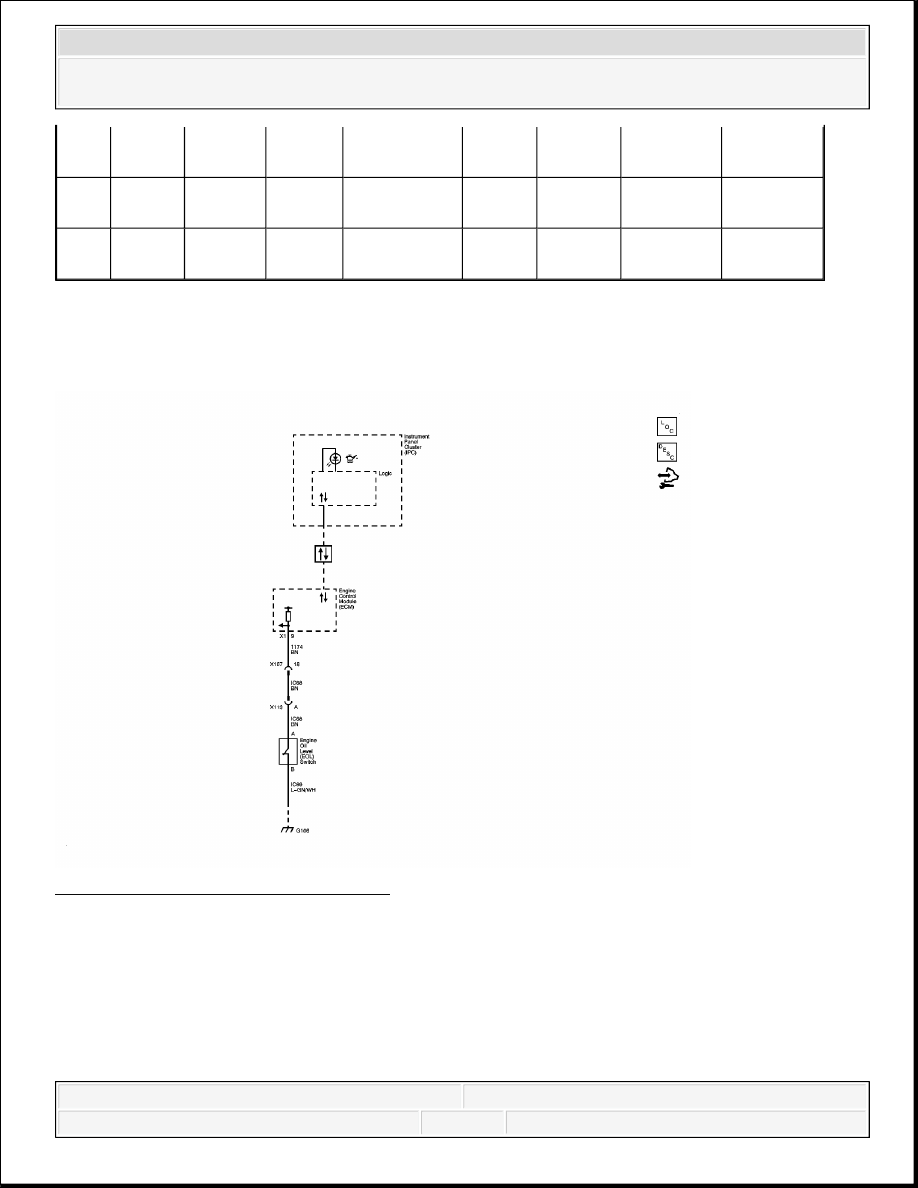

Fig. 6: Engine Mechanical Schematic
Courtesy of GENERAL MOTORS CORP.
COMPONENT LOCATOR
DISASSEMBLED VIEWS
3
M8 x
1.25
210
206
207
208
209
21.0
(0.826)
16.0
(0.629)
4
M14 x
1.25
N/A
N/A
N/A
N/A
N/A
N/A
N/A
5
M12 x
1.5
N/A
N/A
N/A
N/A
N/A
N/A
N/A
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

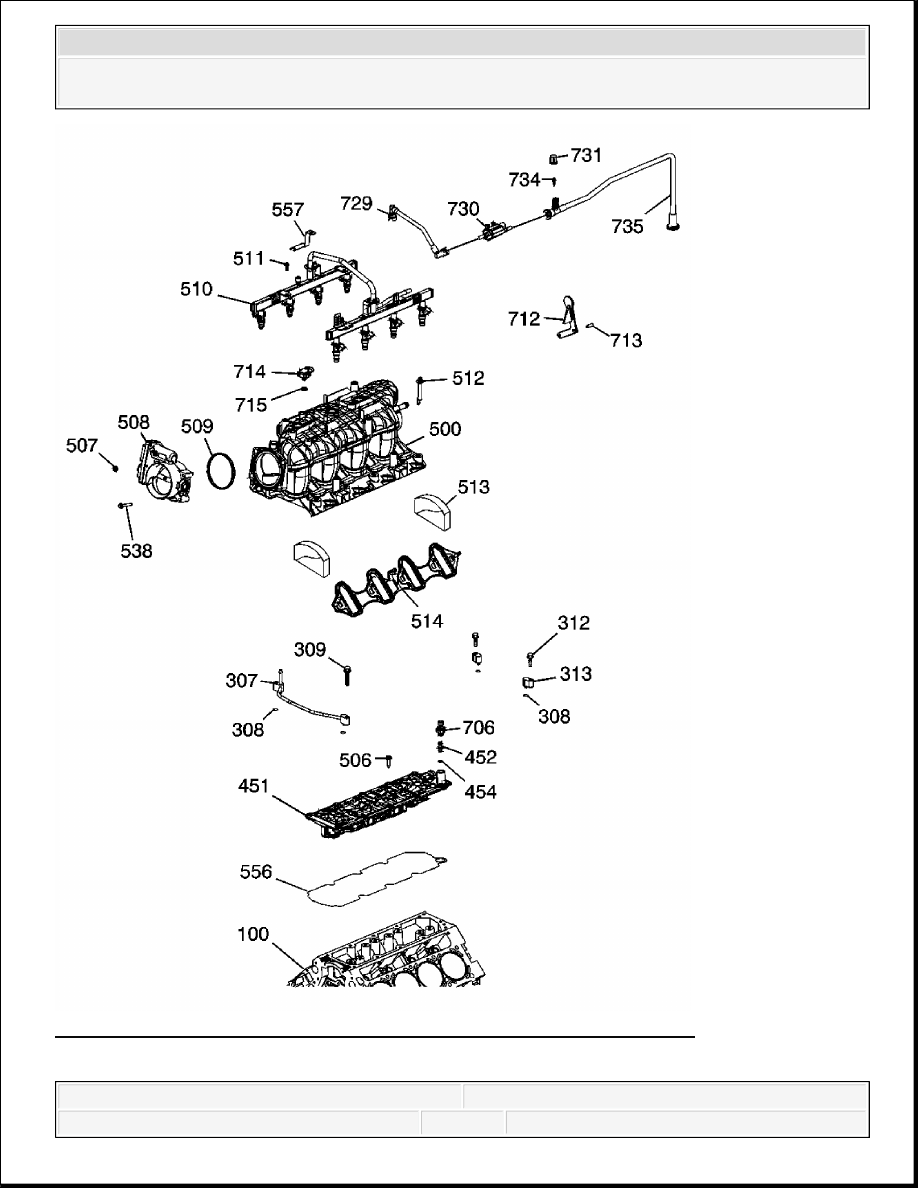

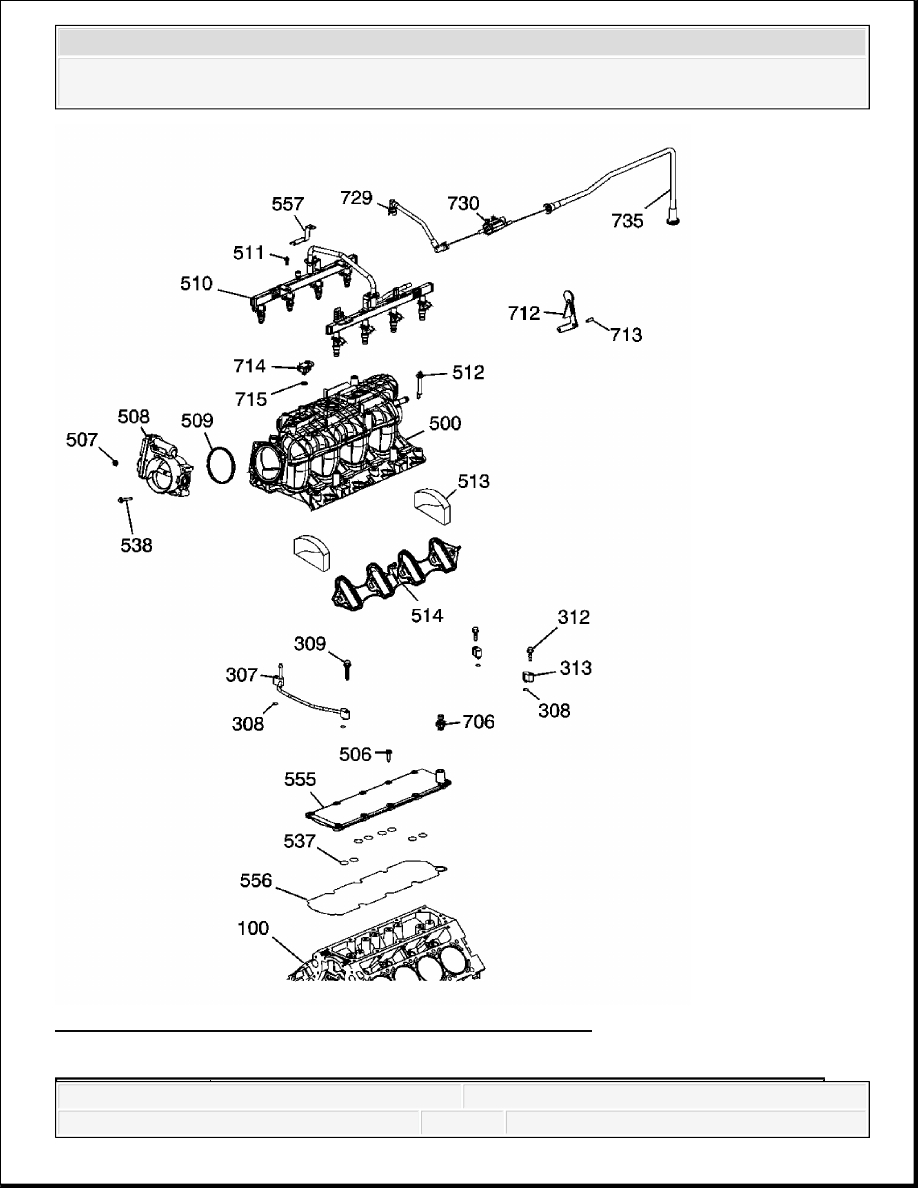

Fig. 7: Intake Manifold/Upper Engine - RPO LY2/LY6/L92
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Callout
Component Name
100
Engine Block
307
Engine Coolant Air Bleed Pipe
308
Engine Coolant Air Bleed Pipe O-Ring Seal
308
Engine Coolant Air Bleed Pipe O-Ring Seal
309
Bolt
312
Bolt
313
Engine Coolant Air Bleed Pipe Hole Cover
500
Intake Manifold
506
Bolt
507
Nut
508
Throttle Body
509
Throttle Body Seal
510
Sequential Multi-Port Fuel Injector Assembly with Fuel Rail
511
Bolt
512
Bolt
513
Intake Manifold Seal
514
Intake Manifold Gasket
537
O-Ring Seal
538
Bolt
555
Engine Valley Cover
556
Gasket
557
Fuel Injection Fuel Rail Bracket
706
Engine Oil Pressure Sensor
712
Fuel Injection Fuel Rail Stop
713
Bolt
714
Manifold Absolute Pressure (MAP) Sensor
715
MAP Sensor O-Ring Seal
729
Evaporative (EVAP) Emission Canister Purge Tube
730
EVAP Emission Canister Purge Solenoid Valve
731
EVAP Emission Canister Port Cap
734
EVAP Emission Service Valve
735
EVAP Emission Canister Purge Tube
