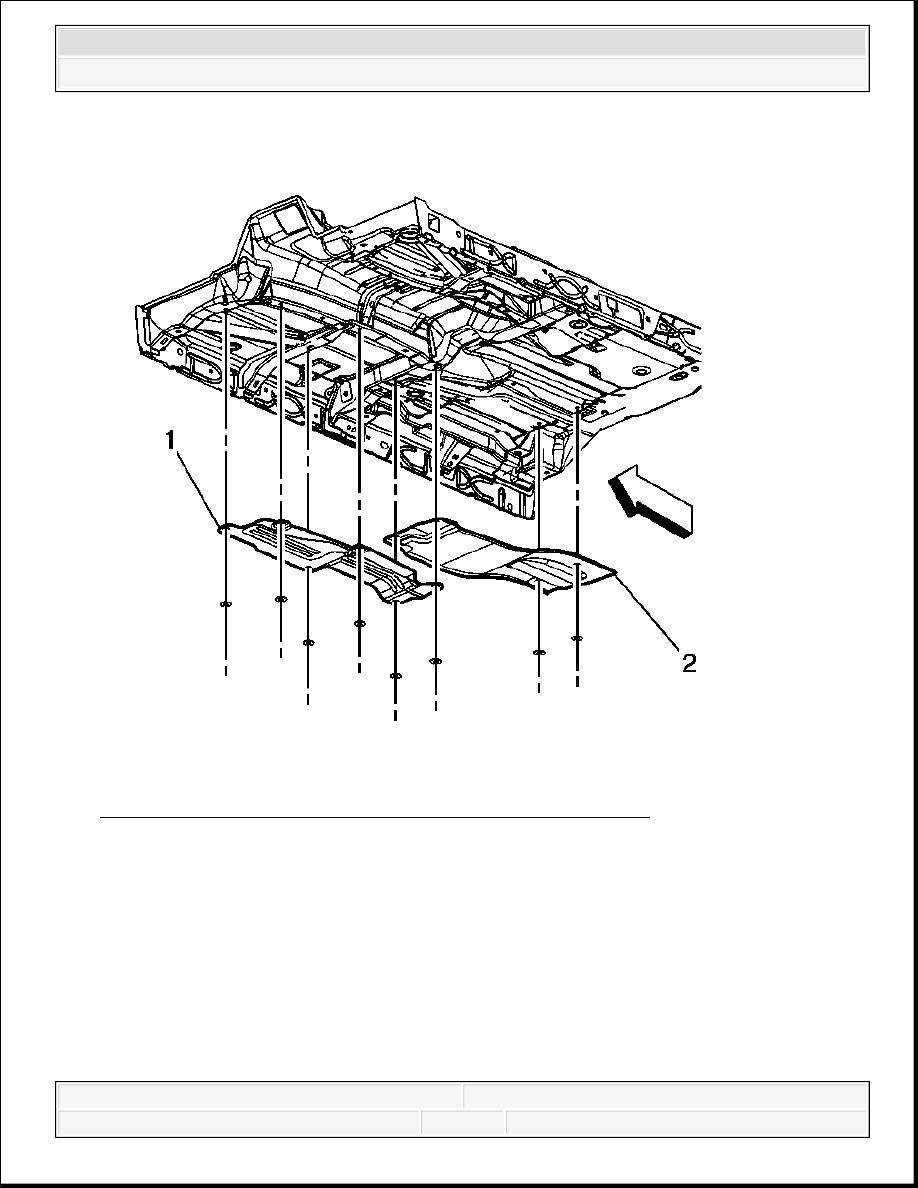

Fig. 225: View Of Front & Rear Exhaust Heat Shield & Nuts
Courtesy of GENERAL MOTORS CORP.

4. If vehicle has extended cab, remove the exhaust heat shield nuts.

5. Remove the exhaust front heat shield (1) and/or the rear exhaust heat shield (2) from the

studs.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

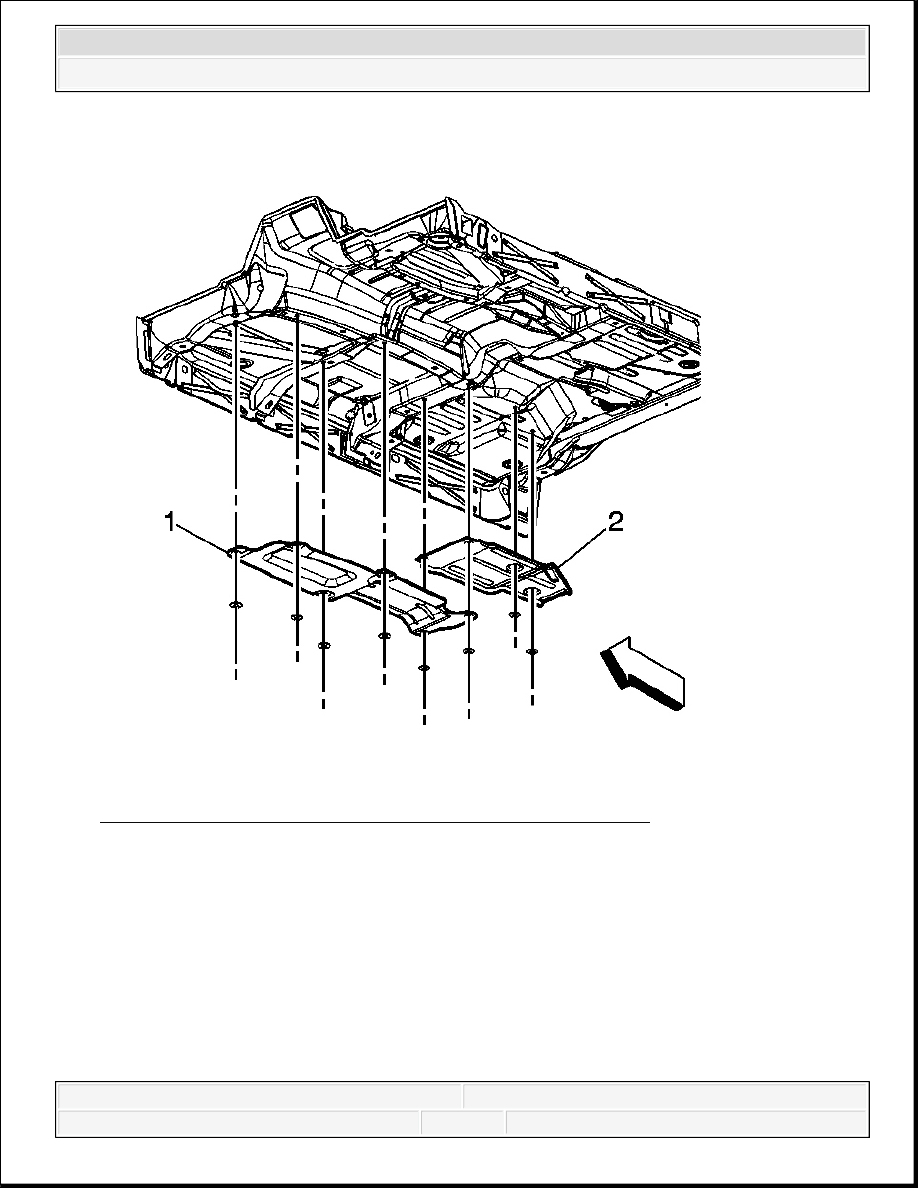

Fig. 226: View Of Front & Rear Exhaust Heat Shield & Nuts
Courtesy of GENERAL MOTORS CORP.

6. If vehicle has a crew cab, remove the exhaust heat shield nuts.

7. Remove the exhaust front heat shield (1) and/or the rear exhaust heat shield (2) from the

studs.

Installation Procedure

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Fig. 227: View Of Front & Rear Exhaust Heat Shield & Nuts
Courtesy of GENERAL MOTORS CORP.

1. If vehicle has a crew cab, position and install the rear exhaust heat shield (2) and/or the

front exhaust heat shield (1) to the underbody studs.

2. Install the exhaust heat shield nuts.

Tighten: Tighten the nuts to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Fig. 228: View Of Front & Rear Exhaust Heat Shield & Nuts
Courtesy of GENERAL MOTORS CORP.

3. If vehicle has a extended cab, position and install the rear exhaust heat shield (2) and/or the

front exhaust heat shield (1) to the underbody studs.

4. Install the exhaust heat shield nuts.

Tighten: Tighten the nuts to 9 N.m (80 lb in).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
