Chevrolet Silverado / GMC Sierra. Manual - part 1845
Fig. 201: Rear Shock Absorber Bolts And Nuts (6.0L, 6.6L, and 8.1L Engines)
Courtesy of GENERAL MOTORS CORP.
10. Raise the rear axle using the adjustable jack stands, if necessary.
11. Install the rear shock absorber lower bolts and nuts, if necessary.
Tighten: Tighten the bolts to 95 N.m (70 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

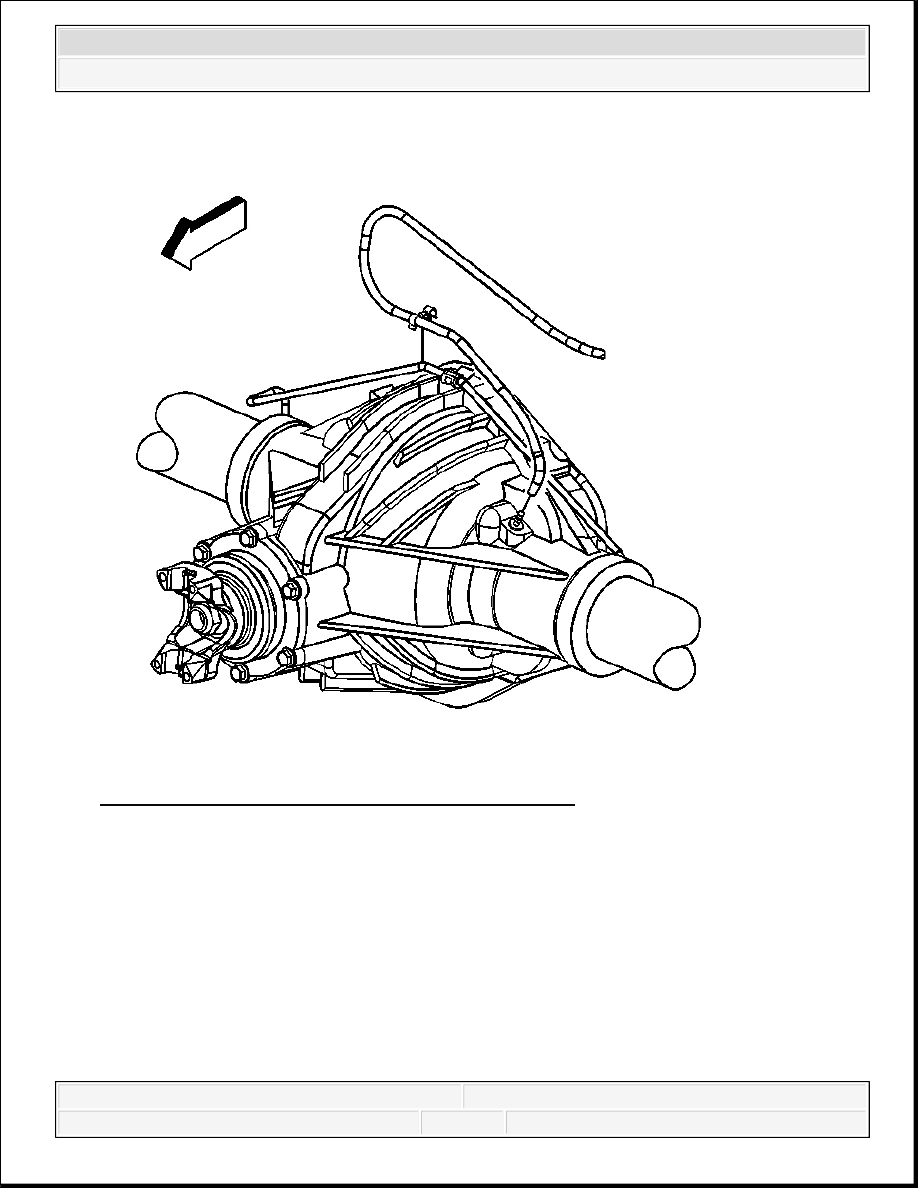

Fig. 202: Rear Axle Vent Hose (10.5 Inch Ring Gear)
Courtesy of GENERAL MOTORS CORP.
12. If equipped with a 10.5 inch ring gear, install the rear axle vent hose to the rear axle, if
necessary.
13. Connect the vent hose swivel clip to the rear brake crossover pipe, if necessary.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

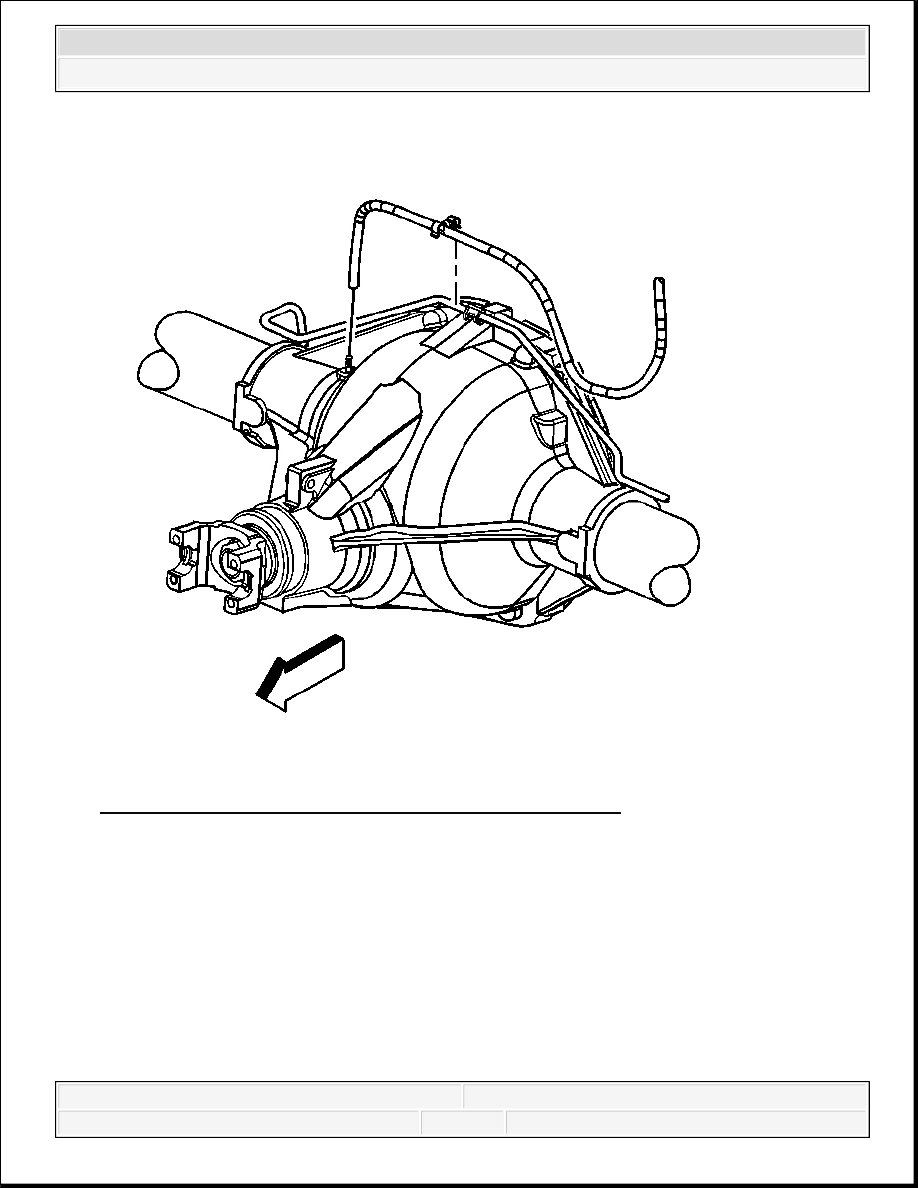

Fig. 203: Rear Axle Vent Hose (8.6 or 9.5 Inch Ring Gear)
Courtesy of GENERAL MOTORS CORP.
14. If equipped with a 8.6 or a 9.5 inch ring gear, install the rear axle vent hose to the rear axle,
if necessary.
15. Install the vent hose swivel clip to the rear brake crossover pipe, if necessary.
16. Remove the adjustable jack stands from under the rear axle, if necessary.
17. Install the spare tire, if necessary.
18. Lower the vehicle.
MUFFLER REPLACEMENT (2500/3500 - CAB/CHASSIS W/6.0L)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Removal Procedure

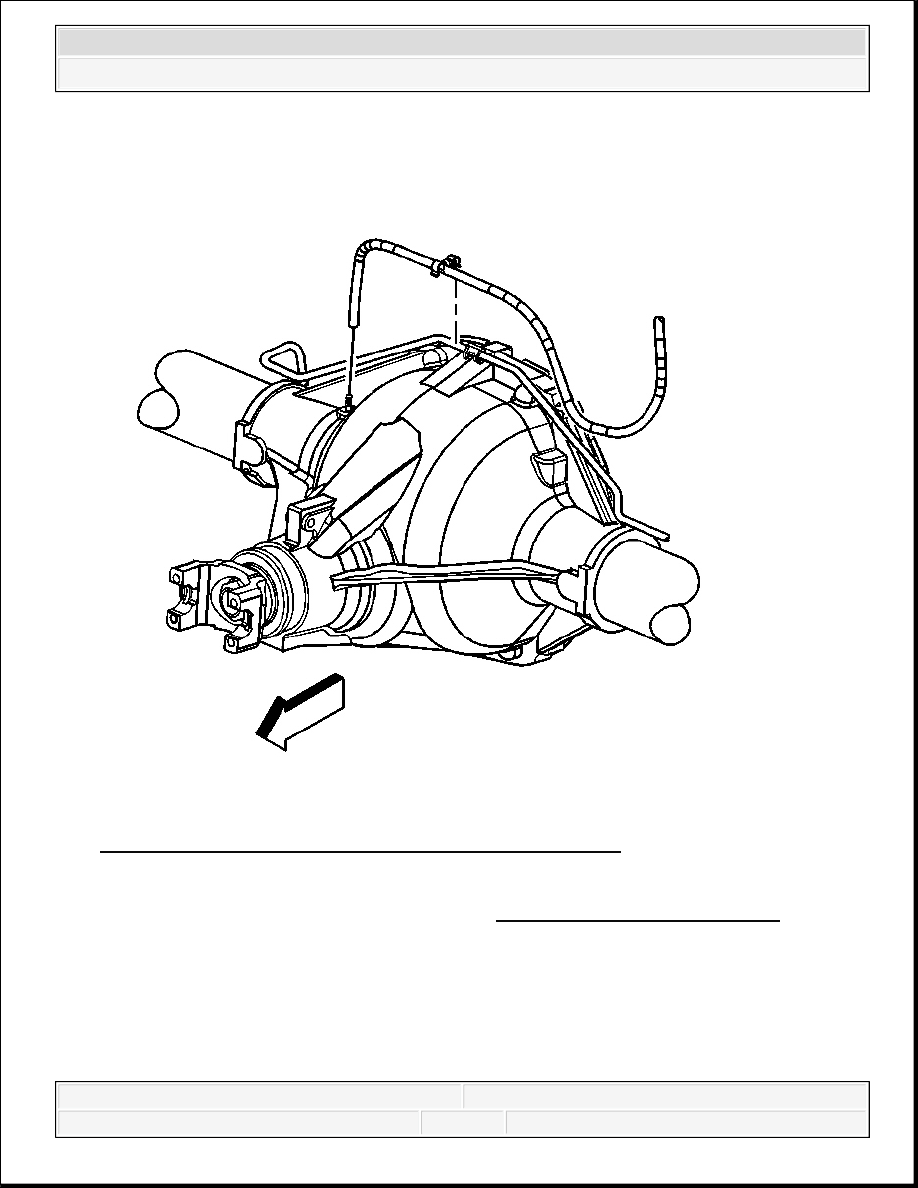

Fig. 204: Rear Axle Vent Hose (8.6 or 9.5 Inch Ring Gear)
Courtesy of GENERAL MOTORS CORP.
1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the spare tire, if necessary.
3. Install adjustable jack stands under the rear axle, if necessary.
4. If equipped with a 8.6 or a 9.5 inch ring gear, remove the rear axle vent hose from the rear
axle, if necessary.
5. Remove the vent hose swivel clip from the rear brake crossover pipe, if necessary.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
