Fig. 197: View Of Muffler Assembly Insulators 14. If the vehicle is a heavy duty (HD) perform the following steps: 15. Lubricate the 3 insulators where the muffler assembly hangers are inserted in order to ease removal. 16. With the aid of an assistant, remove the insulators (1-3) from the front, intermediate, and rear muffler assembly hangers and remove the muffler assembly. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

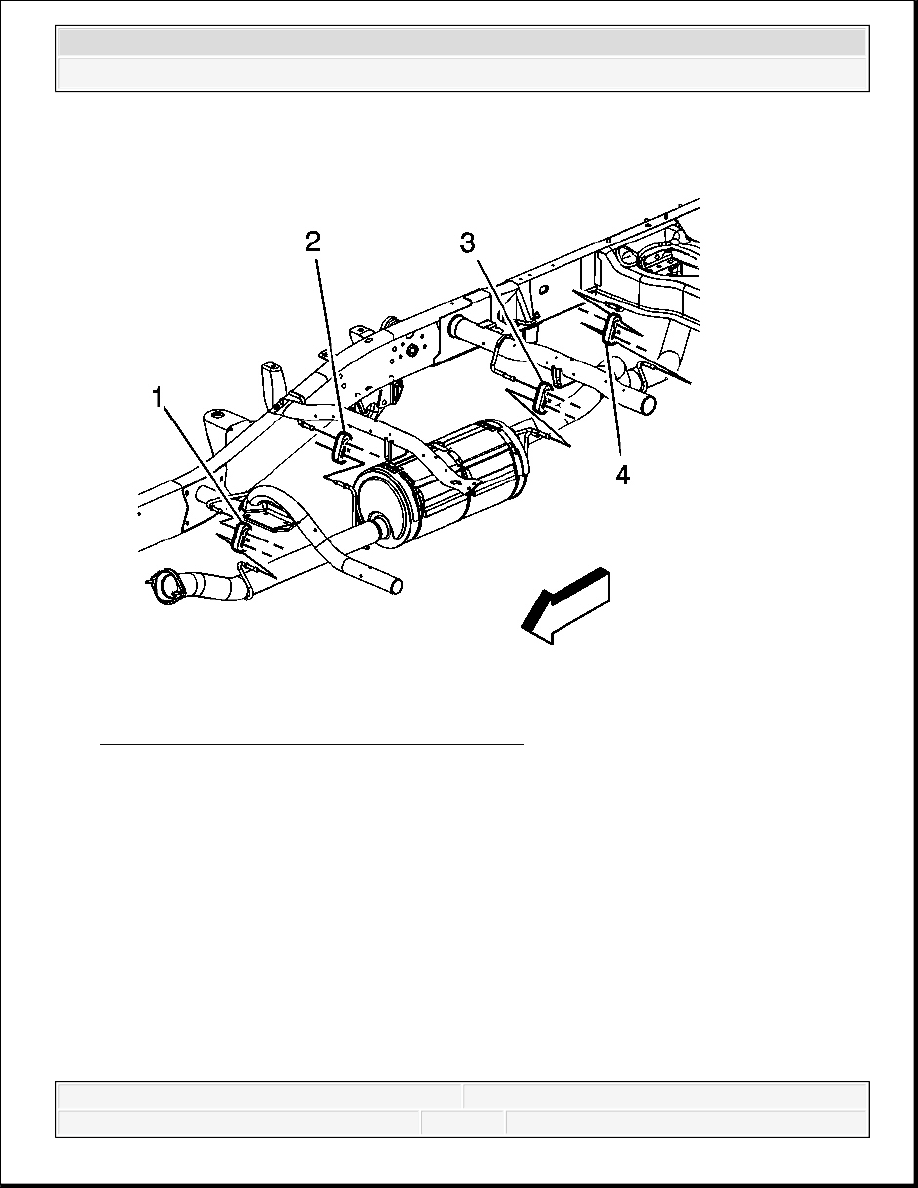

Fig. 198: View Of Muffler Assembly Insulators 1. If the vehicle is a non HD, perform the following steps, otherwise proceed to step 5: 2. Lubricate the 4 insulators where the muffler assembly hangers are inserted in order to ease installation. 3. With the aid of an assistant, position and install the muffler assembly. 4. Install the insulators (1-4) to the front, intermediate, and rear muffler assembly hangers.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

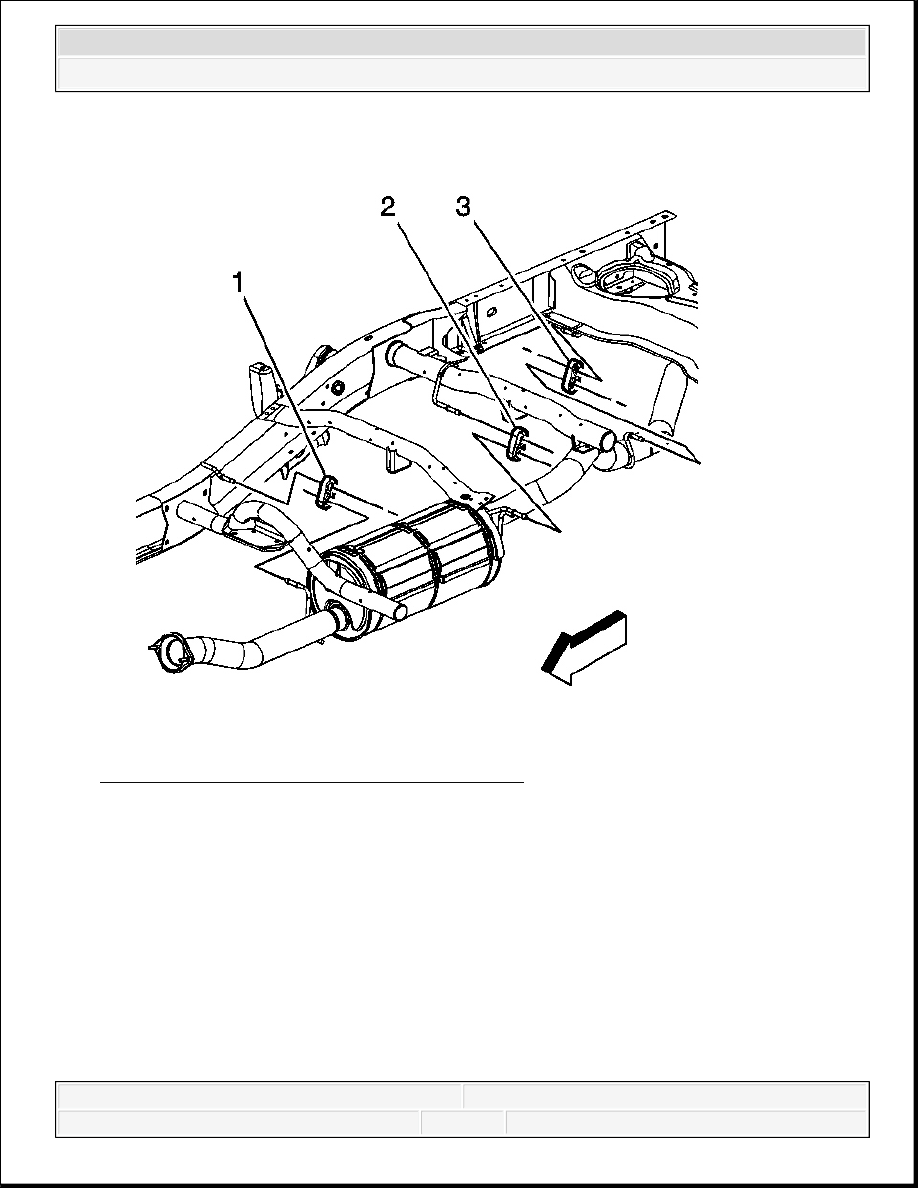

Fig. 199: View Of Muffler Assembly Insulators 5. If the vehicle is a HD, perform the following steps: 6. Lubricate the 3 insulators where the muffler assembly hangers are inserted in order to ease installation. 7. With the aid of an assistant, position and install the muffler assembly. 8. Install the insulators (1-3) to the front, intermediate, and rear muffler assembly hangers.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

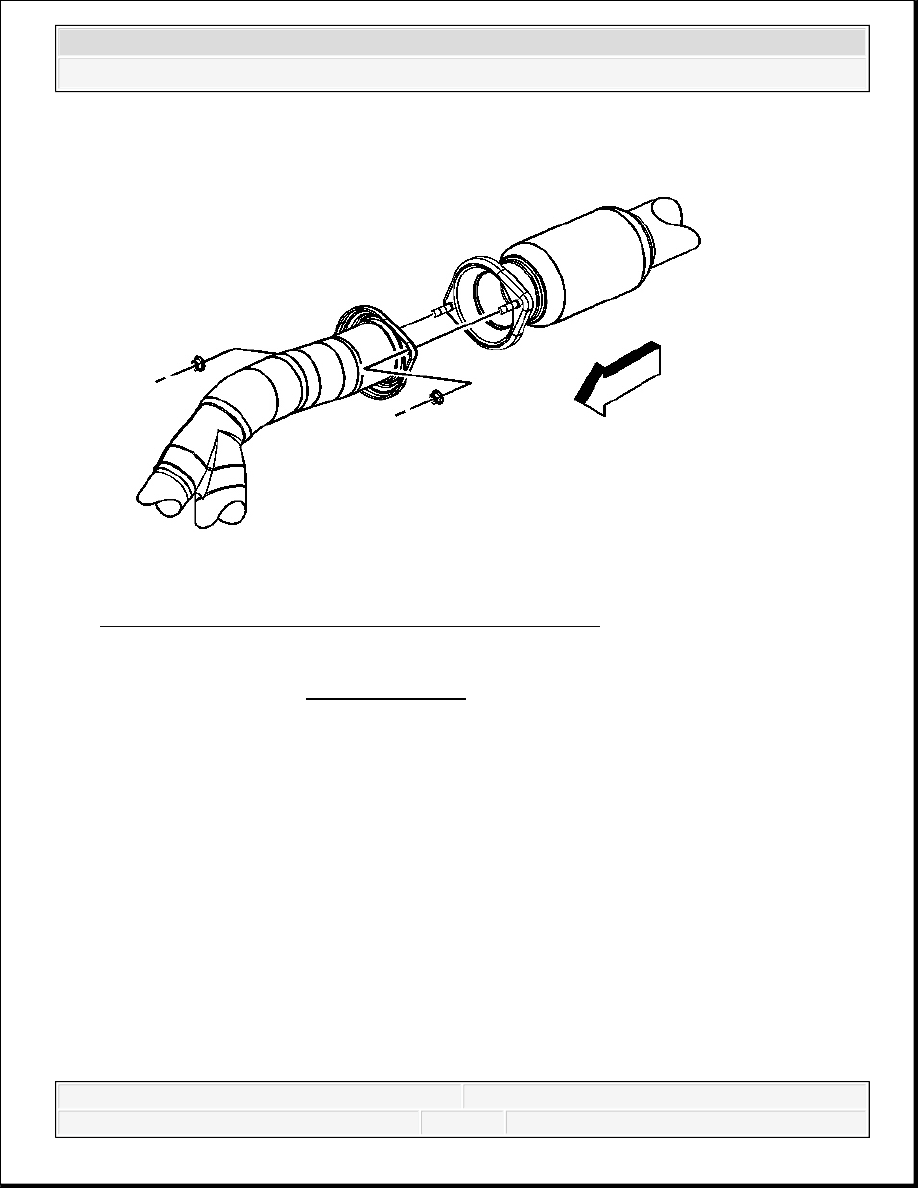

Fig. 200: View Of Catalytic Converter To Muffler Nuts 9. Install the catalytic converter to exhaust muffler nuts. Tighten: Tighten the nuts to 45 N.m (33 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
