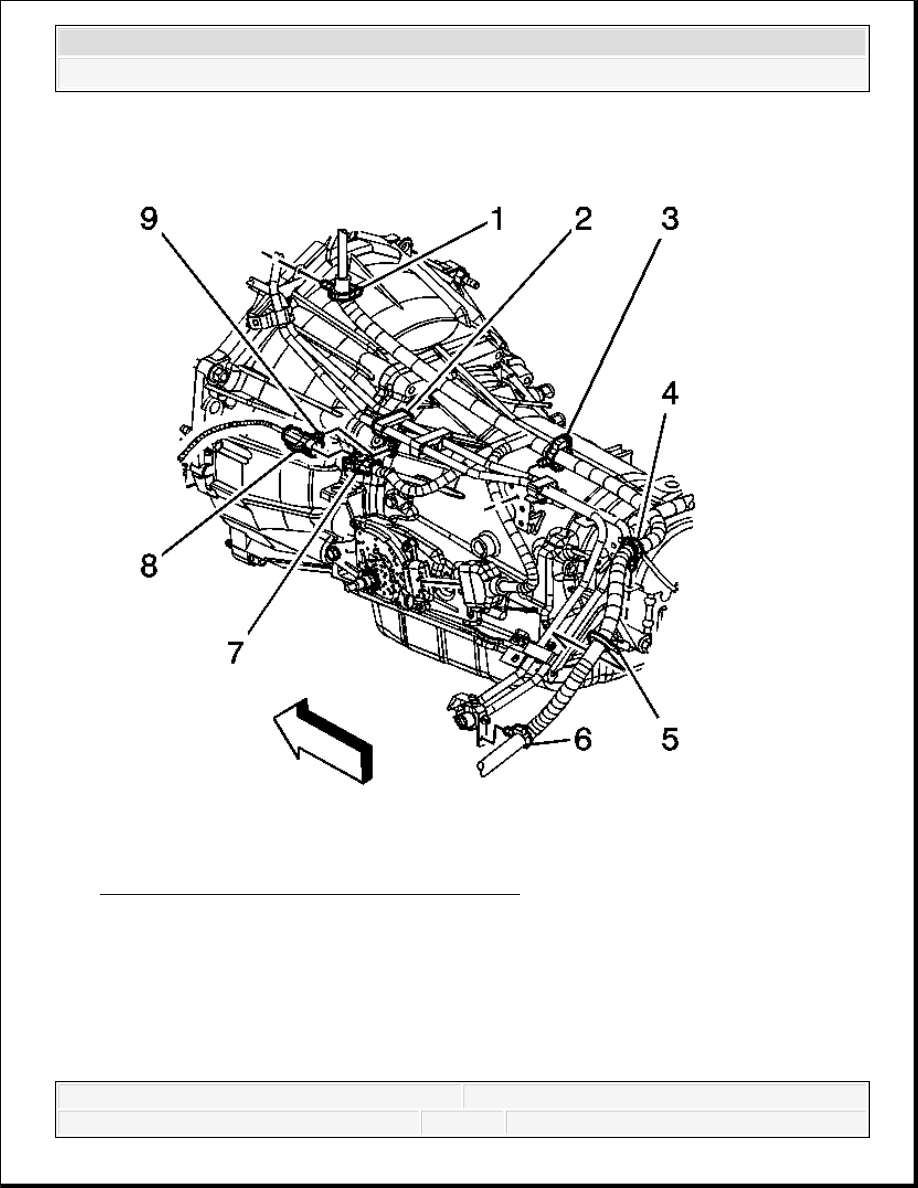

Fig. 103: View Of Various Connectors & Clips 9. For vehicles equipped with 4WD perform the following steps, for vehicles equipped with 2WD proceed to step 13. 10. Connect the engine wiring harness electrical connector (6) to the left front HO2S electrical connector (7). 11. Install the CPA retainer.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

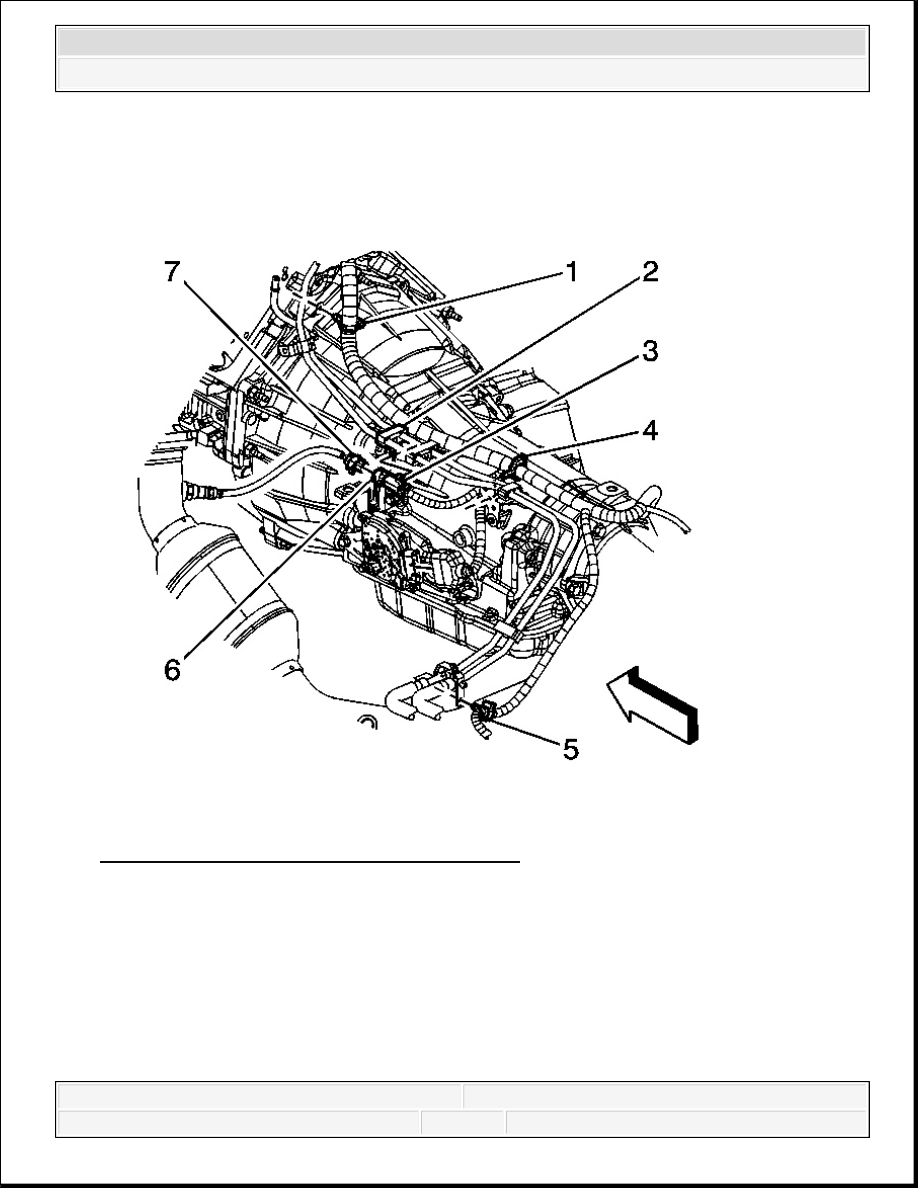

12. Install the HO2S electrical connector clip to the fuel line clip (2). Fig. 104: View Of Various Connectors & Clips 13. For vehicles equipped with 4WD perform the following steps, connect the engine wiring harness electrical connector (7) to the left front HO2S electrical connector (8). 14. Install the left front CPA retainer.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

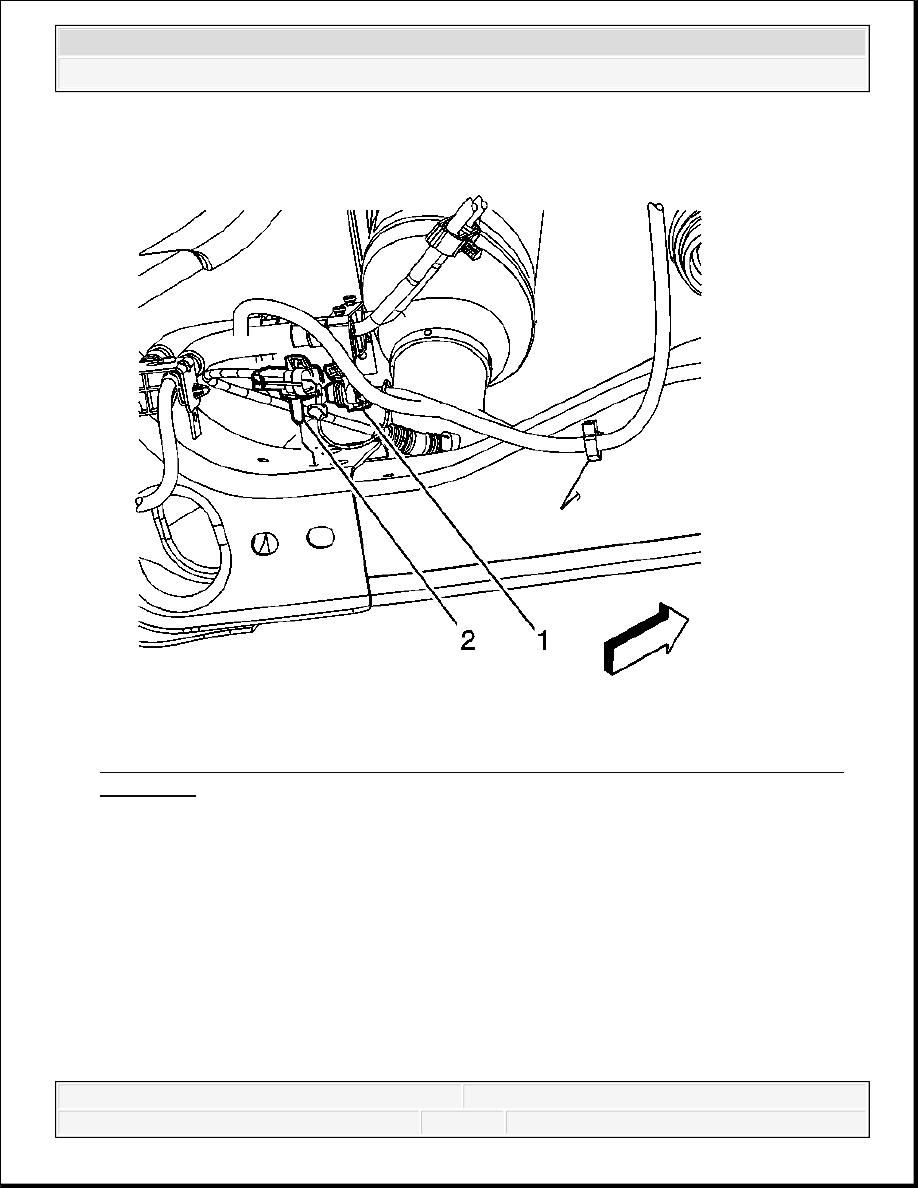

Fig. 105: View Of Engine Wiring Harness Electrical Connector & HO2S Electrical 15. Connect the engine wiring harness electrical connector (1) to the left rear HO2S electrical connector (2). 16. Install the left rear HO2S electrical connector clip to the frame. 17. Install the CPA retainer.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

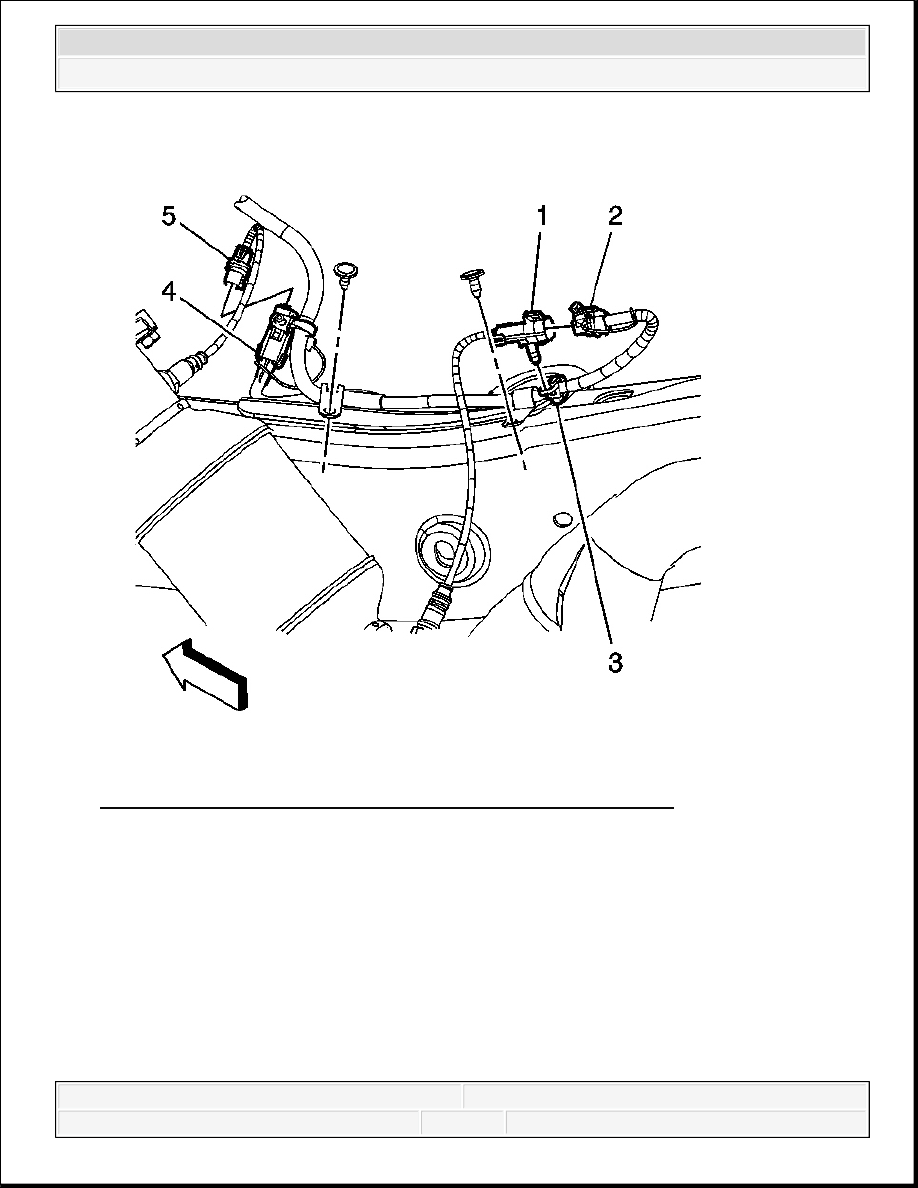

Fig. 106: View Of Engine Harness Clip & Electrical Connectors 18. Connect the engine wiring harness electrical connector (2) to the right rear HO2S electrical connector (1). 19. Install the right rear CPA retainer. 20. Install the right rear HO2S electrical connector clip to the engine harness clip (3). 21. Connect the right front HO2S electrical connector (5) to the engine wiring harness electrical connector (4). 22. Install the right front CPA retainer.
