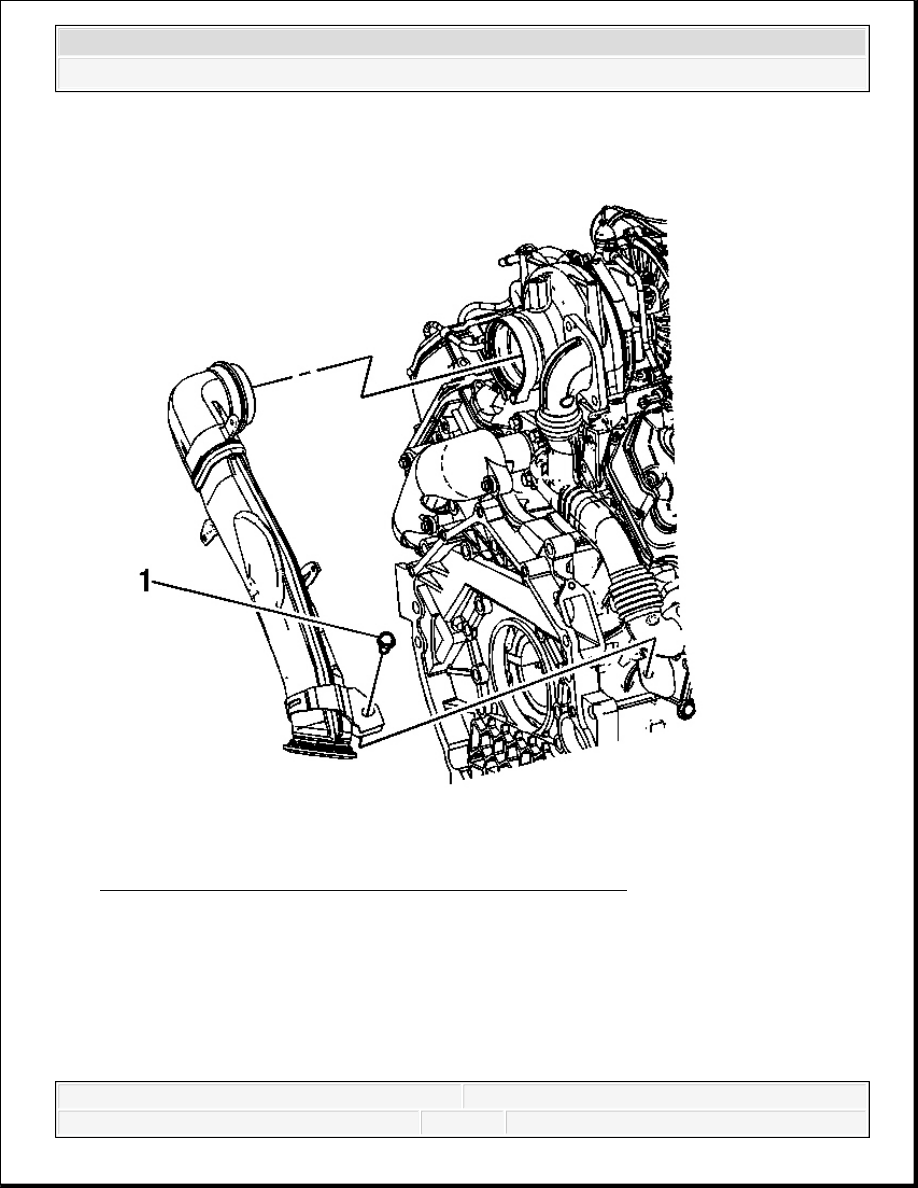

Fig. 60: View Of Turbocharger Exhaust Pipe Bracket Bolt 9. Remove the turbocharger exhaust pipe to bracket bolt (1). 10. Remove the turbocharger exhaust pipe. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 61: View Of Turbocharger Exhaust Pipe Bracket Bolt 1. Install the turbocharger exhaust pipe into the clamp and position the pipe flat against the turbocharger. 2. Loosely install the turbocharger exhaust pipe to bracket bolt (1).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

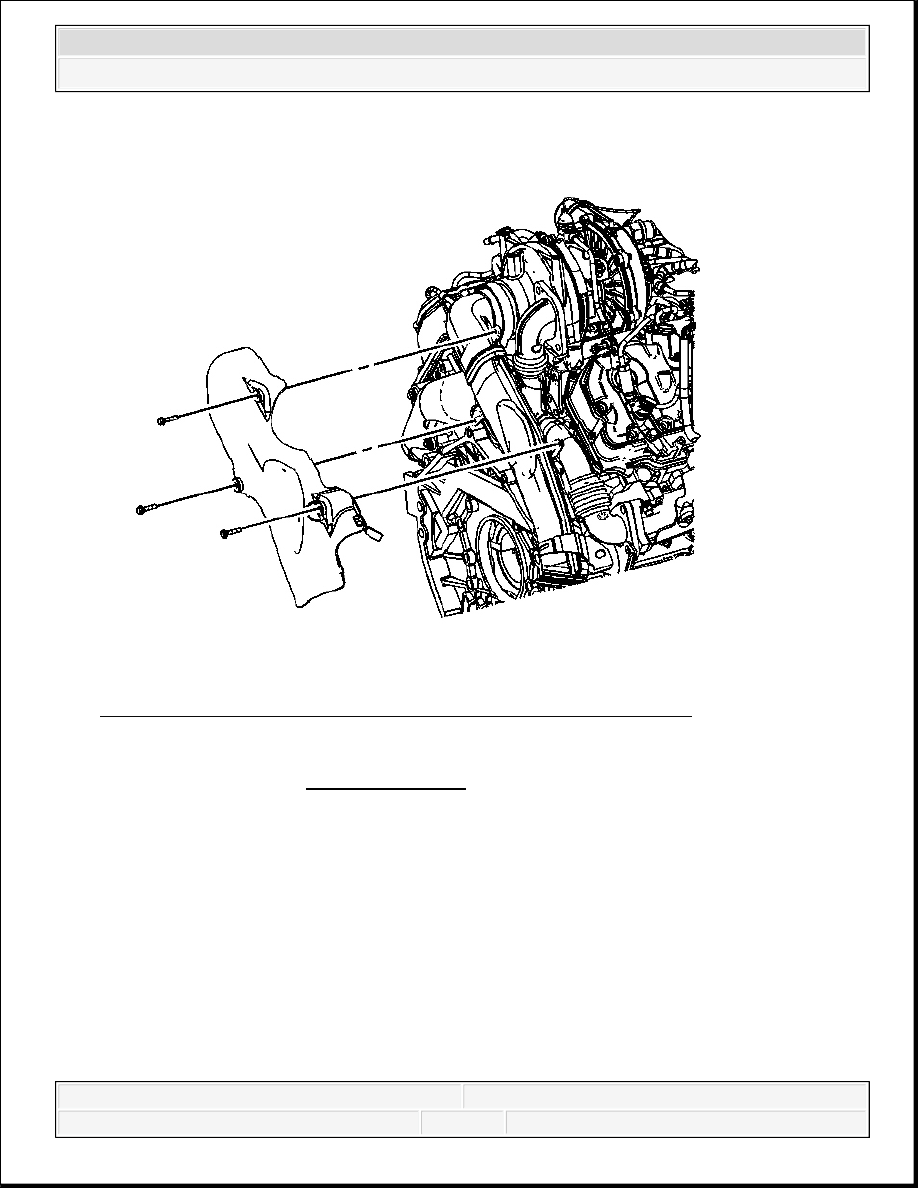

Fig. 62: View Of Turbocharger Exhaust Pipe Heat Shield & Bolts 3. Position the turbocharger exhaust pipe heat shield and install the heat shield bolts. Tighten: Tighten the bolts to 10 N.m (89 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

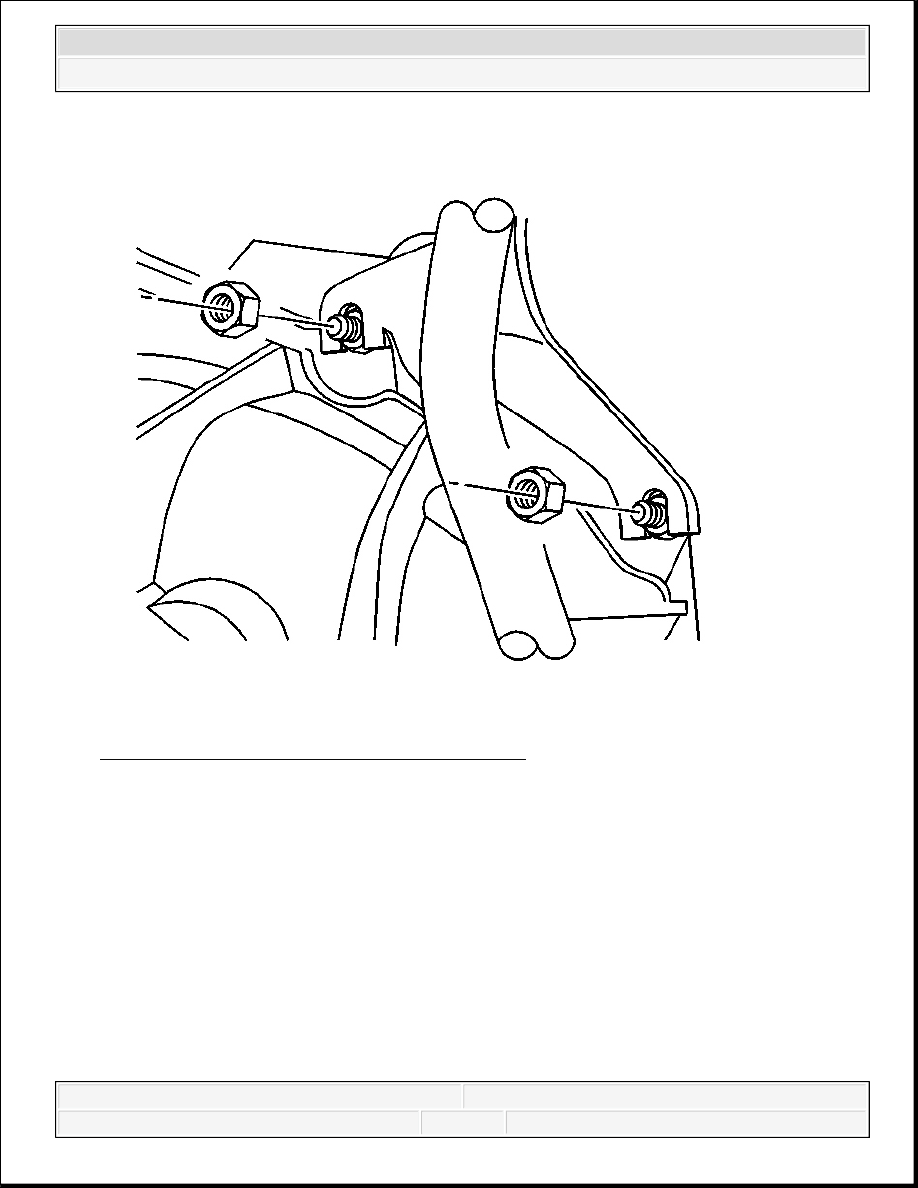

Fig. 63: View Of Fill Tube To Bellhousing Nuts 4. Position the transmission fluid fill tube. 5. Install the transmission fluid fill tube to bellhousing nuts. Tighten: Tighten the nuts to 18 N.m (13 lb ft).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
