Fig. 266: View Of Solenoid Plunger & Spring (6.6L (LB7) Engine)
Courtesy of GENERAL MOTORS CORP.
10. If necessary, remove the solenoid plunger and spring.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

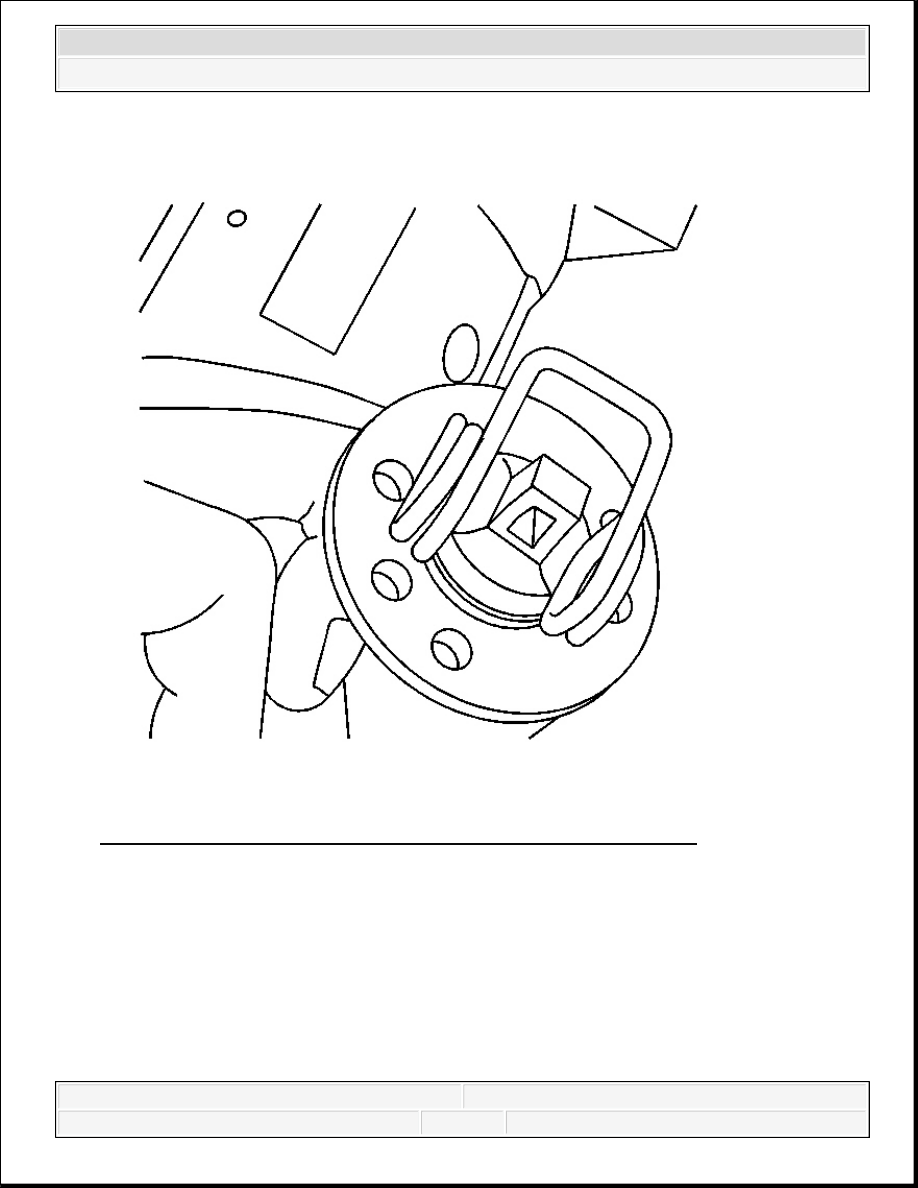

Fig. 267: View Of Solenoid Plunger & Spring (6.6L (LB7) Engine)
Courtesy of GENERAL MOTORS CORP.
1. If necessary, install the solenoid plunger and spring.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 268: Sealing Starter Solenoid Attachment Area (6.6L (LB7) Engine)
Courtesy of GENERAL MOTORS CORP.
2. Using Three Bond silicone 1207B, GM P/N 97720043, seal the starter solenoid attachment
area.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

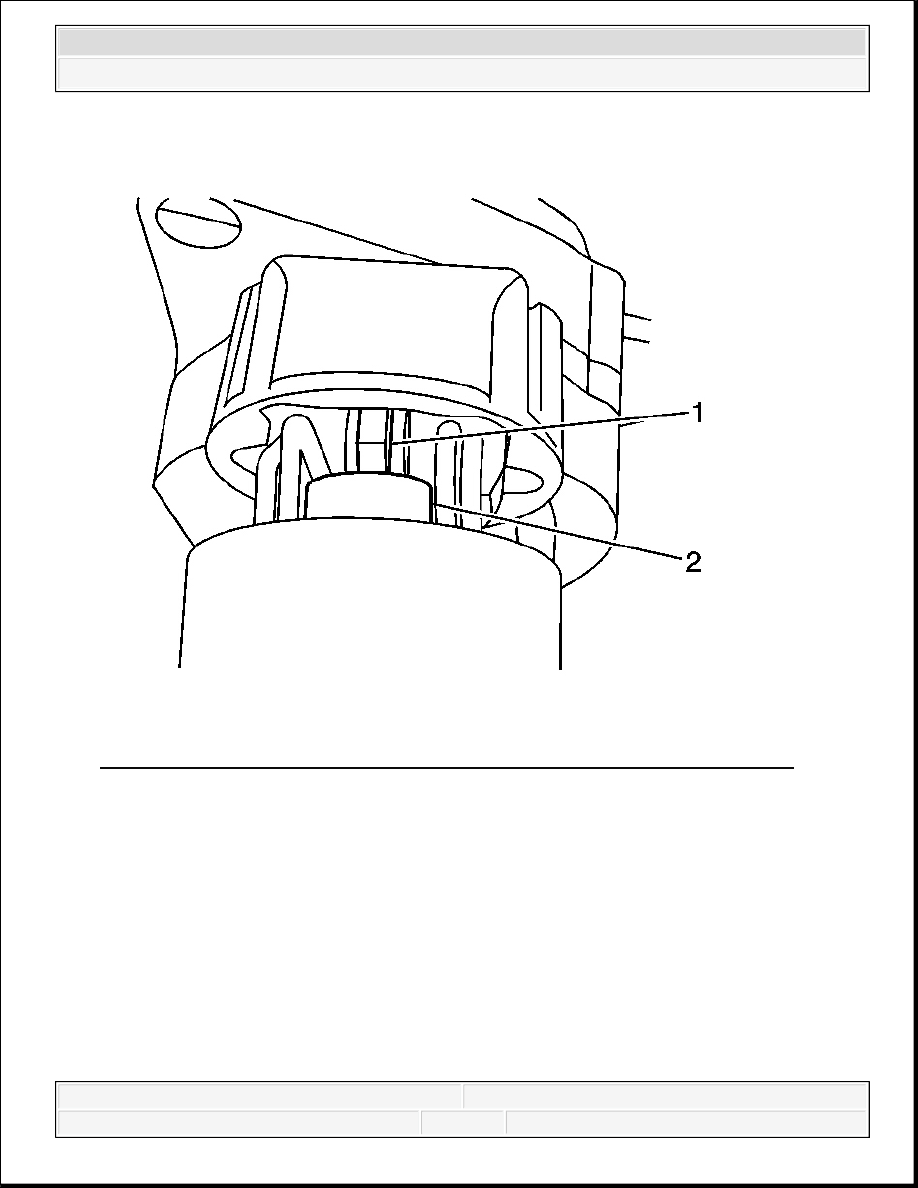

Fig. 269: View Of Solenoid Plunger & Drive Gear Lever (6.6L (LB7) Engine)
Courtesy of GENERAL MOTORS CORP.
3. Install the solenoid, making sure to insert the drive gear lever (1) into the solenoid plunger
(2) loop, perform the following:
1. Pull the gear lever (1) out away from the starter housing and pull the plunger (2) out
away from the solenoid.
2. Tip the solenoid and insert the lever into the loop, push the solenoid against the
IMPORTANT: Ensure that the drive gear lever (1) is properly installed into
the solenoid plunger (2) loop. Improper installation of the
drive gear lever will cause an abnormal or no operation
condition of the starter.
