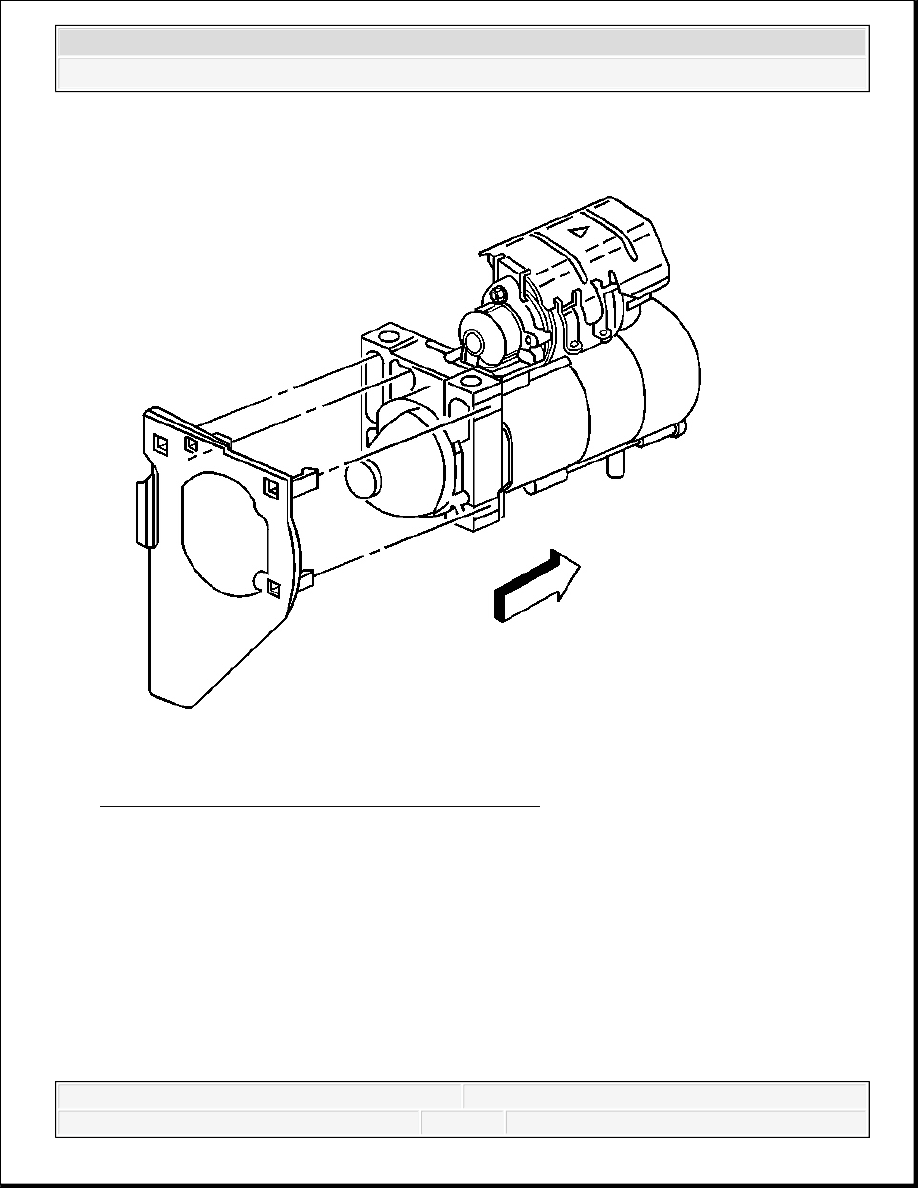

Fig. 246: View Of Transmission Cover & Starter
Courtesy of GENERAL MOTORS CORP.
2. If the starter was replaced, snap the transmission cover onto the starter.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

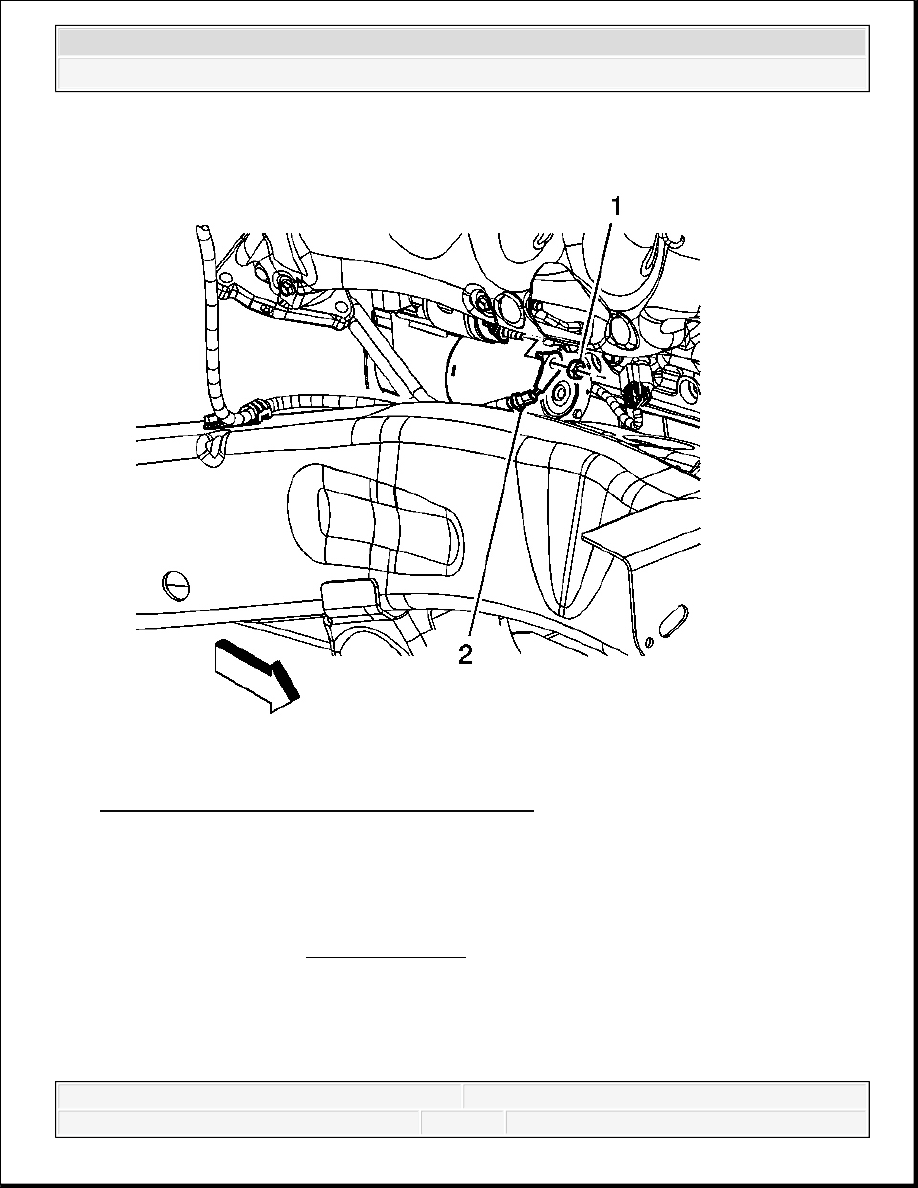

Fig. 247: View Of Starter Solenoid Cable & Nut
Courtesy of GENERAL MOTORS CORP.
3. Install the starter in through the wheel well opening.
4. Install the starter solenoid cable to the starter.
5. Install the starter solenoid cable nut (1).
Tighten: Tighten the nut to 9 N.m (80 lb in).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

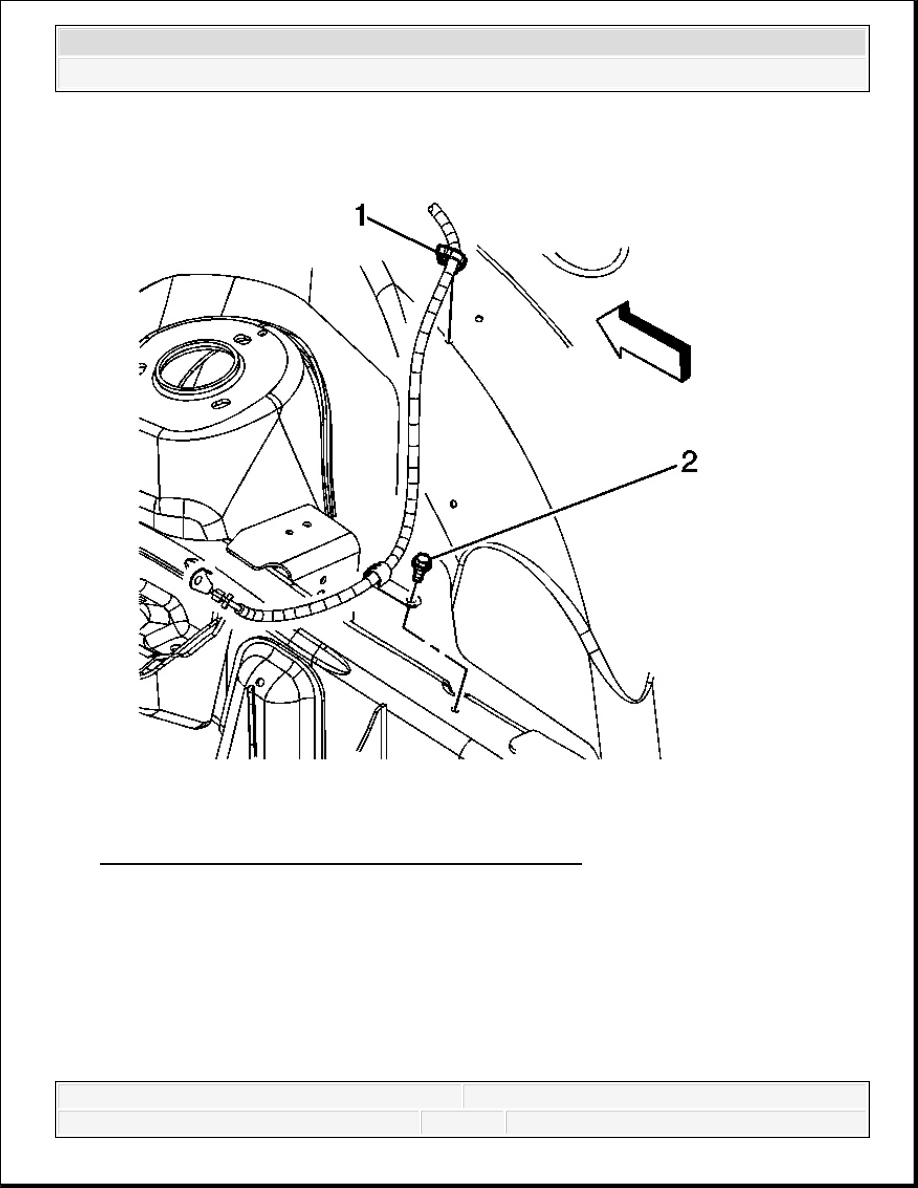

Fig. 248: View Of Starter Solenoid Cable Clip & Bolt
Courtesy of GENERAL MOTORS CORP.
6. Position the starter solenoid cable clip to the frame and install the starter solenoid cable clip
bolt (2).
Tighten: Tighten the bolt to 10 N.m (89 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

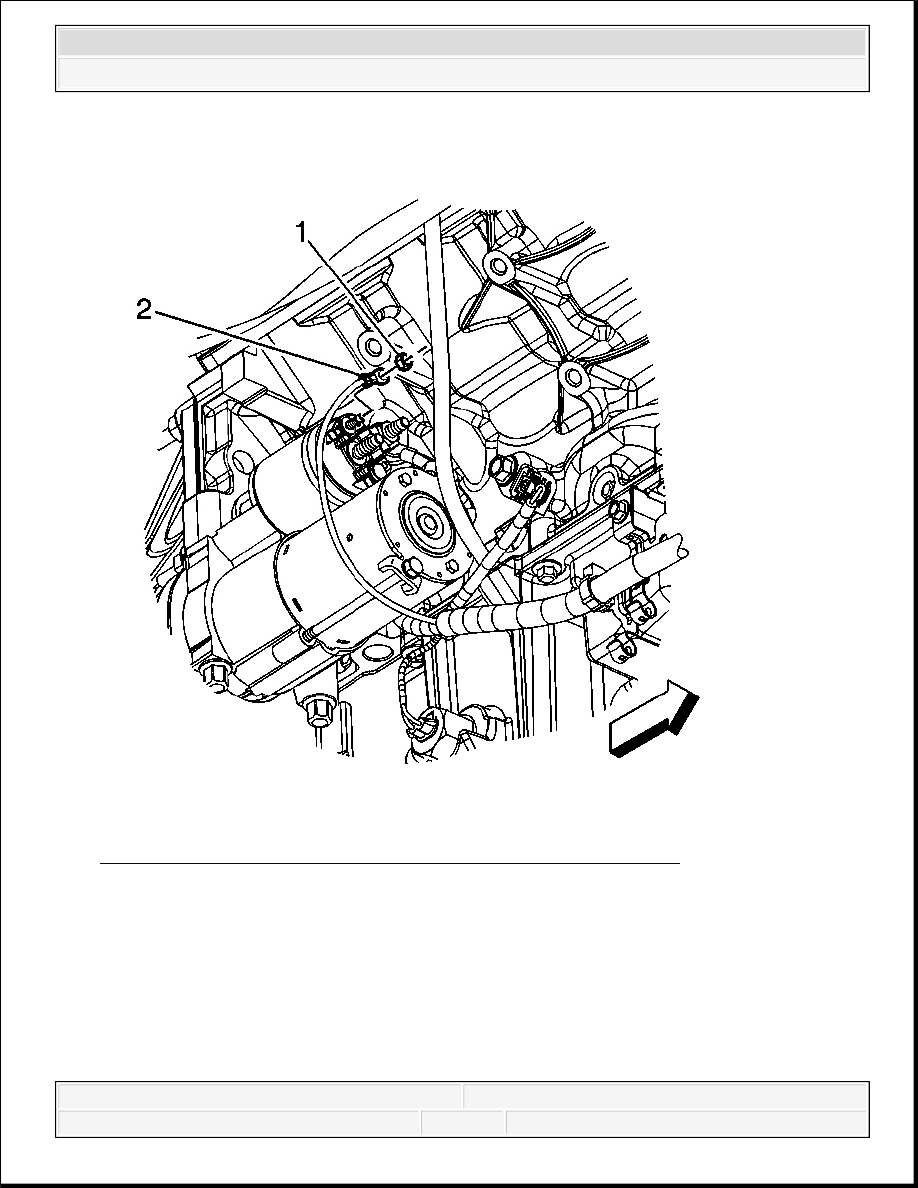

Fig. 249: View Of Engine Wiring Harness Lead Terminal & Nut
Courtesy of GENERAL MOTORS CORP.
7. Install the engine wiring harness lead terminal (2) to the starter.
8. Install the engine wiring harness lead nut (1).
Tighten: Tighten the nut to 3.4 N.m (30 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
