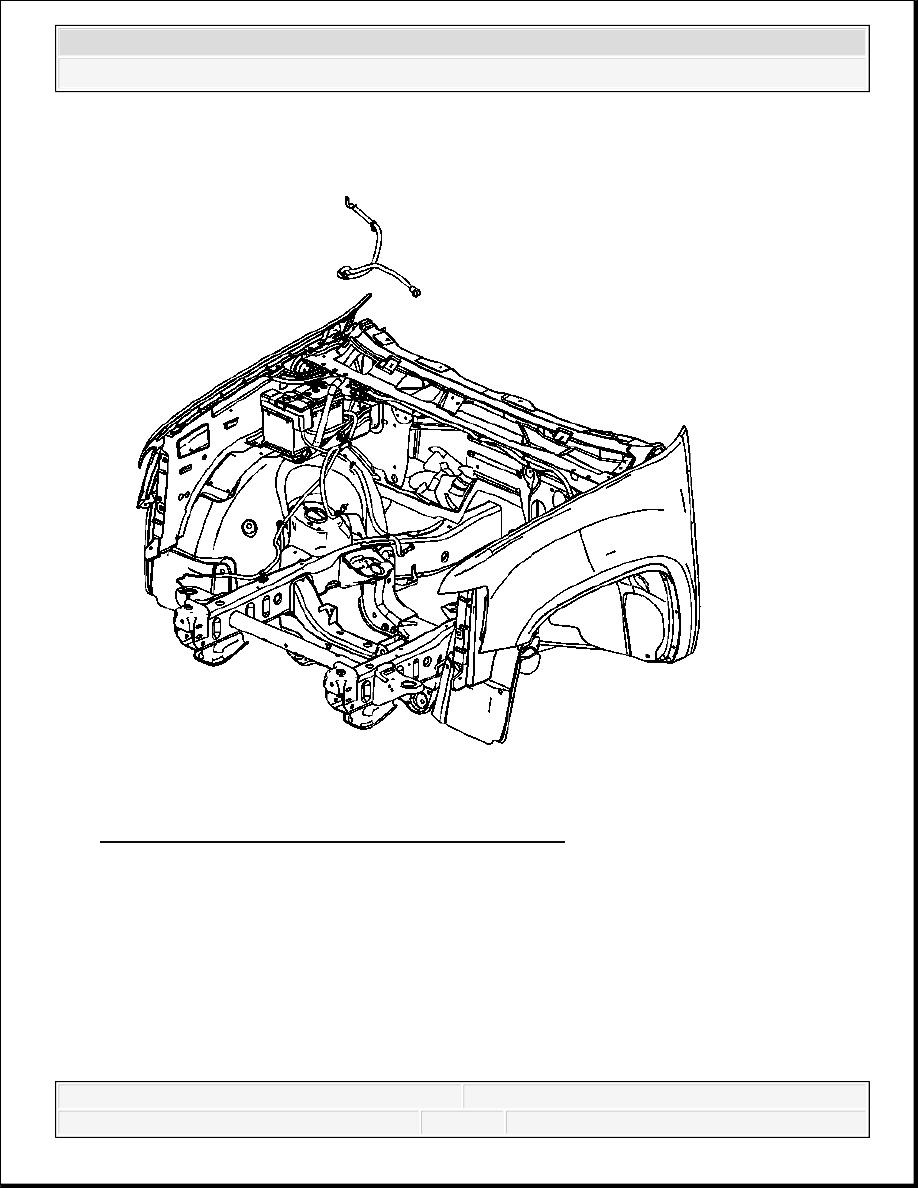

Fig. 121: View Of Generator Battery Jumper Cable
Courtesy of GENERAL MOTORS CORP.
1. Install the generator battery jumper cable to the vehicle.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

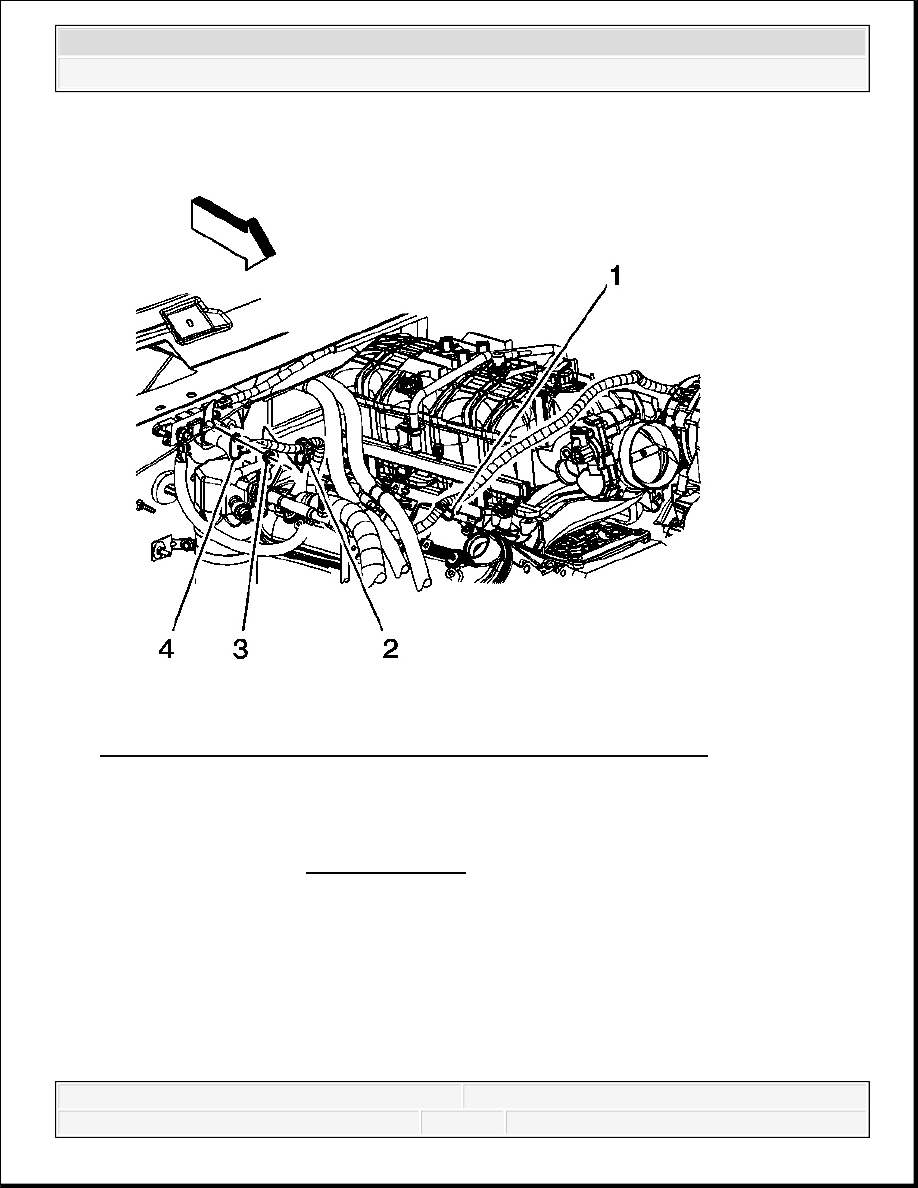

Fig. 122: View Of Generator Battery Jumper Cable & Components
Courtesy of GENERAL MOTORS CORP.
2. Install the generator battery jumper cable terminal (4) to the mega fuse stud.
3. Install the generator battery jumper cable to mega fuse nut (3).
Tighten: Tighten the nut to 9 N.m (80 lb in).
4. Install the generator battery jumper cable clip (2) to A/C evaporator tube.
5. Install the generator battery jumper cable clip (1) to the stud.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

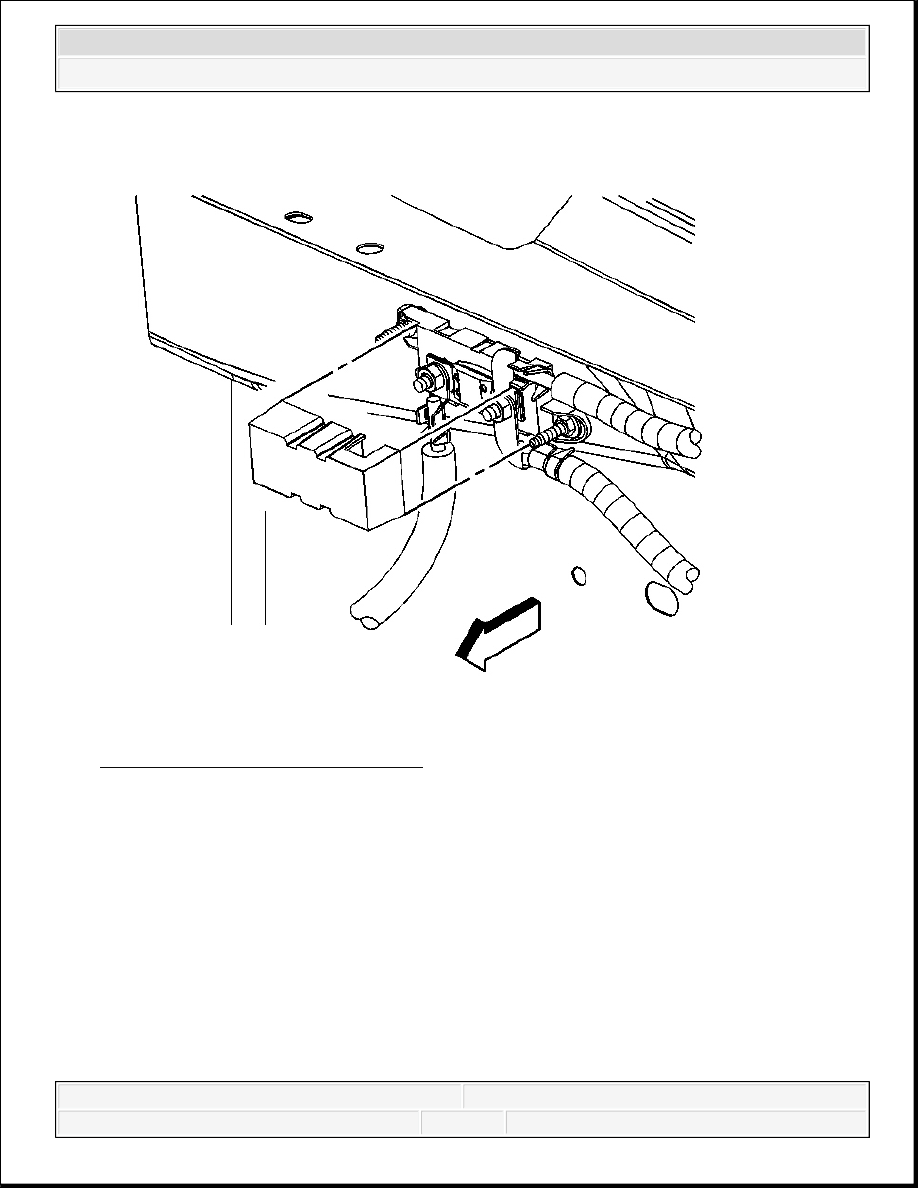

Fig. 123: View Of Mega Fuse Cover
Courtesy of GENERAL MOTORS CORP.
6. Install the mega fuse cover.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

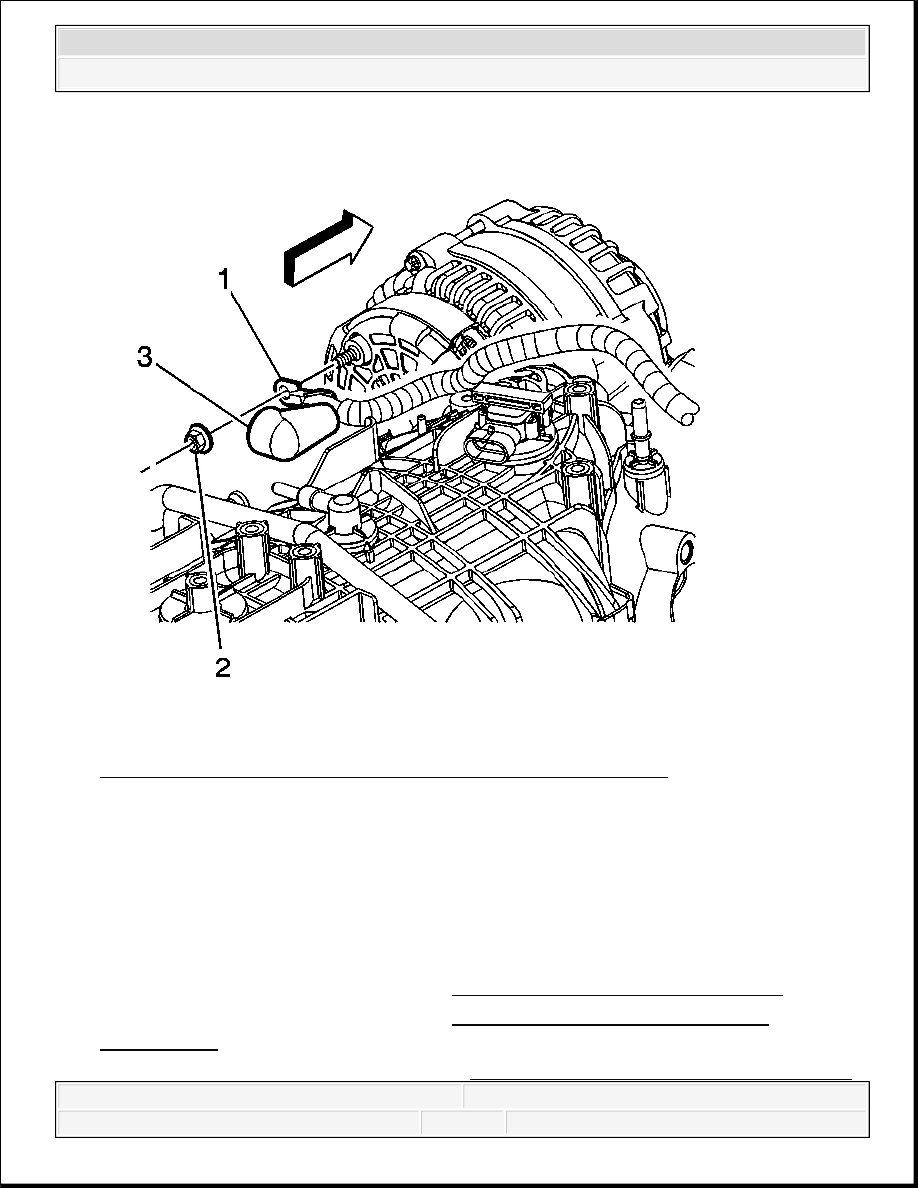

Fig. 124: View Of Battery Jumper Cable Terminal, Nut & Bolt
Courtesy of GENERAL MOTORS CORP.
7. Install the generator battery jumper cable terminal (1) to the generator stud.
8. Install the generator battery jumper cable nut (2) to the generator.
Tighten: Tighten the nut to 9 N.m (80 lb in).
9. Position the generator battery jumper cable boot (3).
10. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
11. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct
Replacement .
12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and
