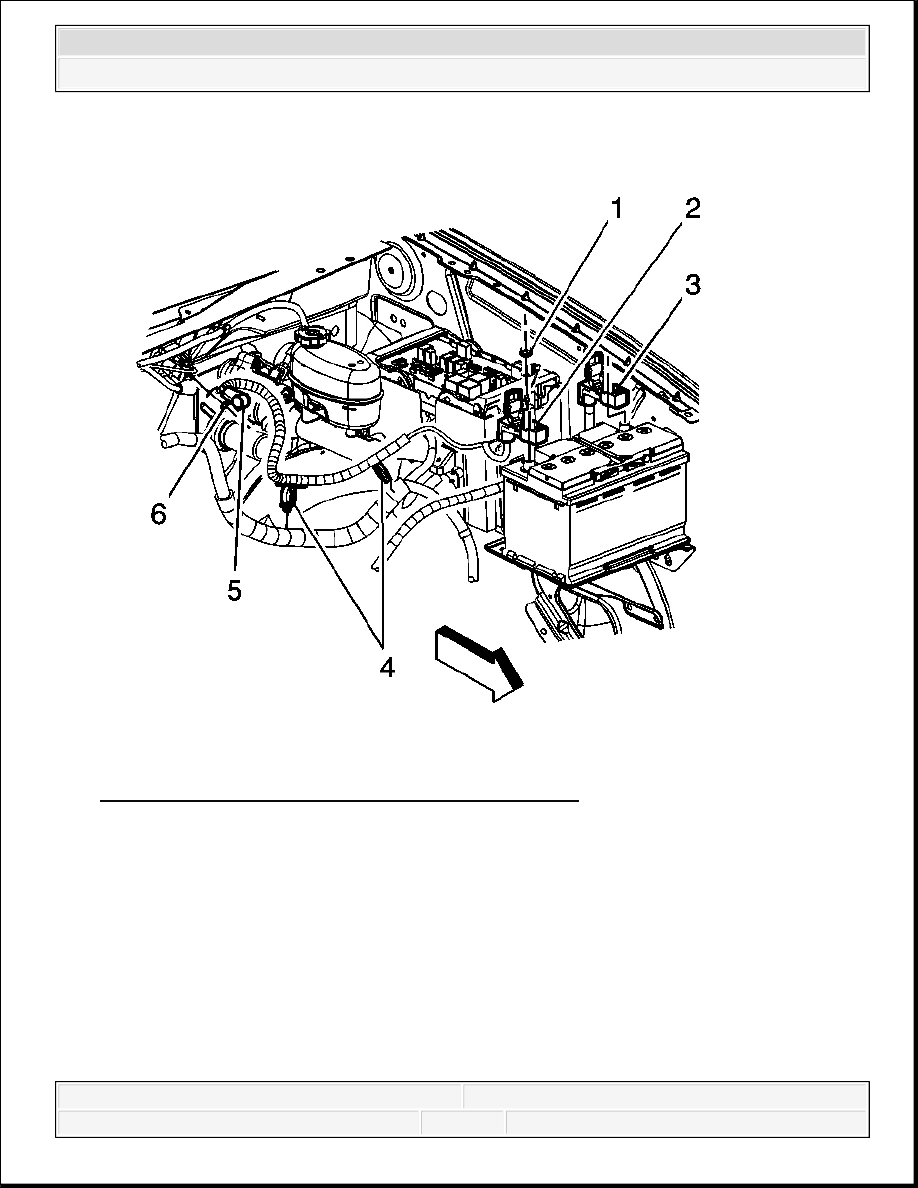

Fig. 114: View Of Battery & Battery Cable Fasteners 3. Open the auxiliary battery positive cable post cover. 4. Loosen the auxiliary battery positive cable nut (2). 5. Remove the auxiliary battery positive cable from the battery positive post. 6. Remove the auxiliary battery positive cable nut (1) from the underhood junction block stud. 7. Remove the auxiliary battery positive cable terminal from the underhood junction block stud. 8. Reposition the auxiliary battery positive cable boot (5) at the auxiliary battery relay. 9. Remove the auxiliary battery positive cable nut (6) from the rely stud.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

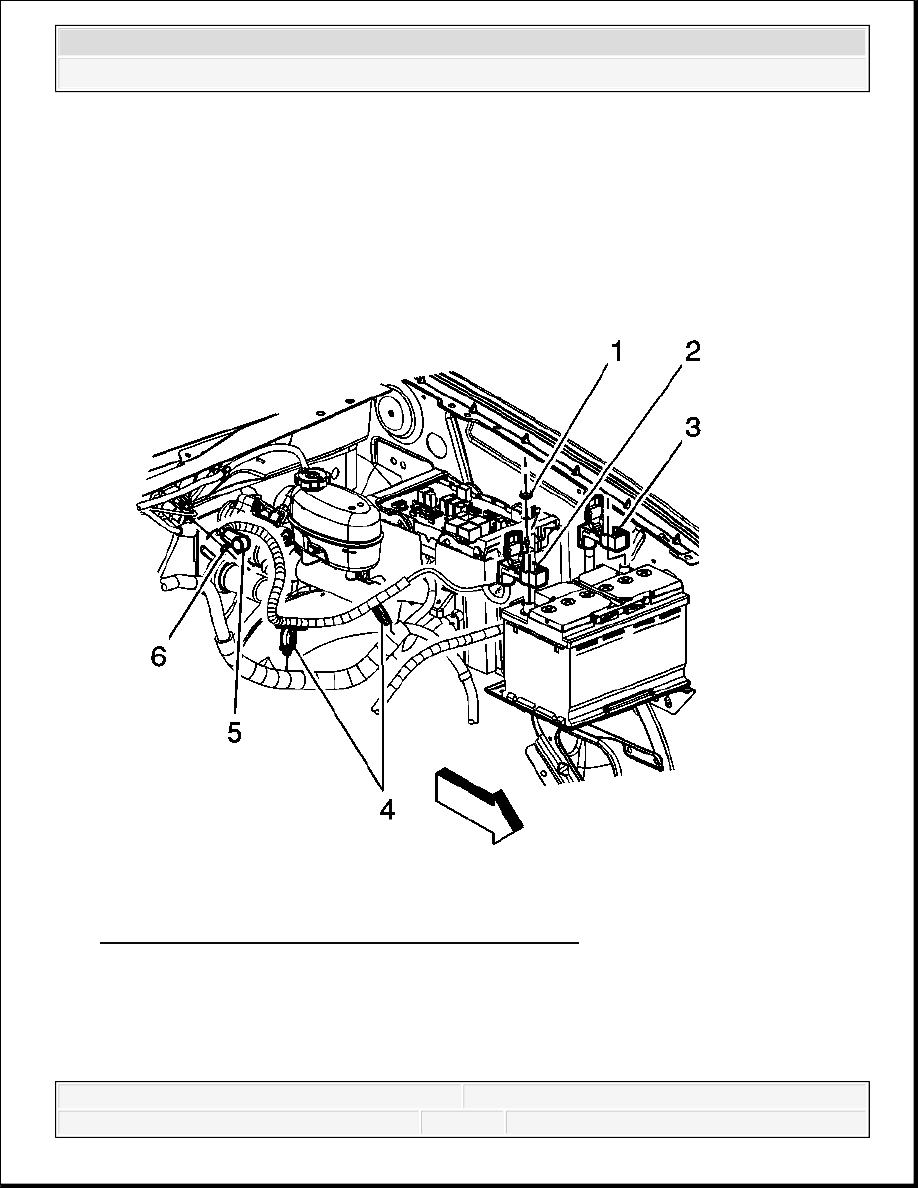

10. Remove the auxiliary battery positive cable terminal from the relay stud. 11. Remove the auxiliary battery positive cable clips (4) from the engine wiring harness and remove the cable from the vehicle. Installation Procedure Fig. 115: View Of Battery & Battery Cable Fasteners 1. Install the auxiliary battery positive cable to the vehicle. 2. Install the auxiliary battery positive cable terminal to the relay stud.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
3. Install the auxiliary battery positive cable nut (6) to the rely stud. Tighten: Tighten the nut to 7.5 N.m (66 lb in). 4. Position the auxiliary battery positive cable boot (5) at the auxiliary battery relay. 5. Install the auxiliary battery positive cable to the battery positive post. 6. Tighten the auxiliary battery positive cable nut (2). Tighten: Tighten the nut to 7.5 N.m (66 lb in). 7. Install the auxiliary battery positive cable terminal to the underhood junction block stud. 8. Install the auxiliary battery positive cable nut (1) to the underhood junction block stud. Tighten: Tighten the nut to 5 N.m (44 lb in). 9. Install the auxiliary battery positive cable clips (4) to the engine wiring harness. 10. Close the auxiliary battery positive cable post cover. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

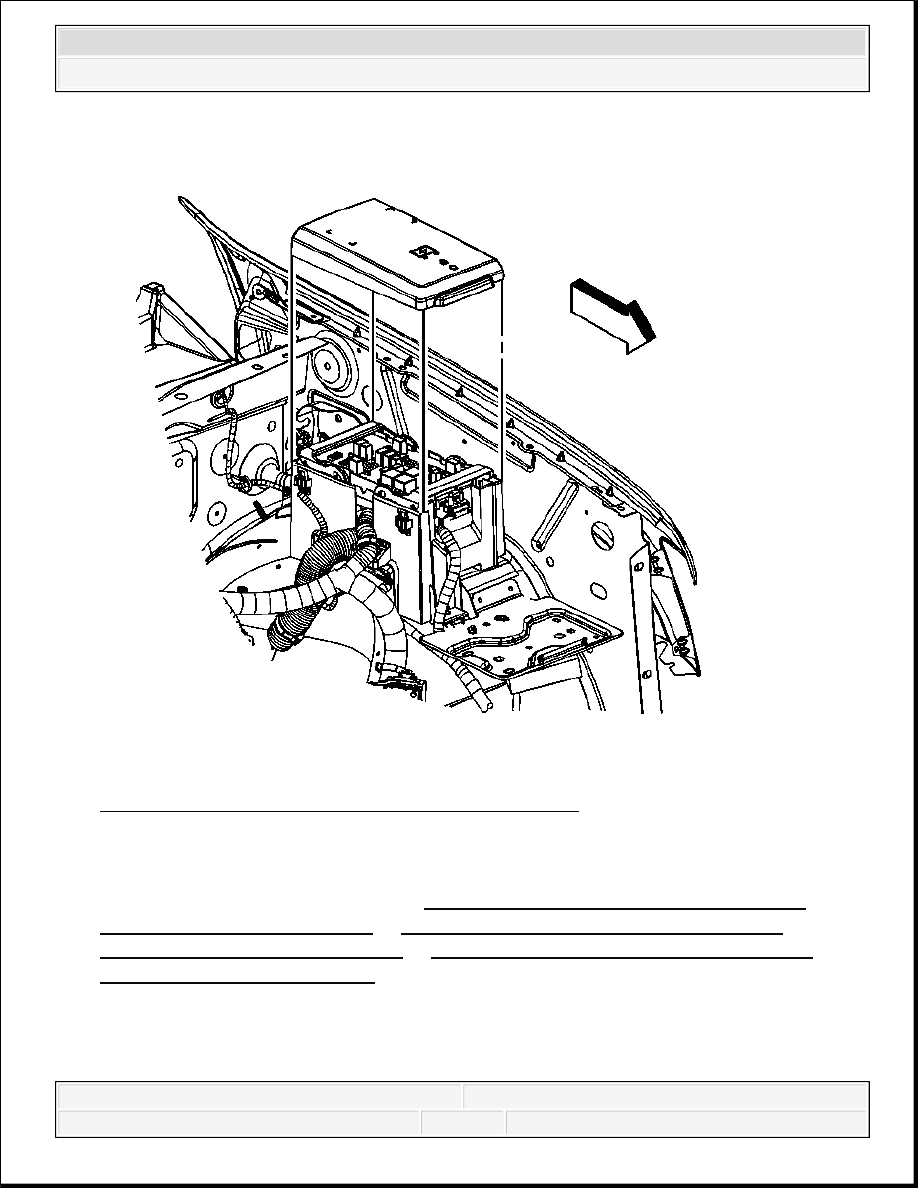

Fig. 116: View Of Under Hood Junction Block Cover 11. Install the underhood junction block cover. 12. Connect the auxiliary battery. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and GENERATOR BATTERY JUMPER CABLE REPLACEMENT Removal Procedure
