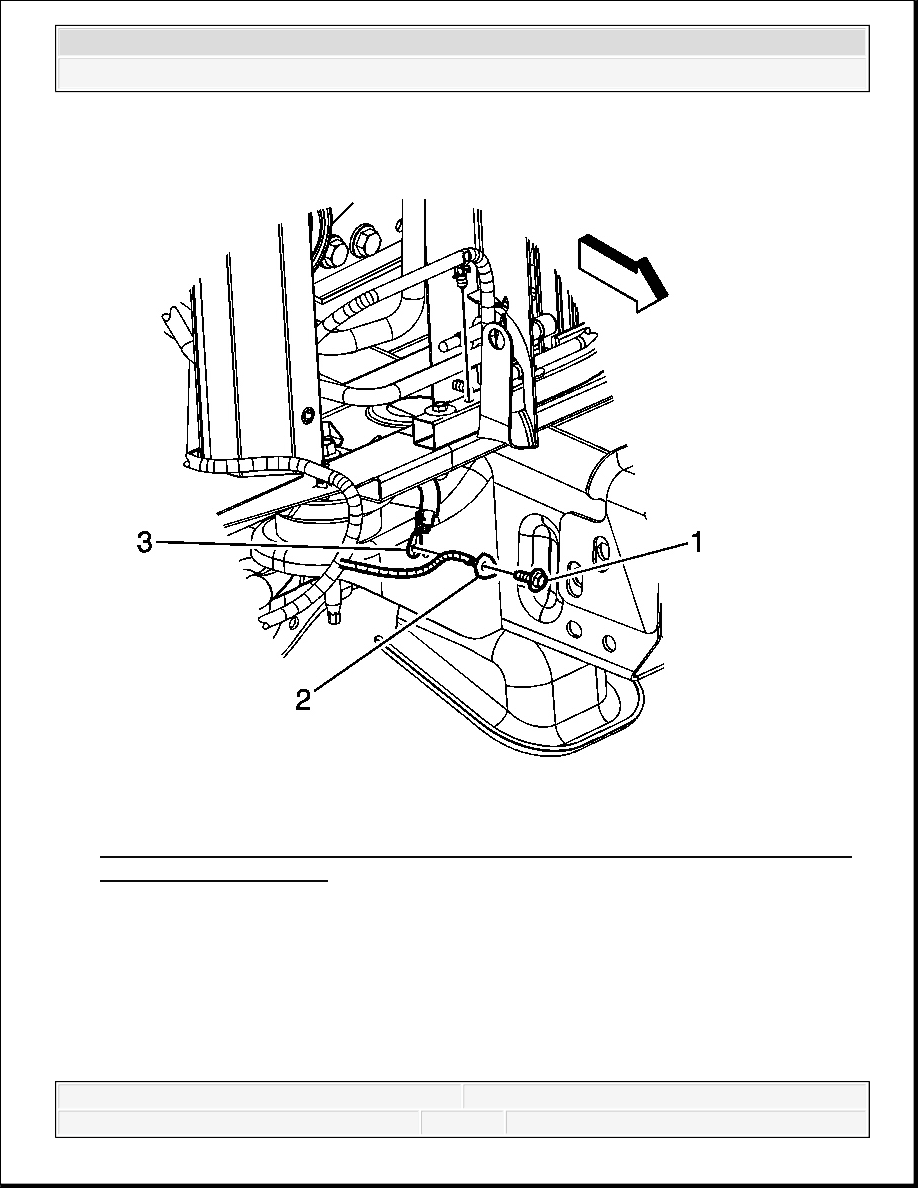

Fig. 44: View Of Negative Battery Cable Terminal, Forward Lamp Wiring Harness
Terminal & Ground Bolt
Courtesy of GENERAL MOTORS CORP.
10. Route the negative battery cable terminal (3) through the opening between the radiator
support and frame.
11. Ensure that the negative battery cable is positioned behind the forward lamp harness.
12. Install the forward lamp wiring harness terminal (2) to the frame. Ensure that the anti-
rotation tab is inserted into the hole in the frame.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
13. Install the forward lamp wiring harness ground bolt (1).
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
14. Lower the vehicle.
Fig. 45: View Of Battery Cable Components
Courtesy of GENERAL MOTORS CORP.
15. Install the battery current sensor (3) clip to the battery tray, if equipped with a battery
current sensor.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

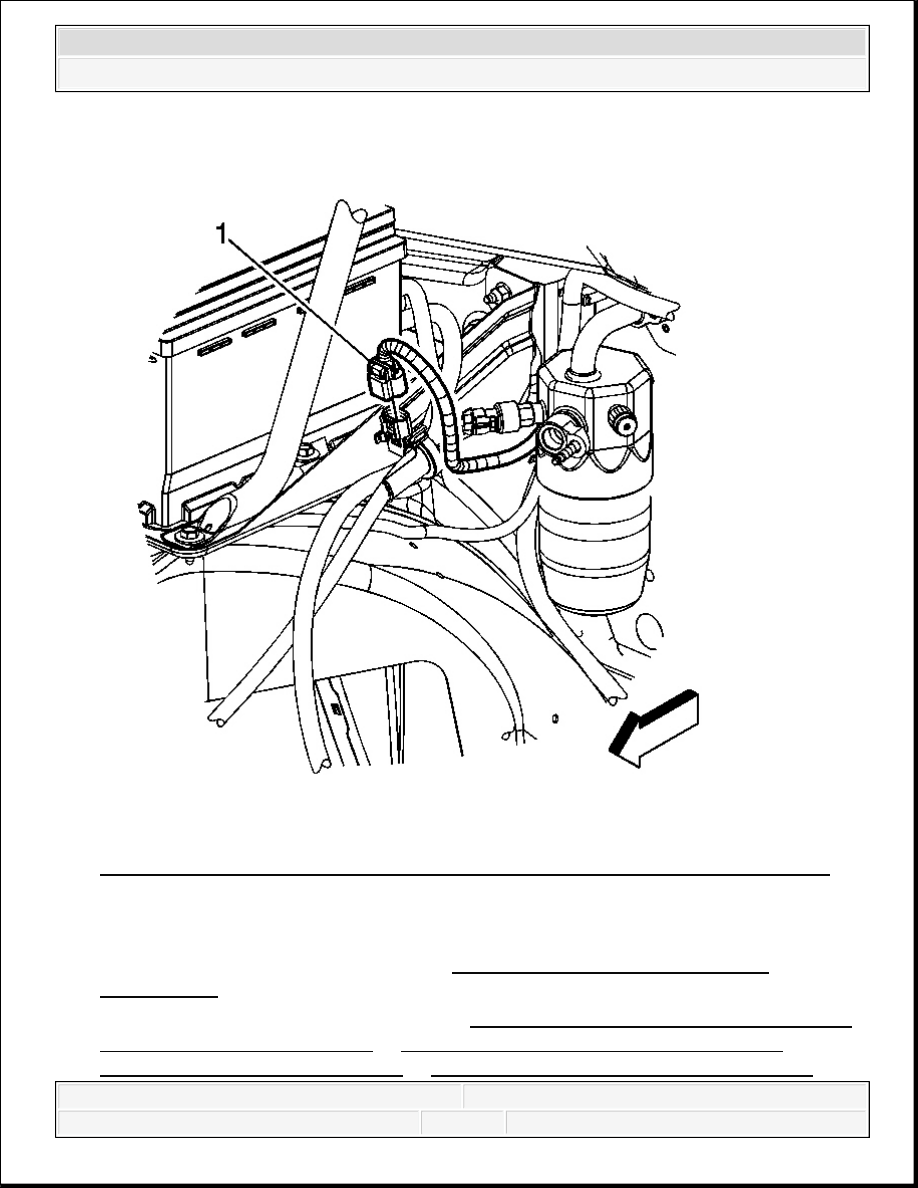

Fig. 46: View Of Engine Harness Electrical Connector & Battery Current Sensor
Courtesy of GENERAL MOTORS CORP.
16. Connect the engine harness electrical connector (1) to the battery current sensor.
17. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct
Replacement .
18. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and
Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
