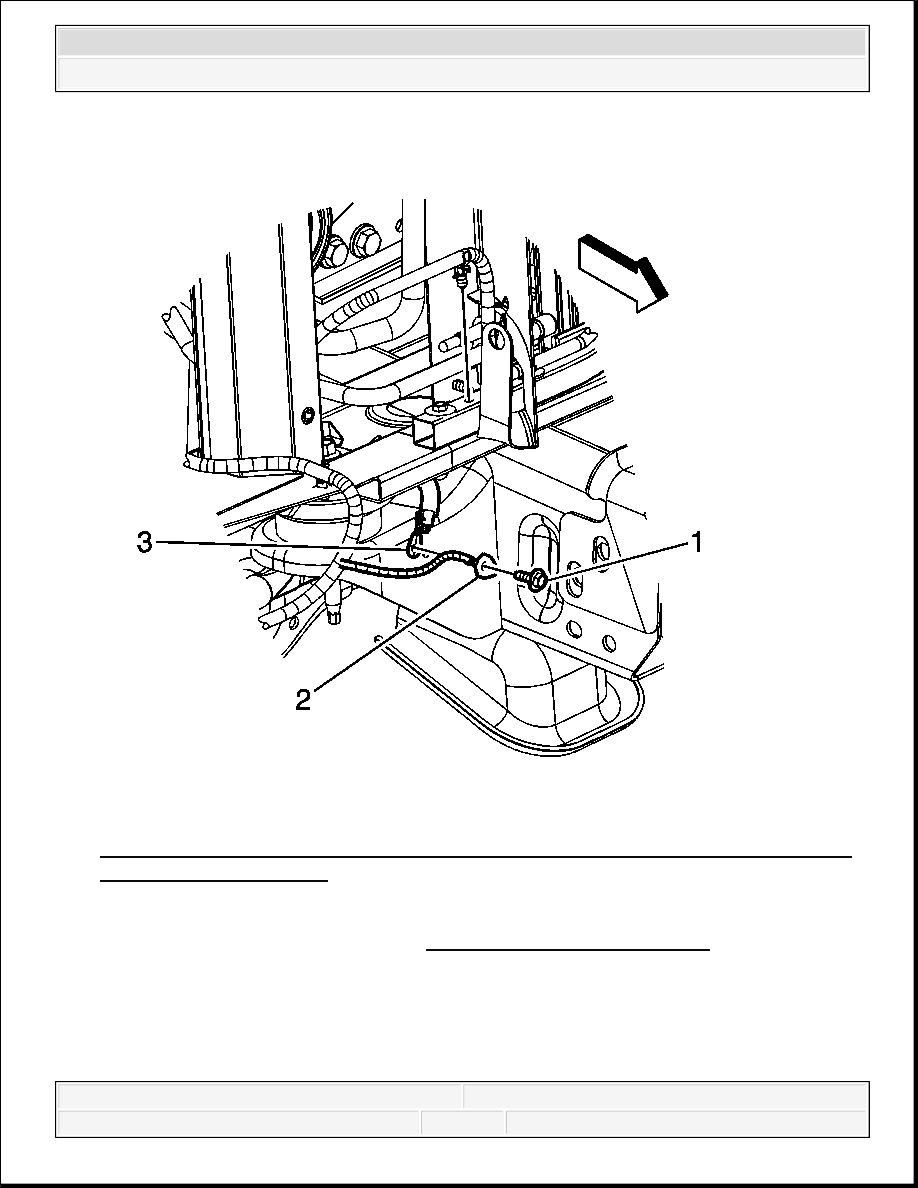

Fig. 36: View Of Negative Battery Cable Terminal, Forward Lamp Wiring Harness 7. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 8. Remove the forward lamp wiring harness ground bolt (1). 9. Remove the forward lamp wiring harness terminal (2) from the frame. 10. Remove the negative battery cable terminal (3) out through the opening between the radiator support and frame.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

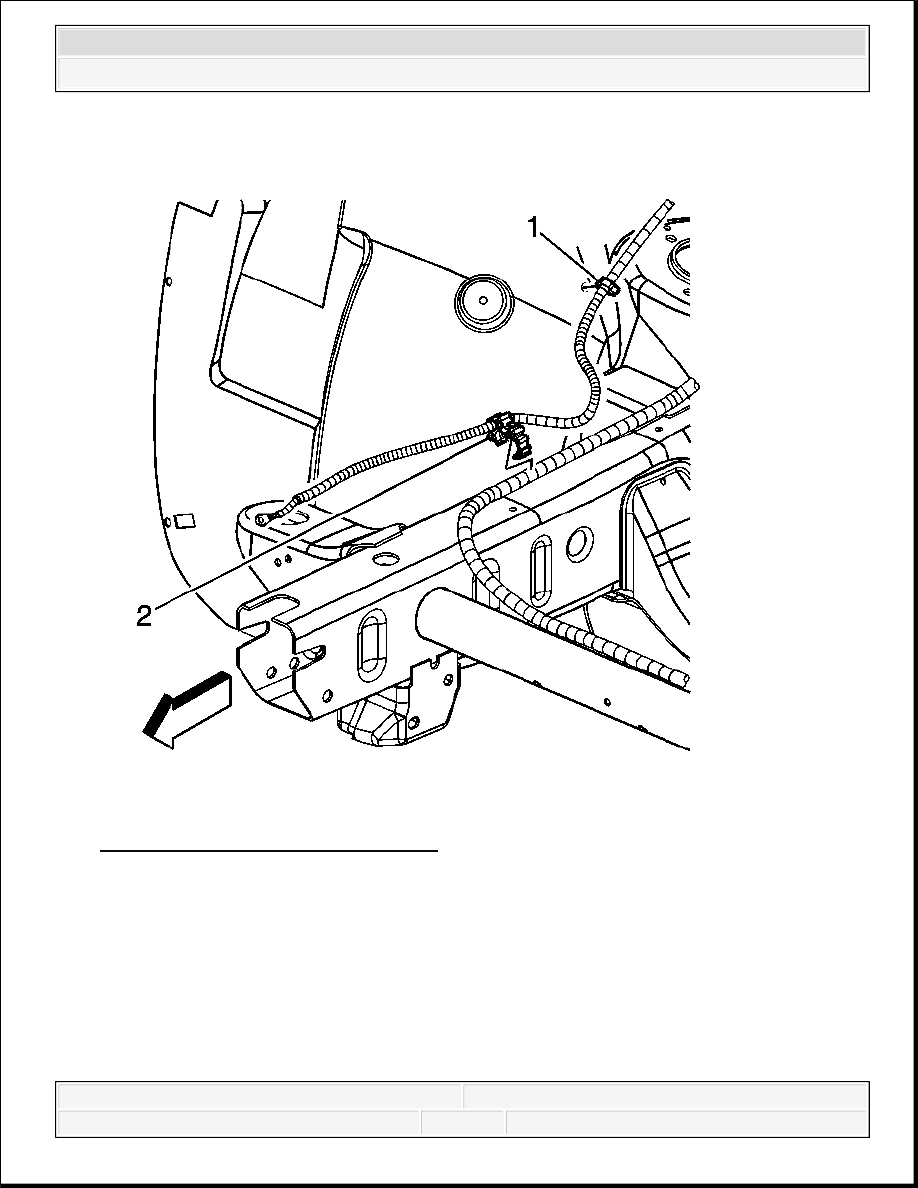

Fig. 37: Locating Battery Cable Clips 11. Remove the negative battery cable clip (2) from the chassis harness. 12. Lower the vehicle. 13. Remove the negative battery cable clip (1) from the right wheelhouse liner.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

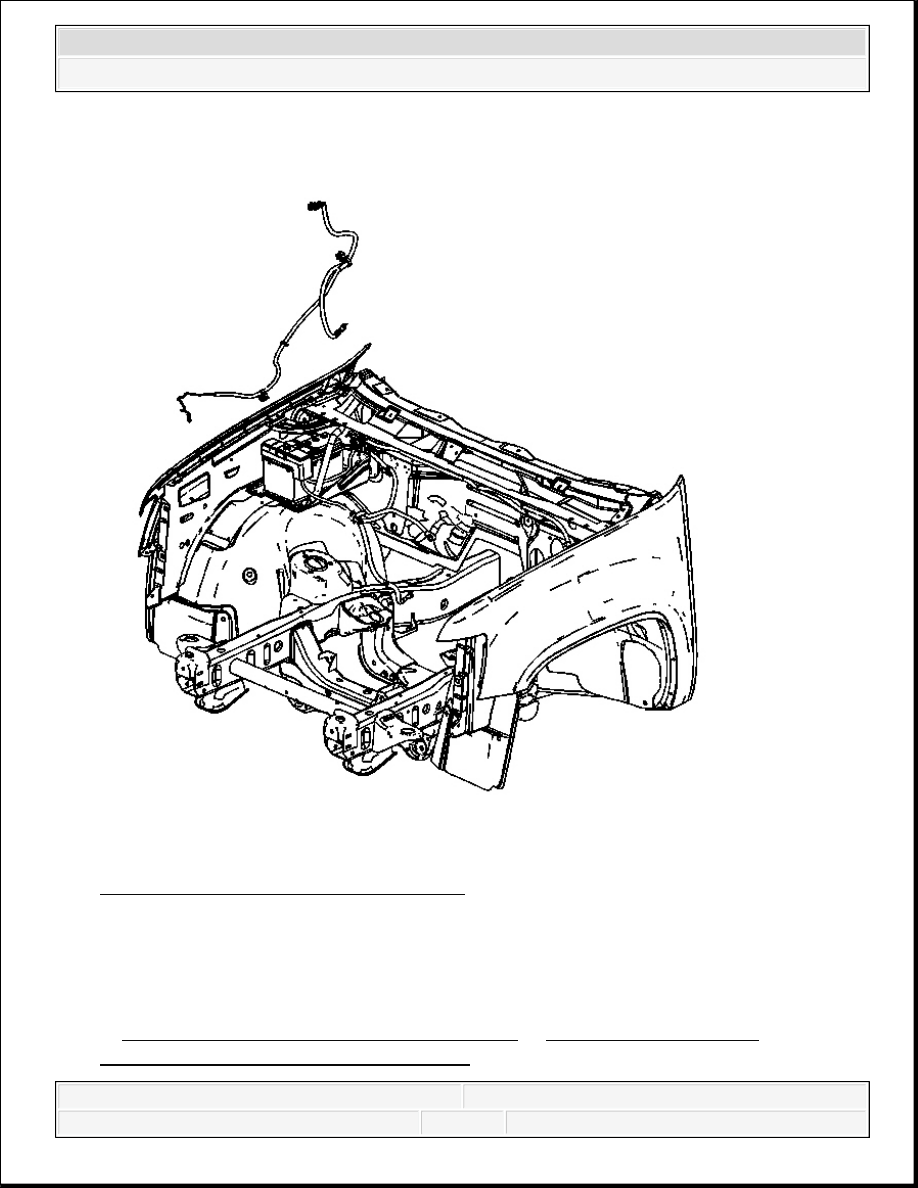

Fig. 38: View Of Negative Battery Cable 14. Remove the negative battery cable from the vehicle, if equipped without a battery current sensor.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

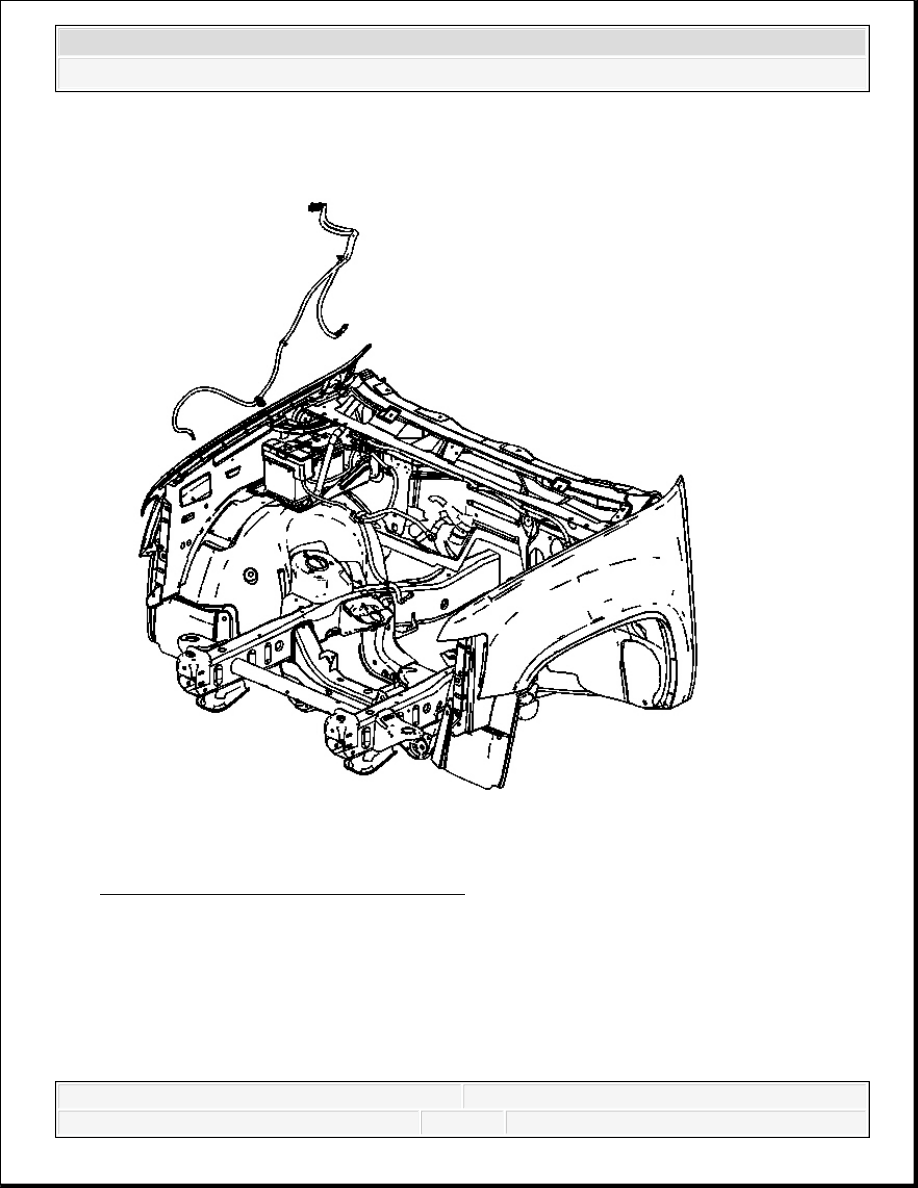

Fig. 39: View Of Negative Battery Cable 15. Remove the negative battery cable from the vehicle, if equipped with a battery current sensor. 16. If replacing the negative battery cable, remove the battery current sensor, if equipped. Refer to Battery Current Sensor Replacement (4.3L) or Battery Current Sensor
