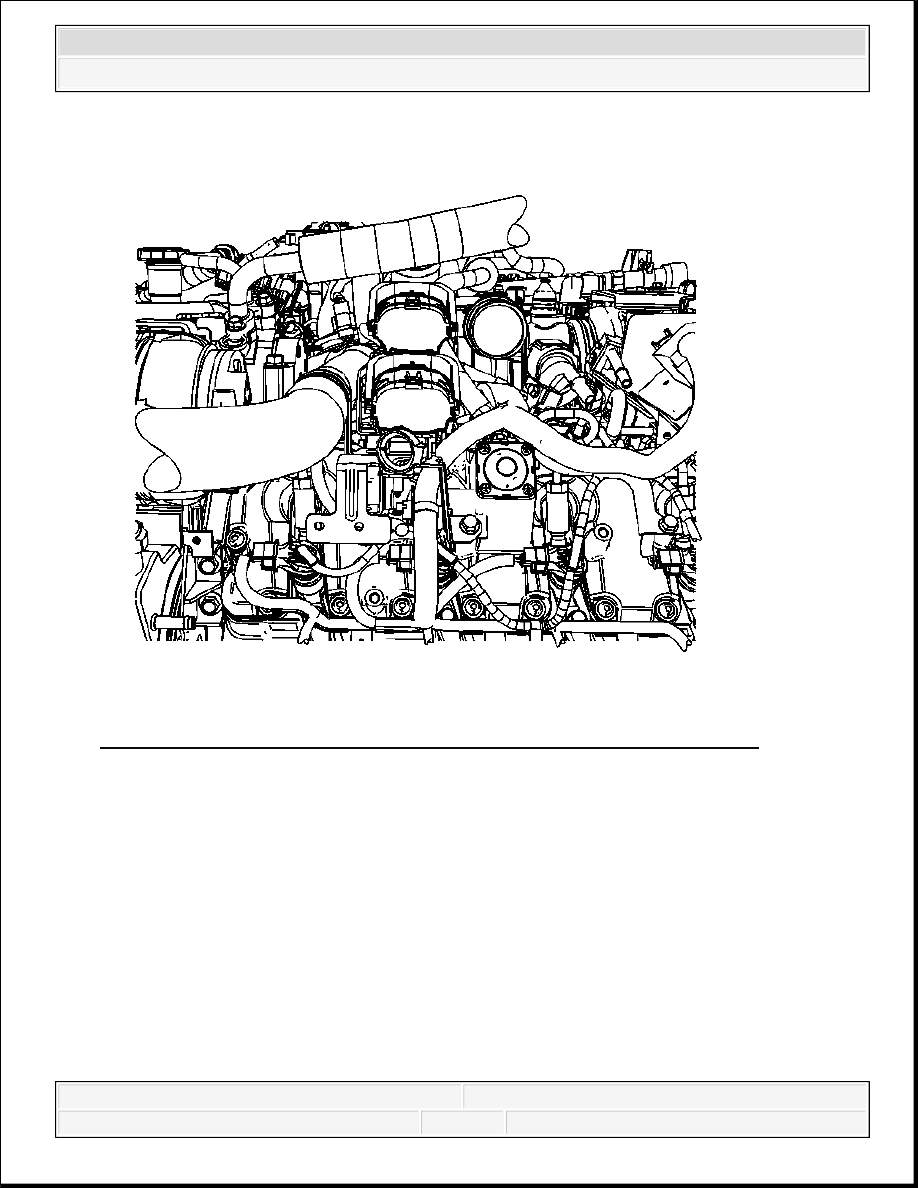

Fig. 143: View Of Main Engine Electrical Harness Connectors & Latches 11. Clip the main engine electrical harness connectors to the main electrical connector harness bracket.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

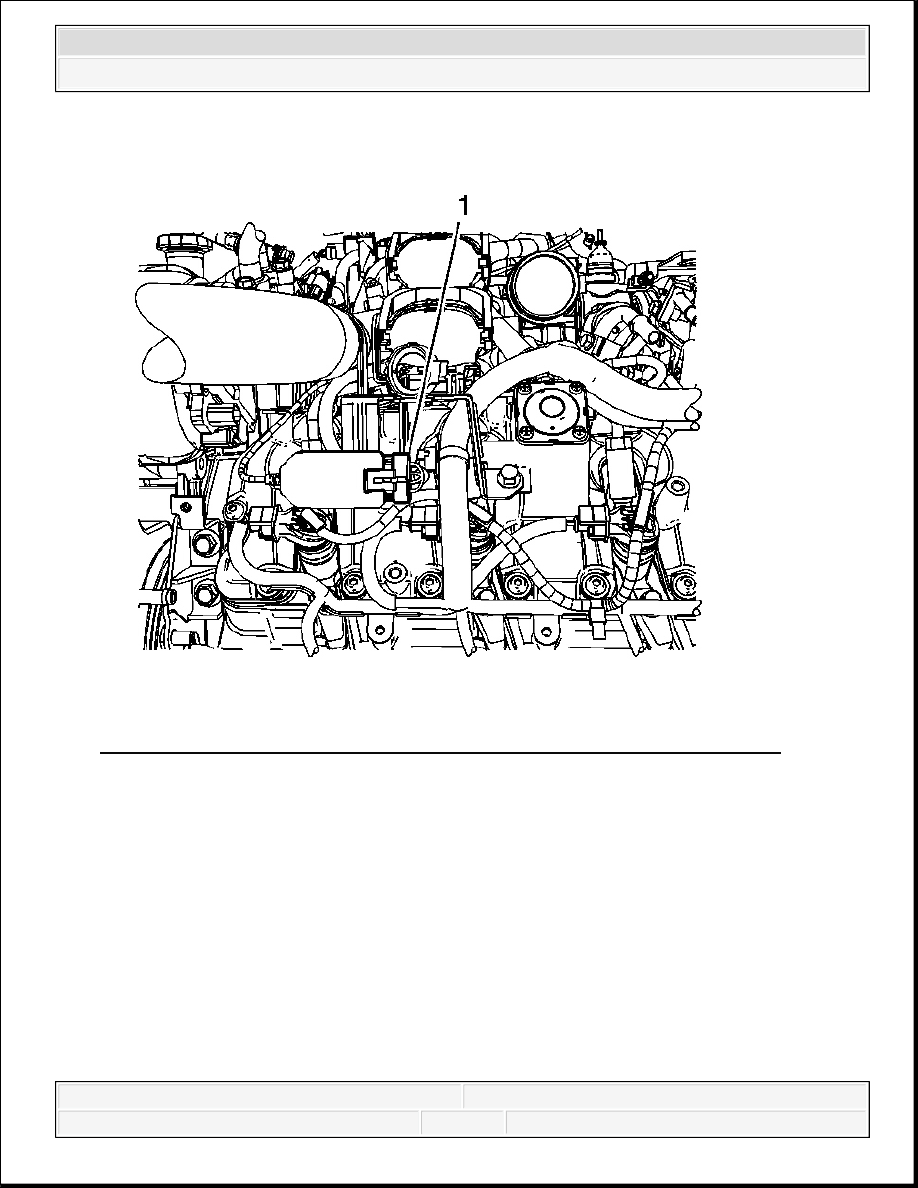

Fig. 144: View Of Turbocharger Vane Position Sensor Electrical Connector 12. Connect the turbocharger vane position sensor electrical connector (1).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

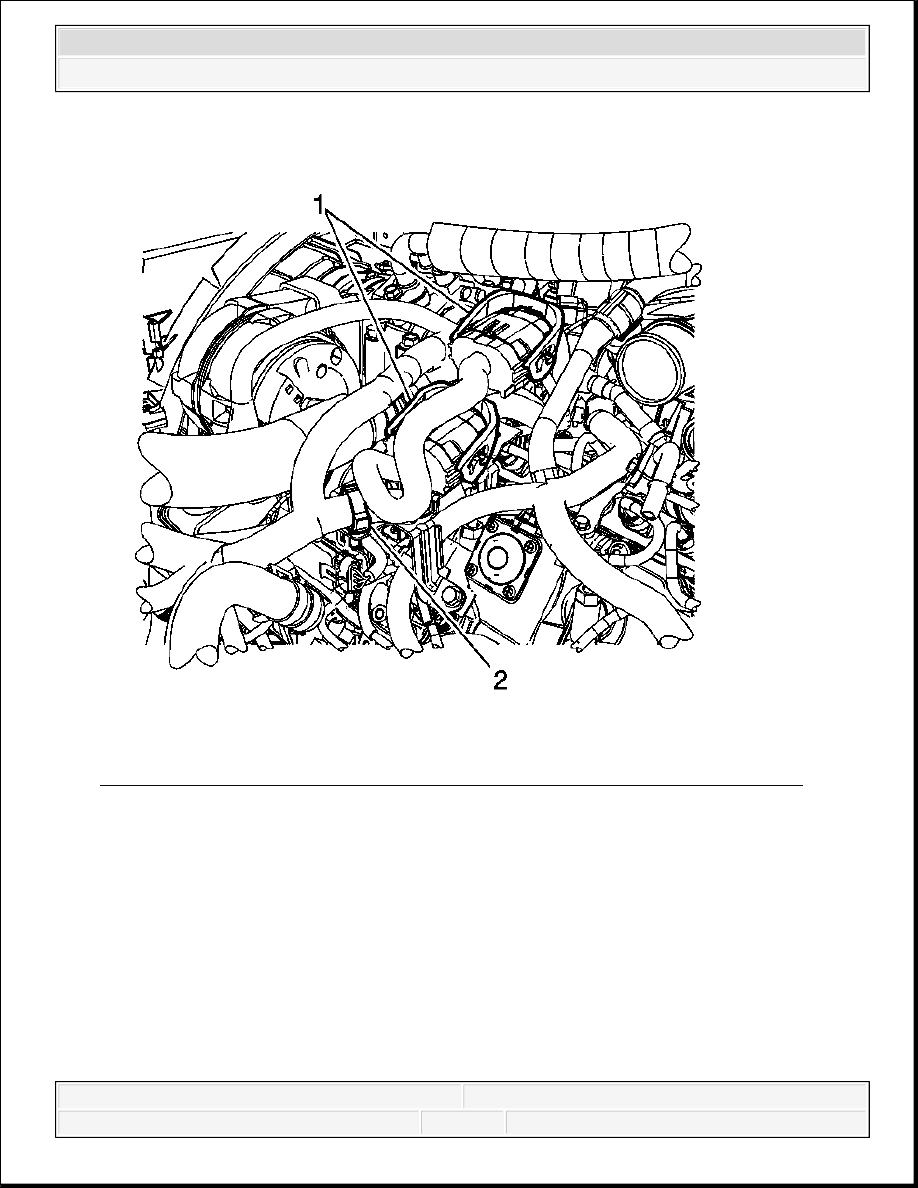

Fig. 145: View Of Main Engine Electrical Harness Connector Latches & Clips 13. Connect the main engine electrical harness connectors. 14. Push down on the latches (1) in order to connect the connectors. 15. Close the harness clip (2).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

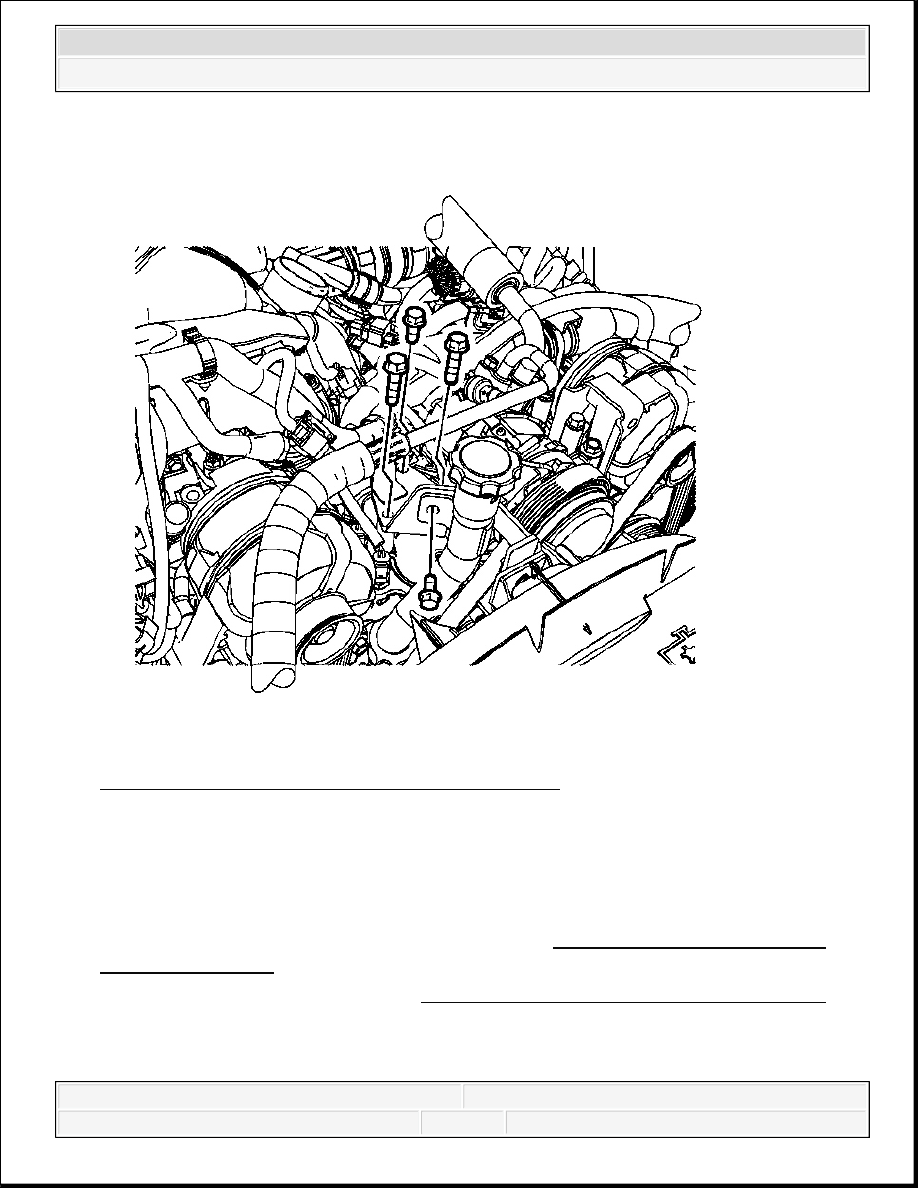

Fig. 146: View Of Wiring Harness Bracket & Bolts 16. Install the wiring harness bracket and bolts to the thermostat housing. Tighten: Tighten the bolts to 10 N.m (89 lb in). 17. Install the turbocharger coolant bypass valve. Refer to Turbocharger Coolant Bypass Valve Replacement. 18. Install the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (Non-HP2). WATER OUTLET TUBE REPLACEMENT (LU3)
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
