Fig. 90: Engine Oil Cooler Quick Connect Fittings
Courtesy of GENERAL MOTORS CORP.
10. If necessary, open the engine oil cooler line clip and remove the cooler lines from the clip.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

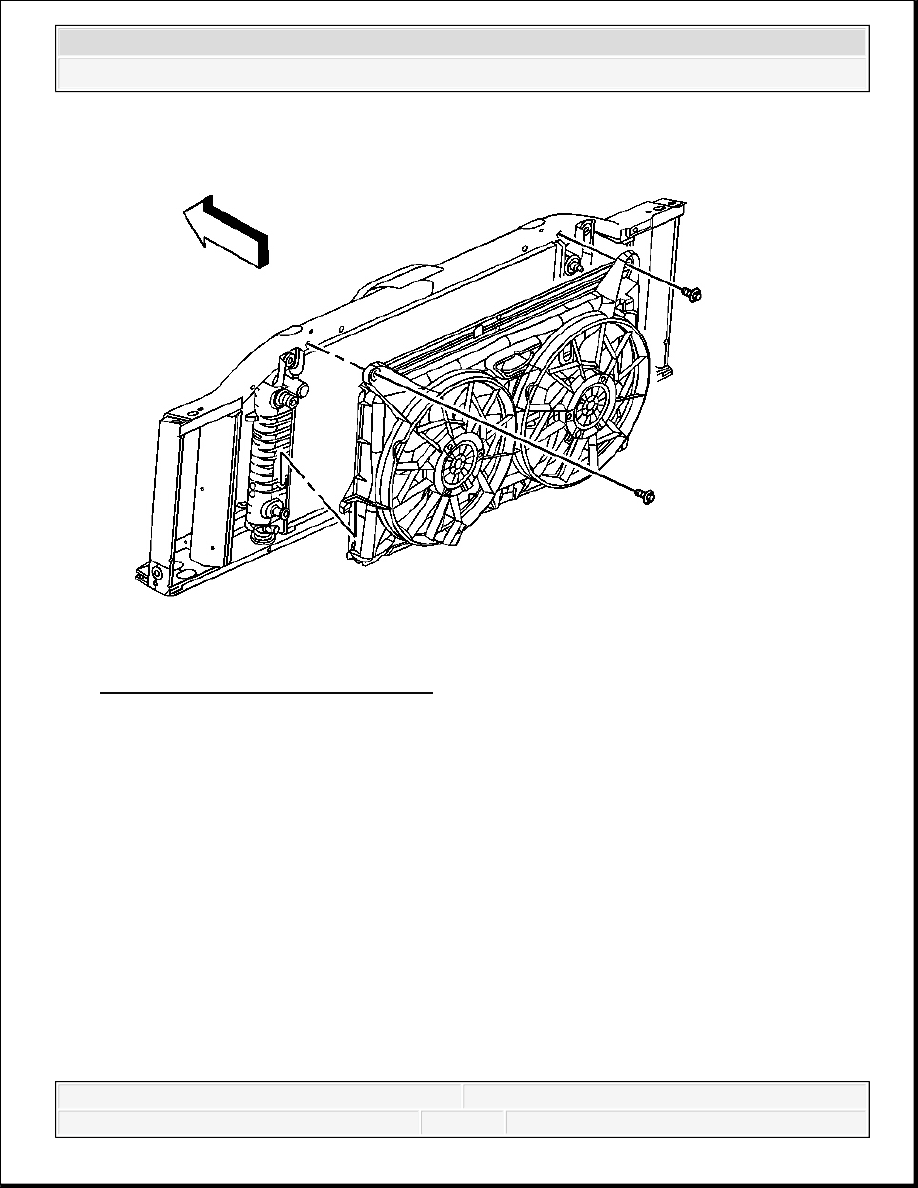

Fig. 91: Cooling Fan Shroud & Bolts
Courtesy of GENERAL MOTORS CORP.
11. Remove the cooling fan shroud bolts.
12. Remove the cooling fan and shroud.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 92: Cooling Fan Shroud & Bolts
Courtesy of GENERAL MOTORS CORP.
1. Install the cooling fan and shroud.
2. Install the cooling fan shroud bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
IMPORTANT: Insert the 3 lower tabs into the radiator support flange.
Keeping the shroud parallel to the radiator will ensure the
correct installation of the lower tabs.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

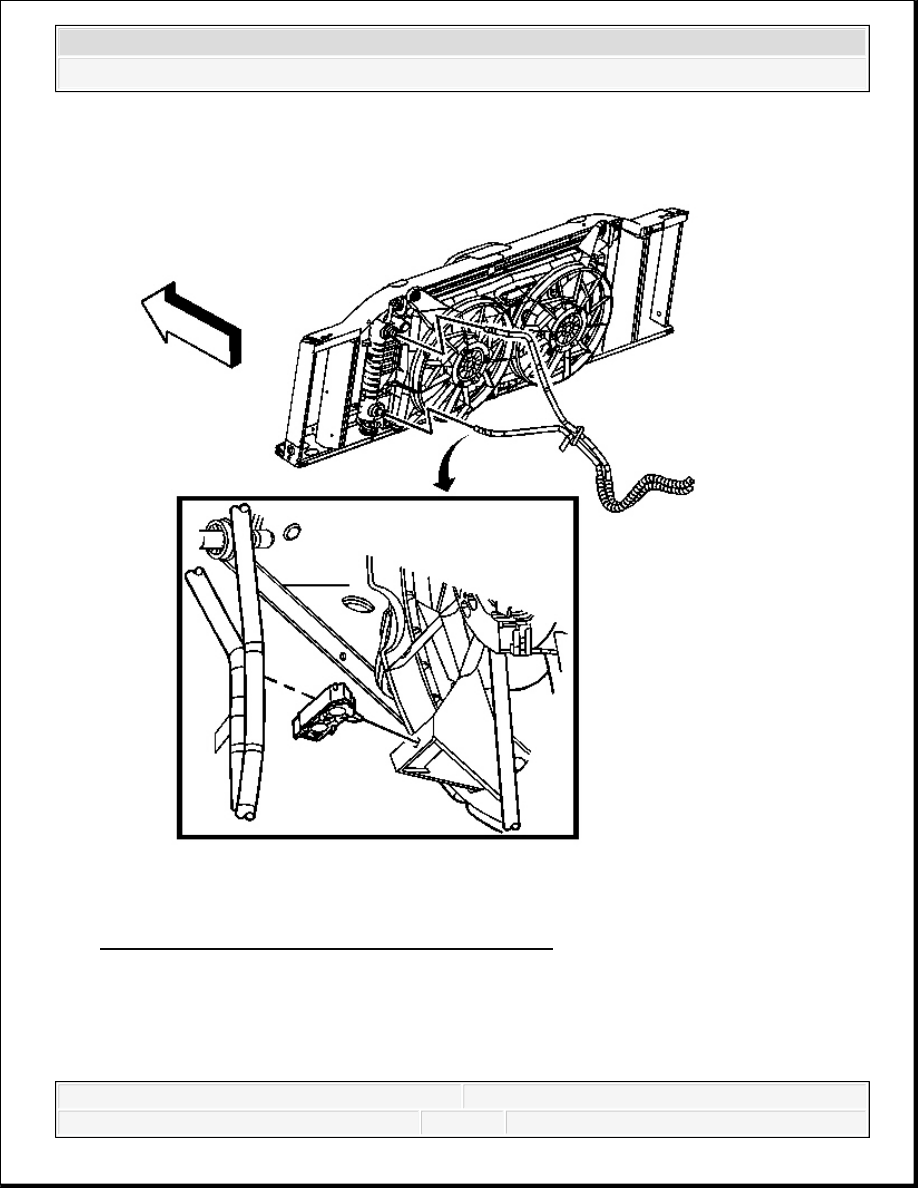

Fig. 93: Engine Oil Cooler Quick Connect Fittings
Courtesy of GENERAL MOTORS CORP.
3. If equipped, install the cooler lines to the clip and close the clip.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
