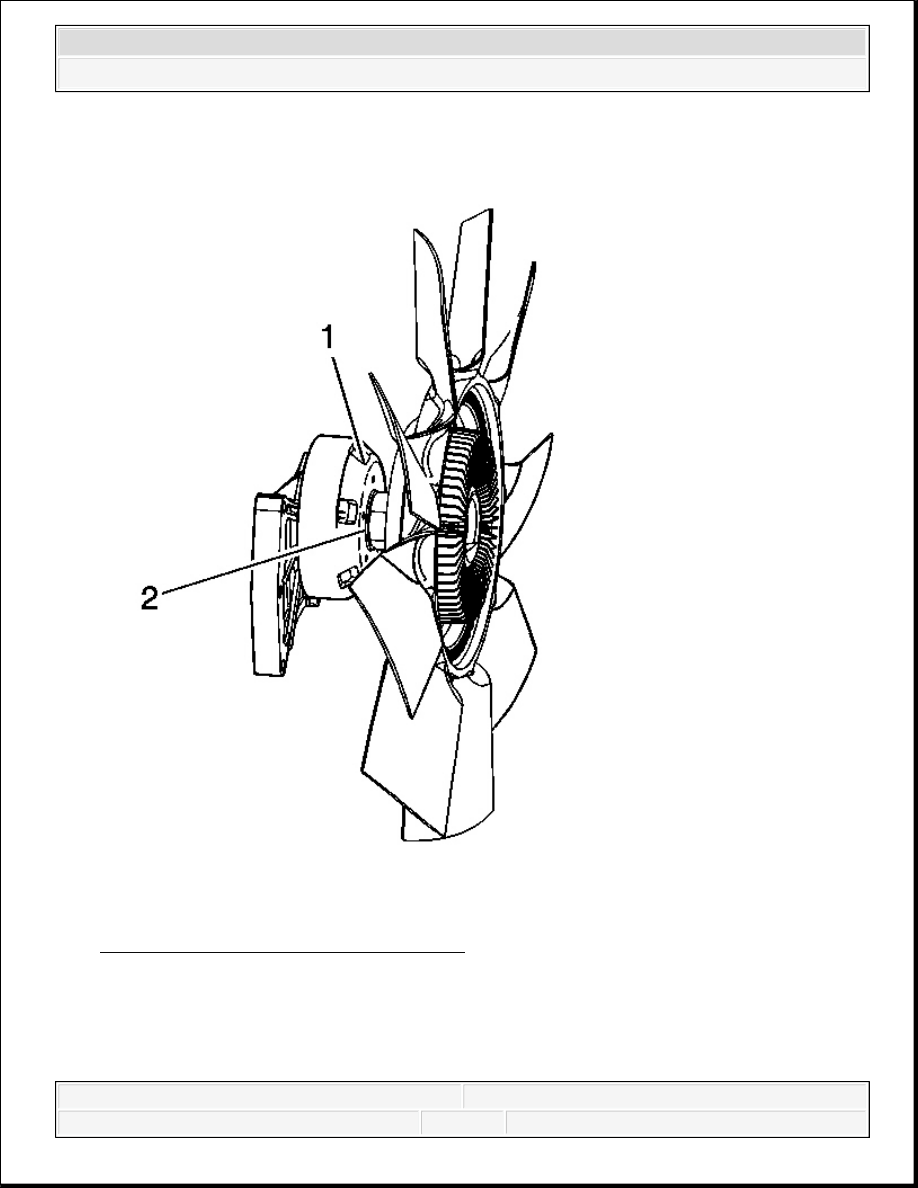

Fig. 55: View Of Fan Clutch Hub & Nut 4. Install a long pin bar into the fan hub (1). 5. Use a J 41240-5A to remove the fan hub nut (2) from the hub in a counterclockwise rotation.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

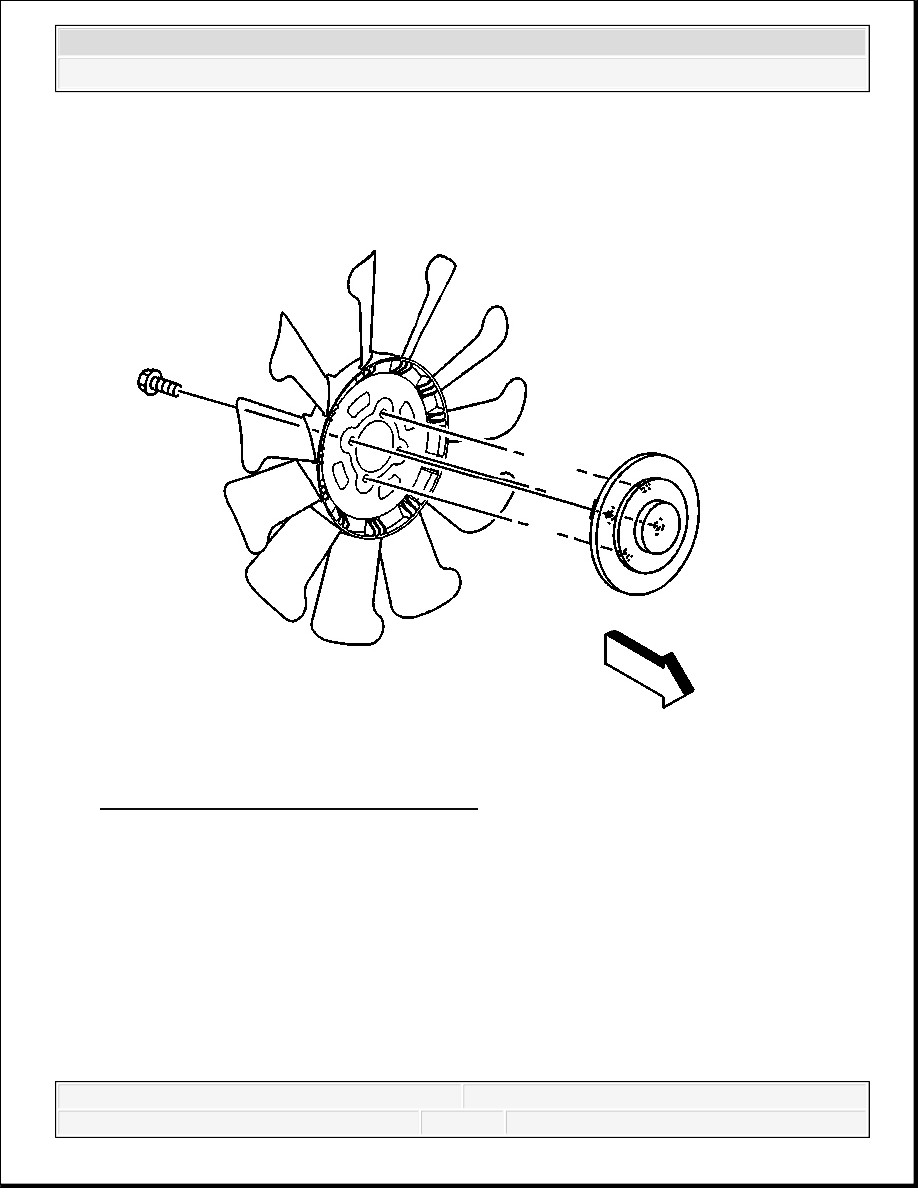

6. Remove the fan and the engine cooling fan shroud as an assembly. Fig. 56: View Of Fan Clutch & Fan Blade 7. Remove the fan clutch bolts from the rear of the fan blade. 8. Separate the fan clutch from the fan blade. Installation Procedure CAUTION: Do not use or attempt to repair a damaged cooling fan assembly. Replace damaged fans with new assemblies. An
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

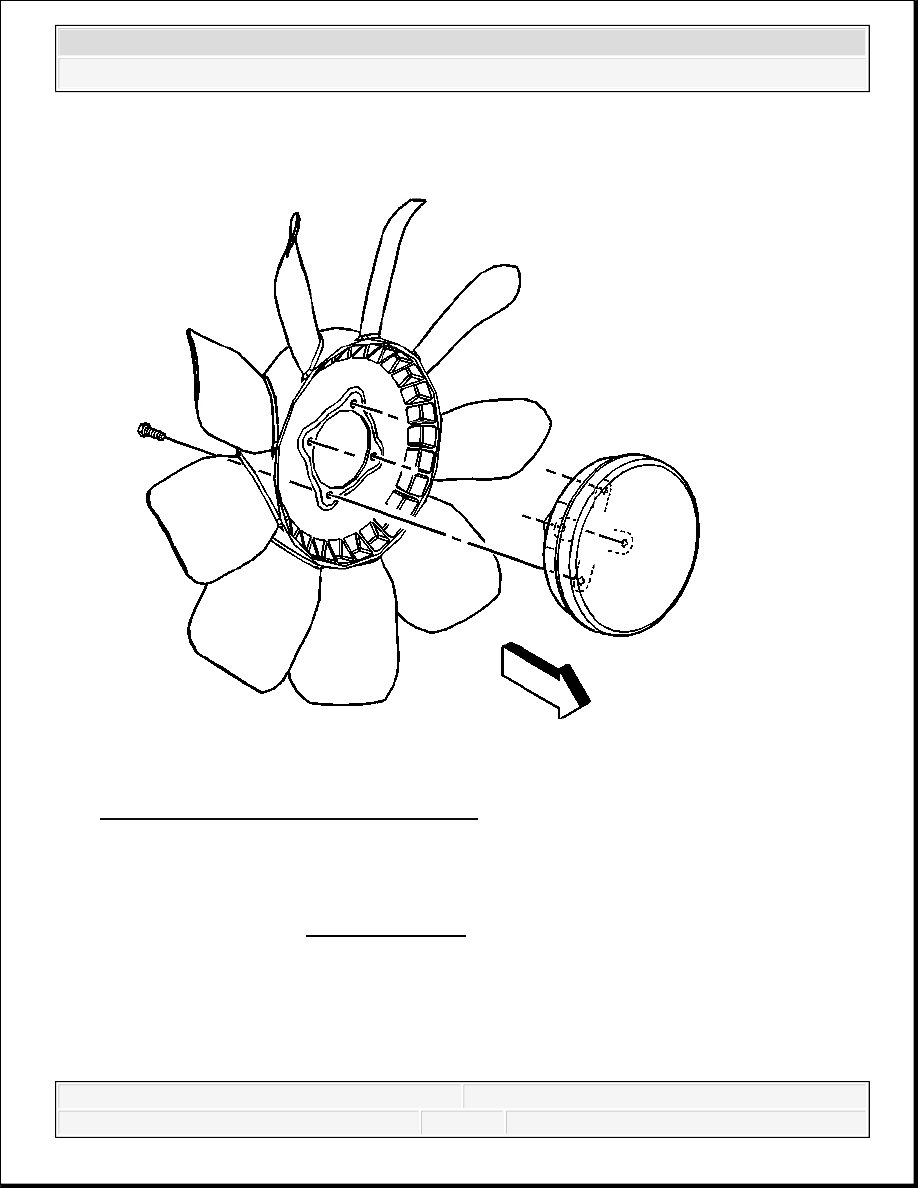

Fig. 57: View Of Fan Blade & Fan Clutch 1. Install the fan clutch onto the fan blade. 2. Install the fan clutch bolts Tighten: Tighten the bolts to 23 N.m (17 lb ft). 3. Install the fan and engine cooling fan shroud assembly to the fan hub. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 58: View Of Fan Clutch Hub & Nut 4. Use a J 41240-5A on the fan clutch hub nut (2) to install a long pry bar to the fan clutch hub (1).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
