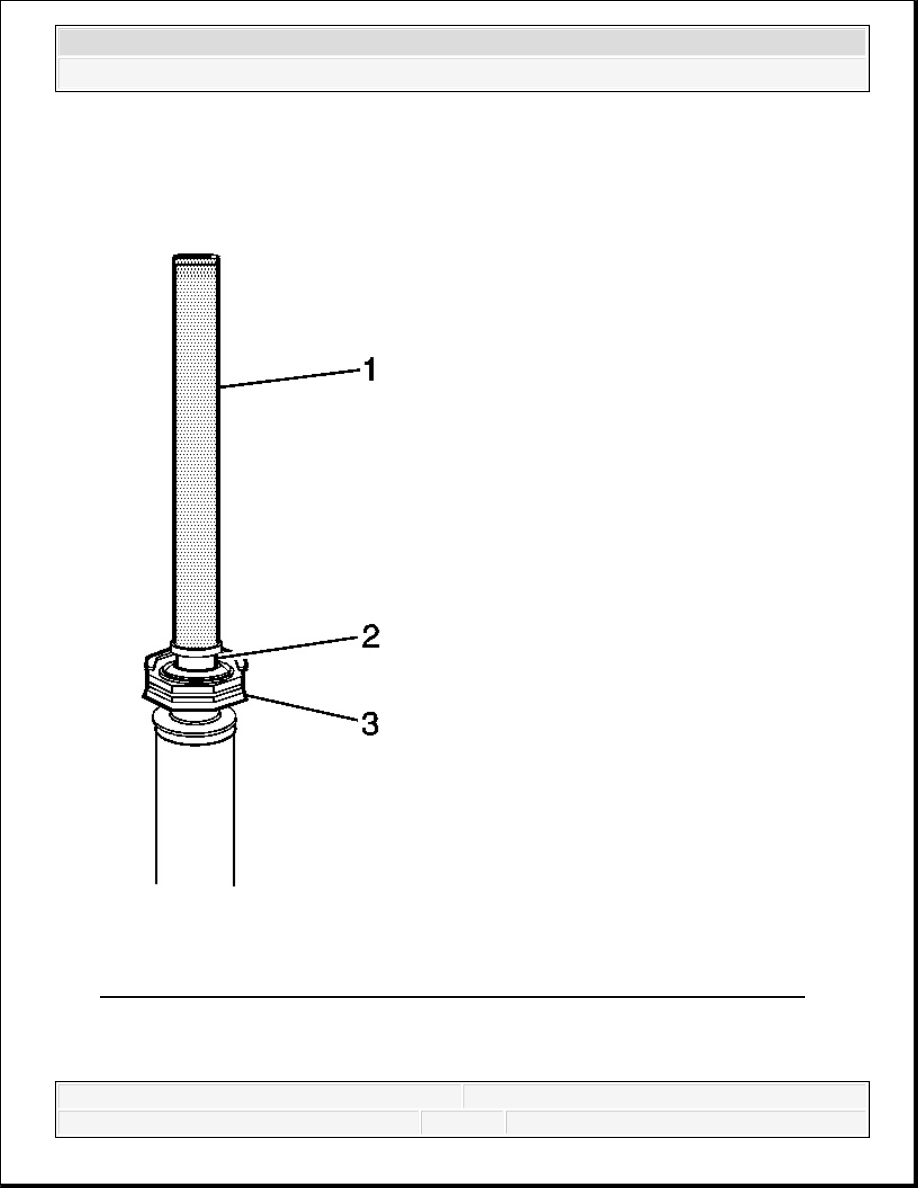

shaft (3). Fig. 32: Installing Propeller Shaft Boot Retainer On Center Bearing Assembly 4. For HD vehicles, use the J 25234 (1) to install the propeller shaft boot retainer (2) on the
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
center bearing assembly (3). 5. Install the propeller shaft assembly. Refer to Two-Piece Propeller Shaft Replacement 6. Lower the vehicle. UNIVERSAL JOINT REPLACEMENT - NYLON INJECTED RING Tools Required J 9522-3 U Joint Bearing Separator. See Special Tools. J 9522-5 U Joint Bearing Spacer Remover. See Special Tools. Disassembly Procedure 1. Support the propeller shaft in a line horizontal with the table of a press. 2. Mark the propeller shaft as to which end is the transmission end and which end goes to the rear axle. NOTE: Never clamp propeller shaft tubing in a vise. Clamping could
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

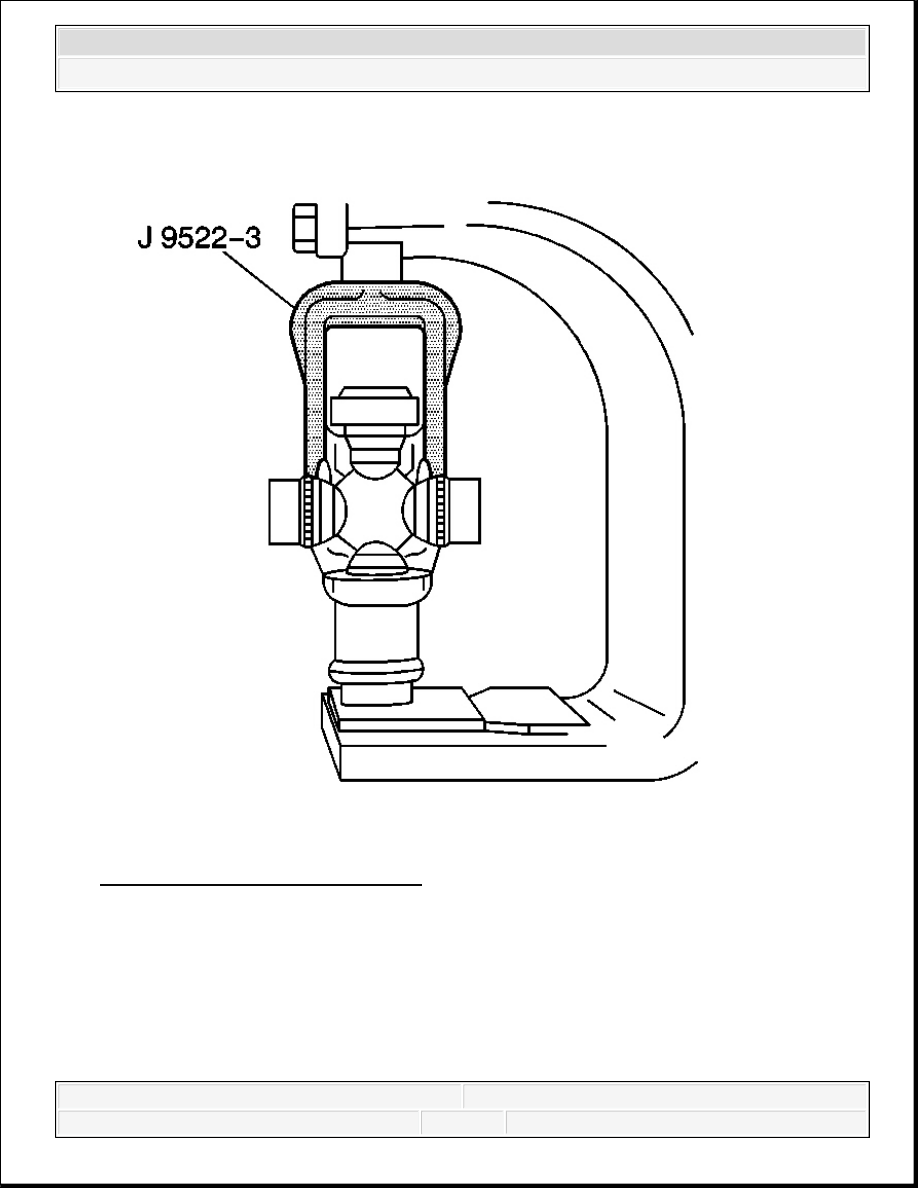

Fig. 33: Assembling Universal Joint 3. Place the universal joint so that the lower ear of the yoke is supported on a 30 mm (1 1/8 in) socket.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

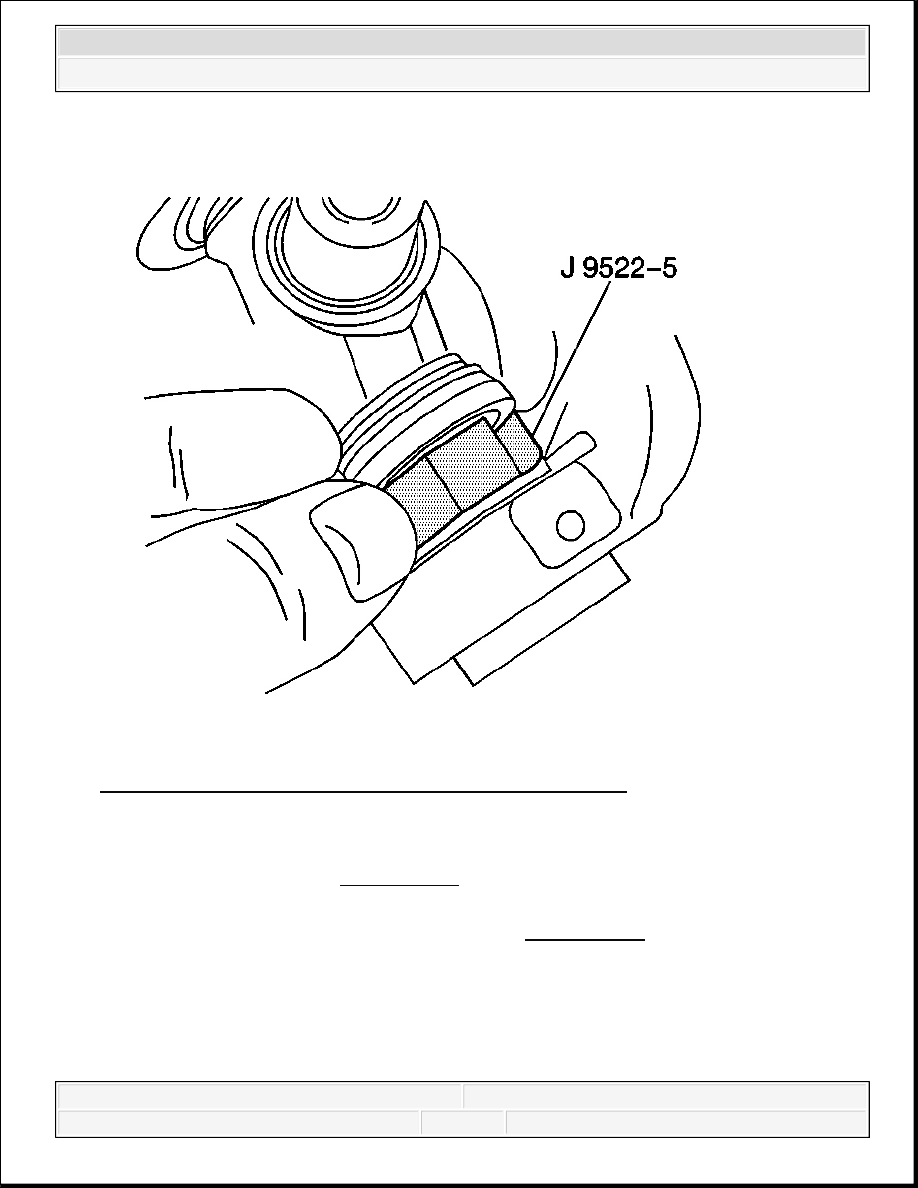

Fig. 34: Inserting J 9522-5 Between Seal And Bearing Cup 4. In order to shear the plastic retaining ring on the bearing cup, place J 9522-3 on the open horizontal bearing cups. See Special Tools. Press the lower bearing cup out of the yoke ear. 5. If you do not completely remove the bearing cup, lift the cross and insert J 9522-5 between the seal and the bearing cup you are removing. See Special Tools. Continue to press the 6. Rotate the propeller shaft. Press the opposite bearing cup out of the yoke. 7. Mark the orientation of the slip yoke to the tube for proper reassembly. 8. Remove the cross from the yoke. 9. Remove the remaining universal joint parts from the yoke. If you are replacing the front
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
