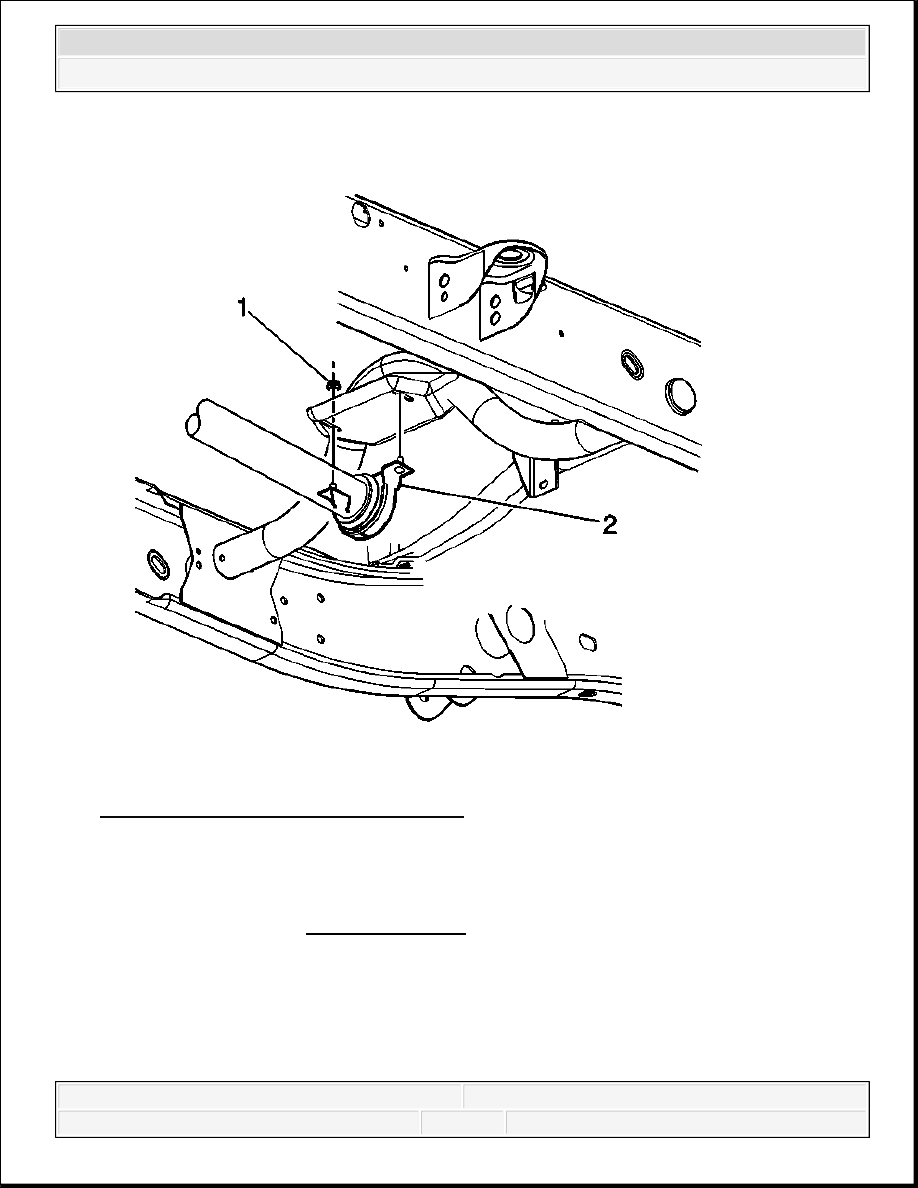

Fig. 25: Center Bearing Support & Nuts 4. Install the center bearing support (2). 5. Install the center bearing support nuts. Tighten: Tighten the bearing support nuts to 40 N.m (30 lb ft). 6. Tighten the yoke retainer bolts, w/ RPO MW3 or M74. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

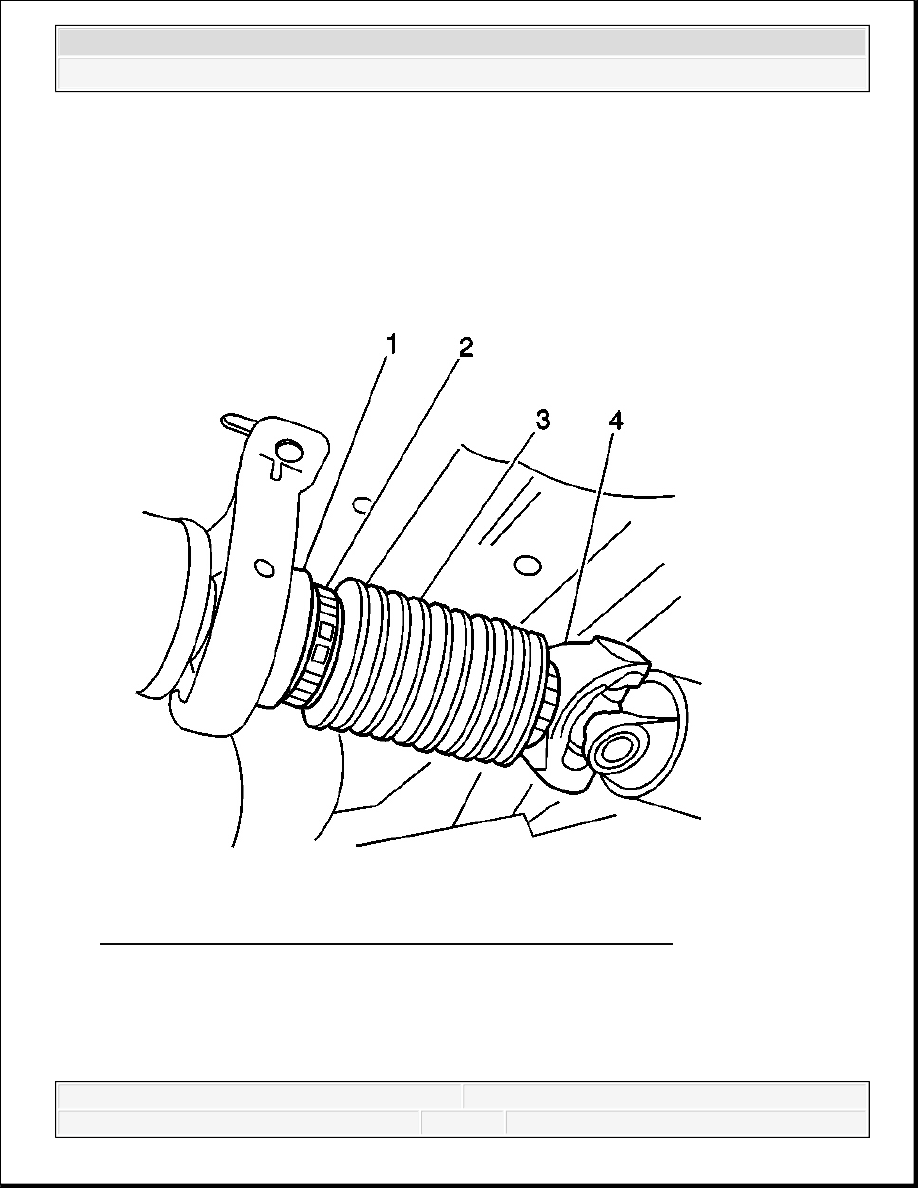

Tighten: Tighten the yoke retainer bolts to 25 N.m (18 lb ft). 7. Inspect the splines of the front propeller shaft stub shaft for a sufficient coating of grease. If the splines of the stub shaft does not have a sufficient coating of grease, lubricate the shaft Fig. 26: Yoke, Clamp, Boot & Front Propeller Shaft Stub Shaft 8. Install the boot (3) and 2 new clamps (2) onto the front propeller shaft stub shaft (4), if applicable. 9. Install the rear propeller shaft slip yoke onto the front propeller shaft stub shaft.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

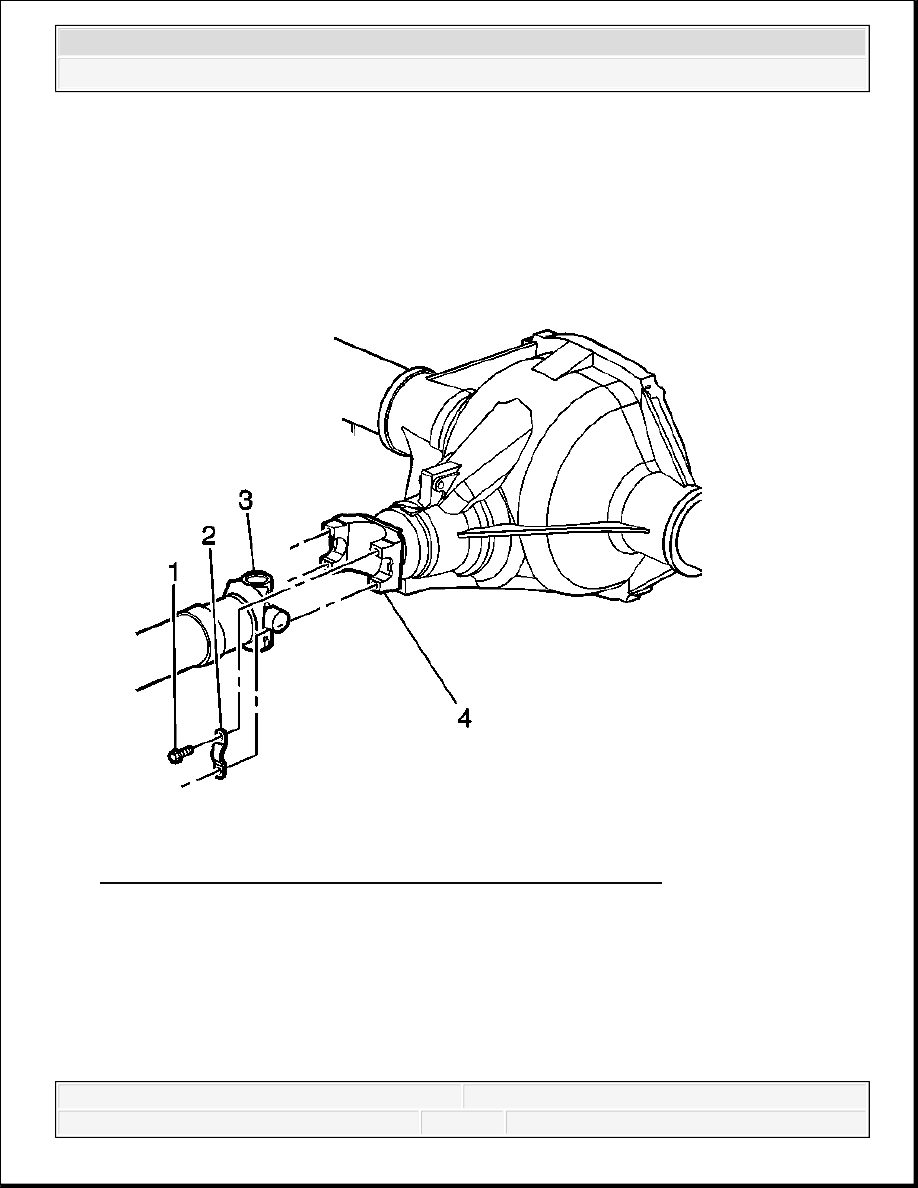

Mate the missing tooth in the yoke with the bridged tooth on the splined shaft. 10. Install the rear propeller shaft onto the rear axle pinion yoke. Align the reference marks made during removal. Fig. 27: Identifying Driveshaft Pinion, Yoke Retainers & Bolts 11. Install the yoke retainers (2) and the bolts (1). Tighten: Tighten the yoke retainer bolts to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

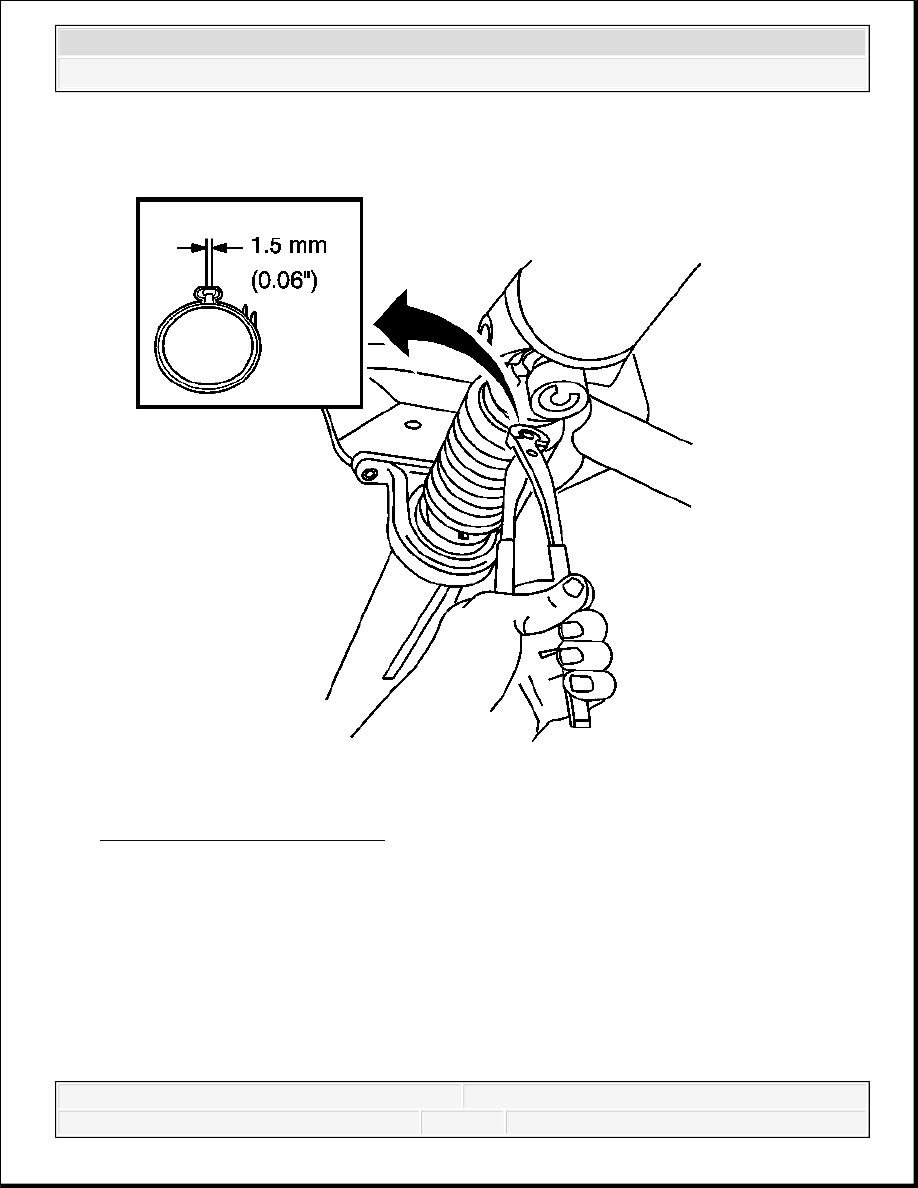

Fig. 28: Crimping Boot Clamps 12. Using the J 43218 , crimp the boot clamps until the dimensions shown are obtained. 13. Lower the vehicle. PROPELLER SHAFT BOOT REPLACEMENT
