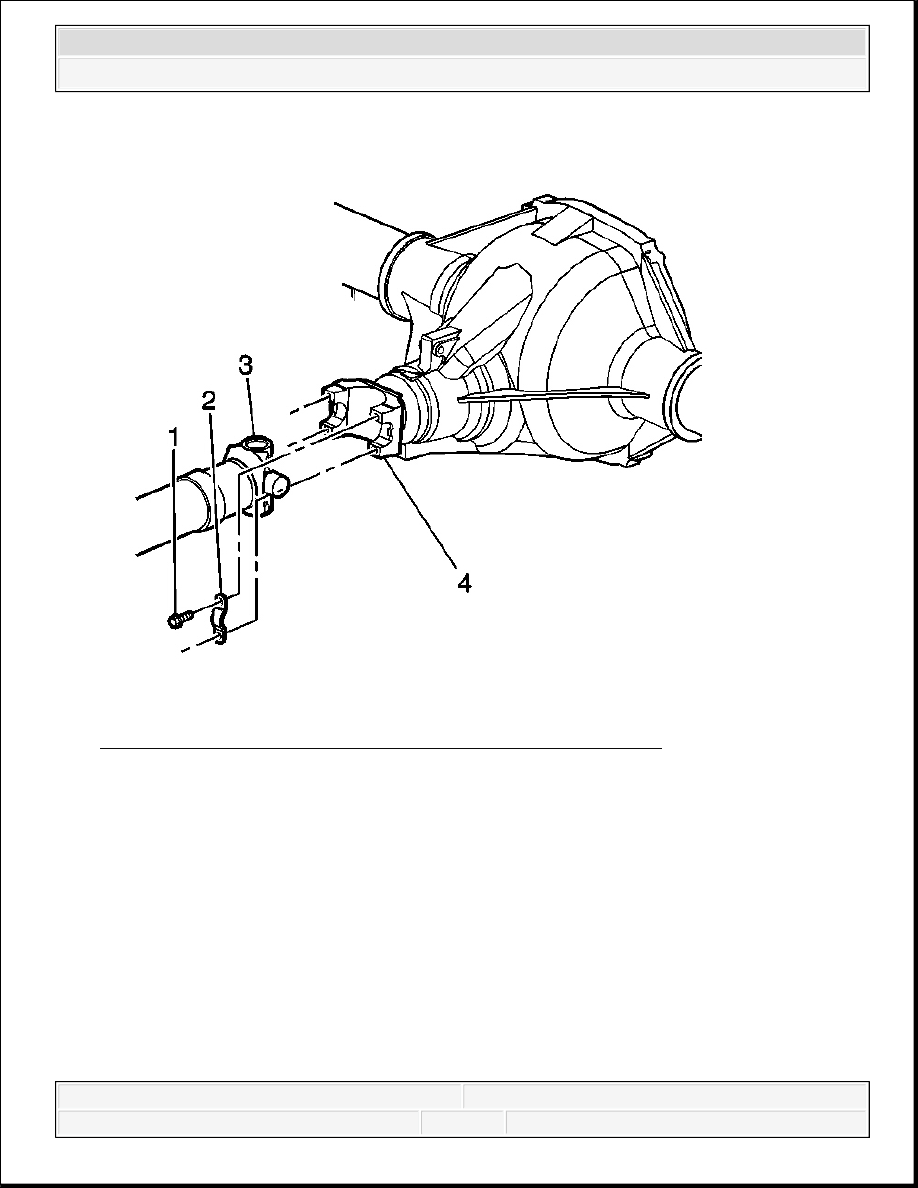

Fig. 17: Identifying Driveshaft Pinion, Yoke Retainers & Bolts 2. Reference mark the rear propeller shaft (3) to the rear axle pinion yoke (4). 3. Reference mark the front propeller shaft to the transmission or transfer case (slip yoke type) or to the transmission pinion yoke (universal joint type).
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

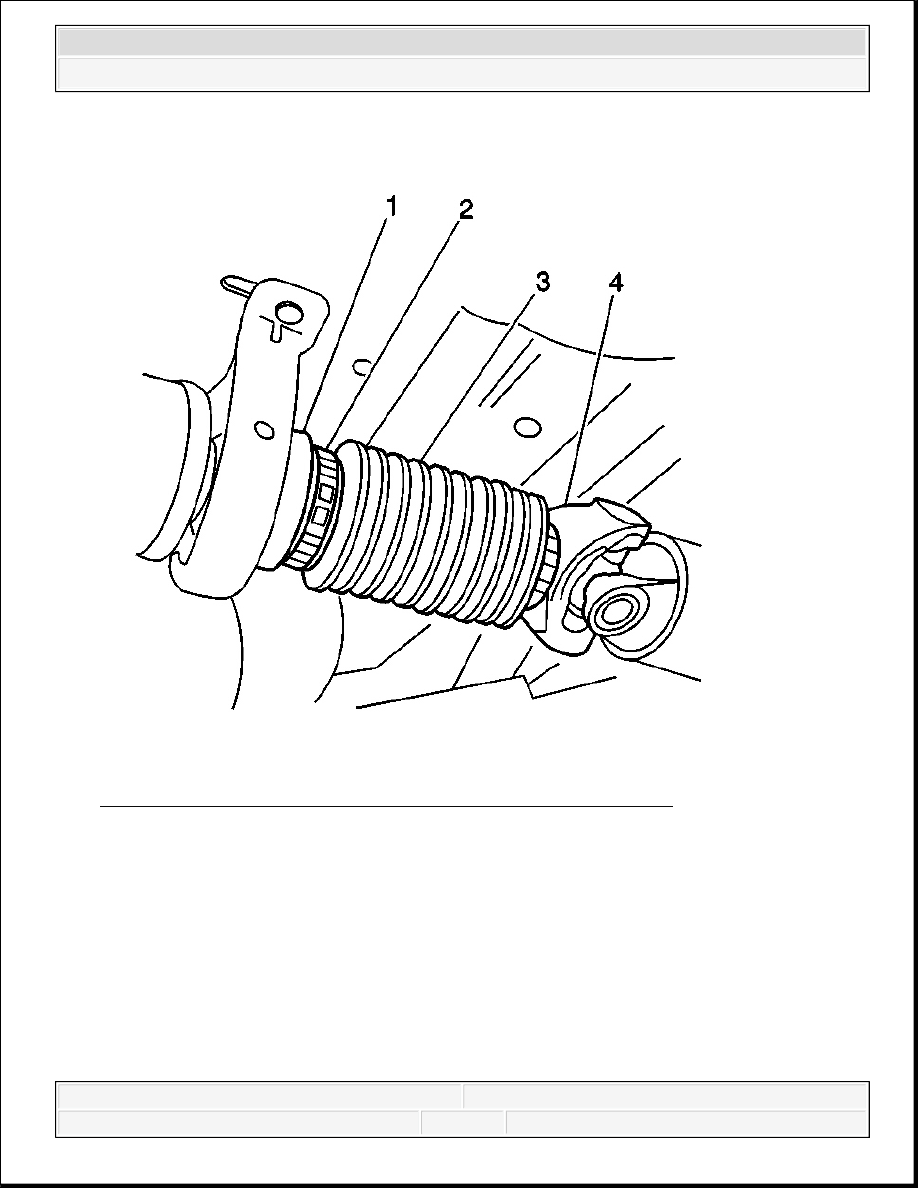

Fig. 18: Yoke, Clamp, Boot & Front Propeller Shaft Stub Shaft 4. Remove the clamp (2) securing the boot (3) to the front propeller shaft stub shaft (4) and the rear propeller shaft slip yoke (1) by prying up the exposed end of the clamp (2) using a flat-
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 19: Identifying Driveshaft Pinion, Yoke Retainers & Bolts 5. Remove the bolts (1) and the yoke retainers (2) from the rear axle pinion yoke (4). 6. Slide the rear propeller shaft forward in order to remove the propeller shaft from the rear axle pinion yoke. 7. Slide the rear propeller shaft rearward in order to disconnect the rear propeller shaft from NOTE: When removing the propeller shaft, do not attempt to remove
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

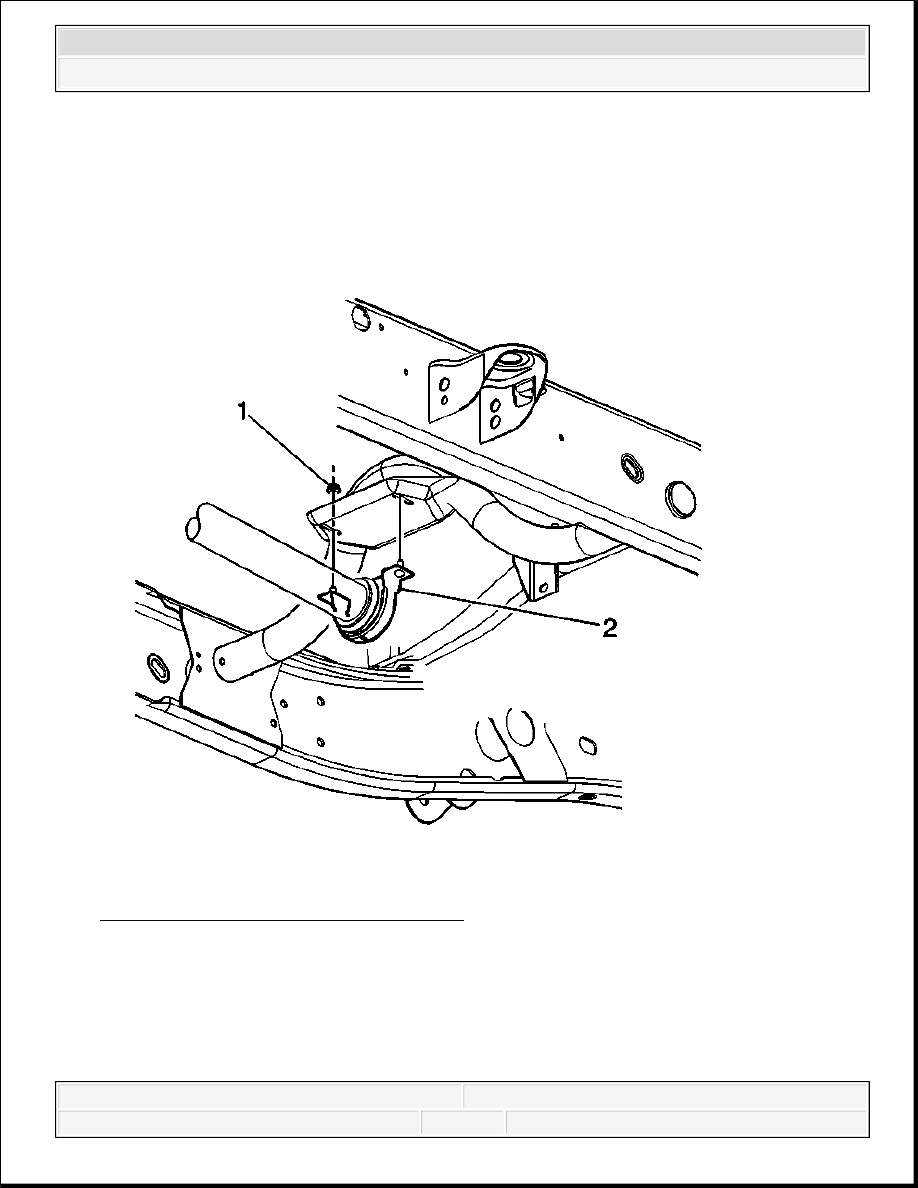

the front propeller shaft stub shaft. 8. Remove the rear propeller shaft from the vehicle. 9. Remove the boot from the front propeller shaft stub shaft, if applicable. Fig. 20: Center Bearing Support & Nuts 10. Remove the center bearing support nuts (1). 11. Remove the center bearing support (2).
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
