Chevrolet Silverado / GMC Sierra. Manual - part 1556
Fig. 14: View Of Propeller Shaft To Transmission Or Transfer Case
Courtesy of GENERAL MOTORS CORP.
6. Slide the propeller shaft rearward in order to disconnect the propeller shaft from the
transmission or transfer case.
7. Remove the propeller shaft from the vehicle.
Installation Procedure
1. Inspect the splines of the slip yoke for a sufficient coating of grease. If the splines of the slip
yoke does not have a sufficient coating of grease, lubricate the shaft with grease, GM P/N
12345879 or equivalent, RWD w/ Automatic Transmission Only.
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

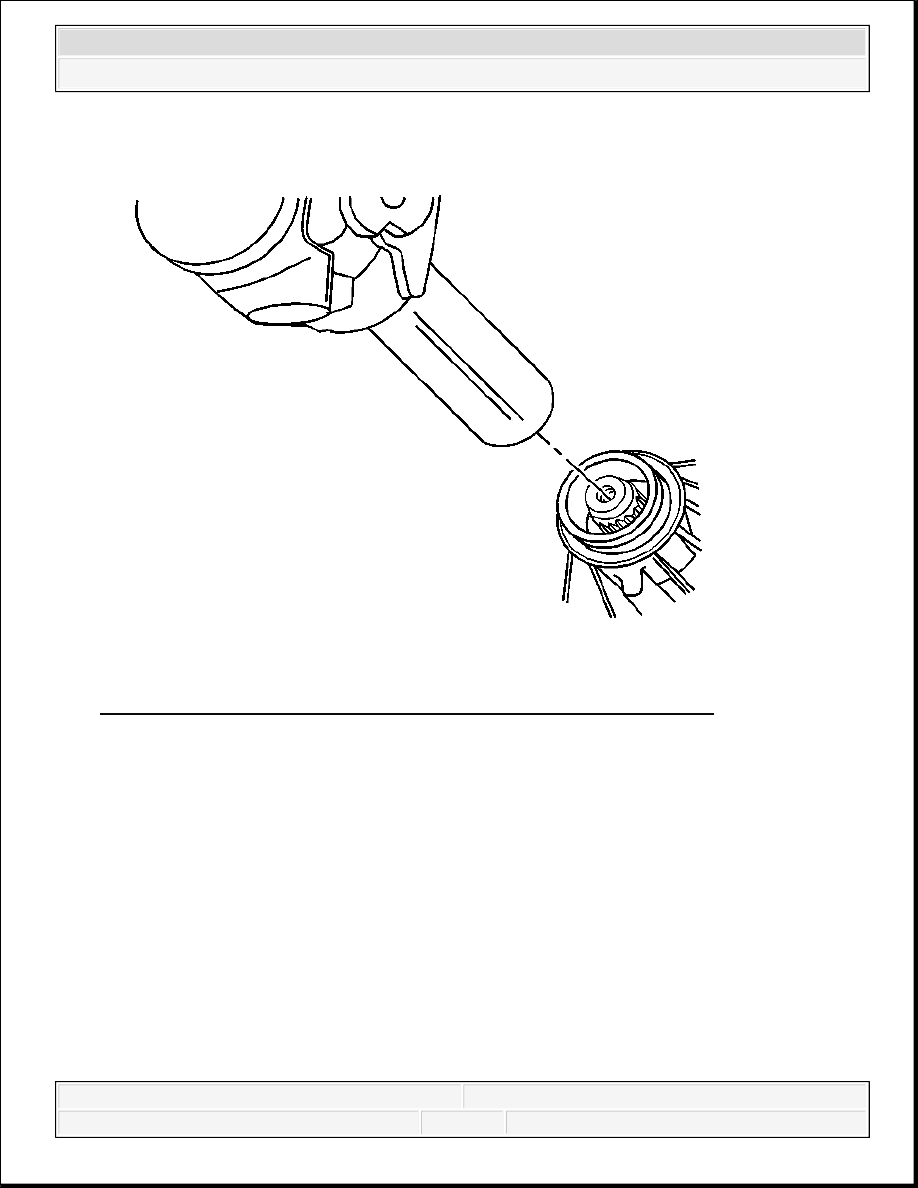

Fig. 15: View Of Propeller Shaft To Transmission Or Transfer Case
Courtesy of GENERAL MOTORS CORP.
2. Install the propeller shaft into the transmission or transfer case.
Align the reference marks made during removal.
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

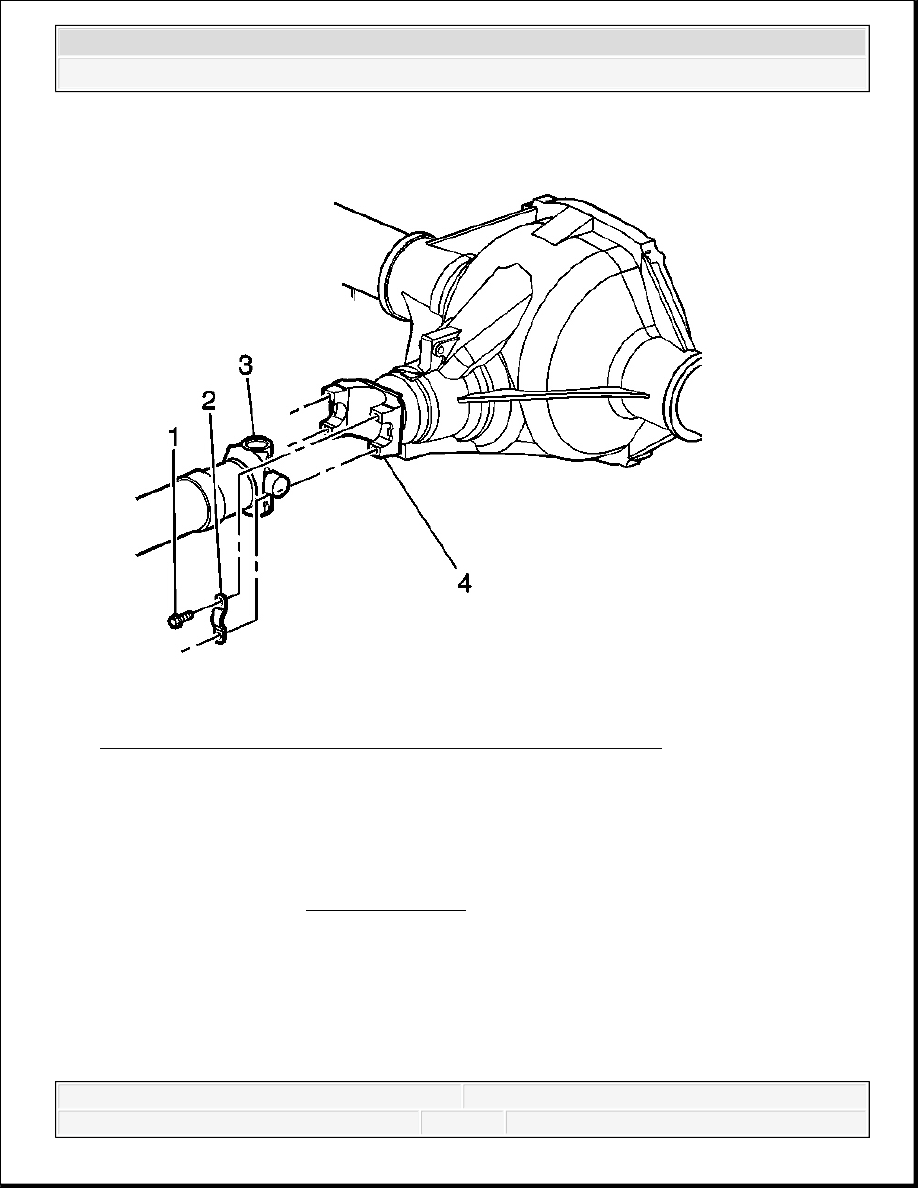

Fig. 16: Identifying Driveshaft Pinion, Yoke Retainers & Bolts
Courtesy of GENERAL MOTORS CORP.
3. Install the propeller shaft (3) to the rear axle pinion yoke (4).
Align the reference marks made during removal.
4. Install the yoke retainers (2) and bolts (1).
Tighten: Tighten the yoke retainer bolts to 25 N.m (18 lb ft).
5. Lower the vehicle.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
TWO-PIECE PROPELLER SHAFT REPLACEMENT
Tools Required
J 43218 Clamp Pliers - Narrow Jaw
Removal Procedure
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
IMPORTANT: Observe and accurately reference mark all driveline components
relative to the propeller shaft and axles before disassembly.
These components include the propeller shafts, the drive axles,
the pinion flanges, the output shafts, etc. All components must be
reassembled in the exact relationship to each other as they were
when removed. In addition, published specifications and torque
values, as well as any measurements made prior to disassembly
must be followed.
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
