REPAIR INSTRUCTIONS FRONT PROPELLER SHAFT REPLACEMENT Tools Required J 43218 Clamp Pliers - Narrow Jaw. See Special Tools. Removal Procedure 1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Universal Joint Replacement - External Snap Ring IMPORTANT: Before disassembly, observe and accurately reference mark all driveline components relative to the propeller shaft and axles. The propeller shafts The wheel drive shafts The pinion flanges The output shafts
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

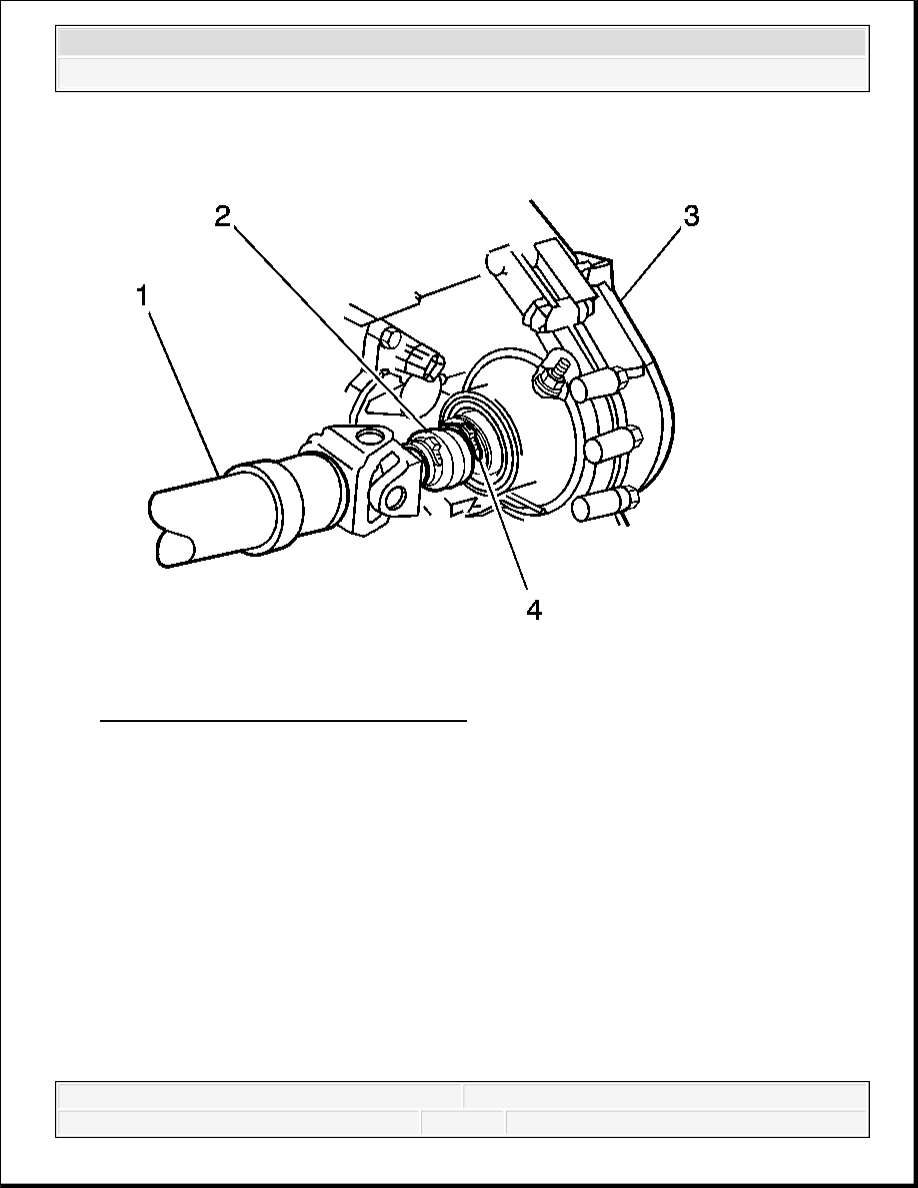

Fig. 4: Rear Propeller Shaft Boot Clamp 2. Remove the clamp (4) at the transfer case by prying up the exposed end of the clamp with a flat-bladed tool. 3. Reference mark the relationship of the propeller shaft to the front axle pinon yoke.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

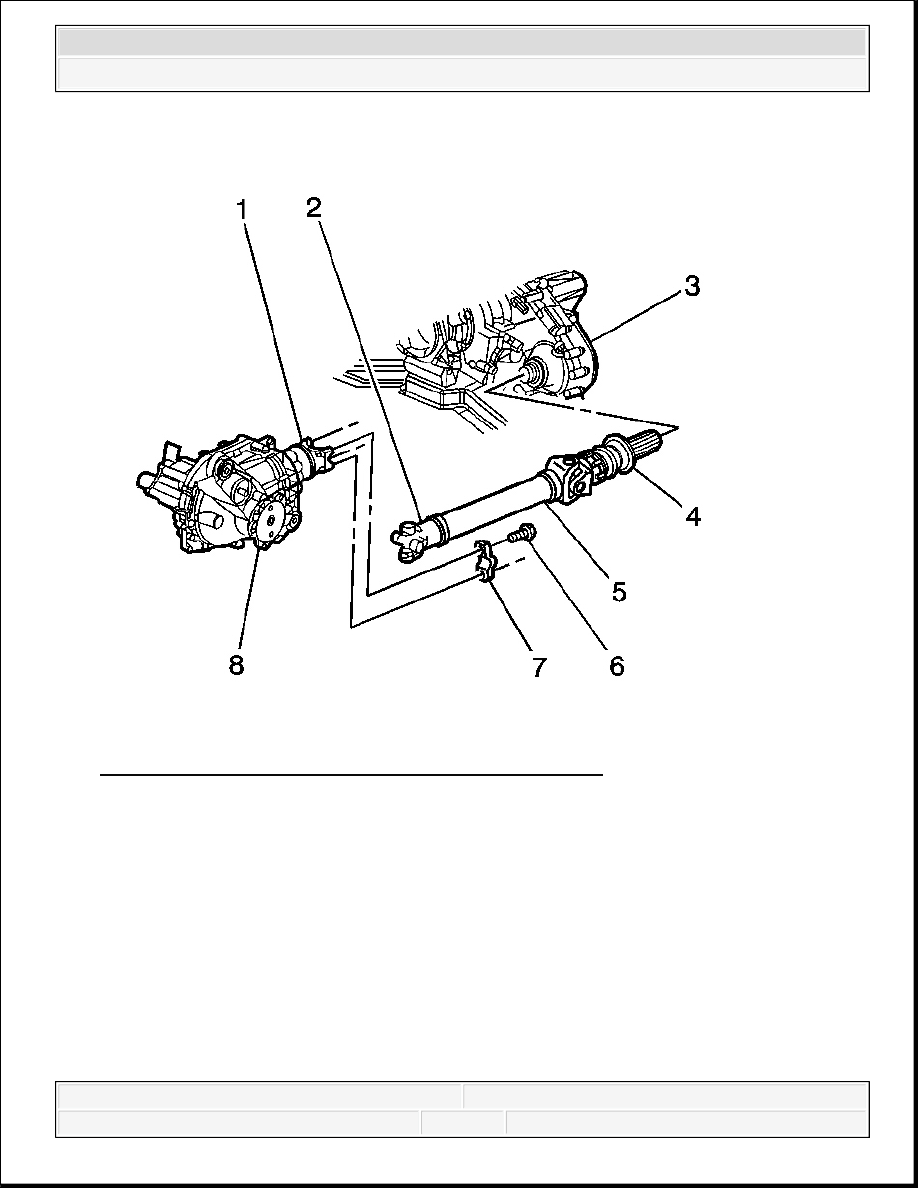

Fig. 5: Front Propeller Shaft & Front Axle Pinion Yoke 4. Remove the bolts (6) and the yoke retainers (7) from the front axle pinion yoke (1). NOTE: When removing the propeller shaft, do not attempt to remove IMPORTANT: Do not drop the bearing cap assemblies of the yoke end.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

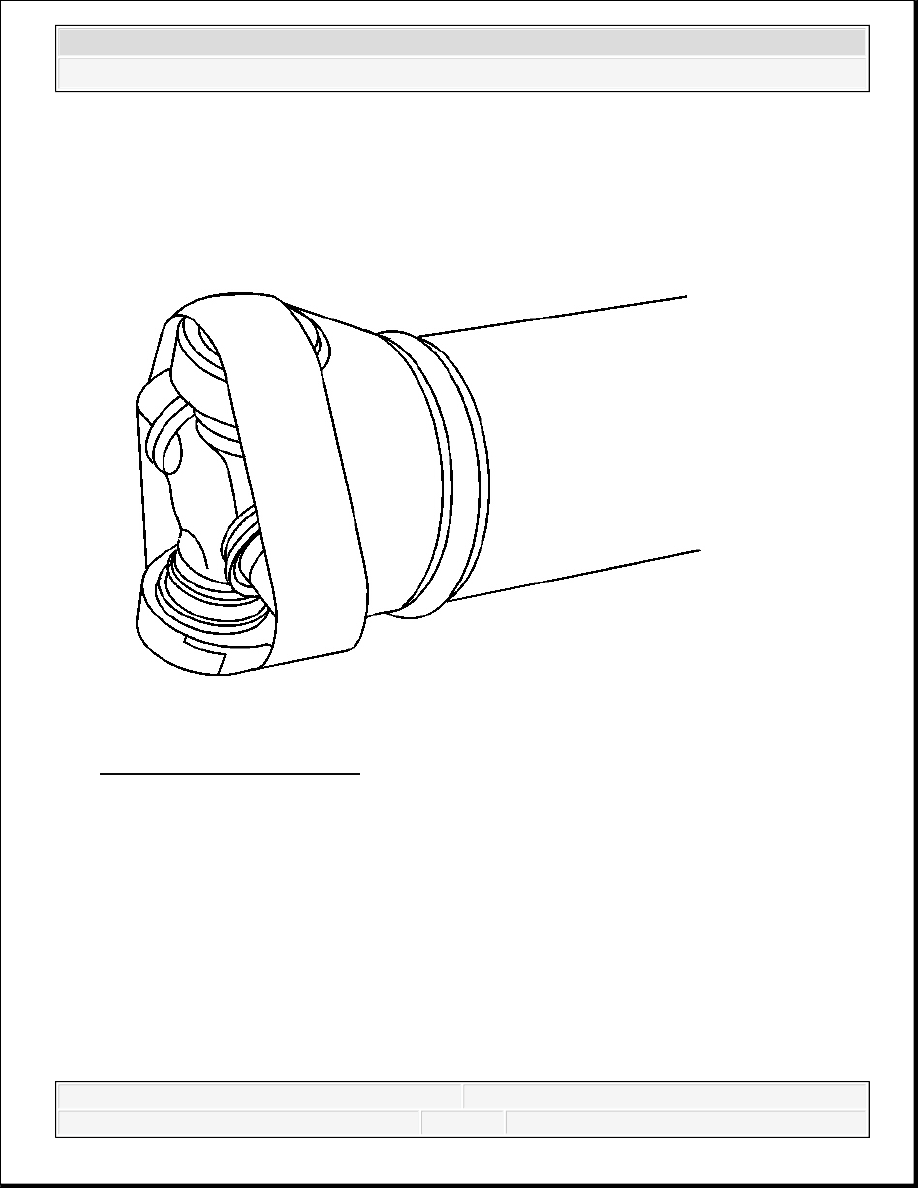

5. Disconnect the propeller shaft (2) from the front axle pinion yoke (1). Wrap the bearing caps with tape in order to prevent the loss of bearing rollers. Fig. 6: U-Joint Bearing Caps 6. Use tape to secure the bearing caps.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
