Chevrolet Silverado / GMC Sierra. Manual - part 1551
Fig. 1: Front Propeller Shaft Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Propeller Shaft Universal Joint
2
Propeller Shaft Tube
3
Propeller Shaft Universal Joint
4
Propeller Shaft Slip Yoke
5
Propeller Shaft Rear Slip Yoke Boot Clamp - Front
6
Propeller Shaft Rear Slip Yoke Boot
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

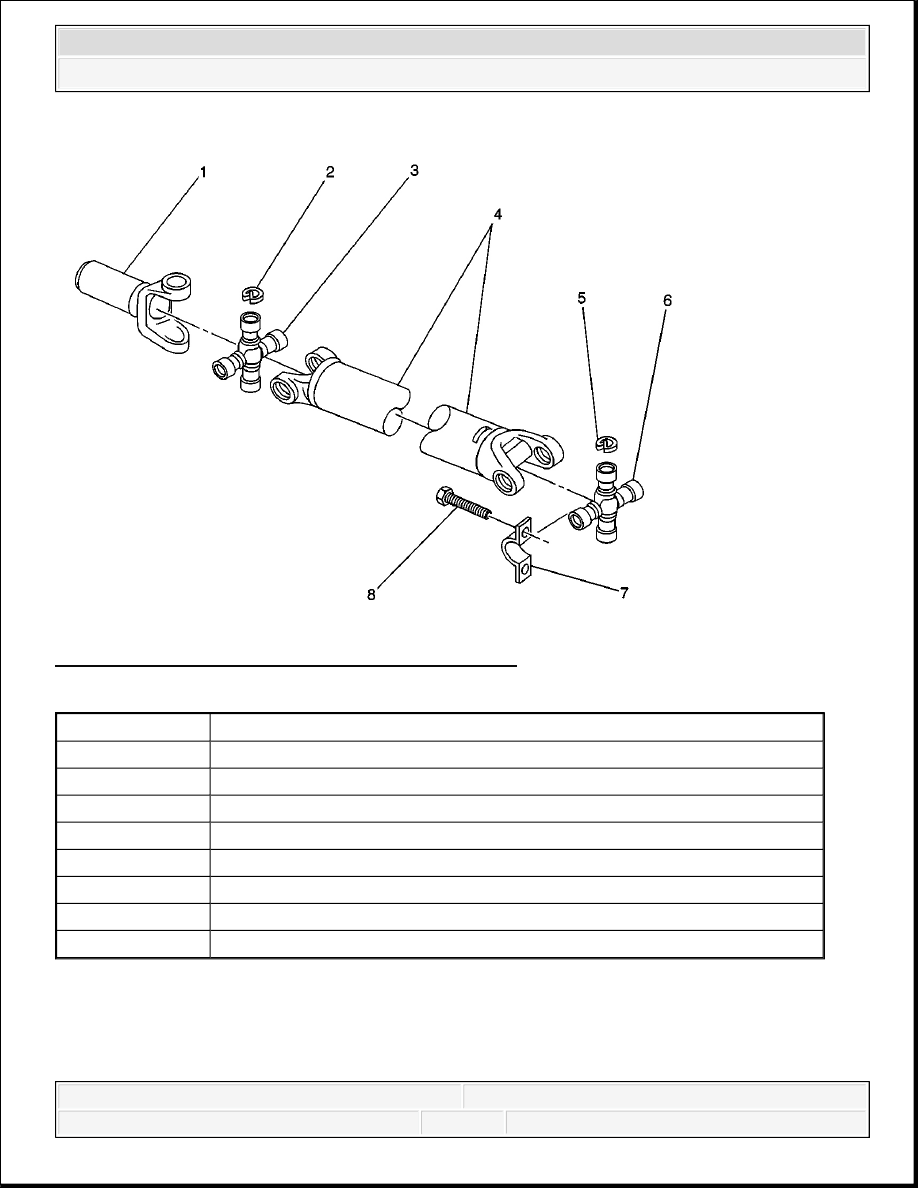

Fig. 2: One-Piece Propeller Shaft Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Propeller Shaft Slip Yoke
2
Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3
Propeller Shaft Universal Joint
4
Propeller Shaft Tube
5
Propeller Shaft Universal Joint Spider Bearing Retainer Ring
6
Propeller Shaft Universal Joint
7
Propeller Shaft Bearing Retainer
8
Propeller Shaft Bearing Retainer Bolt
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

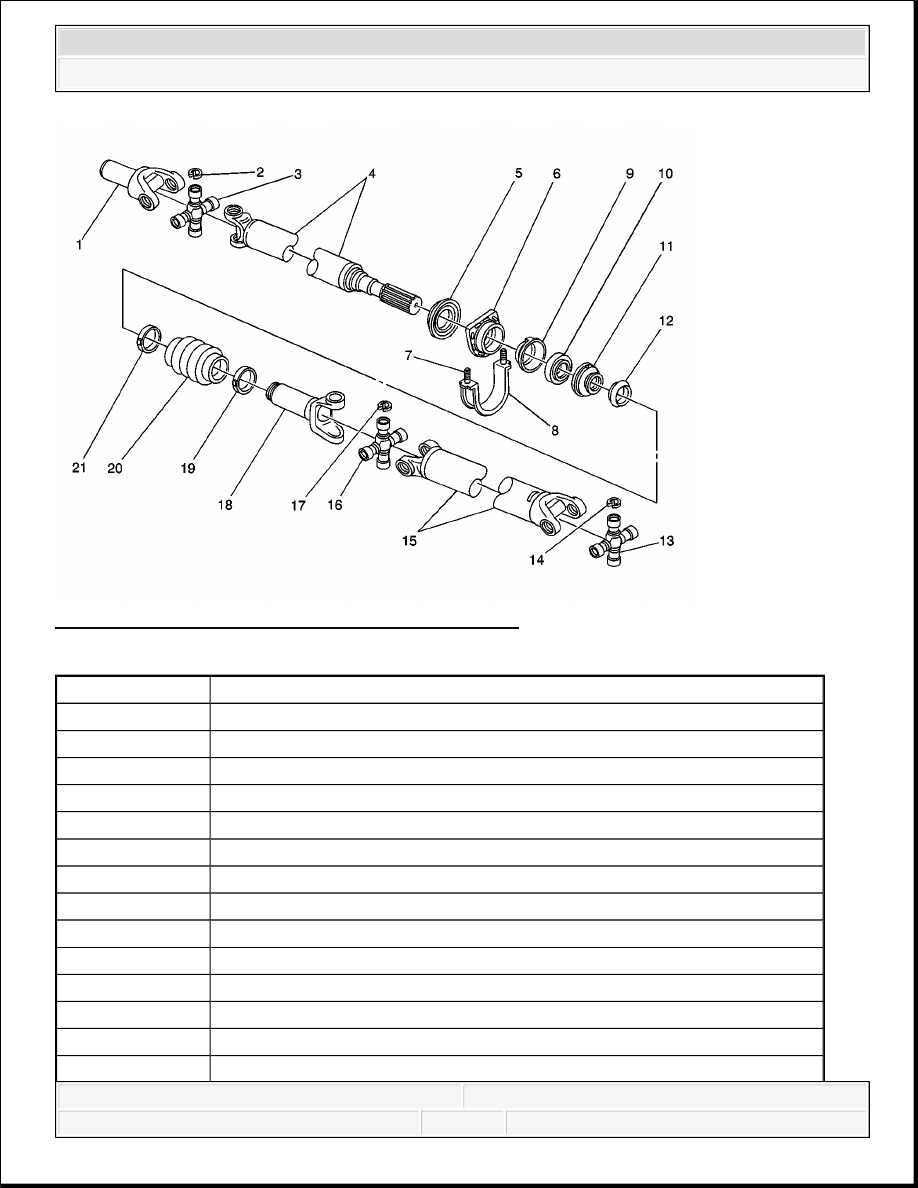

Fig. 3: Two-Piece Propeller Shaft Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Propeller Shaft Slip Yoke
2
Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3
Propeller Shaft Universal Joint
4
Propeller Shaft Tube
5
Propeller Shaft Bearing Shield
6
Propeller Shaft Bearing Insulator
7
Propeller Shaft Bearing Support Bolt
8
Propeller Shaft Bearing Support
9
Propeller Shaft Retainer
10
Propeller Shaft Center Support Bearing
11
Propeller Shaft Retainer
12
Propeller Shaft Bearing Slinger
13
Propeller Shaft Universal Joint
14
Propeller Shaft Universal Joint Spider Bearing Retainer Ring
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSTIC STARTING POINT - PROPELLER SHAFT
Begin the system diagnosis by reviewing the system Description and Operation. Reviewing the
Description and Operation information will help you determine the correct symptom diagnostic
procedure when a malfunction exists. Reviewing the Description and Operation information will
also help you determine if the condition described by the customer is normal operation. Refer to
Symptoms - Propeller Shaft in order to identify the correct procedure for diagnosing the
system and where the procedure is located.
SYMPTOMS - PROPELLER SHAFT
Before beginning diagnosis, review the system description and operation in order to familiarize
yourself with the system function. Refer to Propeller Shaft Description and Operation.
Classifying the Symptom
Propeller Shaft symptoms can usually be classified into the following categories:
Leaks
Noises
Vibrations
Leak and noise related symptoms are diagnosed within the Propeller Shaft section. For vibration
related symptoms, refer to Diagnostic Starting Point - Vibration Diagnosis and Correction .
Visual/Physical Inspection
Inspect the system for aftermarket devices which could affect the operation of the Propeller
Shaft.
Inspect the easily accessible or visible system components for obvious damage or conditions
15
Propeller Shaft Tube
16
Propeller Shaft Universal Joint
17
Propeller Shaft Universal Joint Spider Bearing Retainer Ring
18
Propeller Shaft Slip Yoke
19
Propeller Shaft Slip Yoke Boot Clamp
20
Propeller Shaft Slip Yoke Boot
21
Propeller Shaft Slip Yoke Boot Clamp
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Propeller Shaft - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
