Fig. 46: View Of Front Brake Rotor Components Callout Component Name Preliminary Procedures 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . CAUTION: Refer to Brake Dust Caution . NOTE: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its NOTE: Any new rotor must have the protective coating removed from the friction surfaces before being 1 Brake Caliper Bracket Bolt (Qty: 2) Procedure 1. Remove all traces of the adhesive patch on the brake caliper bracket bolts and threaded holes of the brake caliper bracket. 2. Clean the brake caliper bracket bolt threads and the threaded holes of the brake caliper bracket with denatured alcohol or equivalent and allow to 3. Apply threadlocker G/M P/N 12345493 (Canadian P/N 10953488) to 2/3 of the threaded portion of the brake caliper bolts. Tighten: 175 N.m (129 lb ft) NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR BRAKE ROTOR REPLACEMENT (JD9) 2 Brake Caliper and Bracket Assembly 3 Brake Rotor Screw Tighten: 12 N.m (106 lb in) 4 Brake Rotor Procedure 1. If reinstalling the original brake rotor, mark the position of the brake rotor to the wheel stud. 2. Using the J 42450-A , clean any rust or corrosion from the mating surface of the hub/axle flange. See Special Tools. 3. Using the J 41013 , clean any rust or corrosion from the mating surface the brake rotor. See Special Tools. 4. After installing the brake rotor, measure the assembled lateral runout (LRO). Refer to Brake Rotor Assembled Lateral Runout 5. If the brake rotor was refinished or replaced, burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing. Special Tools J 41013 Rotor Resurfacing Kit. See Special Tools. J 42450-A Wheel Hub Resurfacing Kit. See Special Tools.
2008 Chevrolet Silverado 1500 2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

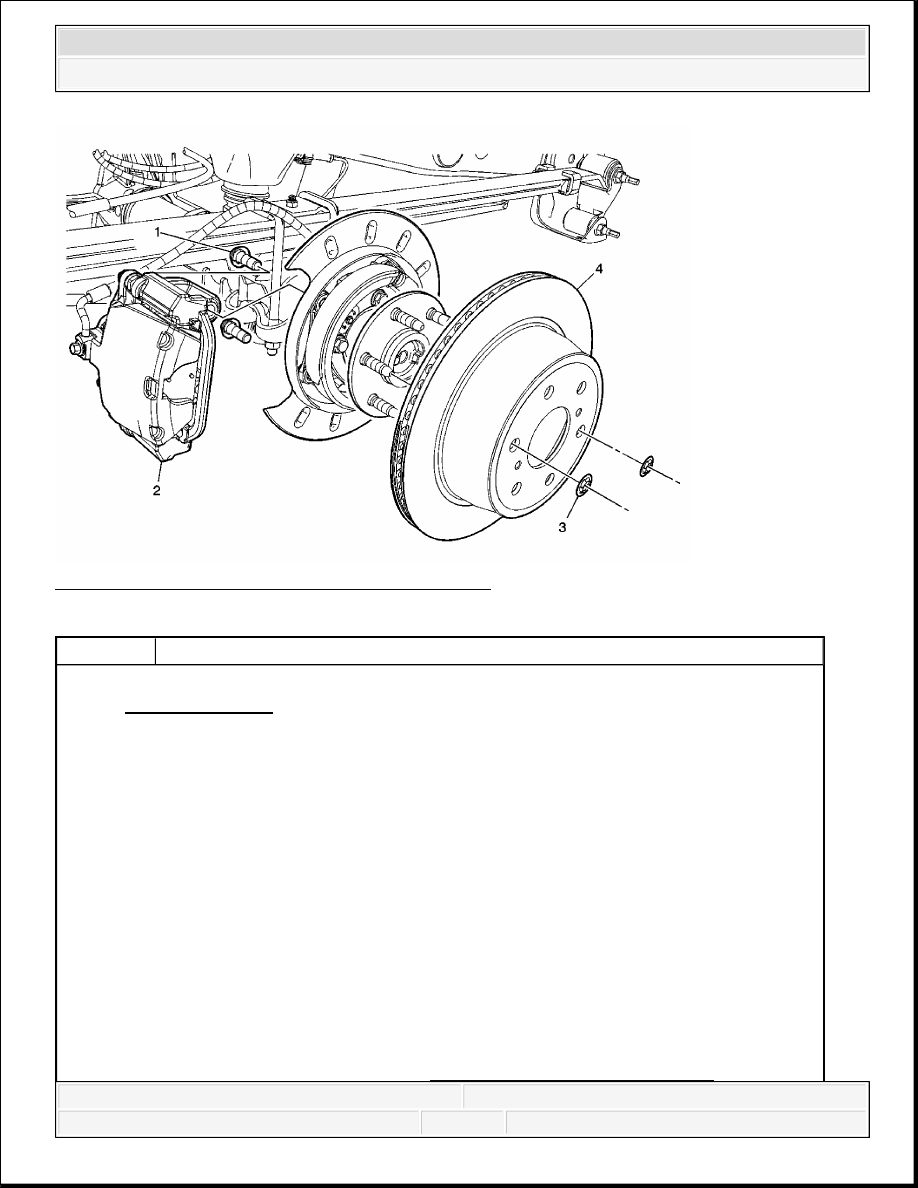

Fig. 47: View Of Rear Brake Rotor Components Callout Component Name Preliminary Procedures 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . CAUTION: Refer to Brake Dust Caution . NOTE: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its NOTE: Any new rotor must have the protective coating removed from the friction surfaces before being
2008 Chevrolet Silverado 1500 2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . 1 Brake Caliper Bracket Bolt (Qty: 2) Procedure 1. Remove all traces of the adhesive patch on the brake caliper bracket bolts and threaded holes of the brake caliper bracket. 2. Clean the brake caliper bracket bolt threads and the threaded holes of the brake caliper bracket with denatured alcohol or equivalent and allow to 3. Apply threadlocker G/M P/N 12345493 (Canadian P/N 10953488) to 2/3 of the threaded portion of the brake caliper bolts. Tighten: 200 N.m (148 lb ft) NOTE: Refer to Fastener Notice . 2 Brake Caliper and Bracket Assembly 3 Brake Rotor Retainer (Qty: 2) 4 Brake Rotor Procedure 1. If reinstalling the original brake rotor, mark the position of the brake rotor to the wheel stud. 2. Using the J 42450-A , clean any rust or corrosion from the mating surface of the hub/axle flange. See Special Tools. 3. Using the J 41013 , clean any rust or corrosion from the mating surface the brake rotor. See Special Tools. 4. After installing the brake rotor, measure the assembled lateral runout (LRO). Refer to Brake Rotor Assembled Lateral Runout 5. If the brake rotor was refinished or replaced, burnish the brake pads and
