Fig. 33: View Of Piston Dust Seal
Courtesy of GENERAL MOTORS CORP.
4. Install the boot over the end of the piston so the fold will face toward the brake caliper
housing piston bore opening.
2008 Chevrolet Silverado 1500
2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

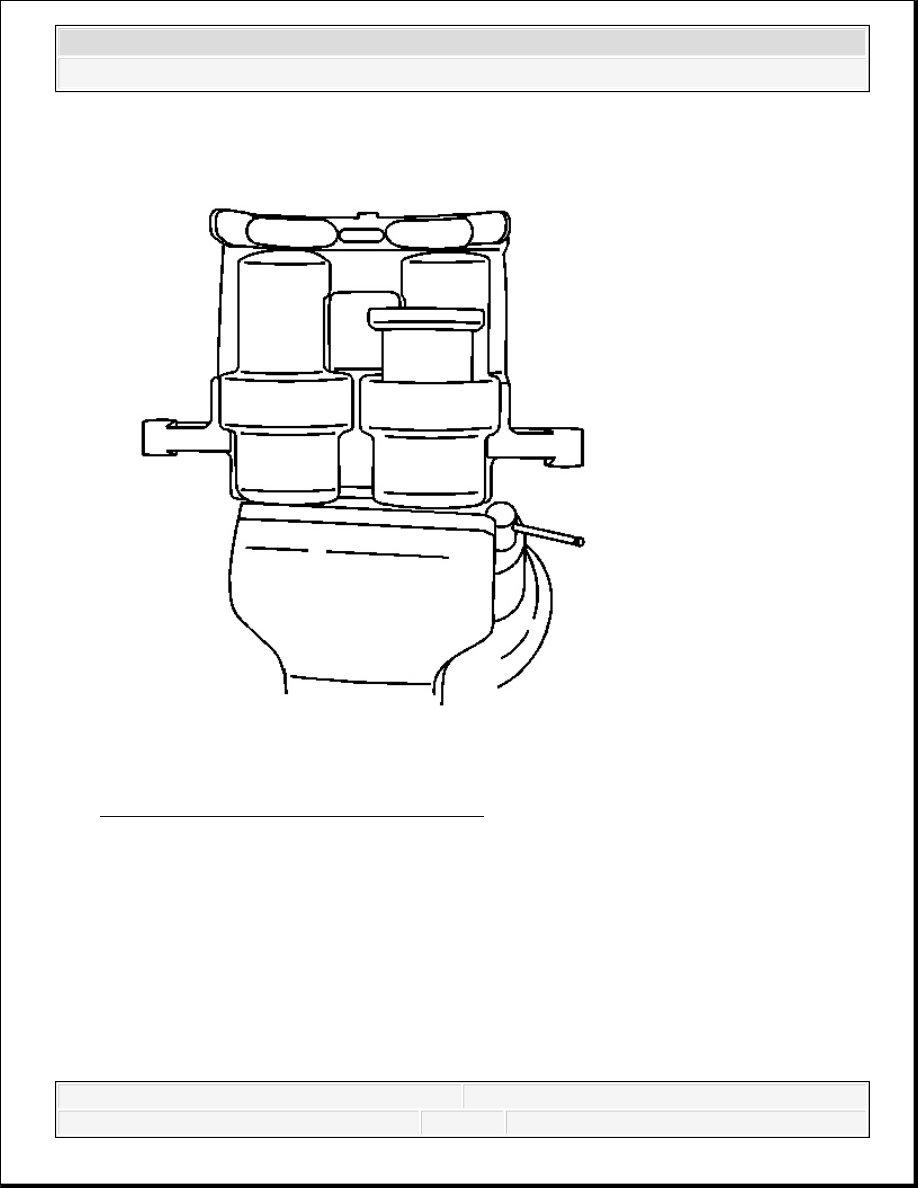

Fig. 34: Installing Piston To Brake Caliper
Courtesy of GENERAL MOTORS CORP.
5. Position the piston to the brake caliper bore and seat the boot into the brake caliper bore
groove.
IMPORTANT: Position the piston in the bore so that it is straight and level.
2008 Chevrolet Silverado 1500
2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

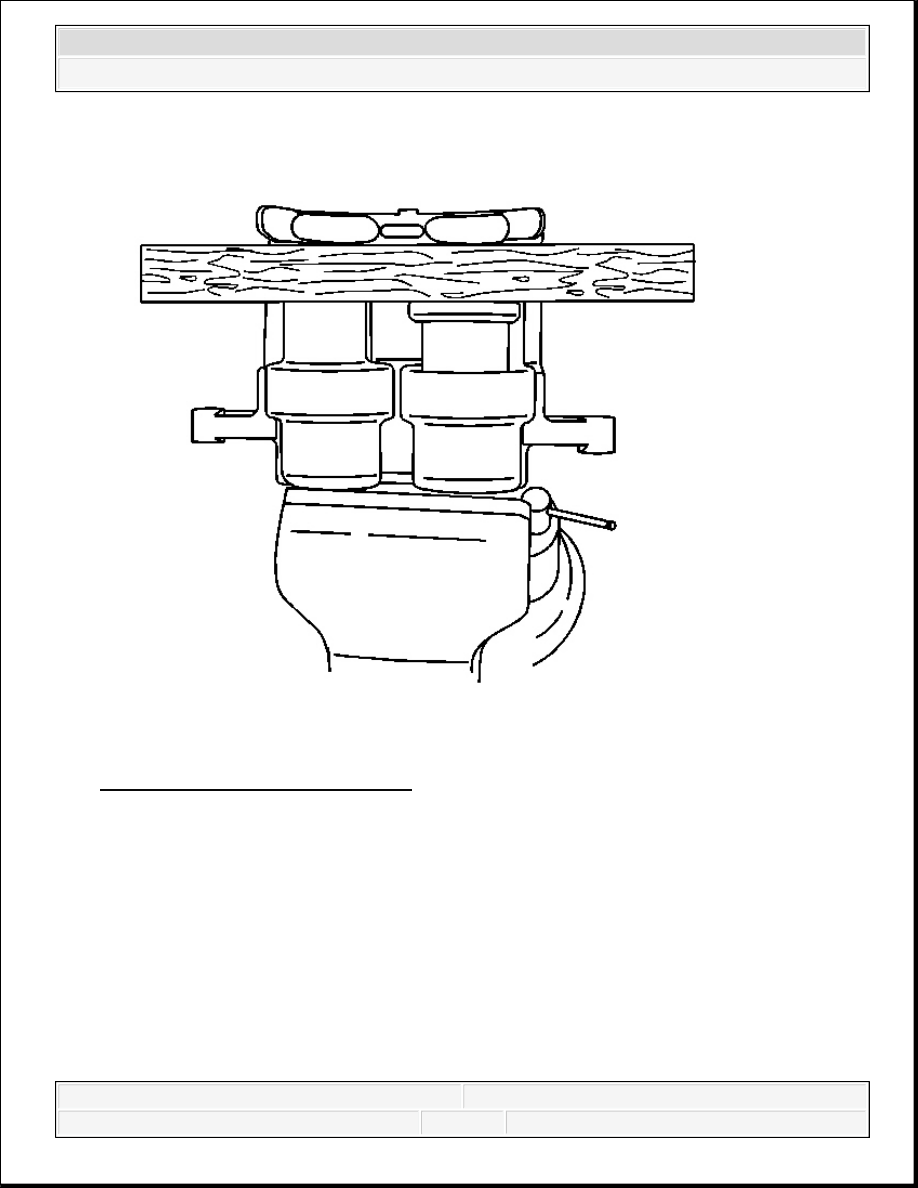

Fig. 35: Installing Piston Into Bore
Courtesy of GENERAL MOTORS CORP.
6. Position a piece of wood across the piston to be installed.
7. Applying equal pressure by hand while pushing down, install the piston in the bore.
8. Remove the piece of wood.
2008 Chevrolet Silverado 1500
2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

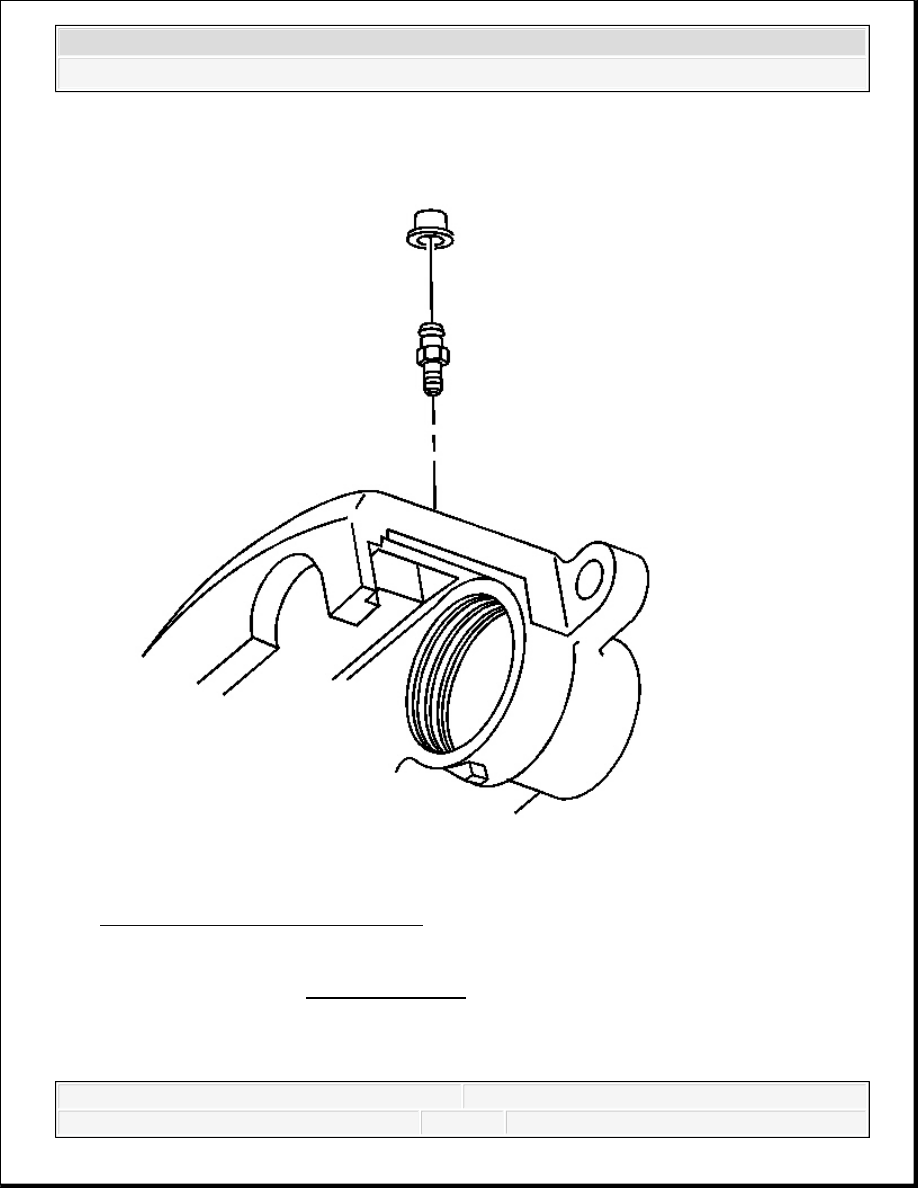

Fig. 36: View Of Bleeder Valve Cap
Courtesy of GENERAL MOTORS CORP.
9. Install the bleeder valve in the brake caliper housing.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
