FRONT BRAKE CALIPER OVERHAUL (JH6, JH7) Disassembly Procedure 1. Remove the brake caliper. Refer to Front Brake Caliper Replacement (JH6, JH7) or Front Brake Caliper Replacement (JD9, JF3, JF7). 2. Drain all the brake fluid from the caliper. 3. Secure the brake caliper in a suitable holding device. 4. Insert a piece of wood in the brake caliper between the pistons and the outer bridge. 5 Procedure 1. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual) . 2. After the installation is complete and with the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance. 3. Slowly release the brake pedal. 4. Wait 15 seconds, then repeat steps 2-3 until a firm brake pedal is obtained. This will properly seat the brake caliper piston and the brake pads. 5. Fill the master cylinder to the proper level. Refer to Master Cylinder Reservoir Filling . CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . CAUTION: Do not place your fingers in front of the piston in order to catch or protect the piston while applying compressed IMPORTANT: The brake calipers use phenolic pistons that have stainless steel caps which contact the brake pads. Use compressed air
2008 Chevrolet Silverado 1500 2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

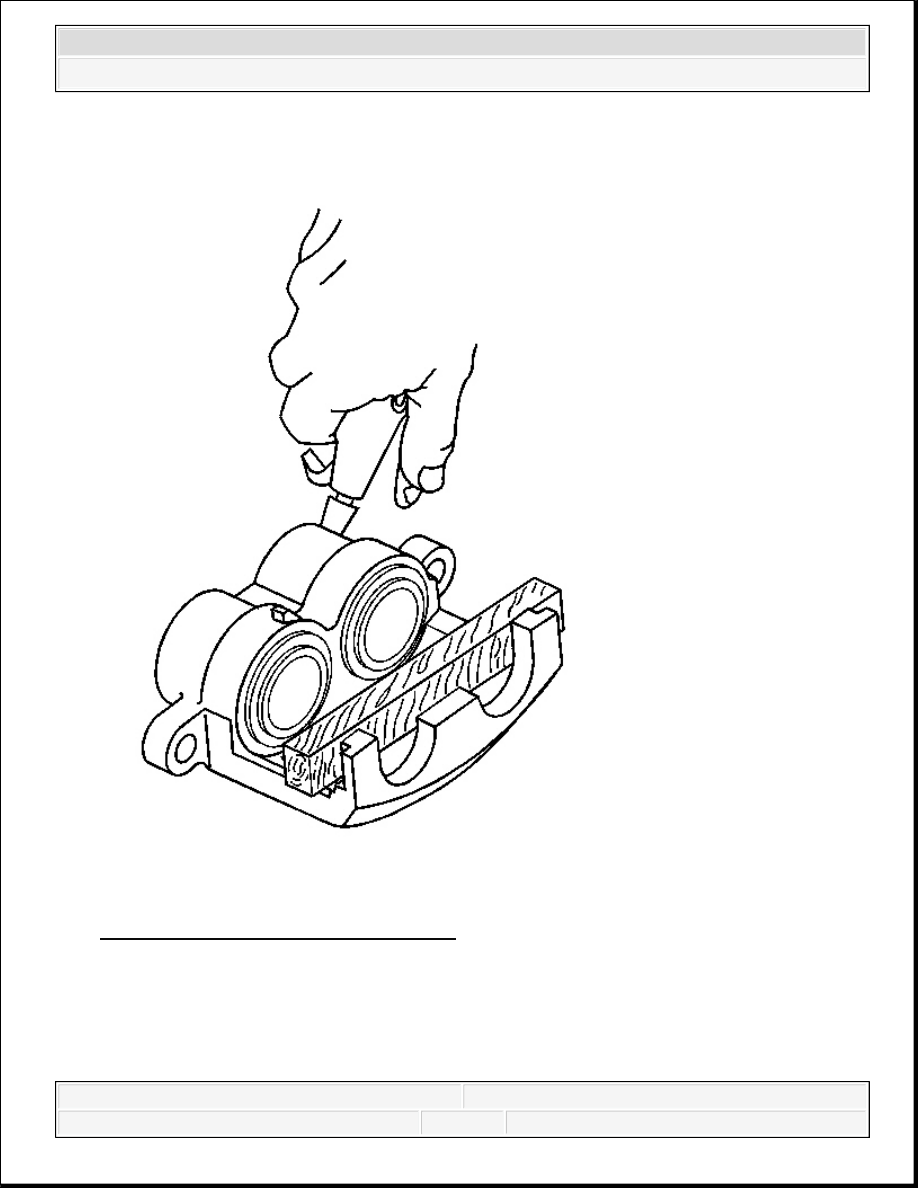

Fig. 21: Applying Air To Brake Caliper 5. Cover the brake caliper with a shop towel. 6. Apply filtered, non-lubricated compressed air into the brake hose inlet fitting port of the brake caliper.
2008 Chevrolet Silverado 1500 2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

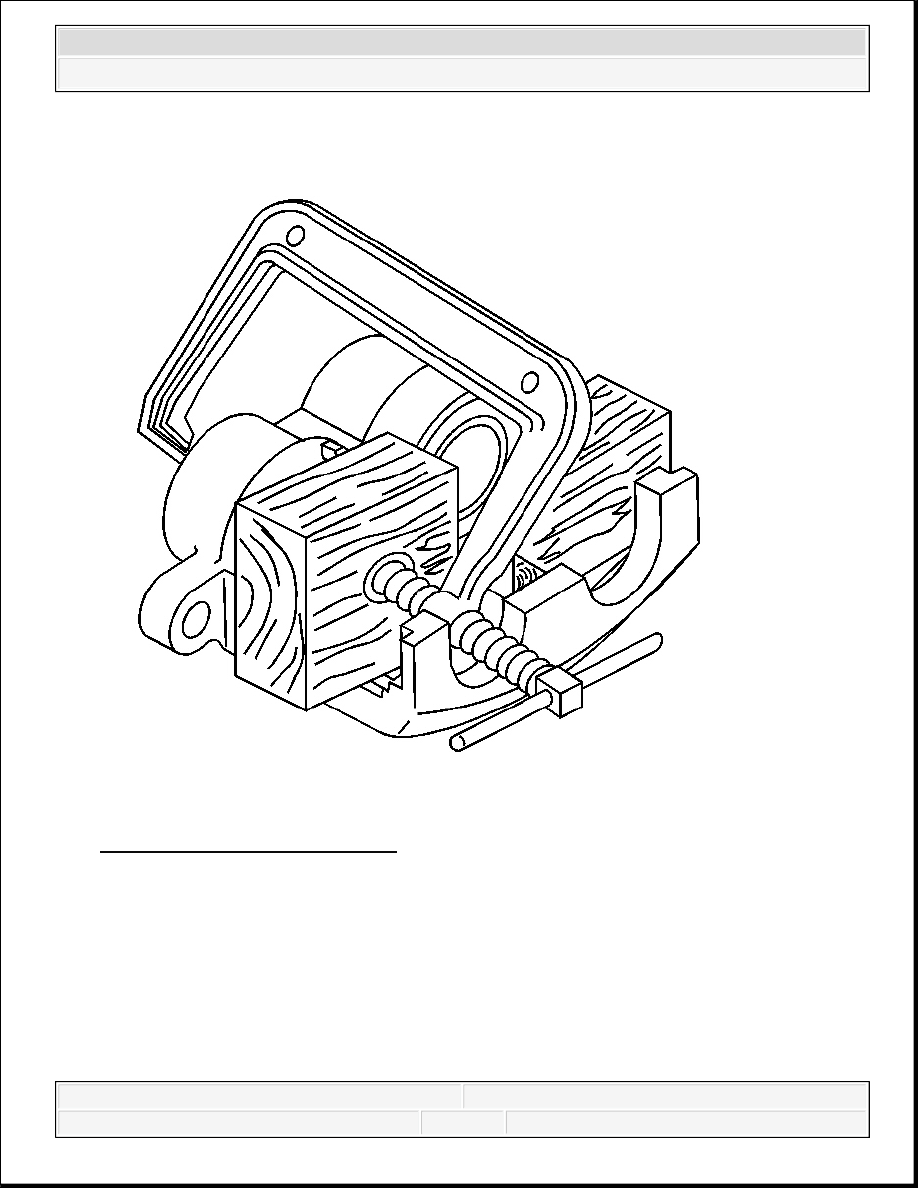

Fig. 22: Clamping Brake Caliper 7. If one of the pistons fails to be removed from the brake caliper, perform the following steps. 1. Reposition the piston that has been removed back into the brake caliper. 2. Using a small block of wood and a C-clamp, slowly tighten the C-clamp until the piston is half way into the brake caliper. It does not have to be fully seated. 3. Position a second block of wood in front of the piston that remains in the brake caliper.
2008 Chevrolet Silverado 1500 2008 BRAKES Disc Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

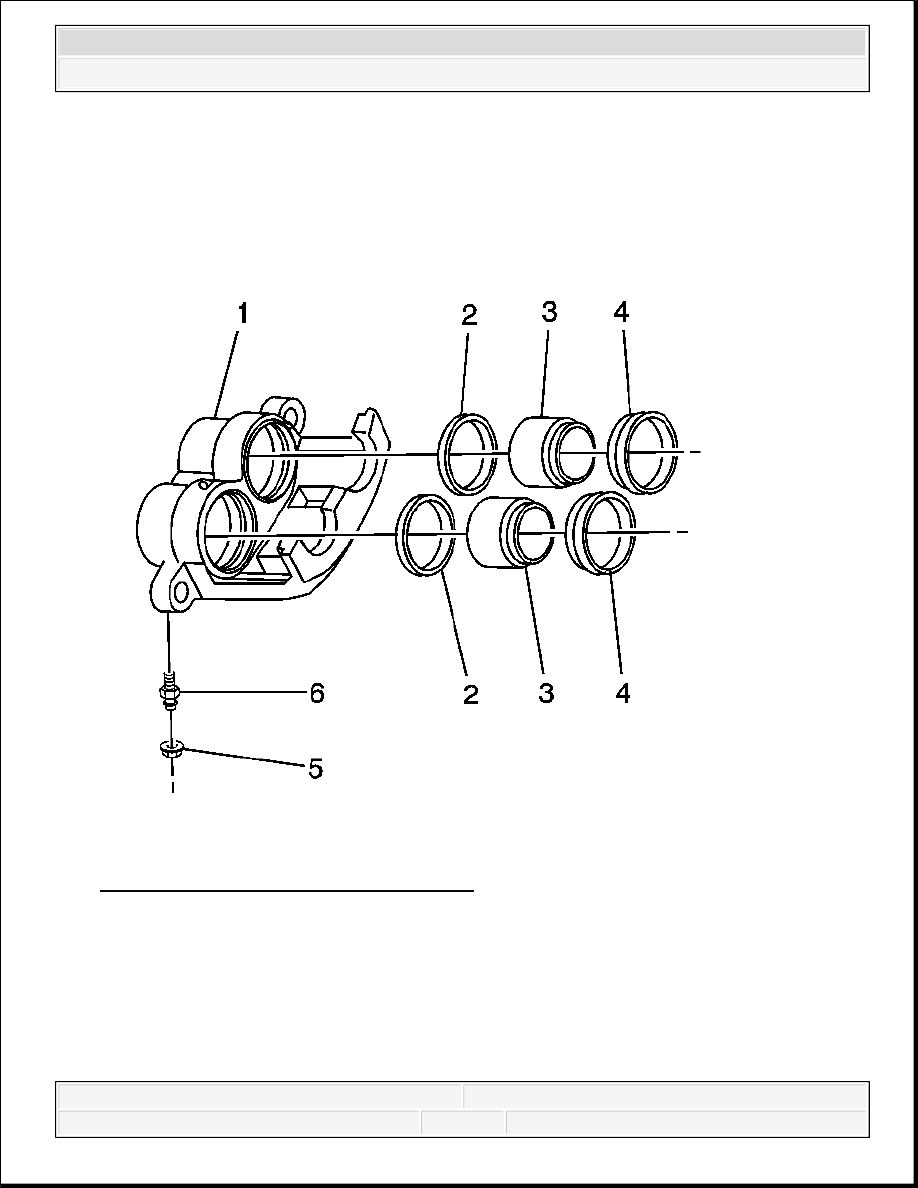

4. Cover the brake caliper with a shop towel. 5. Apply filtered, non-lubricated compressed air into the brake hose inlet fitting port of the brake caliper. Fig. 23: Exploded View Of Brake Caliper 8. Remove the pistons (3) from the caliper bores. 9. Remove the boots (4) from the caliper bores. Do not scratch the caliper bores. 10. Remove the piston seals (2) from the caliper bores. Do not use a metal tool. 11. Remove the bleeder valve cap (5). 12. Remove the bleeder valve (6) from the caliper housing (1).
