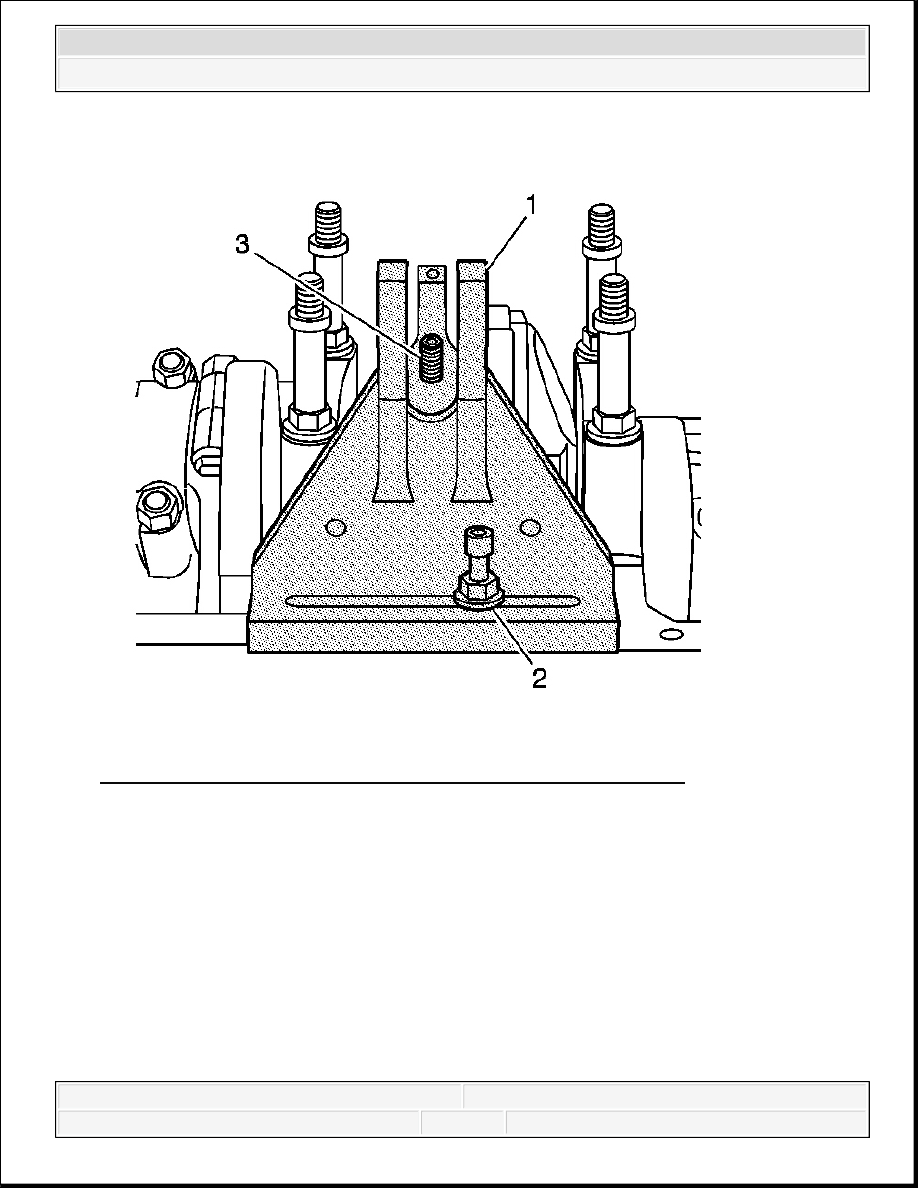

Fig. 495: Aligning Center Of Base W/Pivot Arm Assembly Screw
Courtesy of GENERAL MOTORS CORP.
11. Align the center of the base (1) with the screw (3) of the pivot arm assembly. Tighten the
bolt (2) until snug.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

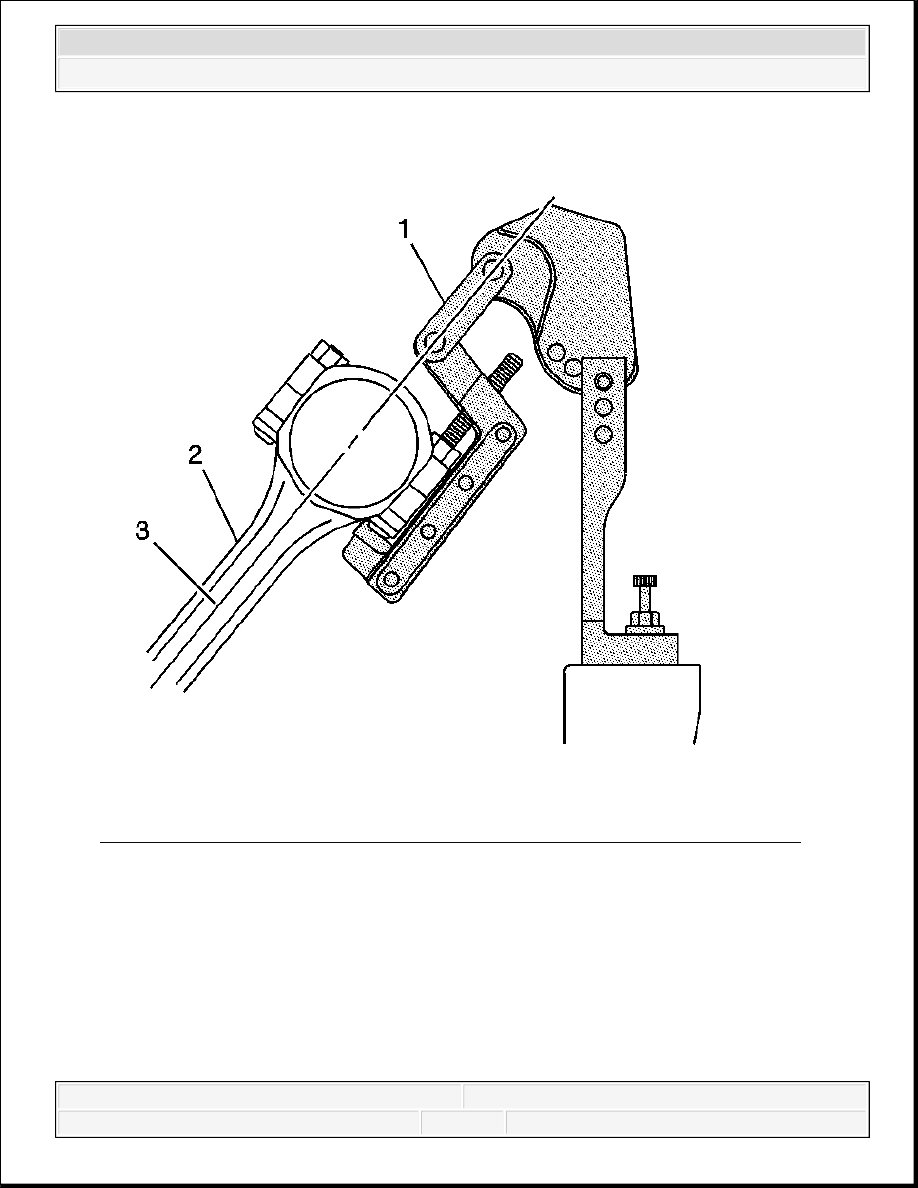

Fig. 496: Aligning Pivot Arm Assembly Link On Connecting Rod Beam Plane
Courtesy of GENERAL MOTORS CORP.
12. Align the link (1) of the pivot arm assembly on a plane (3) equal to that of the connecting
rod beam (2).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

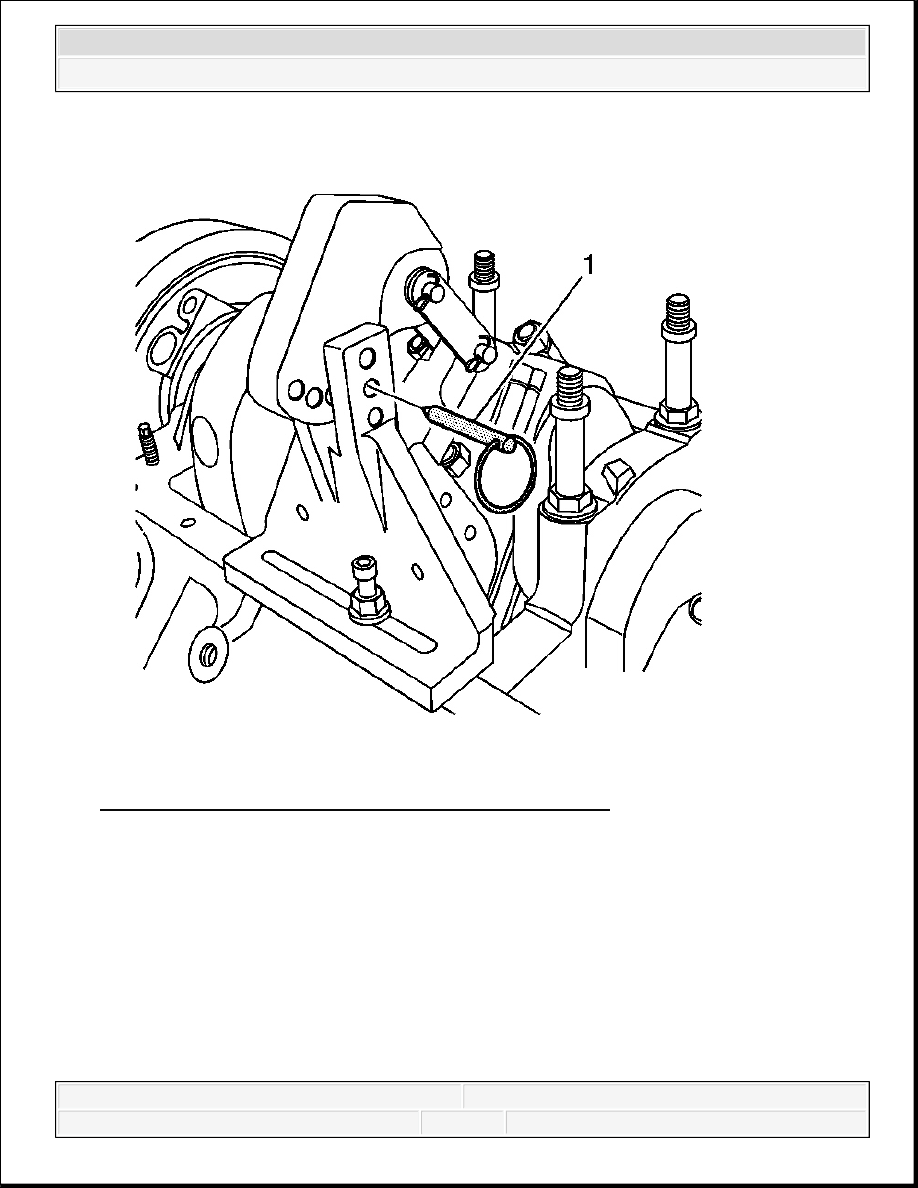

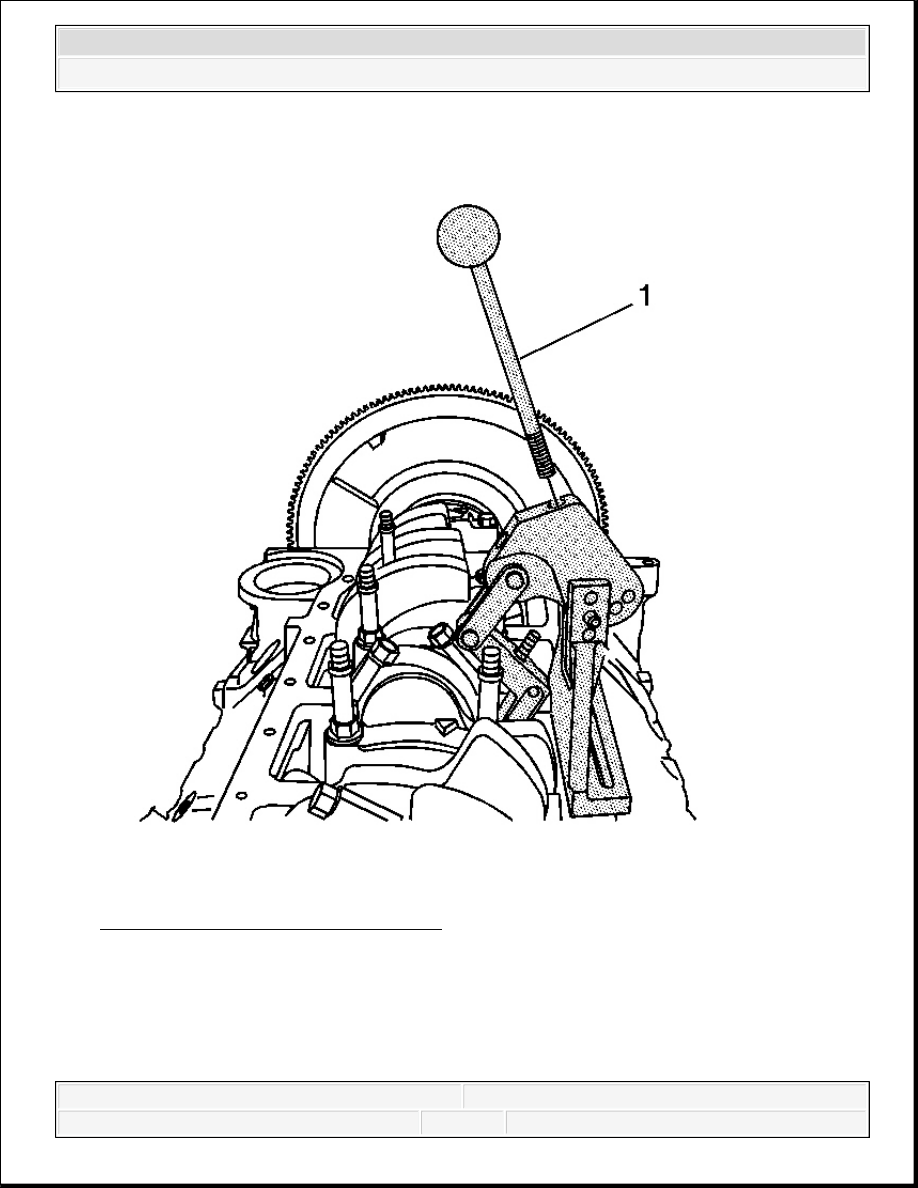

Fig. 497: Positioning Pivot Arm To Base & Inserting Pin
Courtesy of GENERAL MOTORS CORP.
13. With the link of the pivot arm assembly aligned to the beam of the connecting rod, position
the pivot arm to the base and insert the pin (1).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
