Chevrolet Silverado / GMC Sierra. Manual - part 1465

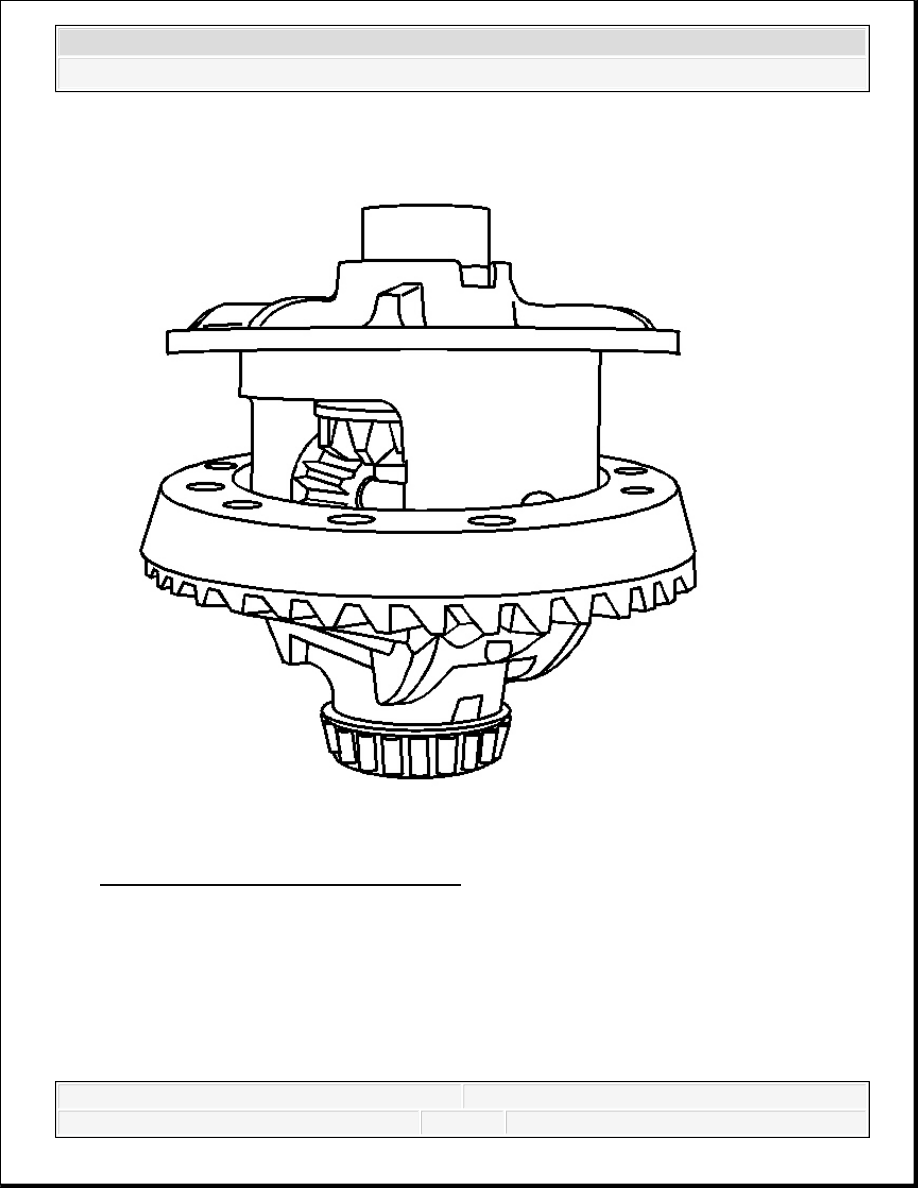

Fig. 229: Ring Gear & Differential Case
Courtesy of GENERAL MOTORS CORP.
7. Install the ring gear to the differential case.
IMPORTANT: The mating surface of the ring gear and the differential case
must be clean and free of burrs before installing the ring
gear.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

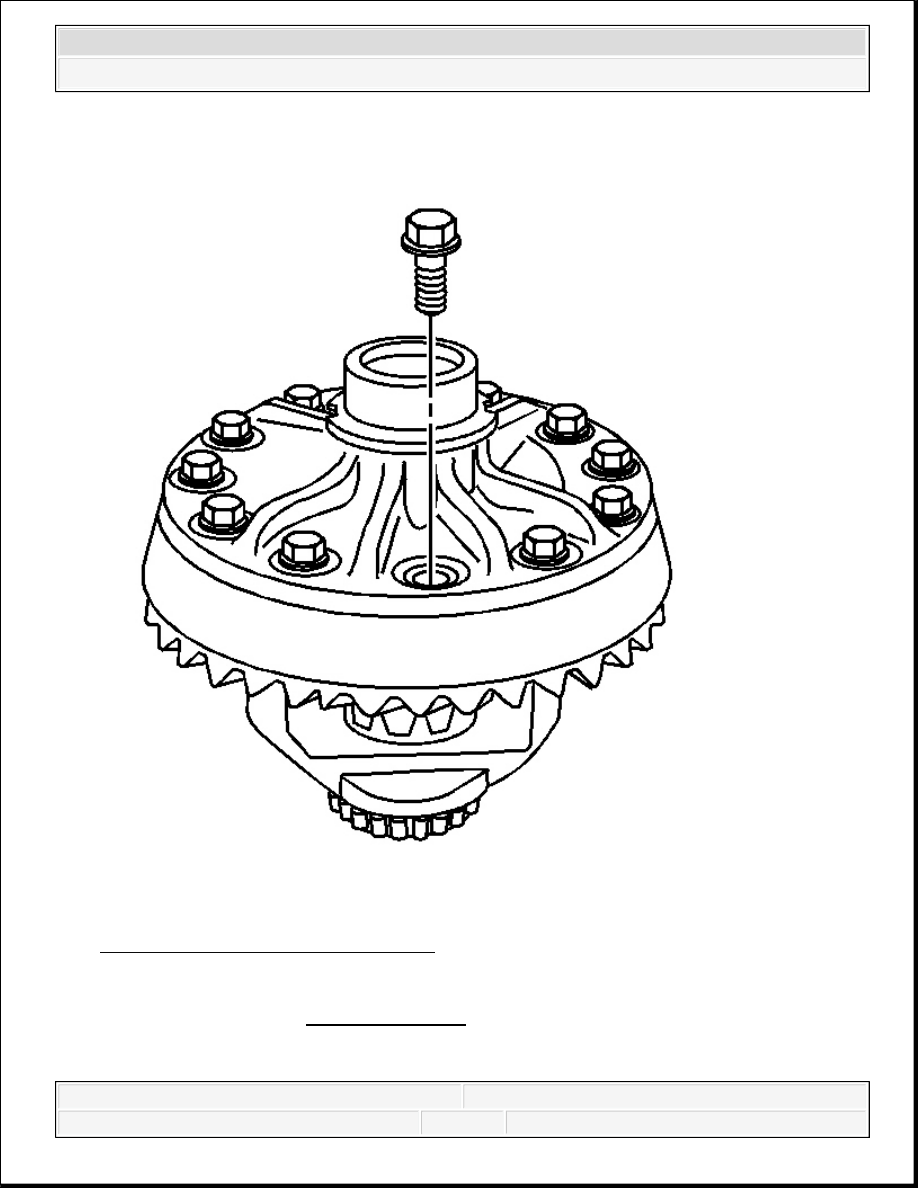

Fig. 230: Identifying Ring Gear Bolts
Courtesy of GENERAL MOTORS CORP.
NOTE:
Refer to Fastener Notice .
IMPORTANT: The ring gear bolts have right - hand threads.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
8. Install the new ring gear bolts.
Hand start each bolt in ensure the ring gear is properly installed to the differential case.
9. Tighten the ring gear bolts. Tighten the bolts alternately and in stages, gradually pulling the
ring gear onto the differential case.
Tighten: Tighten the ring gear bolts in sequence to 237 N.m (175 lb ft).
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

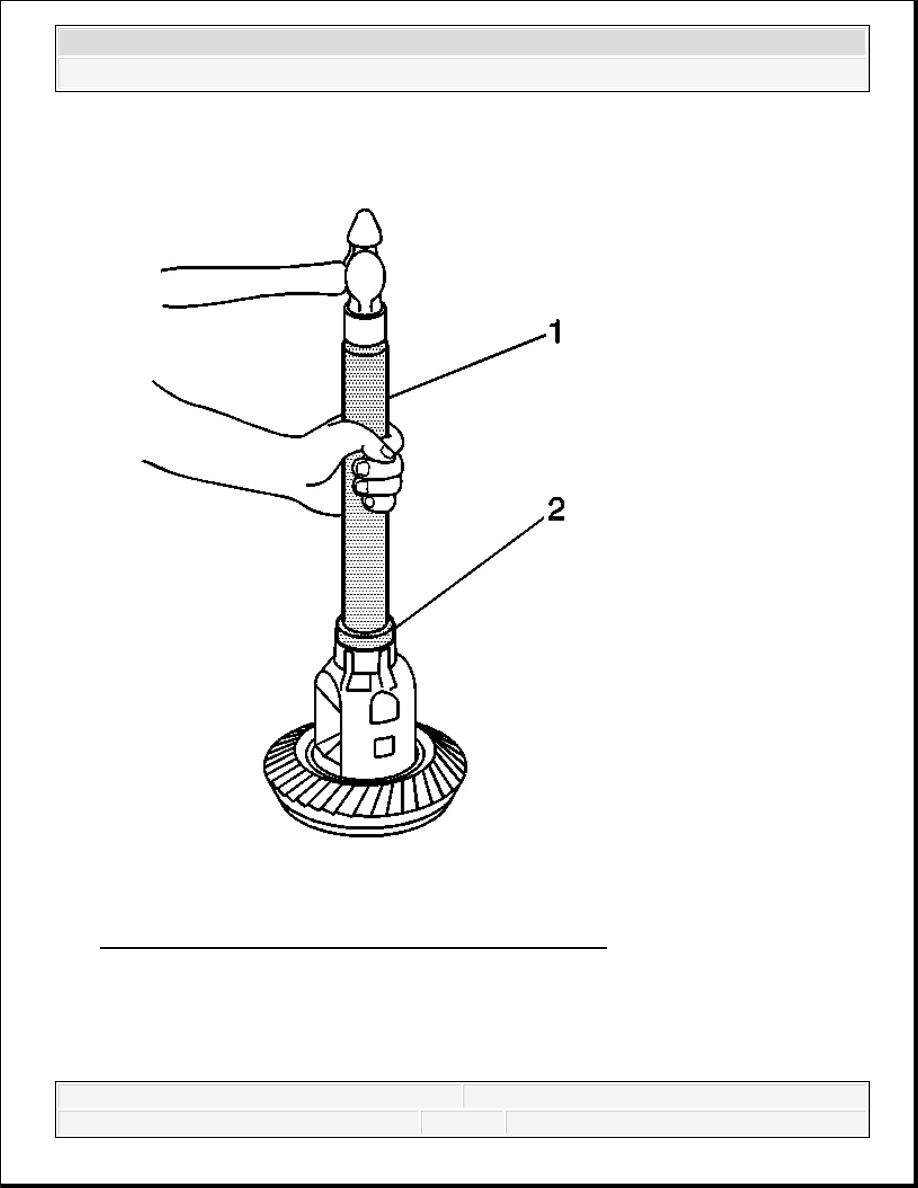

Fig. 231: Driving Differential Side Bearing Into Position
Courtesy of GENERAL MOTORS CORP.
10. Install the differential side bearings by performing the following steps:
1. In order to protect the differential case, install the J 8107-5 in the case on the side
opposite the bearing installation.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
